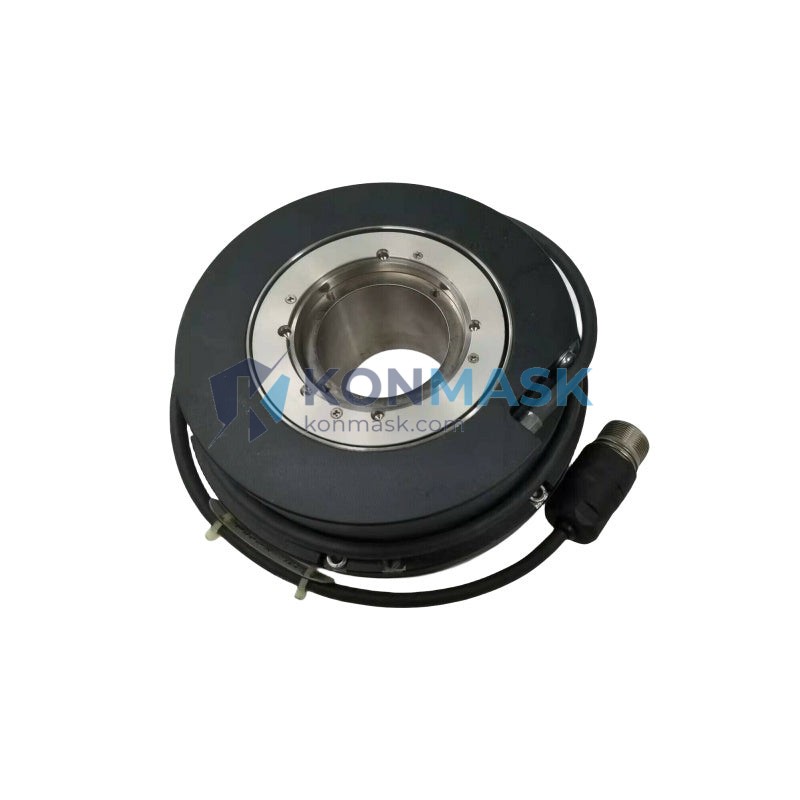

Heidenhain 785C.0003-18000 (311262-01) Rotary Encoder | Replacement, Equivalent & Selection Guide
The Heidenhain 785C.0003-18000 (order number 311262-01) is a high-resolution incremental rotary encoder designed for precision motion control, CNC machine tools, and servo drive systems. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make the right selection.
Technical Specifications
- Manufacturer: Heidenhain (DR. JOHANNES HEIDENHAIN GmbH)
- Model / SKU: 785C.0003-18000
- Order Number: 311262-01
- Series: 785C (Incremental Rotary Encoder)
- Signal Type: Incremental (TTL / RS-422 differential)
- Resolution: 18,000 lines/revolution
- Output Signals: A, B, R (reference pulse) with differential complement
- Supply Voltage: 5 V DC (±5%)
- Current Consumption: Typically ≤ 150 mA
- Operating Temperature: 0 °C to +70 °C
- Protection Class: IP64 (shaft side)
- Shaft Diameter: 6 mm (synchro flange)
- Connection: Radial cable / M23 connector (confirm with datasheet)
- Weight: Approx. 100 g
- Country of Origin: Germany
Note: Always verify specifications against the official Heidenhain datasheet for your specific revision before installation.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional equivalents or drop-in replacements for the Heidenhain 785C.0003-18000. Compatibility depends on mechanical mounting, signal interface, and resolution requirements.
- Heidenhain ERN 1381 18000 — Same series successor; direct electrical equivalent in many CNC retrofits
- Heidenhain ROD 426 18000 — Alternative incremental encoder with identical line count; different housing
- Heidenhain ERN 420 18000 — Compact form factor replacement; verify shaft and flange dimensions
- Sick/Stegmann DFS60 18000 — Third-party equivalent; TTL output, 18000 PPR, widely used in servo retrofits
- Baumer HOG 86 18000 — Industrial-grade alternative; confirm connector pinout before substitution
- Omron E6B2-CWZ1X 18000P/R — Budget-tier equivalent for non-critical applications; verify signal levels
Important: Konmask.com recommends using original Heidenhain parts for safety-critical or high-precision applications. Contact our team for cross-reference verification.
Why Choose the Original Model
- Guaranteed Accuracy: Factory-calibrated to ±1 arc-second accuracy — critical for CNC contouring and grinding applications
- Long Service Life: Heidenhain encoders are rated for >10,000 operating hours under rated conditions
- OEM Compatibility: Direct plug-and-play with Heidenhain TNC, iTNC, and third-party servo drives configured for Heidenhain signal protocol
- Traceability: Each unit ships with a calibration certificate and unique serial number for maintenance records
- Global Support: Backed by Heidenhain’s worldwide service network and spare parts availability
Typical Applications
- CNC machining centers (milling, turning, grinding)
- Servo motor feedback on Siemens, Fanuc, Mitsubishi, and Bosch Rexroth drives
- Rotary table and indexing axis position feedback
- Printing and packaging machinery
- Semiconductor wafer handling and inspection equipment
- Robotics joint position sensing
System Compatibility
The Heidenhain 785C.0003-18000 is compatible with the following control systems and drives (TTL/RS-422 encoder input required):
- Siemens: SINUMERIK 840D/828D, SINAMICS S120/S210 (with TTL encoder module)
- Fanuc: Series 0i, 30i, 31i (via external encoder interface)
- Mitsubishi: MELSERVO MR-J4/MR-J5 (TTL input mode)
- Bosch Rexroth: IndraDrive C/M series
- Heidenhain TNC: TNC 320, TNC 620, TNC 640 (native support)
- Beckhoff: EL5101 / EL5151 incremental encoder terminal
Selection Guide
Use the following criteria to confirm the 785C.0003-18000 is the right encoder for your application, or to select an appropriate alternative:
- Resolution: 18,000 lines/rev → suitable for high-precision positioning; if lower accuracy is acceptable, consider 5000 or 10000 PPR variants to reduce cost
- Signal Interface: TTL differential (RS-422) → ensure your drive/controller has a compatible incremental encoder input; if EnDat or SSI is required, select an absolute encoder instead
- Mechanical Fit: Verify shaft diameter (6 mm), flange type (synchro), and cable exit direction match your motor or machine mounting
- Environment: IP64 rated — suitable for light coolant splash; for heavy washdown environments, consider IP67 variants
- Budget vs. OEM: For production-critical machines, use original Heidenhain; for training rigs or non-critical retrofits, third-party equivalents may be acceptable
Quality Assurance & Sourcing
- All units sold by Konmask.com are sourced from authorized distributors or verified surplus channels
- Each encoder undergoes incoming inspection including signal output verification and physical condition check
- Original packaging, labels, and documentation are preserved where available
- Traceability records maintained for B2B and OEM customers upon request
- Warranty: 12 months from date of shipment (subject to terms)
How to Order
- Confirm your required model: Heidenhain 785C.0003-18000 / 311262-01
- Specify quantity and required delivery timeline
- Contact Konmask.com via email or phone for stock availability and pricing
- Receive proforma invoice → confirm payment → dispatch within 1–3 business days
- Tracking number provided upon shipment; DHL / FedEx / UPS international shipping available
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace the 785C.0003-18000 with an ERN 1381 18000?
A: In most cases yes — the ERN 1381 is the modern successor with the same line count and TTL output. Verify connector pinout and cable length before ordering.
Q: Is the 311262-01 the same as 785C.0003-18000?
A: Yes. 311262-01 is the Heidenhain order/part number; 785C.0003-18000 is the model designation. They refer to the same product.
Q: Will a third-party 18000 PPR encoder work on my Heidenhain TNC control?
A: Heidenhain TNC controls are optimized for Heidenhain encoders. Third-party TTL encoders may work electrically, but interpolation accuracy and reference pulse behavior may differ. Test thoroughly before production use.
Q: Do you offer repair or exchange service for the 785C.0003-18000?
A: Contact us at [email protected] to discuss repair, exchange, or refurbished unit options.
Q: What is the lead time for new stock?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical lead time is 2–6 weeks depending on availability.
