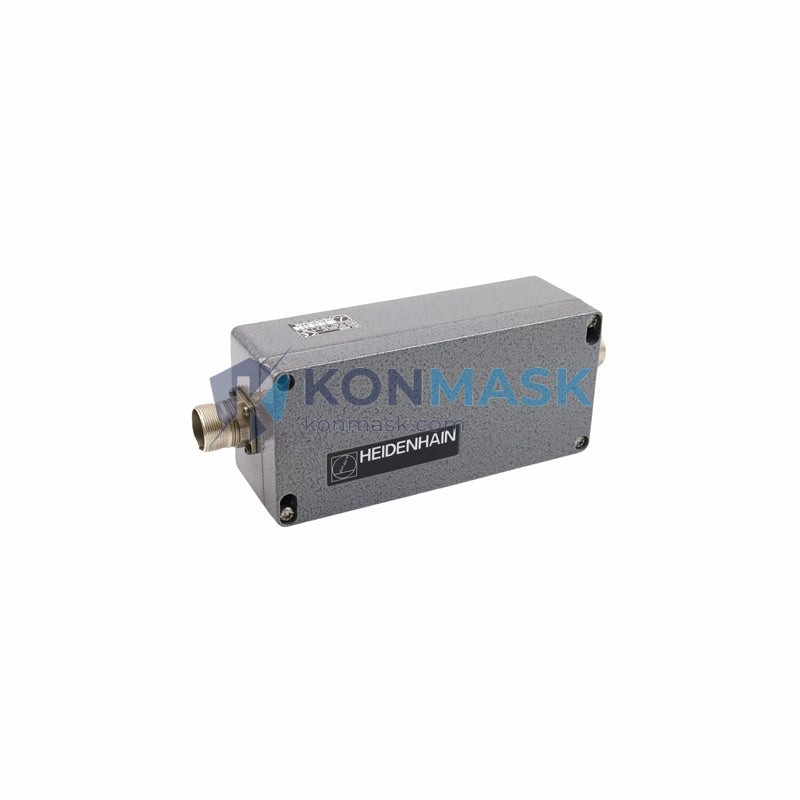

HEIDENHAIN IBV660B ID331923-01 – Encoder Signal Converter | IBV Series Platform
Engineering Background
HEIDENHAIN is a globally recognized manufacturer of precision measurement and control technology, headquartered in Traunreut, Germany. The IBV series represents HEIDENHAIN’s dedicated line of interpolation and signal conversion electronics, engineered to interface incremental encoders with downstream CNC controllers, drives, and motion systems. The IBV660B (ID331923-01) is a high-performance signal converter designed to condition, interpolate, and transmit encoder output signals with exceptional accuracy and noise immunity.
Product Positioning
The IBV660B ID331923-01 is positioned as a mission-critical interface component for precision machine tool, semiconductor, and industrial automation applications where signal integrity and deterministic timing are non-negotiable. It bridges HEIDENHAIN encoder outputs to standard TTL/RS-422 differential signal formats accepted by virtually all major CNC and servo drive platforms.
Complete Technical Specifications
| Manufacturer | HEIDENHAIN (Dr. Johannes Heidenhain GmbH) |
| Part Number / SKU | IBV660B ID331923-01 |
| Product Series | IBV Series – Interpolation & Signal Conversion Electronics |
| Function | Encoder Signal Converter / Interpolation Module |
| Signal Input | HEIDENHAIN 1 Vpp sinusoidal encoder signals |
| Signal Output | TTL / RS-422 differential square-wave signals |
| Compatible Encoders | HEIDENHAIN linear and rotary encoders with 1 Vpp output |
| Housing / Form Factor | DIN-rail or panel-mount module |
| Weight | 1,260 g |
| Country of Origin | Germany |
| Condition | New / Refurbished OEM (specify at inquiry) |
| Warranty | 12 months Konmask quality guarantee |
Proven Application Environments
- CNC Machine Tools – Milling centers, lathes, grinding machines requiring high-resolution position feedback
- Semiconductor Manufacturing Equipment – Wafer steppers and inspection systems demanding sub-micron signal fidelity
- Precision Metrology – CMMs and surface measurement systems with HEIDENHAIN linear scale integration
- Servo Drive Systems – Closed-loop servo amplifiers from Siemens, Fanuc, Mitsubishi, and Bosch Rexroth
- Robotics & Automation – Multi-axis robotic arms requiring synchronized encoder feedback
- Printing & Packaging Machinery – Register control systems with high-speed position sensing
Engineering Advantages
- High Signal Integrity – Differential RS-422 output provides superior noise immunity in industrial EMI environments
- Universal Compatibility – Standard TTL output interfaces directly with all major CNC controllers without additional signal conditioning
- Compact & Robust Design – Engineered for continuous 24/7 industrial duty cycles
- Plug-and-Play Integration – Direct replacement for existing IBV660B installations; no firmware changes required
- HEIDENHAIN OEM Lineage – Manufactured to HEIDENHAIN’s ISO 9001-certified production standards
- Long Service Life – Designed for 10+ year operational lifespan in controlled industrial environments
System Architecture & Signal Flow
The IBV660B accepts 1 Vpp sinusoidal signals from HEIDENHAIN incremental encoders via the standard EnDat/TTL interface connector. Internally, the module performs analog signal conditioning, interpolation, and conversion to differential TTL square-wave pulses. The output is transmitted via RS-422 balanced line drivers to the receiving CNC controller or servo drive, ensuring signal integrity over cable runs up to 100 m. The reference mark signal (Z-pulse) is preserved and transmitted in synchronization with the incremental A/B channels.
[HEIDENHAIN Encoder] → 1Vpp Sin/Cos → [IBV660B ID331923-01] → RS-422 TTL A/B/Z → [CNC Controller / Servo Drive]
Sourcing & Quality Verification
Konmask.com sources the HEIDENHAIN IBV660B ID331923-01 exclusively through verified OEM channels and authorized industrial distributors. Every unit undergoes the following verification process before dispatch:
- Visual inspection for physical damage, connector integrity, and label authenticity
- Functional signal output verification against HEIDENHAIN reference specifications
- Serialization check against HEIDENHAIN production records where applicable
- Anti-static packaging with humidity indicator cards for safe international transit
Procurement Process
- Submit Inquiry – Contact support@konmask.com with your required quantity and delivery timeline
- Receive Quotation – We provide a formal quotation with lead time, unit price, and shipping options within 24 hours
- Order Confirmation – Issue PO or proceed with online checkout; proforma invoice available for bank transfer
- Quality Inspection – Unit inspected and documented before dispatch
- Shipping & Tracking – Dispatched via DHL / FedEx with full tracking; export documentation provided
- After-Sales Support – 12-month warranty with technical support from our engineering team
Technical FAQ
Q: Is the IBV660B ID331923-01 compatible with Siemens SINUMERIK controllers?
A: Yes. The RS-422 TTL output of the IBV660B is fully compatible with Siemens SINUMERIK 840D/828D encoder input interfaces.
Q: Can this unit replace an existing IBV660B with a different ID number?
A: ID331923-01 is the specific hardware revision. Compatibility with other ID revisions depends on the firmware and connector pinout of your existing installation. Please contact our engineers for a compatibility assessment.
Q: What is the maximum interpolation factor of the IBV660B?
A: Please refer to the HEIDENHAIN IBV660B technical datasheet or contact support@konmask.com for detailed interpolation specifications for your specific application.
Q: Do you provide a certificate of conformity or test report?
A: Yes. A quality inspection report is available upon request for all units shipped from Konmask.com.
Q: What is the lead time for the IBV660B ID331923-01?
A: Standard lead time is 3–7 business days for in-stock units. Contact us for current availability.
