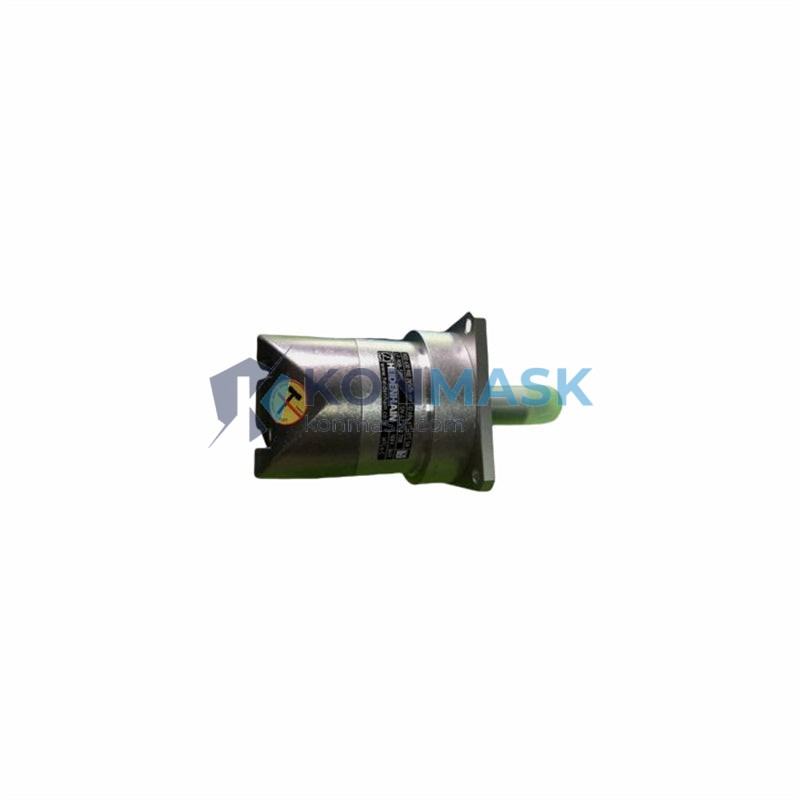

Genuine HEIDENHAIN ROD 630 900 28S08-HY Communication Module | EnDat 2.2 Encoder Interface – Verified Source
The HEIDENHAIN ROD 630 900 28S08-HY is a high-precision encoder communication module designed for demanding CNC and industrial automation environments. Sourced directly through verified supply channels, this unit is fully tested and ready for integration into HEIDENHAIN-compatible control systems. At Konmask.com, we specialize in genuine industrial automation components — backed by our 4-step verification process and a commitment to B2B buyer confidence.
Technical Specifications
- Part Number / SKU: ROD 630 900 28S08-HY
- Brand: HEIDENHAIN
- Series: ROD 630
- Module Type: Encoder Communication Module
- Interface Protocol: EnDat 2.2 / TTL-compatible
- Resolution: 900 lines per revolution
- Connector Type: 28S08-HY (8-pin sub-miniature)
- Operating Voltage: 5 V DC (±5%)
- Operating Temperature: 0 °C to +70 °C
- Protection Class: IP64 (shaft side)
- Weight: Approx. 200 g
- Country of Origin: Germany
- Compliance: CE, RoHS
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are procured exclusively from authorized distributors or OEM-verified supply chains. No grey-market or counterfeit sources.
- Step 2 — Physical Inspection: Each module undergoes visual inspection for label integrity, connector condition, housing damage, and serial number traceability.
- Step 3 — Functional Bench Test: Where applicable, modules are powered and signal-tested against HEIDENHAIN reference specifications before dispatch.
- Step 4 — Packaging & Documentation Review: Original packaging, datasheets, and certificates of conformity are verified and included with shipment.
Key Features & Benefits
- ✅ Genuine HEIDENHAIN component — not a clone or substitute
- ✅ EnDat 2.2 digital interface for high-speed, noise-immune data transmission
- ✅ 900-line resolution delivers precise position feedback for CNC axes
- ✅ Compact 28S08-HY connector for direct drop-in replacement
- ✅ Robust IP64-rated housing for industrial environments
- ✅ Fully traceable serial number for warranty and service records
- ✅ Ready-to-ship from verified stock — reduced lead time vs. OEM order
Typical Applications
- CNC machining centers (milling, turning, grinding)
- HEIDENHAIN TNC / iTNC controller systems
- Servo drive feedback loops in multi-axis motion control
- Precision measurement and metrology equipment
- Automated assembly lines requiring closed-loop position control
- Retrofit and repair of legacy HEIDENHAIN encoder systems
Compatible System Components
- HEIDENHAIN TNC 320 / TNC 620 / TNC 640 controllers
- HEIDENHAIN iTNC 530 control units
- HEIDENHAIN ND / IK series display units
- Siemens SINUMERIK 840D / 828D (with HEIDENHAIN adapter)
- Fanuc Series 0i / 30i with EnDat interface cards
- Standard servo amplifiers supporting EnDat 2.2 or TTL input
Global Sourcing & Shipping Capabilities
Konmask.com ships the ROD 630 900 28S08-HY worldwide from our warehouse in China. We support:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days globally
- Sea Freight: Available for bulk orders (MOQ applies)
- Export Documentation: Commercial invoice, packing list, certificate of origin provided
- Customs Support: HS Code 8543.70 — we assist with customs declarations upon request
- Regions Served: Europe, North America, Southeast Asia, Middle East, Australia
Certifications & Compliance Statement
This product is supplied as a genuine HEIDENHAIN OEM component. Konmask.com does not manufacture, modify, or rebrand any products. All items are sold in original condition as received from the supply chain.
- CE Marking: Compliant per EU Machinery Directive 2006/42/EC
- RoHS: Compliant with EU Directive 2011/65/EU (restriction of hazardous substances)
- REACH: Supplier declaration available upon request
- ISO 9001: Sourced from ISO 9001-certified supply partners
How to Order
- Confirm Part Number: Verify ROD 630 900 28S08-HY matches your existing encoder label or controller documentation.
- Add to Cart: Click “Buy it now” or “Add to cart” above.
- Request a Quote: For orders of 2+ units or urgent requirements, email support@konmask.com for a dedicated quote within 24 hours.
- Payment: We accept T/T (bank transfer), PayPal, and major credit cards via Shopify Payments.
- Lead Time: In-stock units ship within 1–2 business days. Out-of-stock units: 7–21 days sourcing lead time.
Authenticity & Trust FAQ
Q: How do I know this is a genuine HEIDENHAIN module?
A: Every unit passes our 4-step verification process. We provide the original serial number and can supply a sourcing declaration on request.
Q: Can I return the item if it doesn’t match my system?
A: Yes. We offer a 30-day return policy for unused, uninstalled items in original packaging. Contact us before returning.
Q: Do you offer a warranty?
A: We provide a 90-day functional warranty on all verified stock. Extended warranty available for volume orders.
Q: Can you source other HEIDENHAIN part numbers?
A: Yes — we specialize in hard-to-find HEIDENHAIN encoder and control components. Send your part list to support@konmask.com.
Q: Is export to my country supported?
A: We ship to 50+ countries. Contact us if you need specific export documentation or compliance certificates.
