HIMA F8627 AUSG F8627.03 – Ethernet Communication Module | HIMax Safety PLC Platform
Engineering Background

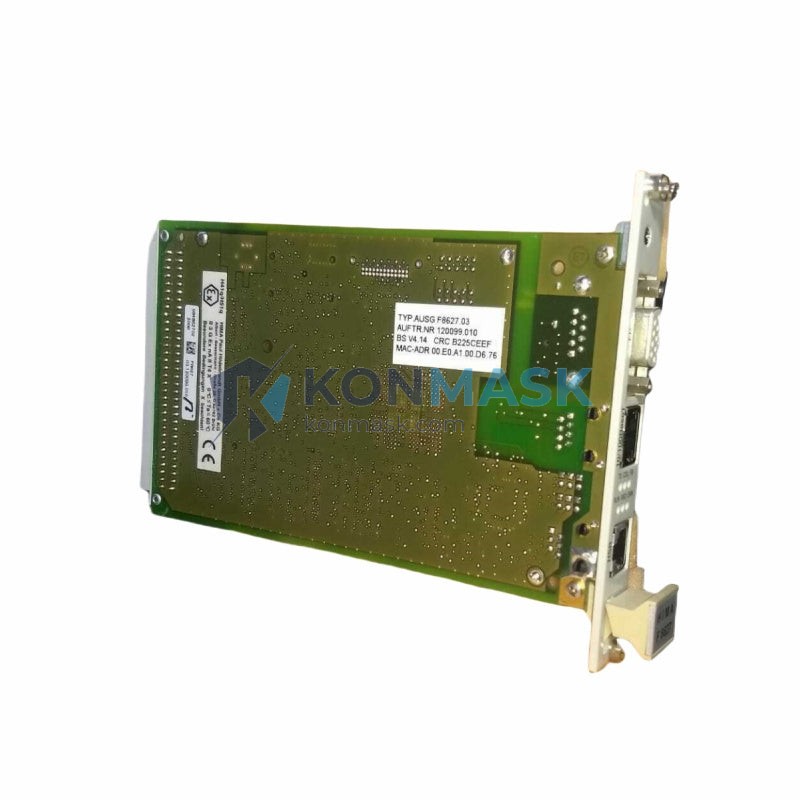

The HIMA F8627 (AUSG F8627.03) is a dedicated Ethernet communication module engineered for the HIMax safety programmable logic controller platform — HIMA’s flagship large-scale safety system designed for process industries requiring IEC 61508 SIL 3 compliance. As a core I/O and network interface component, the F8627.03 enables high-speed deterministic Ethernet communication between the HIMax central processing unit and field devices, distributed I/O racks, or supervisory SCADA/DCS networks.
Product Positioning
Targeted at procurement engineers and automation integrators sourcing certified spare parts or expansion modules for existing HIMax installations, the F8627 AUSG F8627.03 is a factory-original HIMA module. Konmask.com supplies this module from verified industrial surplus and authorized distribution channels, with full traceability documentation available upon request.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | F8627 / AUSG F8627.03 |
| Manufacturer | HIMA Paul Hildebrandt GmbH (Germany) |
| Platform Compatibility | HIMax Safety PLC System |
| Module Function | Ethernet Communication Module |
| Communication Interface | Ethernet (IEEE 802.3) |
| Safety Integrity Level | IEC 61508 SIL 3 Capable |
| Country of Origin | Germany (DE) |
| HS Code | 8531.80 |
| Module Weight | Approx. 1,250 g |
| Operating Temperature | 0°C to +60°C (typical HIMax range) |
| Mounting | HIMax backplane rack-mount |
| Certification | TÜV-certified, IEC 61508, IEC 61511 |
| Power Supply | Via HIMax backplane (internal bus) |
| Protocol Support | HIMA SafeEthernet™, standard Ethernet TCP/IP |
Proven Application Environments
- Oil & Gas: Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), and pipeline safety interlocks requiring SIL 3 network redundancy.
- Petrochemical & Refining: Distributed HIMax rack communication across large process units with high-availability Ethernet backbone requirements.
- Power Generation: Turbine protection and boiler safety systems where deterministic Ethernet communication is critical for fault-tolerant operation.
- Chemical Processing: Reactor safety systems integrating HIMax PLCs with DCS platforms via Ethernet gateways.
- Offshore Platforms: Harsh-environment safety instrumented systems (SIS) requiring certified, rack-mounted communication modules.
Engineering Advantages
- SIL 3 Architecture: Designed and certified for use within HIMA’s HIMax safety system, supporting the highest functional safety integrity levels per IEC 61508.
- HIMA SafeEthernet™ Protocol: Proprietary safety communication layer ensures fail-safe data transmission with built-in error detection, sequence monitoring, and watchdog supervision.
- Hot-Swap Capability: Supports online module replacement within the HIMax platform, minimizing planned and unplanned downtime in continuous-process environments.
- Deterministic Latency: Engineered for real-time safety applications where communication cycle time predictability is a hard requirement.
- Redundancy Support: Compatible with HIMax redundant CPU and I/O architectures for 1oo2D and 2oo3 voting configurations.
- Compact Form Factor: Standard HIMax module footprint enables direct slot-for-slot replacement in existing rack assemblies without mechanical modification.
System Architecture & Signal Flow
Within the HIMax system architecture, the F8627 AUSG F8627.03 module occupies a dedicated communication slot on the HIMax backplane. The module interfaces directly with the HIMax CPU subsystem via the internal high-speed backplane bus, and presents one or more Ethernet ports to the external network infrastructure.
Signal flow: Field Devices / Remote I/O → Ethernet Network → F8627.03 Module → HIMax Backplane Bus → HIMax CPU (Safety Logic Execution) → Output Actuation
In redundant configurations, paired F8627 modules operate in active/standby or parallel modes, with automatic bumpless switchover managed by the HIMax operating system. All communication is supervised by HIMA’s SafeEthernet™ protocol stack, which provides end-to-end data integrity verification independent of the underlying Ethernet physical layer.
Sourcing & Quality Verification
- Origin Traceability: All HIMA modules supplied by Konmask.com are sourced from verified industrial channels including authorized distributors, certified surplus, and decommissioned plant inventories with documented provenance.
- Pre-Shipment Inspection: Each unit undergoes visual inspection for physical integrity, label verification (part number, revision, serial number), and connector condition assessment prior to dispatch.
- Documentation Package: Factory datasheet, CE declaration of conformity, and TÜV certification references available upon request for engineering review and site acceptance testing (SAT) documentation.
- Packaging: Anti-static ESD packaging with foam cushioning; double-boxed for international freight to prevent transit damage.
- Warranty: 12-month functional warranty against manufacturing defects; return authorization (RMA) process available for DOA claims.
Procurement Process
- Submit RFQ: Contact Konmask.com via email at [email protected] or WhatsApp/WeChat at +0086 19859288691 with your required quantity and delivery timeline.
- Quotation & Lead Time: Receive a formal quotation within 1 business day, including unit price (HKD/USD), available stock quantity, and estimated lead time (typically 3–7 business days for in-stock items).
- Order Confirmation: Issue a Purchase Order (PO) referencing part number F8627 / AUSG F8627.03. Pro-forma invoice issued upon PO receipt.
- Payment: T/T bank transfer, PayPal, or other agreed terms. Full payment or agreed deposit required before shipment.
- Shipment & Tracking: Dispatched via DHL Express, FedEx, or UPS with full tracking. Export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support: Technical support available post-delivery for installation verification and commissioning queries.
Technical FAQ
Q: Is the F8627 AUSG F8627.03 compatible with all HIMax system generations?
A: The F8627.03 is designed for the HIMax platform. Compatibility with specific HIMax firmware versions and rack configurations should be verified against your system’s hardware compatibility matrix (HCM). Contact Konmask.com for compatibility confirmation with your system revision.
Q: Can this module be used as a direct replacement for an earlier F8627 revision?
A: HIMA uses revision suffixes (e.g., .01, .02, .03) to denote hardware revisions. Cross-revision compatibility is generally maintained within the same HIMax generation, but we recommend confirming with your HIMA system documentation or contacting our technical team before substitution.
Q: Does Konmask.com provide a test report or functional test certificate?
A: Functional bench testing is available as an optional pre-shipment service. Please specify this requirement at the RFQ stage. A test report documenting power-on status and communication port activity can be provided.
Q: What is the typical lead time for this module?
A: For in-stock units, lead time is 3–7 business days including pre-shipment inspection. For sourced units, lead time is 7–21 business days depending on supply chain availability.
Q: Can Konmask.com supply multiple units for a plant-wide spare parts program?
A: Yes. Konmask.com supports bulk procurement for spare parts programs. Volume pricing and staggered delivery schedules are available. Contact us with your annual demand forecast for a framework agreement quotation.
