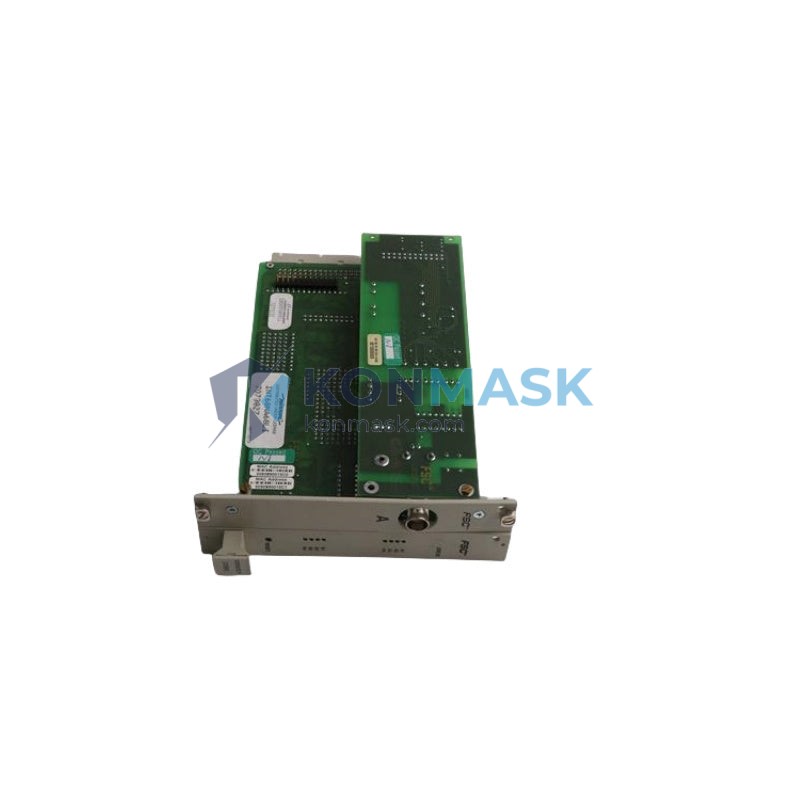

Honeywell 10004/H/F – DCS Serial Communication Interface Module | TDC/TPS Platform
Engineering Background
The Honeywell 10004/H/F is a serial communication interface module designed for integration within Honeywell’s TDC 3000 and TPS (Total Plant Solution) distributed control system architectures. Engineered to handle high-reliability data exchange between field devices and the process control network, this module is a critical component in legacy and hybrid DCS environments across refining, petrochemical, power generation, and continuous manufacturing sectors.
Product Positioning
As a procurement-grade replacement and spare part, the 10004/H/F is sourced to support ongoing plant operations, scheduled maintenance turnarounds, and emergency spares programs. Konmask.com supplies this module with full traceability documentation and pre-shipment functional verification to minimize downtime risk for engineering and maintenance teams.
Complete Technical Specifications
| Part Number | 10004/H/F |
| Manufacturer | Honeywell Process Solutions |
| Module Type | Serial Communication Interface Card |
| Platform Compatibility | Honeywell TDC 3000 / TPS DCS |
| Communication Protocol | Serial (RS-232 / RS-422 / RS-485 compatible) |
| Form Factor | Card / PCB Module |
| Operating Temperature | 0°C to 60°C (standard industrial range) |
| Weight | 700 g (approx.) |
| Condition Available | New surplus / Refurbished / Used tested |
| Warranty | 12 months (Konmask standard) |
| Lead Time | In stock – ships within 3–5 business days |
Proven Application Environments
- Petroleum refining and upstream oil & gas DCS networks
- Petrochemical and specialty chemical continuous process control
- Power generation plant automation (coal, gas, combined cycle)
- Pulp & paper and water treatment facility control systems
- Pharmaceutical batch and continuous manufacturing
- Legacy TDC 3000 to TPS migration and hybrid system support
Engineering Advantages
- Drop-in Compatibility: Direct replacement for existing 10004/H/F slots — no firmware reconfiguration required in standard deployments.
- Robust Serial Interface: Supports multi-drop serial topologies with noise immunity suitable for industrial plant floor environments.
- Proven Field Reliability: Honeywell TDC/TPS modules are renowned for MTBF performance exceeding 100,000 hours in continuous operation.
- Reduced Downtime Risk: Stocking this module as a critical spare eliminates extended lead times from OEM channels during unplanned outages.
- Broad System Integration: Compatible with Honeywell’s UCN, LCN, and HG network architectures within TPS environments.
System Architecture & Signal Flow
Within the TDC/TPS architecture, the 10004/H/F resides in the controller cabinet and manages serial data exchange between field-level devices (transmitters, actuators, analyzers) and the process control network. Data is serialized, error-checked, and forwarded to the Local Control Network (LCN) or Universal Control Network (UCN) for supervisory processing. The module supports both point-to-point and multi-drop wiring configurations, enabling flexible field device integration without additional signal converters.
Sourcing & Quality Verification
- All units inspected for physical integrity: PCB, connectors, and labeling.
- Functional bench test performed prior to shipment where applicable.
- Serialization and revision level documented for traceability.
- Anti-static packaging with humidity indicator card included.
- Certificate of conformance available upon request.
- Counterfeit-risk mitigation: sourced from verified industrial surplus channels only.
Procurement Process
- Submit RFQ via Konmask.com product page or email support@konmask.com.
- Receive quote with availability confirmation and lead time within 24 hours.
- Issue PO — accepted formats: bank transfer (T/T), PayPal, trade assurance.
- Pre-shipment inspection report provided upon request.
- Shipment via DHL / FedEx / UPS with full tracking and export documentation.
- Post-delivery technical support available from Konmask engineering team.
Technical FAQ
Q: Is the 10004/H/F compatible with both TDC 3000 and TPS systems?
A: Yes. The module is designed for use across Honeywell’s TDC 3000 and TPS DCS platforms. Confirm your cabinet slot and backplane revision before ordering.
Q: What is the difference between 10004/H/F and similar Honeywell part variants?
A: The /H/F suffix denotes specific hardware and firmware revision levels. Always match the exact part number to your system’s BOM or contact Konmask for cross-reference assistance.
Q: Can Konmask provide a test report before shipment?
A: Yes. Functional test reports and inspection documentation are available upon request for critical spare orders.
Q: What is the warranty coverage?
A: Konmask provides a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Q: Do you support urgent / emergency orders?
A: Yes. Contact us directly at +0086 19859288691 for expedited processing and same-day shipping where stock permits.
