Honeywell 2MLC-E121 – Extension Cable for Miniature Limit Switches | MICRO SWITCH™ Series
Engineering Background

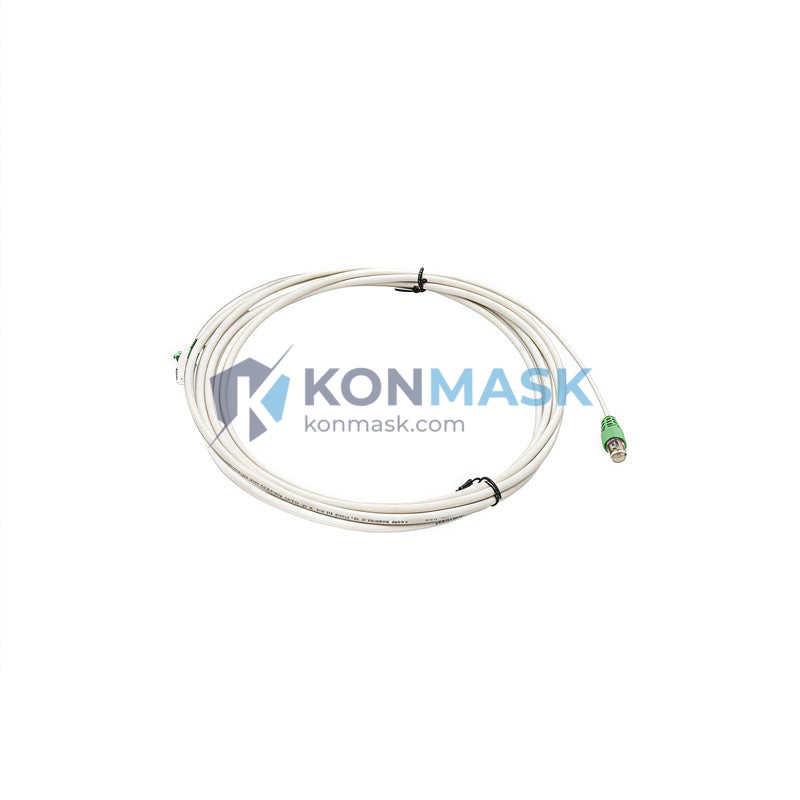

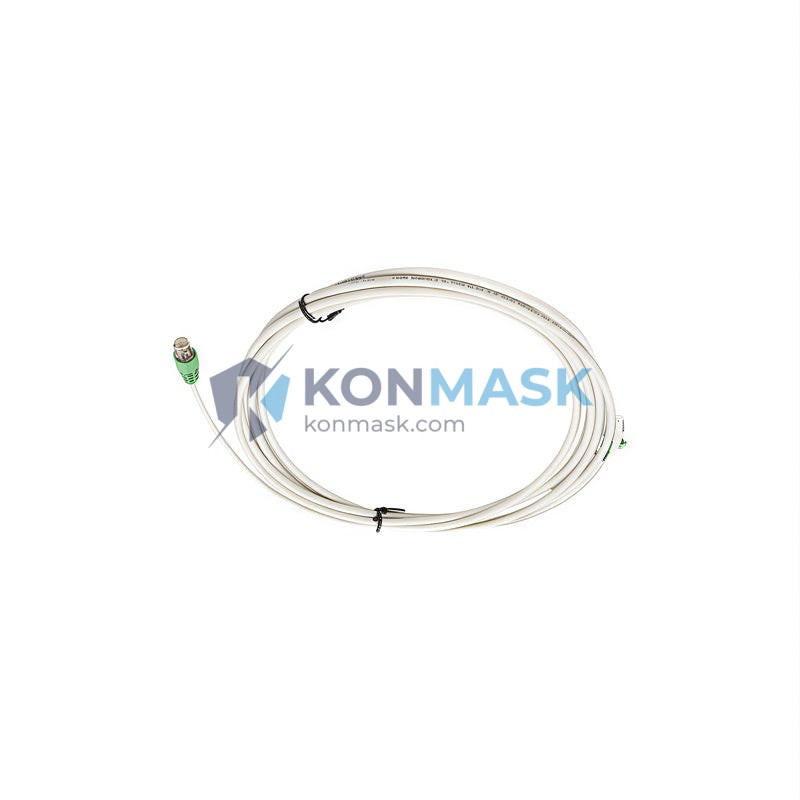

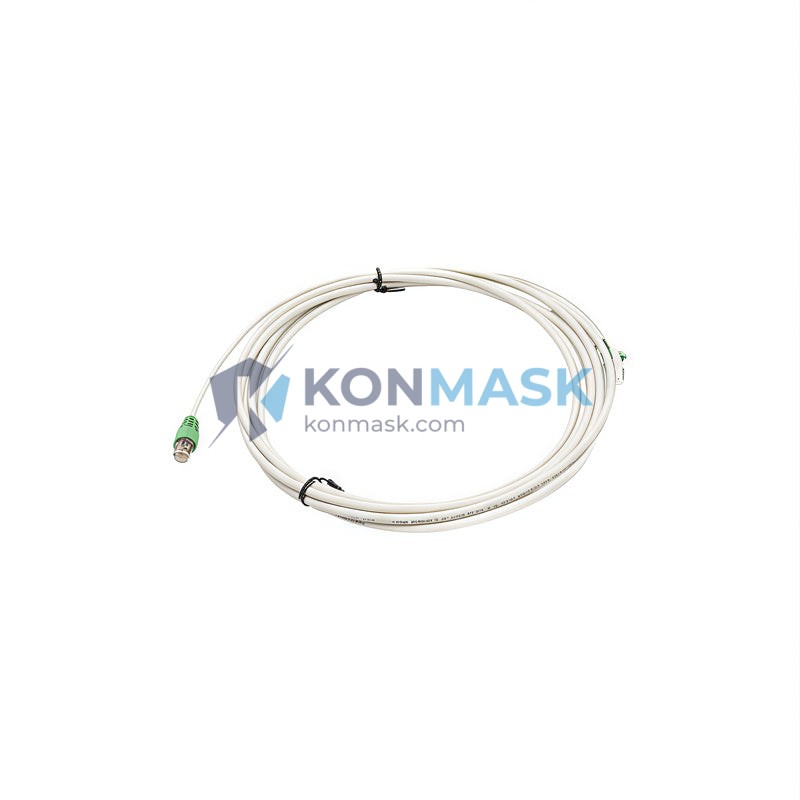

The Honeywell 2MLC-E121 is a factory-engineered extension cable designed specifically for the MICRO SWITCH™ miniature limit switch family. It enables signal and power routing in constrained panel layouts where direct wiring to the switch body is impractical, reducing installation time and eliminating field-fabricated cable assemblies that introduce variability and failure risk.
Product Positioning
Targeted at OEM machine builders, panel integrators, and MRO procurement engineers who require a certified, drop-in cable extension that maintains the electrical and mechanical integrity of the original switch circuit. The 2MLC-E121 is the correct accessory for applications demanding repeatable, vibration-resistant connections in industrial environments.
Complete Technical Specifications
- Part Number / SKU: 2MLC-E121
- Manufacturer: Honeywell Sensing & Safety Technologies
- Series / Platform: MICRO SWITCH™ Miniature Limit Switch Accessories
- Type: Extension Cable Assembly
- Compatible Switch Series: 2MLC / MLC miniature limit switch family
- Connector Style: Pre-terminated, plug-in design for direct mating with 2MLC series switch bodies
- Cable Construction: Multi-conductor, industrial-grade insulation
- Weight: 280 g (nominal, including connectors)
- Country of Origin: Refer to product label / Honeywell datasheet
- RoHS Compliance: Compliant (verify current revision with Honeywell datasheet)
- Operating Temperature: Per MICRO SWITCH™ series specification — consult Honeywell datasheet for rated range
Proven Application Environments
- CNC machine tool panels with limited wiring access
- Automated assembly lines requiring remote limit switch mounting
- Packaging machinery with high-cycle, vibration-prone wiring runs
- Semiconductor and electronics manufacturing equipment
- Food & beverage processing lines (consult IP rating of mated switch)
- MRO replacement for worn or damaged OEM cable assemblies
Engineering Advantages
- OEM-matched termination: Factory-crimped connectors eliminate field wiring errors and ensure rated contact resistance
- Signal integrity: Shielded construction (where applicable) minimises EMI-induced noise on low-level switch signals
- Mechanical retention: Positive-locking connector body resists vibration-induced disconnection
- Reduced installation time: Plug-and-play design vs. field-fabricated assemblies
- Traceability: Honeywell part number ensures full supply-chain traceability for ISO-audited facilities
System Architecture & Signal Flow
The 2MLC-E121 inserts between the 2MLC series switch body and the machine control panel terminal block or PLC input card. Signal flow: Switch Actuator → Switch Body Contacts → 2MLC-E121 Extension Cable → Panel Terminal / PLC DI Module. The cable preserves the normally-open (NO) and normally-closed (NC) contact states without signal conditioning, making it transparent to the control system.
Sourcing & Quality Verification
- All units sourced through authorised Honeywell distribution channels or verified surplus with full traceability documentation
- Pre-shipment inspection: visual, dimensional, and continuity verification
- Packaging: original Honeywell packaging or equivalent ESD-safe anti-static bag with part label
- Certificate of Conformance (CoC) available upon request for regulated industries
- Counterfeit-mitigation: hologram / date-code verification performed on all stock
Procurement Process
- Confirm compatibility: verify your switch model is within the 2MLC / MLC family
- Confirm quantity and lead-time requirements with our team
- Submit PO or place order directly via Konmask.com
- Receive order confirmation with tracking within 1 business day
- Expedited shipping available for urgent MRO requirements
Technical FAQ
Q: Is the 2MLC-E121 compatible with all MICRO SWITCH™ miniature limit switches?
A: It is designed for the 2MLC series. Verify connector pinout against your specific switch model before ordering.
Q: Can this cable be used in outdoor or wash-down environments?
A: The cable’s environmental rating depends on the mated switch’s IP rating. Consult the Honeywell datasheet for the complete assembly IP classification.
Q: Do you provide datasheets or wiring diagrams?
A: Yes. Contact support@konmask.com and reference part number 2MLC-E121 to request documentation.
Q: What is the minimum order quantity (MOQ)?
A: No minimum order quantity. Single-unit orders accepted.
Q: Can you supply in bulk for OEM production?
A: Yes. Contact us for volume pricing and scheduled delivery arrangements.
