Honeywell 51195153-902 Drop Cable Set 2.5M | Replacement, Equivalent & Selection Guide

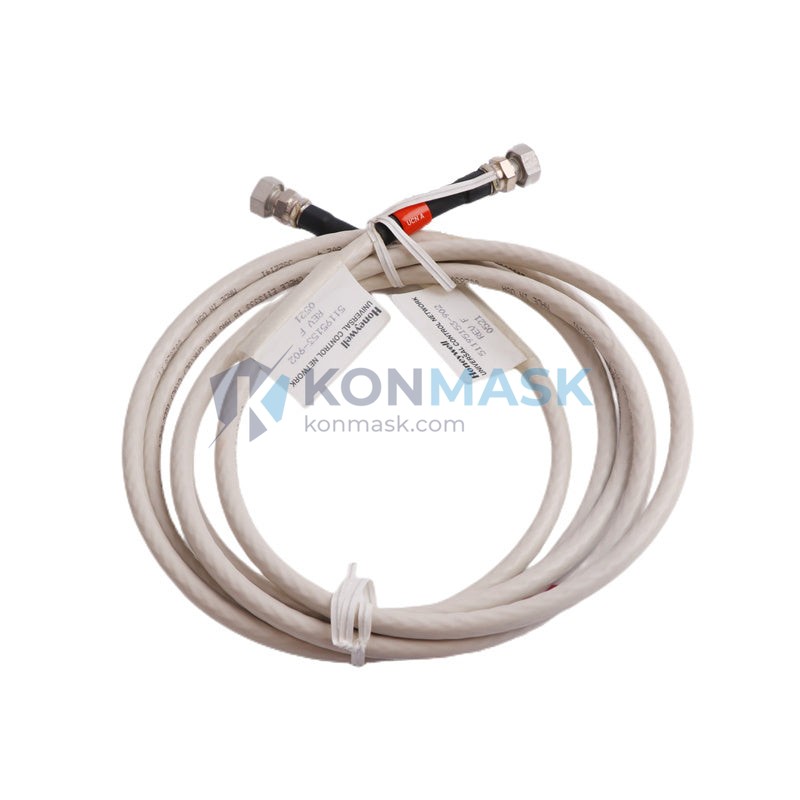

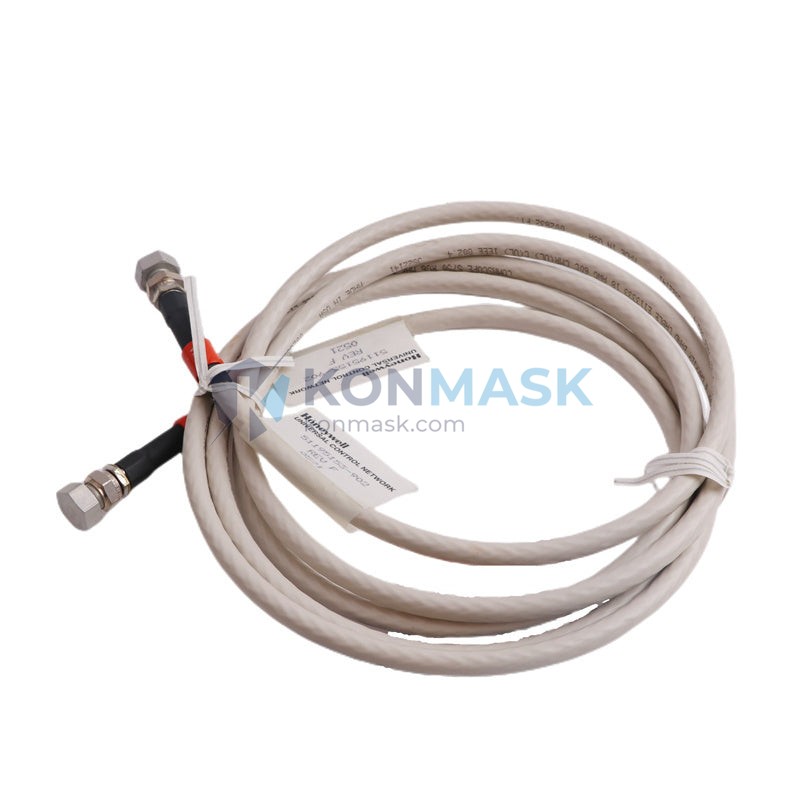

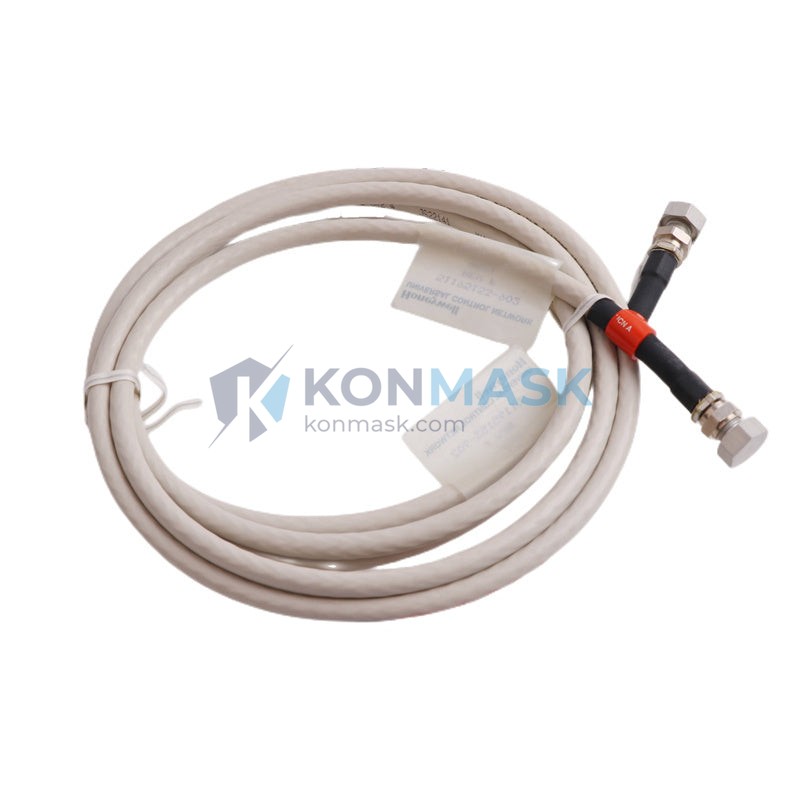

The Honeywell 51195153-902 is a 2.5-metre Drop Cable Set designed for use within Honeywell’s Distributed Control System (DCS) infrastructure, specifically the TDC 3000 / Experion PKS platform. It provides reliable field-level signal interconnection between I/O modules, marshalling panels, and field junction boxes in process automation environments.
Selection Background
Industrial buyers frequently search for replacement and equivalent options for the 51195153-902 when the original cable is discontinued, lead times are extended, or when performing system upgrades and cross-brand migrations. Understanding compatible substitutes and functional equivalents is critical to maintaining uptime without compromising signal integrity or system certification. This guide consolidates that information to support informed procurement decisions.
Technical Specifications
| Part Number | 51195153-902 |
| Manufacturer | Honeywell Process Solutions |
| Description | Drop Cable Set |
| Cable Length | 2.5 Metres ⚑ (critical for replacement matching) |
| Connector Type | DCS-standard multi-pin connector (both ends) |
| Application Platform | Honeywell TDC 3000 / Experion PKS / PlantScape |
| Signal Type | Analog & Digital I/O field wiring |
| Shielding | Overall foil shield with drain wire ⚑ (critical for EMI immunity) |
| Temperature Rating | -20°C to +70°C (operating) |
| Weight | Approx. 160 g |
| Compliance | CE, RoHS |
⚑ Parameters marked are the most critical when evaluating any replacement or equivalent option.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These are OEM or factory-authorised variants that can replace the 51195153-902 without any modification:
- Honeywell 51195153-902 (new production run) – Identical part, re-issued under the same SKU. Confirm revision level with Konmask before ordering.
- Honeywell 51195153-902-R – Revised variant (if applicable); verify connector pinout matches your cabinet revision.
2. Functional Equivalents
These alternatives share the same electrical and mechanical function but may differ in jacket colour, connector housing, or minor dimensional tolerances. Suitable for most applications after verification:
- Honeywell 51195153-900 – 2.0 m variant; usable if routing allows a shorter run. Confirm slack requirements.
- Honeywell 51195153-904 – 4.0 m variant; suitable when additional cable length is needed for panel re-routing.
- Custom-length assemblies built to 51195153-series specification – available through Konmask on request.
3. Cross-Brand Alternatives
Third-party cable assemblies that meet the electrical specification of the 51195153-902. Prerequisites: verify connector pinout, shielding continuity, and system certification requirements before installation.
- Belden / Molex custom assemblies to Honeywell DCS cable spec – consult Konmask for drawing reference.
- Phoenix Contact pre-terminated cable sets – applicable in non-SIL-rated loops only; confirm with your system integrator.
- Generic shielded multi-conductor assemblies – acceptable for non-critical analog loops; not recommended for SIS or safety-rated circuits.
Why Choose the Original Model
- Precision-matched connectors: OEM tooling ensures zero-tolerance fit with Honeywell I/O termination blocks, eliminating intermittent contact faults.
- System certification integrity: Using the original part preserves CE, UL, and SIL loop certifications; third-party substitutes may require re-validation.
- Full backward compatibility: Guaranteed compatibility across all TDC 3000, Experion PKS, and PlantScape cabinet revisions without pinout verification.
- Honeywell technical support coverage: Fault diagnosis and warranty claims remain valid only when OEM cables are installed.
- Consistent signal quality: Factory-specified shielding and conductor gauge maintain noise immunity in high-EMI process environments.
- Traceable quality assurance: Each OEM cable ships with Honeywell’s factory test certification and full material traceability documentation.
Typical Applications
- Refinery & Petrochemical: Field I/O wiring between DCS cabinets and marshalling panels in continuous process units.
- Power Generation: Turbine control and boiler management systems using Honeywell Experion PKS controllers.
- Pharmaceutical Manufacturing: GMP-compliant process control wiring in batch reactor and clean-room environments.
- Pulp & Paper: Multi-loop analog signal interconnection in digester and recovery boiler control systems.
- Chemical Processing: Hazardous-area I/O cabling where shielding integrity is mandatory for intrinsic safety compliance.
- Water & Wastewater Treatment: SCADA-linked DCS field wiring in pump stations and treatment plant control rooms.
System Compatibility
The 51195153-902 is designed to work within the following Honeywell DCS ecosystem components:
- 51195153-series I/O Termination Assemblies – Matched termination blocks for analog and digital I/O cards
- Honeywell HC900 / Experion PKS C300 Controllers – Primary process controllers in the target platform
- 51304485-100 / -150 Series I/O Link Cables – Upstream I/O bus interconnects
- Honeywell MC-TAIH02 / MC-TAIH04 Analog Input Modules – Typical destination modules for field signal termination
- Marshalling Cabinet Backplanes (TDC 3000 series) – Cabinet-side termination infrastructure
- Field Junction Boxes (FJB) – Site-side termination enclosures in process areas
Selection Guide
Answer these three questions to confirm the 51195153-902 — or its replacement — is the right choice for your application:
- Does your cabinet revision match? Confirm your Honeywell DCS cabinet model and I/O card revision. Some later Experion PKS revisions use updated connector housings — contact Konmask to cross-reference.
- Is 2.5 m the correct cable length? Measure the routing distance from the I/O card slot to the field termination point, including bend radius allowance. If a different length is needed, Konmask can source the correct 51195153-series variant.
- Is this circuit safety-rated (SIL/SIS)? If yes, only the OEM 51195153-902 should be used to maintain loop certification. If no, functional equivalents may be evaluated — contact Konmask for a compatibility assessment.
📩 Not sure which option fits your system? Contact Konmask at support@konmask.com — we respond within 24 hours.
Quality Assurance & Sourcing
Konmask sources the 51195153-902 exclusively through authorised distribution channels and verified surplus networks with full traceability:
- Authorised Honeywell distributor stock (new, factory-sealed)
- Certified surplus from decommissioned plant inventories (tested, with documentation)
- Factory-direct procurement for volume orders
4-Step Inspection Process:
- Visual inspection – Connector housing, jacket condition, labelling, and date codes verified against OEM specification.
- Continuity & insulation resistance test – All conductors and shield drain wire tested end-to-end.
- Connector mating test – Physical fit verified against reference termination block.
- Documentation review – Part number, revision, and country of origin confirmed against shipping documentation.
Available documentation upon request: Certificate of Conformance (CoC), Material Test Report (MTR), Packing List with OEM part number, Photos of physical unit and label.
How to Order
- Submit your enquiry – Email support@konmask.com with your part number (51195153-902), required quantity, and any compatibility questions.
- Receive quote & availability confirmation – Konmask will respond within 24 hours with pricing, lead time, and stock status.
- Confirm & ship – Upon order confirmation, items are packed with full documentation and dispatched via your preferred freight method.
📞 Phone / WhatsApp: +0086 19859288691 | 📧 Email: support@konmask.com
Replacement & Compatibility FAQ
Q1: Can I use a third-party cable as a substitute for the Honeywell 51195153-902?
A: In non-safety-rated analog I/O loops, a functional substitute with matching connector pinout, conductor gauge, and shielding specification may be acceptable. However, for SIL-rated or safety-instrumented circuits, only the OEM 51195153-902 should be used to maintain system certification. Contact Konmask for a case-by-case compatibility assessment.
Q2: Is the 51195153-902 compatible with both TDC 3000 and Experion PKS systems?
A: Yes. The 51195153-902 is compatible with both legacy TDC 3000 and current Experion PKS platforms, provided the I/O card and termination block revisions match. Konmask can verify compatibility against your specific cabinet configuration before shipment.
Q3: What is the equivalent cable if the 51195153-902 is discontinued or unavailable?
A: The closest functional equivalents within the same series are the 51195153-900 (2.0 m) and 51195153-904 (4.0 m). For a direct-length equivalent, Konmask can arrange custom assemblies built to the original specification. Contact us with your system details for a tailored recommendation.
