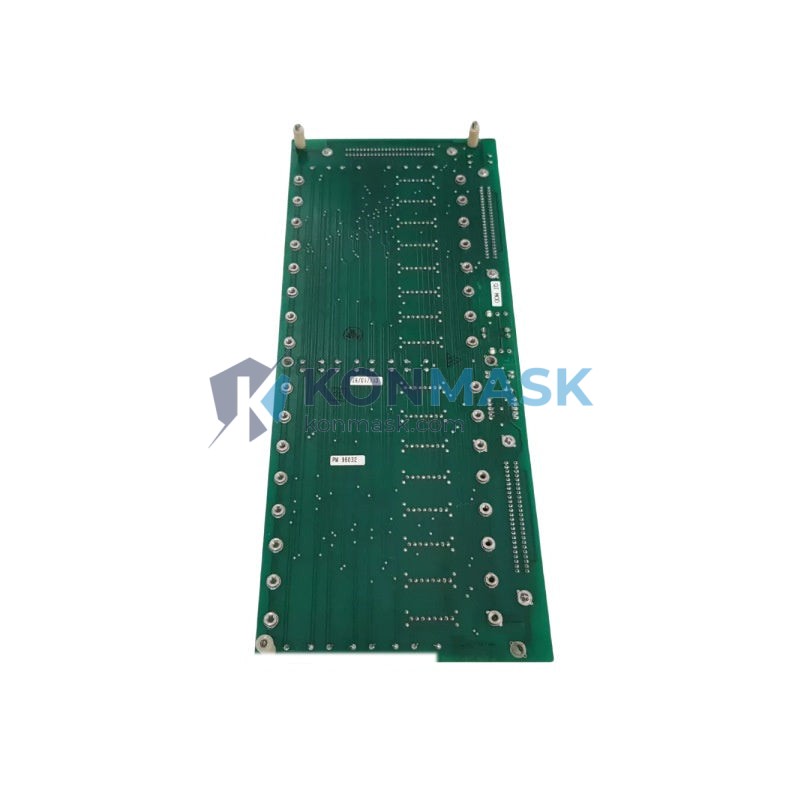

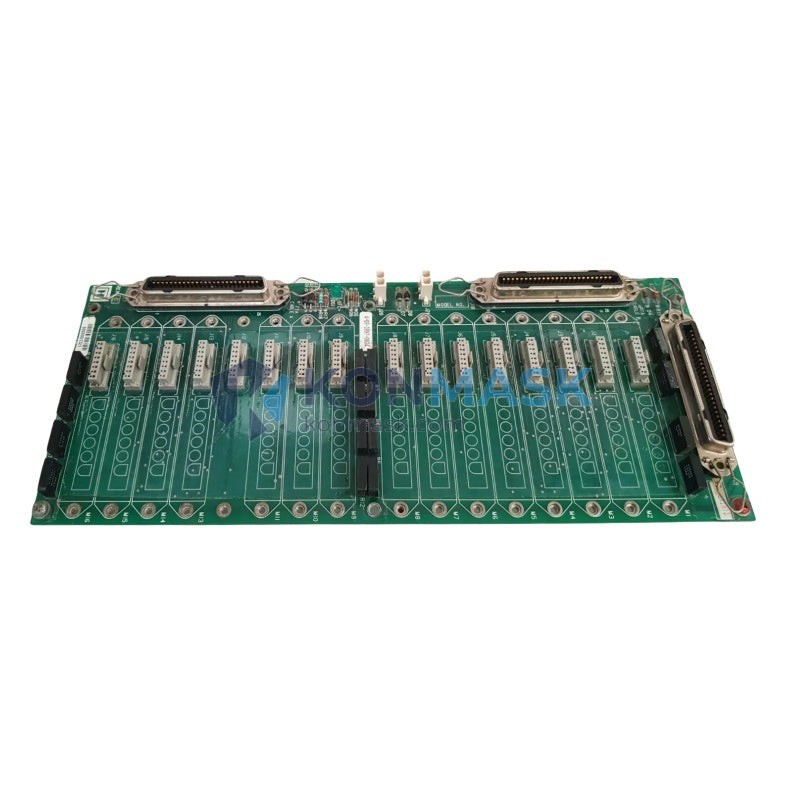

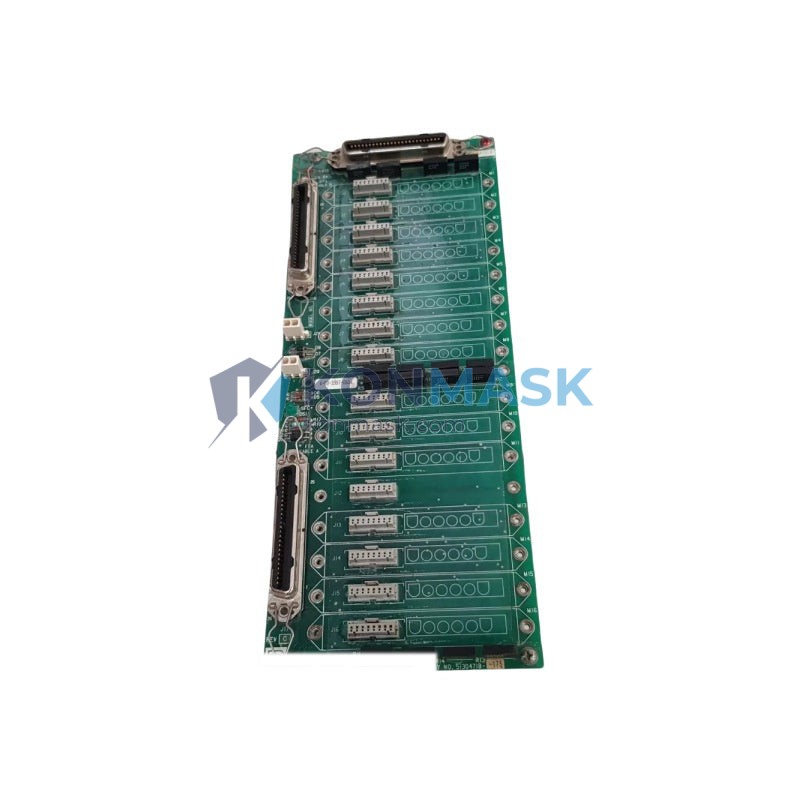

Honeywell 51304718-175 Gas Analyzer Module | Replacement, Equivalent & Selection Guide
The Honeywell 51304718-175 is an industrial-grade Gas Analyzer Module designed for use within Honeywell’s TDC 3000 / TotalPlant Solution (TPS) distributed control systems. This module provides continuous, real-time gas composition analysis critical to process safety, emissions monitoring, and combustion optimization in refining, petrochemical, and power generation environments.
At Konmask.com, we specialize in sourcing genuine, tested, and equivalent replacement modules for industrial automation systems. This page serves as a comprehensive selection and replacement reference for engineers and procurement teams.
Technical Specifications
- Part Number: 51304718-175
- Manufacturer: Honeywell Process Solutions
- Series: TDC 3000 / TotalPlant Solution (TPS)
- Module Type: Gas Analyzer Interface / Signal Processing Module
- Form Factor: Card/Module (rack-mounted)
- Communication: Honeywell proprietary LCN / UCN bus
- Power Supply: Supplied via backplane (DCS rack)
- Operating Temperature: 0°C to 60°C
- Weight: Approx. 1,200 g
- Compliance: CE, UL listed (verify with datasheet)
- Condition Available: New, Refurbished, Tested
Compatible Replacement & Equivalent Models
The following modules are known compatible replacements or functional equivalents for the Honeywell 51304718-175. Always verify firmware revision and backplane slot compatibility before substitution.
| Part Number | Manufacturer | Compatibility Notes |
|---|---|---|
| 51304718-150 | Honeywell | Earlier revision; verify firmware compatibility |
| 51304718-200 | Honeywell | Upgraded revision; drop-in replacement in most TPS racks |
| 51304718-100 | Honeywell | Base variant; limited feature set vs. -175 |
| 51309276-175 | Honeywell | Alternate series; confirm I/O mapping before swap |
Contact our technical team at support@konmask.com to confirm cross-reference compatibility for your specific system revision.
Why Choose the Original Model
- Guaranteed Compatibility: Engineered specifically for Honeywell TDC 3000 / TPS architecture — no firmware patching required.
- Proven Reliability: Field-tested in continuous process environments with high uptime requirements.
- OEM Support: Eligible for Honeywell factory support, calibration, and warranty programs.
- Regulatory Compliance: Meets process safety and emissions monitoring standards (SIL, ATEX where applicable).
- Reduced Integration Risk: Eliminates compatibility unknowns associated with third-party substitutes.
Typical Applications
- Refinery flue gas and stack emissions monitoring
- Combustion optimization in boilers and furnaces
- Petrochemical process gas analysis (H₂, CO, CO₂, O₂, CH₄)
- Power plant continuous emissions monitoring systems (CEMS)
- Offshore platform gas detection and safety interlocks
- Chemical plant process control and quality assurance
System Compatibility
- DCS Platform: Honeywell TDC 3000, TotalPlant Solution (TPS), Experion PKS (via legacy interface)
- Rack Compatibility: Standard Honeywell LCN/UCN card cage
- Software: Compatible with Honeywell HMIWeb, Station, and GUS operator interfaces
- Firmware: Confirm revision level with your system integrator prior to installation
Selection Guide
Use the following criteria to select the correct gas analyzer module for your application:
- Step 1 – Identify your DCS platform: Confirm TDC 3000 vs. TPS vs. Experion PKS architecture.
- Step 2 – Check the suffix revision: The -175 suffix denotes a specific hardware/firmware revision. Mismatched revisions may cause communication faults.
- Step 3 – Verify slot type: Confirm card cage slot type (LCN vs. UCN) and available backplane power.
- Step 4 – Define gas species: Ensure the module supports the target gas components (O₂, CO, CO₂, NOx, etc.).
- Step 5 – Confirm certifications: For hazardous area installations, verify ATEX/IECEx zone classification.
- Step 6 – Request a quote: Contact support@konmask.com with your system details for a tailored recommendation.
Quality Assurance & Sourcing
All modules supplied by Konmask.com undergo the following quality process:
- Visual inspection and physical integrity check
- Functional power-on test and communication verification
- Firmware revision documentation
- Anti-static packaging and secure international shipping
- Traceability documentation available on request
We source from authorized distributors, certified refurbishers, and verified surplus channels. Counterfeit-free guarantee backed by our sourcing policy.
How to Order
- Online: Add to cart directly on this page (stock permitting).
- Email RFQ: support@konmask.com — include part number, quantity, and required condition (new/refurbished).
- Phone/WhatsApp: +0086 19859288691
- Lead Time: Typically 3–10 business days depending on stock and origin.
- Payment: T/T wire transfer, PayPal, and other B2B payment methods accepted.
- Shipping: DHL, FedEx, UPS worldwide. Export documentation provided.
Replacement & Compatibility FAQ
Q: Can the 51304718-175 replace the 51304718-150 directly?
A: In most cases yes, but firmware revision differences may require a system configuration update. Consult your DCS engineer before swapping.
Q: Is a refurbished module reliable for continuous process use?
A: Yes, when sourced from a reputable supplier with documented testing. All Konmask refurbished modules are functionally tested and include a warranty period.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC and test reports are available upon request for all orders.
Q: What is the lead time for new OEM stock?
A: New OEM stock typically ships within 5–10 business days. Refurbished units are often available for faster dispatch.
Q: Can you source obsolete or discontinued Honeywell modules?
A: Yes. Konmask specializes in hard-to-find and obsolete industrial automation parts. Contact us with your full part number and revision.
