HONEYWELL 51309355-001 PC Board | Replacement, Equivalent & Selection Guide

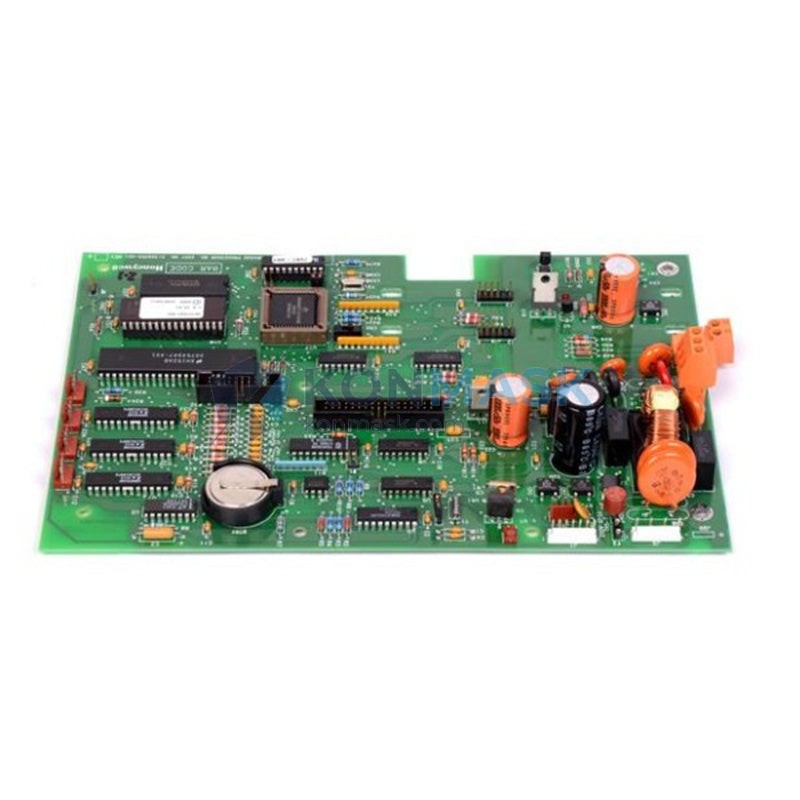

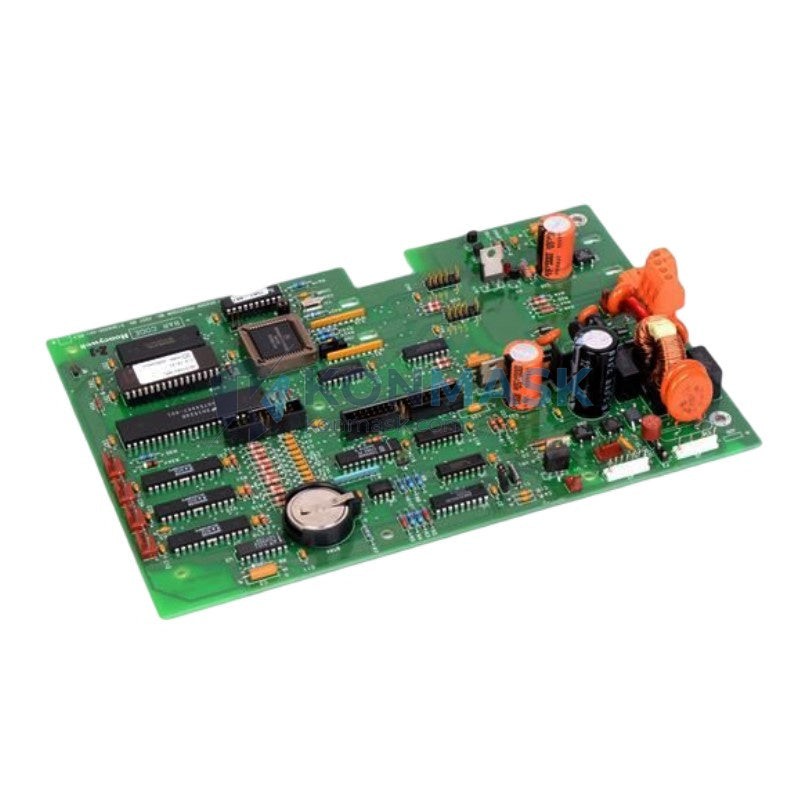

The HONEYWELL 51309355-001 is a printed circuit board (PC Board) designed for use within Honeywell’s TDC 3000 / PlantScape / Experion distributed control system (DCS) platform. It serves as a core processing or communication card within the control node architecture, ensuring reliable signal processing and system coordination in continuous process environments.
Selection Background
Industrial buyers frequently search for 51309355-001 replacement, 51309355-001 equivalent, or 51309355-001 substitute when the original board is discontinued, damaged, or requires a spare for critical uptime assurance. Understanding compatible alternatives—and their limitations—is essential before committing to a replacement decision. This guide consolidates that information to support accurate, risk-aware sourcing.
Technical Specifications
- Part Number: 51309355-001
- Manufacturer: Honeywell Process Solutions
- Product Type: PC Board / Printed Circuit Board
- Compatible Platform: Honeywell TDC 3000, PlantScape, Experion PKS
- Form Factor: Card/module format for DCS rack installation
- Operating Temperature: 0°C to 60°C (typical DCS card range)
- Power Supply: Supplied via DCS backplane (5 VDC / 24 VDC typical)
- Communication Interface: Honeywell proprietary backplane bus
- Firmware: Factory-loaded; revision-specific compatibility required
- Certifications: CE, UL (platform-level); RoHS compliant
- Weight: ~150 g
- ⚠️ Key Replacement Parameters: Firmware revision, slot position, and backplane bus version are critical compatibility factors when evaluating any substitute.
Compatible Replacement & Equivalent Models
Before substituting any board, verify firmware revision, rack slot assignment, and system software version with your DCS documentation.
1. Direct Drop-in Replacements
These are Honeywell-issued revisions or reissues of the same functional board:
- 51309355-002 / -003 — Later revisions of the same board; confirm firmware compatibility with your system version before swapping.
- 51309355-001 (refurbished/tested) — Fully tested pull-outs from decommissioned systems; functionally identical when properly tested.
2. Functional Equivalents
Boards with equivalent function within the same Honeywell platform, requiring configuration verification:
- 51304485-100 / 51304485-150 — Functionally similar PC boards used in adjacent TDC 3000 node types; slot and firmware compatibility must be confirmed.
- 51401288-100 — Potential functional equivalent depending on node type; requires engineering review.
3. Cross-Brand Alternatives
Third-party or cross-platform alternatives are not recommended for this board type due to Honeywell’s proprietary backplane architecture. Cross-brand substitution requires full system re-engineering and is only viable during platform migration projects. Contact Konmask for migration consultation.
Why Choose the Original Model
- Precision & Reliability: Factory-calibrated to Honeywell’s exact signal processing tolerances; no field calibration required.
- Platform Certification: Fully certified for TDC 3000 / Experion PKS; maintains system SIL and functional safety ratings.
- Firmware Compatibility: Ships with the correct firmware revision pre-loaded, eliminating version mismatch risk.
- Seamless Integration: Plug-and-play with existing Honeywell DCS racks; no re-engineering or re-wiring required.
- OEM Warranty & Support: Eligible for Honeywell lifecycle support programs and extended service agreements.
- Audit & Compliance: Original part number preserves plant asset register integrity and simplifies regulatory audits.
Typical Applications
- Oil & Gas Refining: DCS control node replacement in crude distillation and hydrocracking units.
- Chemical Processing: Continuous reactor monitoring and interlock systems requiring high-availability boards.
- Power Generation: Boiler management and turbine control systems running on TDC 3000 platforms.
- Pulp & Paper: Process control nodes managing digester and recovery boiler operations.
- Pharmaceuticals: GMP-compliant batch control systems where validated hardware is mandatory.
- Water Treatment: SCADA-integrated DCS nodes for pump station and filtration control.
System Compatibility
The 51309355-001 is designed for use within the following Honeywell system components:
- TDC 3000 High-Performance Process Manager (HPM) — Primary host node for process control loops.
- TDC 3000 Local Control Network (LCN) — Communication backbone connecting control nodes.
- Honeywell Universal Control Network (UCN) — Field device communication layer.
- Experion PKS C300 Controller — Next-generation platform with backward compatibility considerations.
- Honeywell Power Supply 51190294-100 — Standard rack power supply for TDC 3000 nodes.
- Honeywell DCS Rack / Card Cage — Standard 19″ rack housing for TDC 3000 cards.
Selection Guide
Answer these three questions before finalizing your order:
- Is your system running TDC 3000, PlantScape, or Experion PKS? — This board is designed for Honeywell DCS platforms only. If you are running a different platform, contact Konmask for a cross-platform assessment.
- What firmware revision does your current board carry? — Check the board label or your system documentation. Revision mismatches can cause communication faults. Konmask can advise on compatible revisions.
- Do you need an immediate spare or a long-term replacement strategy? — Konmask offers both tested refurbished units for urgent needs and new/equivalent sourcing for planned maintenance windows.
Not sure? Contact Konmask at support@konmask.com — our engineers will confirm compatibility before you commit to an order.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources the 51309355-001 through authorized distributors, certified surplus channels, and direct OEM partnerships. All units are traceable to original manufacturing documentation.
4-Step Inspection Process:
- Visual Inspection: Check for physical damage, corrosion, burnt components, and connector integrity.
- Functional Test: Power-on test in a compatible test rack to verify board initialization and communication.
- Firmware Verification: Confirm firmware revision matches the customer’s system requirements.
- Final QC & Packaging: Anti-static packaging, serialized labeling, and shipment with inspection report.
Documentation Available Upon Request: Test reports, certificate of conformance (CoC), material traceability records, and customs/export documentation.
How to Order
- Submit Your Inquiry: Email support@konmask.com with your part number (51309355-001), required quantity, and any firmware or revision requirements.
- Receive Confirmation & Quote: Konmask will confirm stock availability, compatibility, and pricing within 24 hours.
- Confirm & Ship: Upon order confirmation, units are inspected, packaged, and dispatched with full documentation.
📞 +0086 19859288691 | ✉️ support@konmask.com
Replacement & Compatibility FAQ
Q1: Can I use the 51309355-002 as a direct replacement for the 51309355-001?
A: In most cases, yes — the -002 revision is a functional equivalent and drop-in substitute for the -001. However, you must verify that your system’s firmware and software version support the -002 revision. Contact Konmask for a compatibility check before ordering.
Q2: Is the 51309355-001 compatible with Experion PKS systems?
A: The 51309355-001 was originally designed for TDC 3000 platforms. Compatibility with Experion PKS depends on the specific node type and system configuration. Konmask recommends an engineering review before using this board as an equivalent in an Experion environment.
Q3: Are there any third-party substitutes or cross-brand equivalents for the 51309355-001?
A: Due to Honeywell’s proprietary backplane architecture, true cross-brand substitutes do not exist for this board. Any replacement must be a Honeywell-manufactured board or a tested equivalent from the same product family. Konmask does not recommend non-OEM substitutes for safety-critical DCS applications.
