HONEYWELL MC-TAOY22 51204172-175 UCN Analog Output | Replacement, Equivalent & Selection Guide

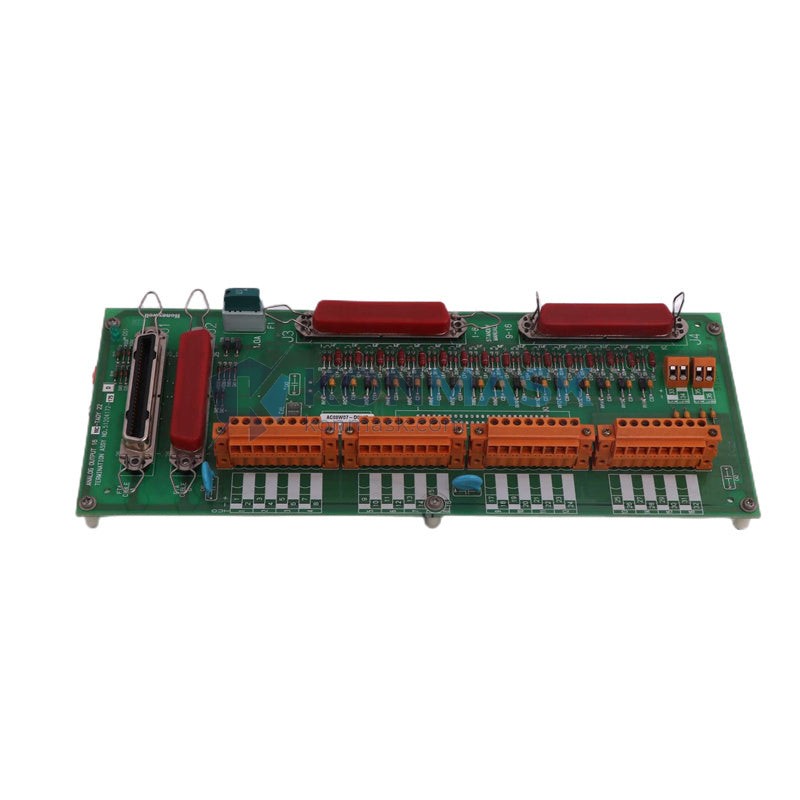

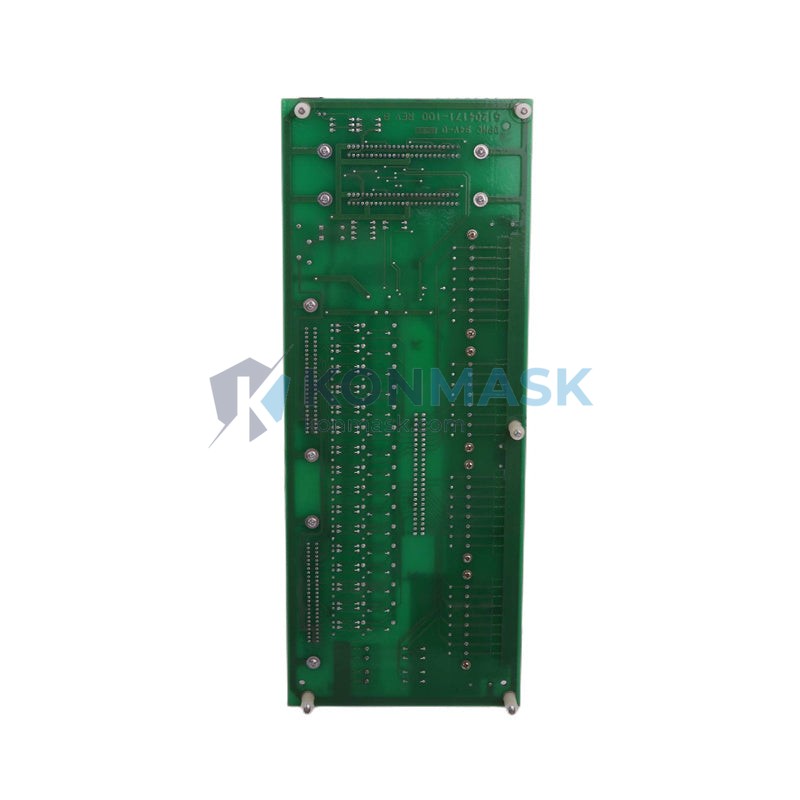

The HONEYWELL MC-TAOY22 (P/N 51204172-175) is a UCN (Universal Control Network) Analog Output module designed for use within Honeywell’s TDC 3000 / PlantScape / Experion PKS distributed control systems. It provides precision analog signal output for final control elements such as control valves, variable-speed drives, and positioners in process automation environments.
Selection Background
When sourcing a replacement or equivalent for the MC-TAOY22 51204172-175, buyers must evaluate firmware revision compatibility, UCN bus protocol support, and I/O channel count. Many procurement teams search for MC-TAOY22 substitute, 51204172-175 equivalent, or Honeywell UCN analog output replacement when the original module is discontinued, damaged, or on extended lead time. This guide consolidates that information to support accurate, risk-free selection decisions.
Technical Specifications
| Part Number | MC-TAOY22 / 51204172-175 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | UCN Analog Output |
| Output Channels | 8 channels (4–20 mA, isolated) ⚠️ Key parameter for replacement matching |
| Output Signal | 4–20 mA DC, current-sourcing |
| Resolution | 12-bit D/A conversion |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Communication Bus | UCN (Universal Control Network) ⚠️ Must match for drop-in replacement |
| Power Supply | 24 VDC (supplied via backplane) |
| Operating Temperature | 0°C to 60°C |
| Certifications | CE, UL, FM (Class I Div 2 capable variants) |
| Form Factor | Standard TDC 3000 / Experion card cage module |
| Weight | 400 g (approx.) |
Compatible Replacement & Equivalent Models
Direct Drop-in Replacements — Same form factor, UCN bus, and I/O count; can be swapped without reconfiguration in most cases:
- HONEYWELL MC-TAOY22 51204172-175 (same P/N, different production batch)
- HONEYWELL 51204172-175 (bare part number reference)
Prerequisite: Verify firmware revision matches the existing system baseline. Consult Honeywell release notes before installation.
Functional Equivalents — Same UCN protocol and analog output function; may require minor configuration or firmware update:
- HONEYWELL MC-TAOY11 — 4-channel UCN Analog Output variant; suitable if channel count can be reduced
- HONEYWELL 51309276-175 — Alternate P/N for UCN AO modules in certain Experion PKS revisions
Note: Confirm channel mapping and I/O assignment in the system database before substitution.
Cross-Brand Alternatives — Functionally similar analog output modules from other DCS platforms; require engineering re-mapping and are not plug-compatible:
- ABB AI830A / AO820 series — 4–20 mA AO modules for ABB 800xA; requires full I/O re-engineering
- Emerson DeltaV MD Plus AO — 8-channel analog output; requires DeltaV migration project
- Yokogawa AAI543 — Analog output for CENTUM VP; not UCN-compatible, migration required
⚠️ Cross-brand alternatives are only recommended for full system migration projects. Contact Konmask for migration feasibility assessment.
Why Choose the Original Model
- Precision Output: 12-bit D/A resolution ensures tight loop control accuracy critical for regulatory control in refining and chemical processes.
- OEM Certification: Factory-certified for Honeywell TDC 3000 and Experion PKS environments; no re-validation required upon replacement.
- UCN Bus Compatibility: Native UCN protocol support eliminates gateway hardware and latency risks associated with cross-brand substitutes.
- Channel Isolation: Full channel-to-channel isolation prevents fault propagation across output loops — essential for safety-critical applications.
- Technical Support: Konmask provides pre-sales compatibility verification and post-sales technical assistance for all supplied modules.
- Warranty Coverage: All units supplied by Konmask include a documented quality inspection report and warranty against DOA (Dead on Arrival).
Typical Applications
- Oil & Gas Refining: Control valve positioning in crude distillation and hydrocracking units via 4–20 mA output loops.
- Petrochemical Plants: Flow and pressure control in reactor feed systems using Honeywell TDC 3000 DCS.
- Power Generation: Turbine governor and boiler feed pump speed control in combined-cycle power plants.
- Pulp & Paper: Consistency and flow control in stock preparation and bleaching lines.
- Pharmaceutical Manufacturing: Precise dosing and temperature control in GMP-regulated batch processes.
- Water Treatment: Chemical dosing pump control and valve actuation in municipal and industrial water facilities.
System Compatibility
The MC-TAOY22 51204172-175 is designed for use within the following Honeywell system architectures:
- Honeywell TDC 3000 — Primary target platform; UCN card cage installation
- Honeywell PlantScape — Compatible with UCN I/O subsystem
- Honeywell Experion PKS (R300–R500) — Supported via UCN I/O gateway
- UCN Coax Cable Infrastructure — Requires RG-6 or equivalent UCN coaxial network
- Honeywell MC-PAOY22 Power Supply Module — Recommended companion power module
- Honeywell MC-TDOY22 / MC-TDIY22 — Complementary digital I/O modules in the same card cage
Selection Guide
Answer these three questions before ordering to confirm compatibility:
- Is your DCS running on UCN bus? — The MC-TAOY22 is UCN-native. If your system uses FTE (Fault-Tolerant Ethernet) or C200/C300 controllers, a different I/O module family is required. Contact Konmask for guidance.
- Do you need 8 analog output channels per module? — If fewer channels are acceptable, the MC-TAOY11 (4-channel) may reduce cost. If more are needed, multiple MC-TAOY22 modules must be used.
- What is your system firmware revision? — Firmware compatibility between the replacement module and the existing UCN network manager must be confirmed. Provide your system revision to Konmask for pre-shipment verification.
📩 Not sure which model fits your system? Contact Konmask at support@konmask.com — we respond within 24 hours.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources MC-TAOY22 modules from authorized Honeywell distributors, certified MRO surplus channels, and factory-refurbished stock. All units are traceable to original manufacturer documentation.
4-Step Inspection Process:
- Visual Inspection: Board-level examination for physical damage, corrosion, and component integrity.
- Functional Test: Power-on test with UCN bus simulation to verify all 8 output channels respond correctly.
- Calibration Verification: Output accuracy checked against 4–20 mA reference standard (±0.1% FS).
- Documentation Review: Serial number, firmware label, and revision marking cross-checked against Honeywell BOM records.
Available Documentation: Test report, inspection certificate, datasheet, and (where available) original Honeywell Certificate of Conformance.
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (MC-TAOY22 / 51204172-175), required quantity, and system revision.
- Receive Quotation & Compatibility Confirmation: Konmask will verify compatibility with your system and provide a formal quotation within 24 hours.
- Confirm & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full traceability paperwork.
⏱️ 24-hour response guaranteed for all technical and commercial inquiries.
Replacement & Compatibility FAQ
Q1: Can the MC-TAOY22 51204172-175 directly replace a failed UCN analog output module in my TDC 3000 system?
A: Yes — the MC-TAOY22 is a direct replacement for same-revision UCN Analog Output modules in TDC 3000 card cages. Verify firmware revision compatibility before installation. Konmask can confirm compatibility based on your system details.
Q2: Is there a compatible equivalent for the MC-TAOY22 if the original part is no longer available?
A: The closest functional equivalent within the Honeywell UCN family is the MC-TAOY11 (4-channel) for reduced-channel applications, or a refurbished MC-TAOY22 from certified surplus stock. Cross-brand substitutes require full I/O re-engineering and are not drop-in compatible.
Q3: What is the difference between the MC-TAOY22 and a substitute from another DCS vendor?
A: The MC-TAOY22 uses Honeywell’s proprietary UCN protocol, which is not interoperable with Modbus, PROFIBUS, or FOUNDATION Fieldbus-based I/O from other vendors. Any substitute from ABB, Emerson, or Yokogawa would require a full migration project. For like-for-like replacement within your existing Honeywell system, only UCN-native modules should be considered.
