Process Control & Safety Solution – Honeywell 51305562-499 | Experion PKS Series
Where This Product Is Used

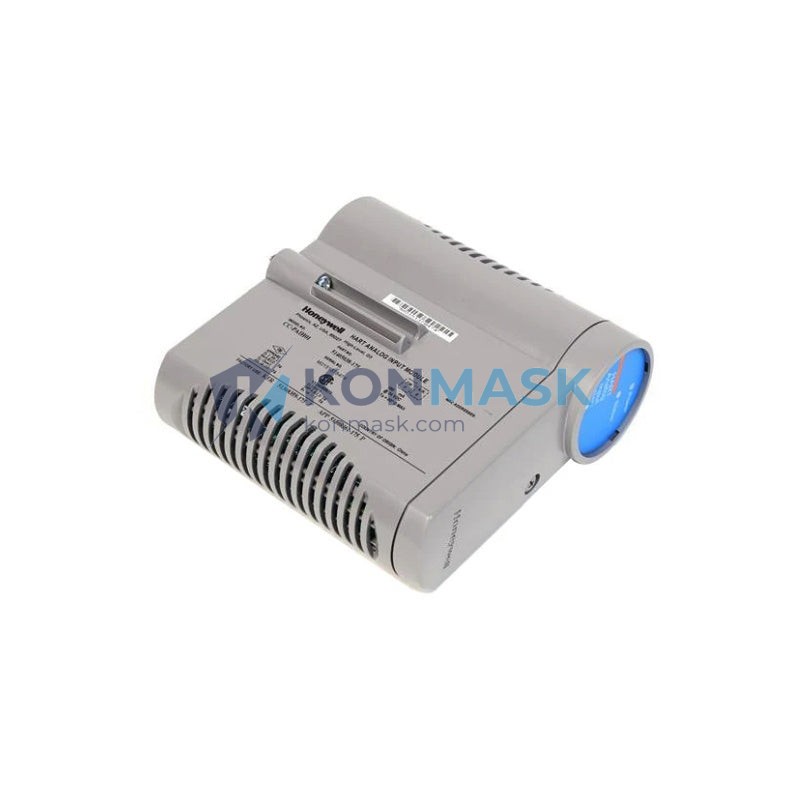

The Honeywell 51305562-499 Analog Input Module is deployed across the most demanding continuous-process and safety-critical environments worldwide. Engineers specify this module in:
- Oil & Gas Upstream/Midstream: Wellhead pressure and temperature monitoring, pipeline SCADA integration, and compressor station control loops.
- Petrochemical & Refining: Distillation column level sensing, reactor temperature profiling, and feed-flow measurement in DCS-governed units.
- Power Generation: Boiler drum level, turbine exhaust temperature, and generator cooling-water flow acquisition in both fossil and combined-cycle plants.
- Pulp & Paper / Chemical: Multi-point pH, conductivity, and flow measurement feeding Experion PKS supervisory control.
- Pharmaceutical & Food Processing: CIP/SIP temperature validation and batch reactor monitoring where FDA 21 CFR Part 11 audit trails are required.
- Water & Wastewater: Influent flow, dissolved-oxygen, and effluent quality loops in large municipal treatment plants.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / SKU | 51305562-499 |
| Manufacturer | Honeywell Process Solutions |
| Series / Platform | Experion PKS (Process Knowledge System) |
| Module Type | Analog Input (AI) |
| Input Signal Range | 4–20 mA (HART-compatible) |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Power Supply | Supplied via Experion PKS I/O backplane (24 VDC bus) |
| Mounting | Experion PKS I/O chassis / carrier |
| Communication Bus | Experion PKS FTE (Fault-Tolerant Ethernet) backplane |
| HART Pass-Through | Yes – supports HART 5/6/7 device diagnostics |
| Weight | 1,600 g (module + carrier) |
| Country of Origin | USA |
Why Engineers Specify This Model
- Proven Experion PKS Ecosystem Fit: Plug-and-play replacement within existing Experion PKS cabinets — no firmware re-flash or re-engineering required.
- HART Transparency: Native HART pass-through enables predictive maintenance data from field instruments without additional multiplexers.
- High-Resolution Conversion: 16-bit A/D ensures sub-0.01% full-scale accuracy, critical for tight PID loops in refining and power applications.
- Galvanic Isolation: Eliminates ground-loop interference in long cable runs common in large plant environments.
- Hot-Swap Capability: Supports live insertion/removal on Experion PKS chassis, enabling zero-downtime maintenance windows.
- Long Product Lifecycle: Honeywell’s extended support commitment means spare-parts availability for 10+ years post-installation.
Complete System Bill of Materials
For a fully operational Experion PKS analog input node, the following companion components are typically required:
- Experion PKS I/O Chassis / Carrier (model-dependent on cabinet design)
- Experion PKS Controller (C200, C300, or ACE series)
- Fault-Tolerant Ethernet (FTE) Switch Module
- 24 VDC Power Supply Module (redundant pair recommended)
- Field Termination Assembly (FTA) – marshalling cabinet side
- HART Field Instruments (transmitters, positioners)
- Shielded Twisted-Pair Instrumentation Cable (per ISA-5.1)
Contact support@konmask.com for a complete BOM review and compatibility check.
Compliance & Industry Standards
- IEC 61511 / ISA-84 – Functional Safety for Process Industry SIS
- IEC 61508 – Functional Safety of E/E/PE Safety-Related Systems
- CE Marking – EMC Directive 2014/30/EU
- UL / cUL Listed – Industrial Control Equipment
- RoHS Compliant – Directive 2011/65/EU
- ATEX / IECEx – Suitable for use in associated safe-area cabinets serving Zone 1/2 hazardous areas (verify with project SIL assessment)
Quality Assurance & Sourcing
Every Honeywell 51305562-499 unit shipped by Konmask.com undergoes the following verification process:
- Visual Inspection: PCB, connector pins, and label integrity checked against OEM reference standards.
- Functional Bench Test: Power-on self-test (POST) and channel-level signal verification where test fixtures are available.
- Authenticity Screening: Serial number and date-code cross-referenced against Honeywell’s authorized distribution records.
- ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall corrugated cartons.
- Documentation: Certificate of conformance and test report available on request.
How to Source This Part
- Request a Quote: Email support@konmask.com with your project quantity, required delivery date, and destination country.
- Receive Availability & Lead Time: Our team responds within 1 business day with stock status, pricing, and estimated ship date.
- Place Order & Confirm Payment: Secure checkout via this product page, or via proforma invoice for B2B/PO-based procurement.
- Shipping & Tracking: DHL Express / FedEx International Priority with full tracking and export documentation (commercial invoice, packing list, COO).
- After-Sales Support: 30-day return window for unused modules; technical support available via WhatsApp/WeChat at +0086 19859288691.
Application-Specific FAQ
Q: Is the 51305562-499 compatible with Experion PKS R500 and later releases?
A: Yes. The module is backward and forward compatible across Experion PKS R400–R520 software releases. Confirm your chassis firmware revision with your Honeywell system integrator before installation.
Q: Can this module be used as a direct replacement for the 51305562-400 or -450 variants?
A: The -499 suffix typically denotes a specific hardware revision or regional configuration. Verify the exact part number against your Experion PKS I/O assignment list before ordering. Contact us for cross-reference support.
Q: Does the module support redundant I/O configurations?
A: Redundant I/O is achieved at the controller and FTE switch level in Experion PKS architecture. Consult your system design documentation for redundancy topology.
Q: What is the typical lead time for this part?
A: In-stock units ship within 2–3 business days. Out-of-stock lead time is 4–8 weeks depending on global supply chain conditions. Contact us for real-time availability.
Q: Do you provide export documentation for international shipments?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and ECCN/HTS classification documentation for all international orders.
