Honeywell 51305542-100 Digital Input Module | Replacement, Equivalent & Selection Guide
In a continuous process plant — refinery, chemical reactor, or power generation unit — the loss of a single digital input module can silence dozens of field signals simultaneously. Valve position feedbacks go dark, motor run/stop statuses disappear, and operators are left flying blind. The Honeywell 51305542-100 Digital Input Module is the precision interface that keeps those critical field signals flowing into your TDC 3000 or Experion PKS DCS, ensuring your control loops and safety interlocks always have the data they need.
The 51305542-100 occupies a well-established position within Honeywell’s TDC 3000 I/O subsystem — a platform that has underpinned process automation in thousands of facilities worldwide for decades. Its proven reliability, seamless integration with Honeywell’s Universal Control Network (UCN), and broad field-device compatibility make it a first-choice module for both original installations and maintenance replacements across the global DCS installed base.
Technical Specifications
- Part Number: 51305542-100
- Manufacturer: Honeywell Process Solutions

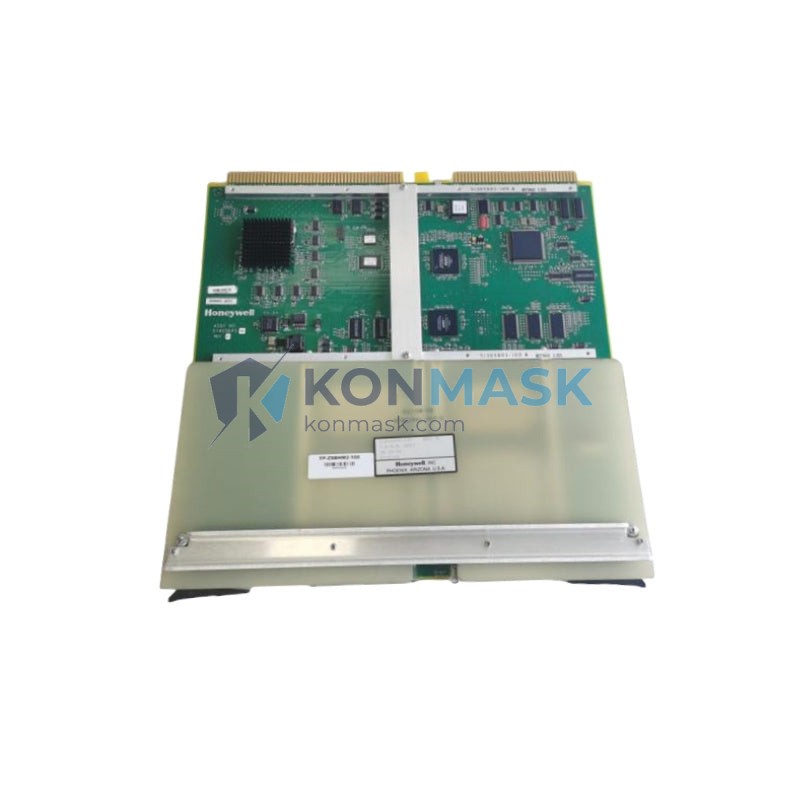

- Module Type: Digital Input Module (DI)
- Compatible Platform: Honeywell TDC 3000, PlantScape, Experion PKS
- Signal Type: Discrete / Digital (dry contact, wet contact)
- Backplane Interface: TDC 3000 I/O Link / UCN compatible
- Form Factor: Standard TDC 3000 I/O card format
- Weight: Approx. 1,600 g (module + packaging)
- Operating Environment: Industrial DCS cabinet, climate-controlled
- Condition Available: New surplus, refurbished, tested-good
Note: Detailed electrical specifications (channel count, input voltage range, isolation) should be confirmed against the Honeywell TDC 3000 I/O Module specification sheet or by contacting Konmask.com for a datasheet.
Compatible Replacement & Equivalent Models
When the 51305542-100 is unavailable or end-of-life, the following models are commonly evaluated as functional equivalents or drop-in replacements. Always verify firmware revision and backplane slot compatibility before substitution:
- 51305542-150 — Revised revision of the same base part; check revision compatibility with your system firmware
- 51305542-200 — Higher-revision variant; may require configuration update in Honeywell Engineering Console
- 51304485-100 — Alternative Honeywell DI module used in overlapping TDC 3000 configurations
- 51309276-175 — Digital Input module used in Experion PKS C300 migration paths
- Third-party DI modules — Some system integrators use certified third-party I/O in TDC 3000 expansion; contact Konmask.com for compatibility assessment
Important: Replacement modules must match the I/O link type, channel count, and signal conditioning of the original. Konmask.com’s engineering team can assist with cross-reference verification.
Why Choose the Original Model
- Zero re-engineering risk: The 51305542-100 slots directly into the existing backplane with no firmware changes required in most installations
- Proven field reliability: Honeywell TDC 3000 I/O modules are engineered for 24/7 continuous operation in harsh process environments
- Validated signal integrity: Factory-calibrated input conditioning ensures accurate discrete signal capture without additional tuning
- Regulatory compliance: Original Honeywell parts maintain SIL and functional safety documentation chains required for audits in regulated industries
- Long installed base: Extensive global installed base means spare parts, documentation, and experienced technicians are widely available
Typical Applications
- Oil & gas upstream/downstream process control (valve position, pump status monitoring)
- Petrochemical and refinery DCS I/O expansion and maintenance
- Power generation plant control systems (turbine, boiler, BOP monitoring)
- Chemical manufacturing batch and continuous process control
- Pulp & paper mill automation systems
- Water treatment and utilities SCADA/DCS integration
- Pharmaceutical manufacturing (FDA-regulated process monitoring)
System Compatibility
- Primary Platform: Honeywell TDC 3000 (all generations)
- Extended Compatibility: Honeywell PlantScape, Experion PKS (legacy I/O cabinets)
- I/O Bus: UCN (Universal Control Network) / I/O Link
- Compatible Controllers: HPM (High-Performance Process Manager), PM (Process Manager), APM (Advanced Process Manager)
- Engineering Tools: Honeywell Control Builder, Engineering Console (EC)
- Not compatible with: Experion PKS C300 native I/O (CHARM-based), Safety Manager I/O — consult Konmask.com for migration options
Selection Guide
Use the following decision framework when selecting a digital input module for your TDC 3000 system:
- Step 1 — Confirm I/O link type: Identify whether your cabinet uses UCN or I/O Link; this determines module family compatibility
- Step 2 — Check channel count requirement: Verify the number of DI channels needed per slot to avoid under- or over-provisioning
- Step 3 — Verify signal type: Dry contact vs. wet contact (24 VDC / 120 VAC) — ensure the module’s input conditioning matches your field devices
- Step 4 — Review firmware revision: Match the module revision to your system’s firmware level; mismatches can cause I/O link errors
- Step 5 — Assess condition: For critical applications, specify new surplus or factory-refurbished with test certificate; for non-critical spares, tested-good units are cost-effective
- Step 6 — Plan for migration: If your TDC 3000 is approaching end-of-support, consider Experion PKS migration path modules that support both legacy and new I/O simultaneously
Quality Assurance & Sourcing
- All modules sourced from verified industrial surplus channels, authorized distributors, or direct OEM stock
- Each unit undergoes visual inspection, board-level cleaning, and functional power-on testing before shipment
- Test reports and condition certificates available upon request
- Anti-static packaging with humidity indicators for safe international shipping
- Traceability documentation maintained for regulated-industry customers
- 90-day warranty on refurbished units; 12-month warranty on new surplus stock
How to Order
- Submit an inquiry via the Contact / RFQ form on Konmask.com with your part number (51305542-100) and required quantity
- Our team will confirm availability, condition, and lead time within 24 business hours
- Receive a formal quotation with unit price, shipping options, and payment terms
- Approve the quotation — we arrange secure packaging and international freight
- Track your shipment with full documentation (commercial invoice, packing list, test certificate)
For urgent requirements, please indicate “URGENT” in your inquiry subject line for priority handling.
Replacement & Compatibility FAQ
Q: Can the 51305542-150 replace the 51305542-100 directly?
A: In most cases yes, as they share the same base design. However, you should verify the revision level is accepted by your system’s firmware version. Contact Konmask.com for a compatibility check.
Q: Is the 51305542-100 still in production by Honeywell?
A: TDC 3000 I/O modules are in the mature/legacy phase of Honeywell’s product lifecycle. Konmask.com maintains stock of new surplus and refurbished units to support ongoing maintenance needs.
Q: What is the lead time for this module?
A: Lead time depends on current stock levels. In-stock units typically ship within 3–5 business days. Submit an RFQ for a confirmed lead time.
Q: Do you provide a test certificate with the module?
A: Yes. All refurbished units are shipped with a functional test certificate. New surplus units include original manufacturer documentation where available.
Q: Can Konmask.com assist with TDC 3000 to Experion PKS migration?
A: We can supply both legacy TDC 3000 I/O modules and Experion PKS migration I/O components. Contact our team for a migration parts list assessment.
Q: What payment and shipping terms do you offer?
A: We support T/T (wire transfer), PayPal, and trade finance options. Shipping via DHL, FedEx, UPS, or sea freight depending on order size and destination.
