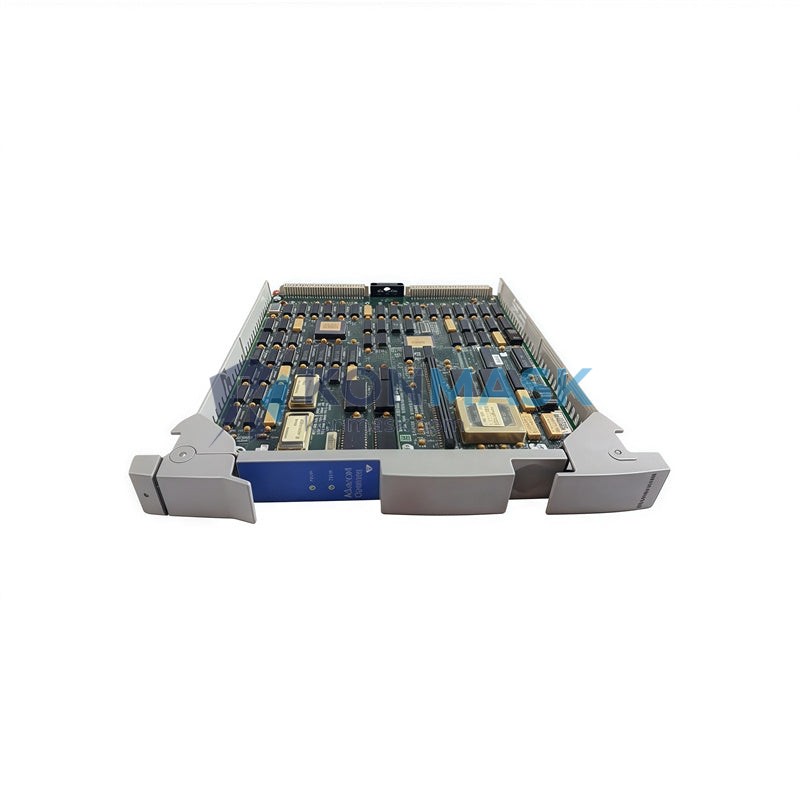

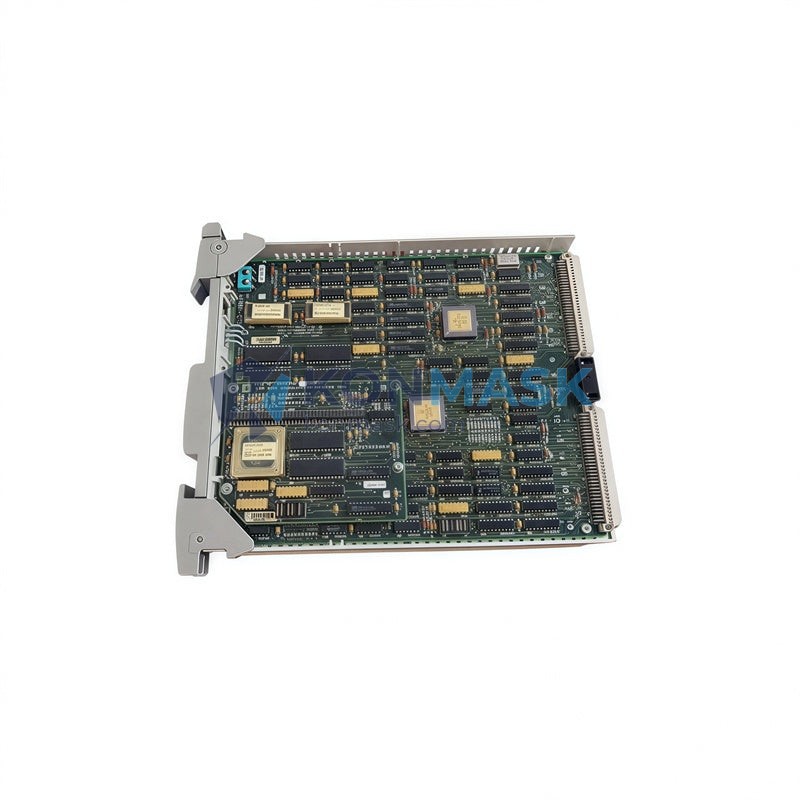

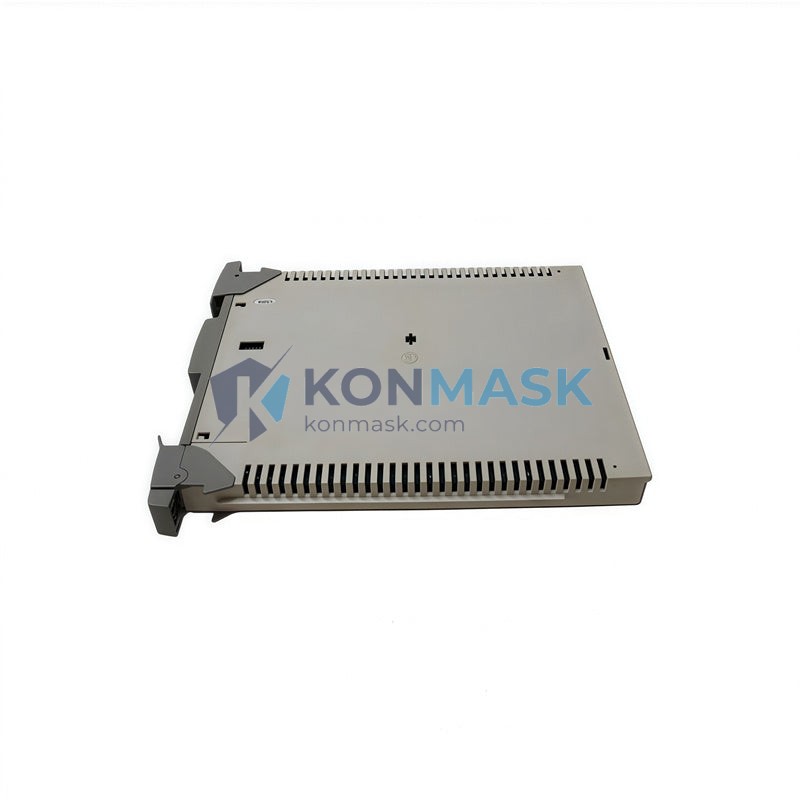

Honeywell 51401598-150 – Advanced Communication Circuit Board | Experion PKS / TDC 3000
Engineering Background
The Honeywell 51401598-150 is a high-reliability communication circuit board engineered for Honeywell’s Experion PKS and legacy TDC 3000 distributed control system platforms. Designed to meet the rigorous demands of continuous-process industries, this module serves as a critical data-path component within the control network architecture, enabling deterministic, fault-tolerant communication between field devices, controllers, and supervisory systems.
Product Positioning
Targeted at procurement engineers and MRO specialists managing brownfield DCS installations, the 51401598-150 is the OEM-specified replacement for aging communication infrastructure. Its direct form-fit-function compatibility eliminates re-engineering costs and minimizes planned or unplanned downtime windows.
Complete Technical Specifications
| Part Number | 51401598-150 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | Advanced Communication Circuit Board |
| Compatible Platform | Experion PKS, TDC 3000, PlantScape |
| Communication Protocol | Honeywell FTE (Fault-Tolerant Ethernet) / LCN |
| Form Factor | PCB Card Module |
| Operating Temperature | 0 °C to +60 °C |
| Weight | 150 g (approx.) |
| Condition | New / Refurbished / Tested Available |
| Warranty | 12 Months |
| Lead Time | In Stock – Ships within 3–5 Business Days |
Proven Application Environments
- Oil & Gas – Upstream/Downstream DCS communication backbones
- Petrochemical & Refining – Continuous process control networks
- Power Generation – Turbine and boiler control system integration
- Pulp & Paper – High-availability process automation
- Pharmaceutical – GMP-compliant batch and continuous manufacturing
- Water & Wastewater – SCADA/DCS hybrid architectures
Engineering Advantages
- OEM Form-Fit-Function Compatibility – Drop-in replacement; no firmware re-flashing or re-configuration required in standard deployments.
- Fault-Tolerant Architecture – Supports redundant communication paths inherent to Experion PKS FTE topology.
- Extended Service Life – Manufactured to Honeywell’s industrial-grade PCB standards for long MTBF in harsh environments.
- Reduced Downtime Risk – Pre-tested and verified before shipment; ready for immediate rack installation.
- Backward Compatibility – Interoperable with TDC 3000 LCN and PlantScape legacy node architectures.
System Architecture & Signal Flow
Within the Experion PKS chassis, the 51401598-150 occupies a dedicated communication slot and interfaces with the system’s FTE switch fabric. Data frames are routed through dual-redundant Ethernet paths to the Application Station (AS) and Operator Station (OS) nodes. In TDC 3000 configurations, the board bridges LCN (Local Control Network) segments, maintaining time-stamped, deterministic message delivery at the millisecond level. Signal integrity is maintained via on-board isolation and filtering circuitry, ensuring EMI compliance in electrically noisy plant environments.
Sourcing & Quality Verification
- All units sourced from authorized distributors or directly from Honeywell-certified supply chains.
- Each board undergoes incoming inspection: visual, functional, and communication-loop testing.
- Serialized traceability records available upon request for regulated industries.
- Anti-counterfeit verification: component markings, PCB revision codes, and Honeywell holographic labels inspected.
- Packaging: ESD-safe anti-static bag + foam-lined carton; humidity indicator included for long-haul shipments.
Procurement Process
- Submit RFQ – Email support@konmask.com with quantity, required condition (new/refurbished), and delivery timeline.
- Receive Quote – Formal quotation with unit price, lead time, and warranty terms within 24 business hours.
- Purchase Order – Issue PO against the quotation; wire transfer, credit card, or net-30 terms available for qualified accounts.
- Shipment & Documentation – Commercial invoice, packing list, COO certificate, and test report dispatched with order.
- After-Sales Support – 12-month warranty; technical support hotline available for installation queries.
Technical FAQ
Q: Is the 51401598-150 compatible with Experion R500 and later releases?
A: Compatibility depends on the specific chassis revision and firmware version. Contact our engineering team with your system build details for a definitive compatibility matrix.
Q: Can this board be used in a simplex (non-redundant) configuration?
A: Yes. The board operates in both simplex and redundant FTE configurations; redundancy is a system-level setting, not a hardware constraint.
Q: What is the difference between 51401598-150 and adjacent revision codes (e.g., -100, -200)?
A: Revision suffixes typically denote PCB spin revisions with component-level changes. Functional equivalence should be confirmed against Honeywell’s compatibility bulletin for your specific system release.
Q: Do you provide ATEX or SIL-rated variants?
A: Safety-rated variants are available on request. Please specify your functional safety requirements (SIL level, IEC 61508 compliance) in your RFQ.
