Honeywell 80363969-100 – 4-20mA Analog Output Module | TDC 3000 / TotalPlant HPM DCS Platform
Engineering Background: The Honeywell TDC 3000 (Total Distributed Control) and its successor TotalPlant platform represent one of the most widely deployed DCS architectures in continuous-process industries. Installed base spans refineries, petrochemical complexes, power generation facilities, and pharmaceutical plants worldwide — many of which remain in active production with 20+ year operational horizons. Sustaining these systems requires access to verified, specification-matched I/O modules that preserve loop integrity without forcing costly platform migrations.

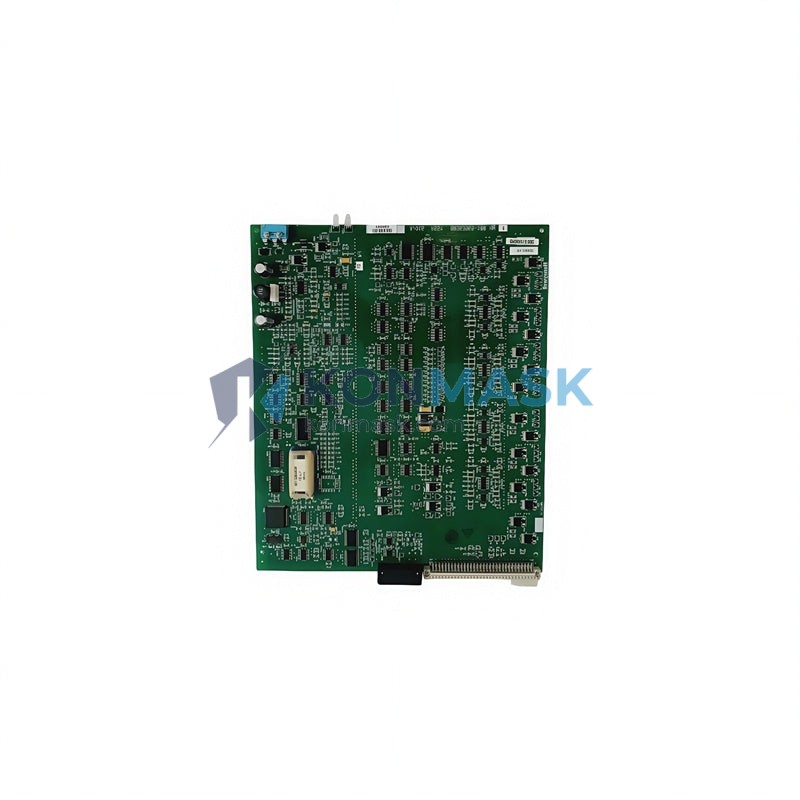

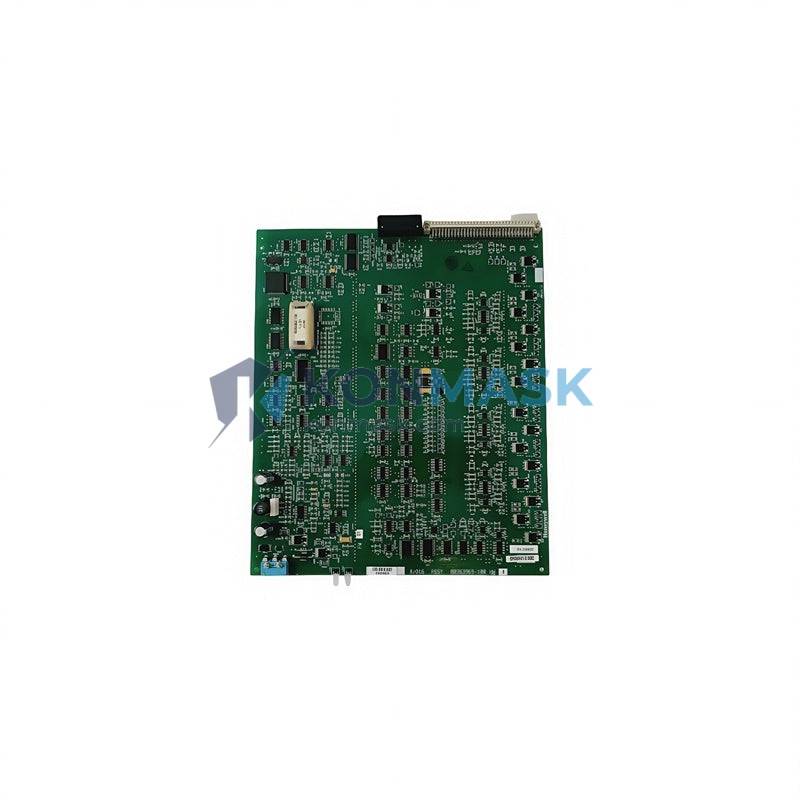

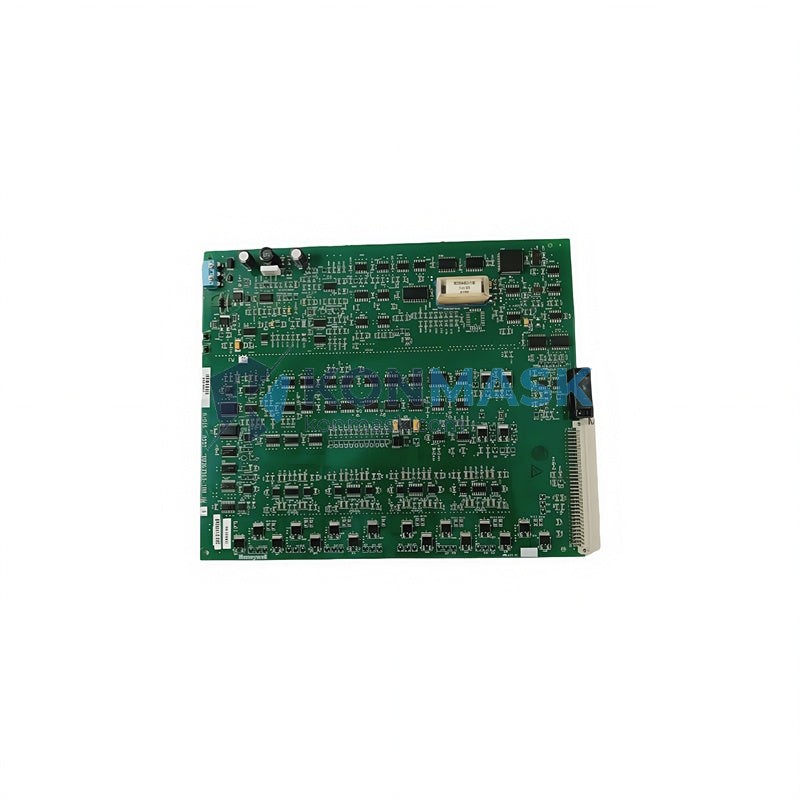

Product Positioning: The Honeywell 80363969-100 is a field-proven Analog Output Module engineered for the TDC 3000 / TotalPlant High-Performance Process Manager (HPM) and compatible I/O subsystems. It converts digital control signals from the controller into precision 4-20mA current loop outputs, driving final control elements — control valves, variable-speed drives, and positioners — with the accuracy and reliability that continuous-process operations demand. Konmask.com supplies this module as a tested, traceable spare for MRO and capital project procurement, backed by documented origin traceability and a 90-day functional warranty.
Complete Technical Specifications
- Part Number: 80363969-100
- Manufacturer: Honeywell Process Solutions
- Module Type: Analog Output (AO)
- Compatible Platform: TDC 3000 / TotalPlant HPM, PM, APM I/O Subsystems
- Output Signal: 4–20 mA current loop (industry standard)
- Output Channels: Multi-channel (per module slot configuration)
- Resolution: 12-bit D/A conversion
- Accuracy: ±0.1% of full scale (±16 µA) at 25°C
- Load Compliance: Up to 750 Ω (loop-powered field devices)
- Isolation: Channel-to-channel and channel-to-backplane galvanic isolation
- Hot-Swap: Supported — module replaceable under power without process interruption
- Backplane Interface: TDC 3000 HPM I/O Link bus
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5–95% RH, non-condensing
- Weight: Approx. 400 g
- Form Factor: Standard TDC 3000 I/O module card
- Certifications: CE, UL (per Honeywell platform approval)
- HS Code: 8537.10 (programmable controllers / I/O modules)
Proven Application Environments
- Oil & Gas Refining: Driving control valve positioners on crude distillation, hydrotreating, and FCC units where 4-20mA loop integrity is safety-critical.
- Petrochemical Plants: Modulating feed flow, reactor temperature, and pressure control loops in ethylene, ammonia, and polymer production.
- Power Generation: Boiler combustion control, turbine governor setpoint output, and feedwater flow regulation in coal, gas, and combined-cycle plants.
- Pharmaceutical Manufacturing: Bioreactor agitation speed, clean-steam pressure, and CIP flow control in FDA-regulated GMP environments.
- Pulp & Paper: Digester pressure, bleach chemical dosing, and dryer section steam control.
- Chemical Processing: Batch reactor temperature ramp control and continuous distillation reflux ratio management.
Engineering Advantages
- Drop-In Replacement: Direct form-fit-function replacement for installed TDC 3000 HPM AO slots — no firmware changes or reconfiguration required.
- Hot-Swap Capability: Eliminates process shutdown for module replacement, reducing MTTR and supporting zero-downtime maintenance strategies.
- Precision Output: 12-bit resolution ensures fine-grained control authority over final control elements, minimizing process variability.
- Galvanic Isolation: Protects controller backplane from field-side ground loops and transient surges common in heavy industrial environments.
- Long-Term Availability: Konmask.com maintains stock of legacy Honeywell I/O modules to support plants with 10–30 year remaining operational life.
- Traceable Sourcing: Every unit is documented with origin traceability, supporting plant asset management and audit requirements.
System Architecture & Signal Flow
In a TDC 3000 HPM architecture, the control strategy executes in the High-Performance Controller (HPC). Output values are transmitted via the I/O Link bus to the I/O subsystem chassis. The 80363969-100 module occupies an AO slot in the I/O chassis, receives the digital setpoint word, converts it via internal D/A circuitry, and sources a precision 4-20mA current into the field wiring pair. The field device (valve positioner, VFD, or transmitter) responds proportionally. Loop diagnostics — open-loop detection, output clamping — are reported back to the HPC via the same I/O Link, enabling alarm annunciation at the operator console.
Sourcing & Quality Verification
- Visual Inspection: Board-level inspection for component damage, corrosion, and connector integrity before shipment.
- Functional Test: Output loop current verified across the 4-20mA range at multiple setpoints.
- Part Number Verification: Label and PCB silkscreen cross-checked against Honeywell part number 80363969-100.
- Packaging: ESD-safe anti-static bag, foam-lined carton, with humidity indicator card for long-distance shipping.
- Documentation: Certificate of conformance and test report available on request.
Procurement Process
- Submit your RFQ via support@konmask.com with quantity, required delivery date, and plant/project reference.
- Receive a formal quotation with unit price, lead time, and shipping terms (EXW Xiamen / DDP available).
- Confirm purchase order — payment via T/T, L/C, or agreed terms.
- Module ships with packing list, commercial invoice, and CoC within agreed lead time.
- Post-delivery technical support available via email or WhatsApp: +0086 19859288691.
Technical FAQ
Q: Is 80363969-100 compatible with both TDC 3000 and TotalPlant HPM?
A: Yes. The module is designed for the HPM I/O subsystem used across both TDC 3000 and TotalPlant branded systems. Verify your chassis I/O Link revision if upgrading from early TDC 3000 hardware.
Q: Can this module be replaced while the process is running?
A: Yes. The HPM I/O subsystem supports hot-swap. The replacement module will be automatically recognized and configured by the HPC within seconds of insertion.
Q: What is the output current accuracy?
A: Typical accuracy is ±0.1% of full scale (±16 µA over the 4-20mA range) at 25°C, consistent with Honeywell HPM AO module specifications.
Q: Do you supply the I/O termination assembly (ITA) for this module?
A: Yes. Contact us with your field wiring configuration and we can source the matching ITA or marshalling panel components.
Q: What warranty applies?
A: Konmask.com provides a 90-day functional warranty covering defects in the module itself. Warranty claims require return of the module for inspection.
Q: What is the lead time?
A: Standard in-stock units ship within 3–5 business days. For large quantities or expedited requirements, contact us directly for availability confirmation.
