Honeywell 80364052-100 / 51401583-100 Interface Board | Replacement, Equivalent & Selection Guide

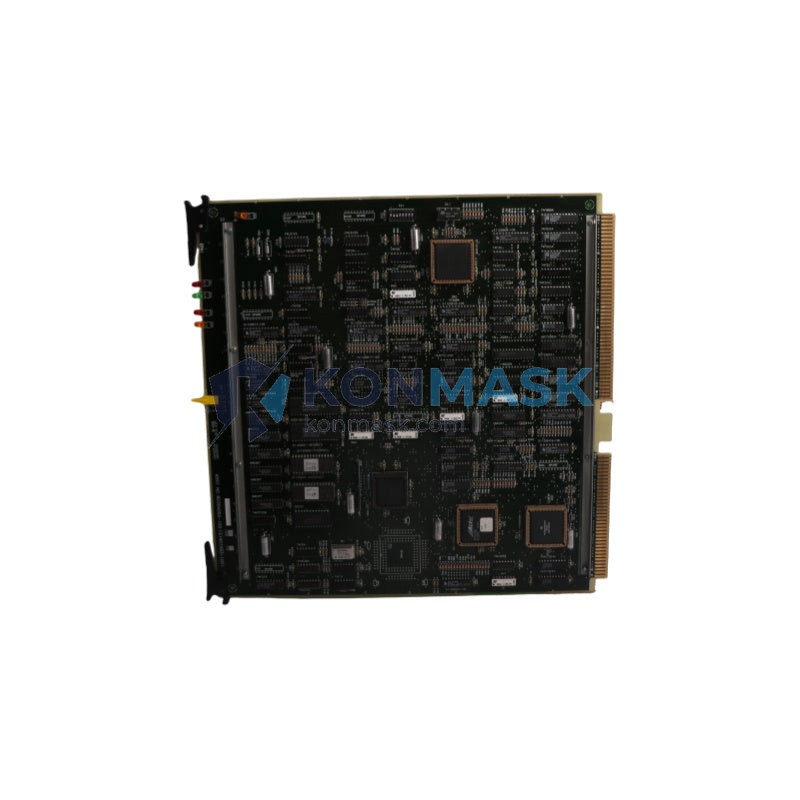

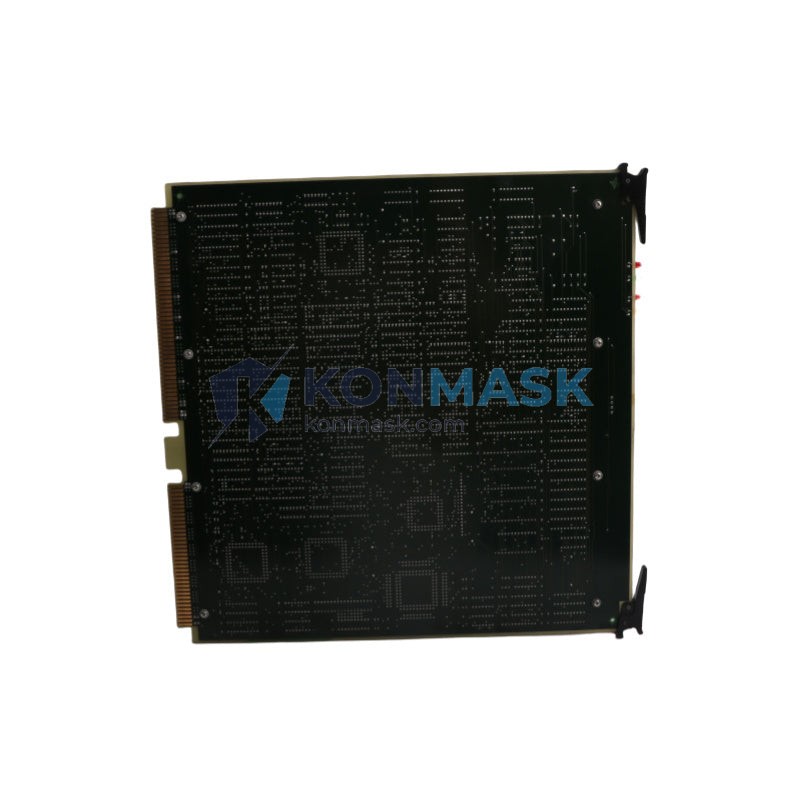

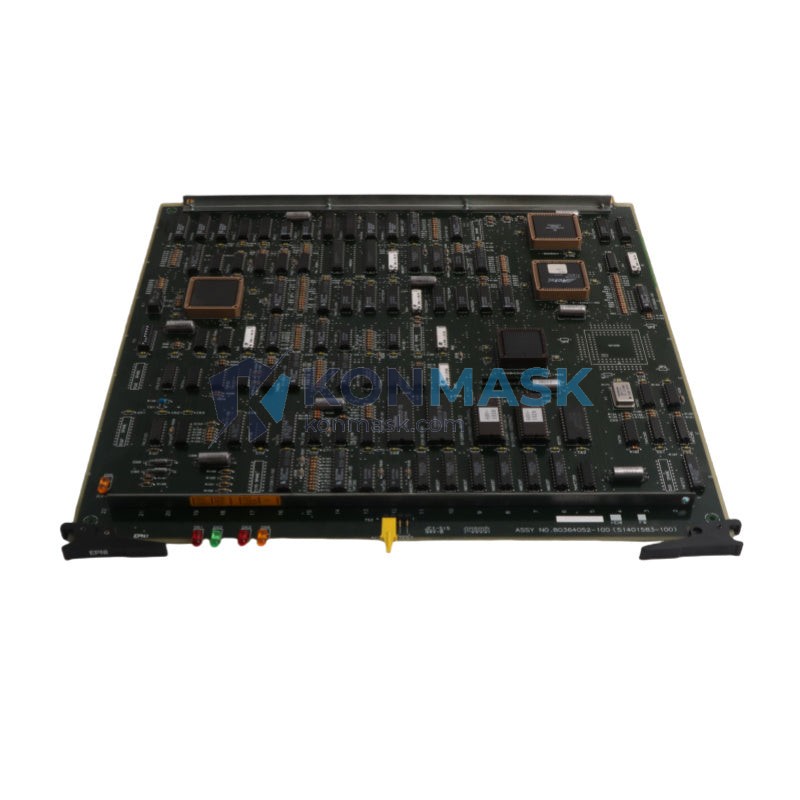

The Honeywell 80364052-100 (cross-reference: 51401583-100) is an Interface Board designed for Honeywell’s TDC 3000 Distributed Control System (DCS) / TotalPlant Solution (TPS) platform. At Konmask.com, we specialize in sourcing, testing, and supplying original and compatible industrial automation components — helping engineers make confident selection and replacement decisions.
Technical Specifications
- Part Number: 80364052-100
- Cross Reference / Alternate P/N: 51401583-100
- Manufacturer: Honeywell Process Solutions
- Product Type: Interface Board / Communication Interface Module
- Series / Platform: TDC 3000 / TotalPlant Solution (TPS)
- Form Factor: PCB Module (card-style)
- Weight: Approx. 840 g
- Condition Available: New (surplus), Refurbished, Exchange
- Warranty: 12-month Konmask quality guarantee
Compatible Replacement & Equivalent Models
When the 80364052-100 is unavailable or discontinued, the following models may serve as functional equivalents or replacements depending on your system revision. Always verify firmware and backplane compatibility before substitution.
- 51401583-100 — Direct alternate part number (same assembly, different catalog revision)
- 51401583-150 — Revised version; check firmware compatibility
- 80364052-150 — Potential revision upgrade; confirm slot and backplane fit
- 51304453-100 / -150 / -200 — Related interface board family within TDC 3000
- 51402573-100 — Alternative interface module for similar I/O configurations
Note: Konmask engineers can assist with cross-reference verification. Contact us before ordering a substitute.
Why Choose the Original Model
- ✅ Guaranteed compatibility with existing TDC 3000 / TPS backplane and firmware
- ✅ No re-engineering required — drop-in replacement for installed base
- ✅ Validated by Honeywell for use in safety-critical process environments
- ✅ Minimizes downtime risk — no configuration changes or re-commissioning needed
- ✅ Long-term spare parts availability through Konmask’s global sourcing network
Typical Applications
- Oil & Gas refining and upstream processing plants
- Chemical and petrochemical manufacturing facilities
- Power generation (thermal, nuclear, combined-cycle)
- Pulp & paper and continuous process industries
- Pharmaceutical batch and continuous manufacturing
- Water treatment and utilities automation
System Compatibility
- Platform: Honeywell TDC 3000 / TotalPlant Solution (TPS)
- Compatible Subsystems: Local Control Network (LCN), High-Level Network (HLN), Basic Controller (BC), Advanced Process Manager (APM)
- Backplane Compatibility: Standard TDC 3000 card cage / chassis
- Software / Firmware: Compatible with TDC 3000 R500 and later revisions (verify with site engineer)
Selection Guide
Use the following criteria to confirm the 80364052-100 is the correct part for your application:
- Step 1 — Identify your DCS platform: Confirm your system is Honeywell TDC 3000 or TPS.
- Step 2 — Check the existing card label: Look for P/N 80364052-100 or 51401583-100 printed on the board.
- Step 3 — Verify slot position: Confirm the card cage slot type and backplane connector match.
- Step 4 — Check revision level: If your system requires a specific revision (-100, -150, -200), confirm before ordering.
- Step 5 — Contact Konmask: Send us your system configuration sheet or existing part label photo for expert confirmation.
Quality Assurance & Sourcing
- All boards are inspected and function-tested prior to shipment
- Sourced from decommissioned plant upgrades, authorized distributors, and OEM surplus channels
- Anti-static packaging with full traceability documentation
- Certificate of conformance available upon request
- 12-month warranty covering manufacturing defects and functional failure
How to Order
- Add the Honeywell 80364052-100 to your cart directly on this page.
- Or contact us with your PO, system details, and required quantity for a formal quotation.
- We accept T/T bank transfer, PayPal, and trade credit for qualified accounts.
- Lead time: In-stock items ship within 1–3 business days; sourced items within 7–15 business days.
- Export documentation (commercial invoice, packing list, COO) provided for international orders.
Replacement & Compatibility FAQ
Q: Is 51401583-100 the same as 80364052-100?
A: Yes — these are cross-reference part numbers for the same interface board assembly. Both can be used interchangeably in most TDC 3000 installations.
Q: Can I use a -150 revision instead of -100?
A: In many cases yes, but firmware and backplane compatibility must be verified. Contact our technical team for confirmation.
Q: Do you provide a test report with the board?
A: Yes. A functional test report and certificate of conformance are available upon request.
Q: What is the lead time if the board is not in stock?
A: Typically 7–15 business days via our global sourcing network. Expedited sourcing is available for urgent shutdowns.
Q: Can Konmask repair a faulty 80364052-100?
A: Yes, board-level repair and exchange services are available. Contact us with your defective unit details.
