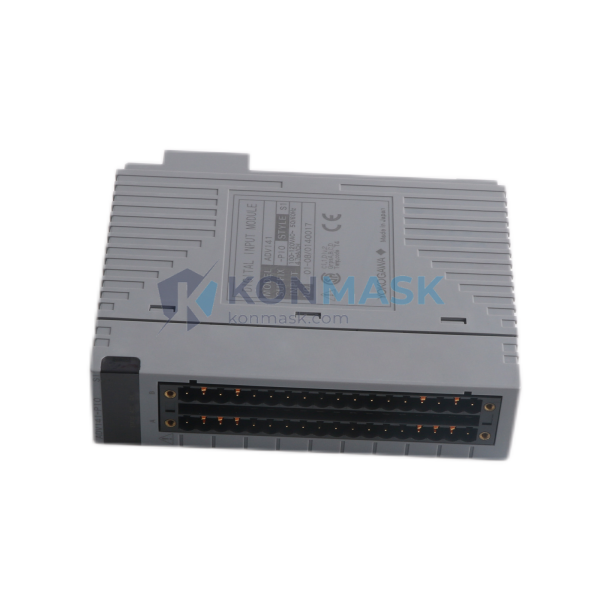

YOKOGAWA ADV141-P10 S1 – 32-Channel Digital Input Module | CENTUM VP / CS 3000
Engineering Background
The ADV141-P10 S1 is a high-density digital input module engineered by Yokogawa Electric Corporation for integration within the CENTUM VP and CS 3000 Distributed Control System (DCS) platforms. Designed to meet the rigorous demands of continuous process industries, this module provides reliable, noise-immune acquisition of 32 discrete field signals, enabling real-time process monitoring and interlock logic execution at the field controller level.
Product Positioning
As a core I/O component of Yokogawa’s field-proven DCS architecture, the ADV141-P10 S1 is the preferred choice for procurement engineers seeking a drop-in replacement or capacity expansion for existing CENTUM VP / CS 3000 installations. Its compact form factor, high channel density, and full compatibility with Yokogawa’s FCS (Field Control Station) make it an operationally critical asset in refinery, petrochemical, power generation, and pharmaceutical automation environments.
Complete Technical Specifications
- Model: ADV141-P10 S1
- Manufacturer: Yokogawa Electric Corporation
- Module Type: Digital Input (DI)
- Number of Channels: 32 channels
- Compatible Platform: CENTUM VP, CENTUM CS 3000
- Input Signal Type: Dry contact / Voltage contact (DC)
- Input Voltage Range: 24 VDC (nominal)
- Isolation: Optical isolation between field and system bus
- Scan Cycle: Synchronized with FCS control cycle
- Connector Type: Terminal block via I/O module nest
- Mounting: Plug-in to Yokogawa I/O nest / node unit
- Power Consumption: Per Yokogawa FCS power budget specification
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 320 g
- Compliance: CE, UL, IEC 61131-2
- Part Number / Suffix: ADV141-P10 S1 (S1 = standard specification)
Proven Application Environments
- Oil & Gas: Upstream wellhead monitoring, downstream refinery DCS expansion, compressor station interlock systems
- Petrochemical: Reactor status monitoring, valve position feedback, emergency shutdown (ESD) integration
- Power Generation: Turbine control auxiliary I/O, boiler management system digital inputs
- Pharmaceutical / Life Sciences: Batch process DCS I/O for FDA-regulated environments
- Pulp & Paper / Water Treatment: High-channel-count field device monitoring in distributed architectures
Engineering Advantages
- 32-Channel Density: Maximizes I/O capacity per nest slot, reducing hardware footprint and wiring complexity
- Optical Isolation: Protects the DCS backplane from field-side transients, ground loops, and EMI
- Hot-Swap Capable: Supports online replacement within CENTUM VP architecture without process interruption (subject to FCS configuration)
- Deterministic Scan: Inputs are scanned synchronously with the FCS control cycle for consistent interlock response times
- Long Service Life: Yokogawa’s industrial-grade component selection ensures >10-year operational reliability in continuous process environments
- Backward Compatibility: Fully interoperable with CS 3000 legacy installations, protecting existing capital investment
System Architecture & Signal Flow
The ADV141-P10 S1 plugs directly into a Yokogawa I/O node unit within the FCS cabinet. Field wiring connects via the corresponding terminal board (e.g., ATD series). Digital contact signals from field devices (limit switches, pushbuttons, relay outputs, proximity sensors) are optically isolated and converted to logic-level signals on the system bus. The FCS reads all 32 channels each control cycle and makes the data available to the control application (function blocks) and the HIS (Human Interface Station) via the V-net / Vnet/IP control network.
Typical Signal Path:
Field Device → Terminal Board → ADV141-P10 S1 (optical isolation) → FCS I/O Bus → Control Application → V-net/IP → HIS / SCADA
Sourcing & Quality Verification
- Source: Procured from authorized Yokogawa distributors, decommissioned plant upgrades, and certified surplus channels — all with full traceability documentation
- Inspection: Each unit undergoes visual inspection, firmware/label verification, and functional bench testing prior to shipment
- Packaging: Anti-static ESD packaging with foam cushioning; original Yokogawa packaging retained where available
- Warranty: 90-day operational warranty against DOA (Dead on Arrival) defects
- Counterfeit Prevention: All units verified against Yokogawa part number databases; serial number documentation available on request
Procurement Process
- Confirm Compatibility: Verify your FCS model, nest type, and terminal board (ATD series) against ADV141-P10 S1 requirements — contact our engineering team if uncertain
- Request Quote: Submit your RFQ via the product page or email support@konmask.com with quantity and delivery timeline
- Order Confirmation: Receive proforma invoice with lead time, shipping method, and tracking commitment
- Shipment: Dispatched via DHL / FedEx / SF Express with full export documentation (commercial invoice, packing list, COO)
- Incoming Inspection: We recommend a 48-hour incoming inspection window; our team provides remote commissioning support if required
Technical FAQ
Q: Is the ADV141-P10 S1 compatible with CENTUM VP R6.x?
A: Yes. The ADV141-P10 S1 is supported across CENTUM VP R4.x through R6.x. Confirm your FCS firmware revision with Yokogawa’s compatibility matrix for the latest release.
Q: Can this module be used in a CS 3000 system?
A: Yes. The ADV141-P10 S1 is backward compatible with CENTUM CS 3000 I/O node architecture, provided the nest and terminal board assignments are correctly configured.
Q: What terminal board is required?
A: The ADV141-P10 S1 pairs with Yokogawa ATD series terminal boards (e.g., ATD141-P10). Confirm the terminal board suffix matches your field wiring configuration.
Q: Is hot-swap replacement possible during live operation?
A: Hot-swap is supported in CENTUM VP when the FCS is configured for online I/O replacement. Consult your DCS engineer and Yokogawa’s FCS engineering guide before performing live replacement.
Q: Do you provide a test report or calibration certificate?
A: Functional test reports are available upon request. Calibration certificates are not applicable for digital input modules (no analog signal conditioning).
Q: What is the lead time for stock units?
A: In-stock units ship within 1–3 business days. For non-stock procurement, lead time is 2–6 weeks depending on sourcing channel. Contact us for real-time availability.
