HONEYWELL 900R08R-0200 – 8 I/O Slot Rack | HC900 Process Controller Platform
Engineering Background
The HC900 Process & Safety Controller platform from Honeywell is a field-proven distributed control architecture widely deployed in refining, petrochemical, power generation, and advanced manufacturing environments. Designed for demanding continuous-process applications, the HC900 system integrates seamlessly with Honeywell’s broader DCS ecosystem, including Experion PKS, and supports both standalone and networked multi-rack configurations.
Product Positioning

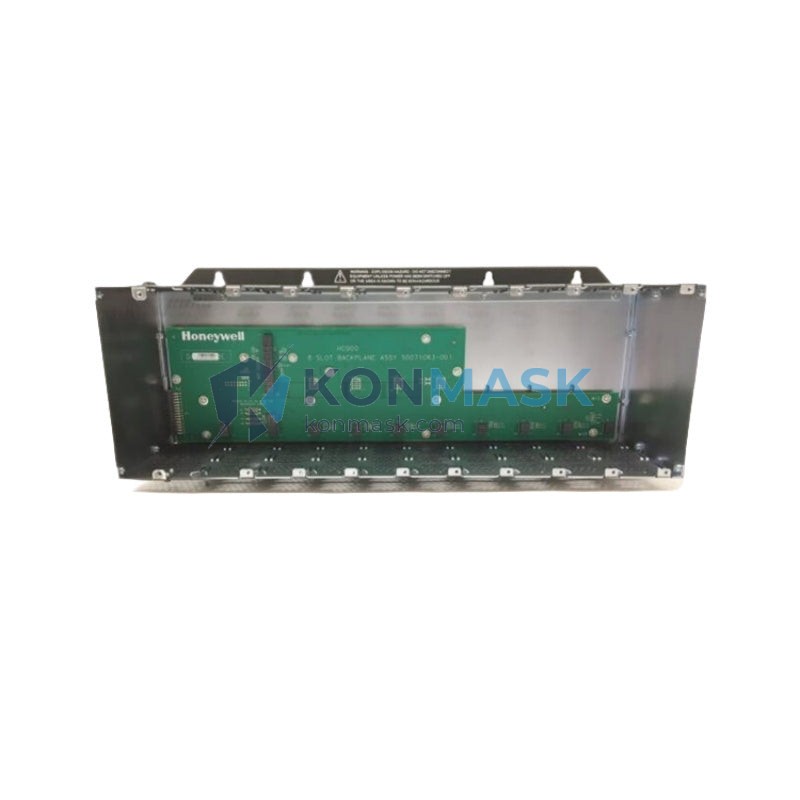

The HONEYWELL 900R08R-0200 is an 8 I/O slot rack chassis that serves as the physical backbone of an HC900 controller node. It houses the controller module, power supply, and up to 8 I/O modules, enabling high-density signal termination within a compact, DIN-rail or panel-mount form factor. This rack is the preferred choice for mid-scale process control loops requiring deterministic scan performance and robust field-bus connectivity.
Complete Technical Specifications
| Part Number | 900R08R-0200 |
| Manufacturer | Honeywell Process Solutions |
| Series / Platform | HC900 Process & Safety Controller |
| I/O Slot Capacity | 8 slots (for HC900-compatible I/O modules) |
| Controller Slot | 1 dedicated slot (leftmost position) |
| Power Supply Slot | 1 dedicated slot (integrated) |
| Backplane Bus | Proprietary HC900 high-speed backplane |
| Mounting Style | Panel mount / DIN rail compatible |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 compliant |
| EMC Compliance | CE marked; meets IEC 61000 series |
| Approvals | UL, cUL, CE, FM (Class I Div 2 capable with appropriate modules) |
| Weight | Approx. 500 g (rack only, without modules) |
| Compatible Controllers | 900C50R, 900C52R, 900C53R series |
| Compatible I/O Modules | 900 series AI, AO, DI, DO, Pulse, RTD, TC modules |
Proven Application Environments
- Oil & Gas: Wellhead automation, compressor control, pipeline SCADA integration
- Petrochemical & Refining: Reactor temperature/pressure loop control, distillation column management
- Power Generation: Boiler combustion control, turbine auxiliary systems
- Pharmaceutical: Batch process control compliant with 21 CFR Part 11 environments
- Pulp & Paper / Food & Beverage: Continuous process monitoring and PID loop management
- Water & Wastewater: Pump station control, chemical dosing automation
Engineering Advantages
- High-Density I/O: 8 module slots in a single rack minimize panel footprint while maximizing channel count per node.
- Hot-Swap Capable: HC900 I/O modules support online replacement without process shutdown (with appropriate system configuration).
- Redundancy Ready: Supports controller redundancy configurations when paired with redundant controller modules and power supplies.
- Deterministic Scan Cycle: Backplane architecture ensures consistent, low-latency data exchange between controller and I/O modules.
- Scalable Architecture: Multiple racks can be networked via C-Link or Ethernet for distributed multi-rack process control.
- Long Product Lifecycle: HC900 platform is actively supported by Honeywell with firmware updates and spare parts availability.
System Architecture & Signal Flow
In a typical HC900 deployment, the 900R08R-0200 rack hosts the controller module in Slot 0 and up to 8 I/O modules in Slots 1–8. Field signals (4–20 mA, discrete 24 VDC, thermocouple, RTD, etc.) terminate at the I/O module face plates. The backplane carries digitized process values to the controller at each scan cycle. The controller executes the configured control strategy (PID, logic, sequence) and writes output values back through the backplane to the output modules. Peer-to-peer data sharing between racks is achieved via C-Link (RS-485) or Ethernet/IP, enabling coordinated multi-rack process control without a central DCS server.
Sourcing & Quality Verification
- Authenticity: All units sourced through verified industrial surplus and authorized distribution channels. Counterfeit screening performed on every unit.
- Inspection Protocol: Visual inspection, backplane continuity check, and functional power-up test prior to shipment.
- Condition Grading: Units are graded as New (factory sealed), Refurbished (tested & cleaned), or Used-Tested. Condition specified at time of order confirmation.
- Traceability: Date codes and serial numbers documented. Certificates of conformance available on request.
- Warranty: 12-month replacement warranty against manufacturing defects and functional failure under normal operating conditions.
Procurement Process
- Inquiry: Submit your part number, required quantity, and delivery timeline via email or the contact form.
- Quotation: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Order Confirmation: Purchase order or proforma invoice issued. Payment via T/T, L/C, or online checkout.
- Quality Check & Packing: Pre-shipment inspection completed. Units packed in anti-static ESD bags with foam cushioning.
- Shipment: Shipped via DHL / FedEx / UPS Express or sea freight for bulk orders. Tracking number provided within 24 hours of dispatch.
- After-Sales Support: Technical support available post-delivery for installation guidance and compatibility verification.
Technical FAQ
Q: Can the 900R08R-0200 rack be used with HC900 redundant controller modules?
A: Yes. When paired with a redundant controller module pair (e.g., 900C52R) and a redundant power supply, the rack supports full controller redundancy with automatic failover.
Q: How many I/O channels can this rack support?
A: Channel count depends on the I/O modules installed. A fully populated rack with 8-channel analog modules yields 64 analog channels; with 16-channel discrete modules, up to 128 discrete channels per rack.
Q: Is this rack compatible with the HC900 Safety Controller?
A: The 900R08R-0200 is a standard process controller rack. For SIL-rated safety applications, consult Honeywell’s HC900 Safety documentation and use safety-certified module variants.
Q: What is the maximum number of racks in one HC900 network?
A: Up to 4 remote racks can be connected to a single HC900 controller node via C-Link, supporting up to 5 racks total per controller (1 local + 4 remote).
Q: Can I mix analog and discrete I/O modules in the same rack?
A: Yes. The HC900 backplane is module-agnostic within the 900-series I/O family. Any combination of AI, AO, DI, DO, TC, RTD, and Pulse modules can be installed in any slot.
Q: What programming software is required?
A: HC900 controllers are configured using Honeywell’s HC Designer software (formerly Control Builder). No additional runtime license is required for standard process control applications.
