Process Control Slot Protection Solution – Honeywell 900TNF-0001 | HC900 Series
Where This Product Is Used

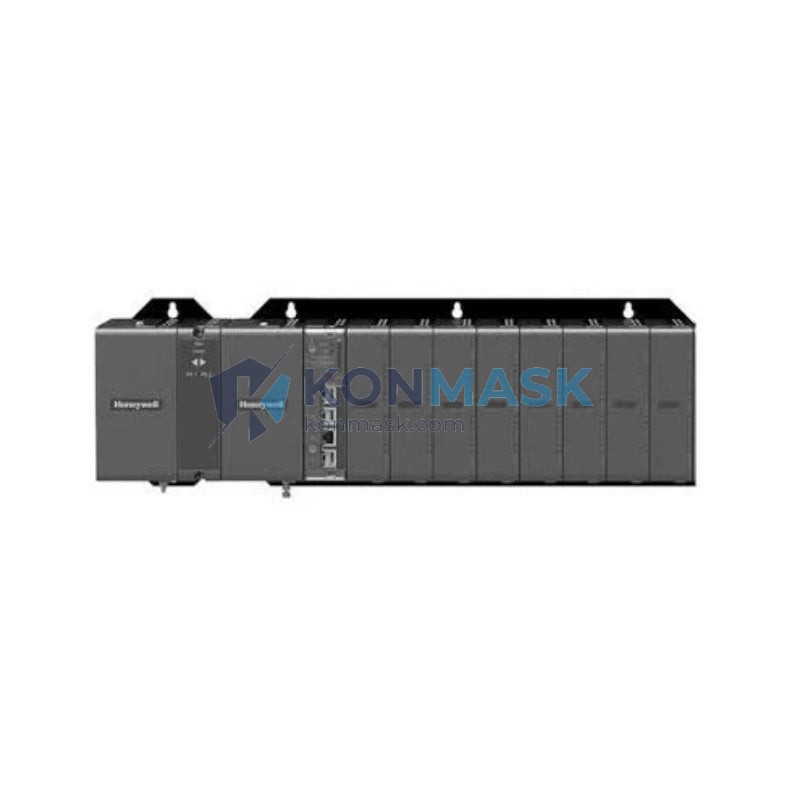

The Honeywell 900TNF-0001 Filler Block Cover is a mechanical slot-protection accessory designed for the Honeywell HC900 Hybrid Controller and compatible TotalPlant DCS rack assemblies. It is installed in unused I/O module slots to maintain enclosure integrity, prevent dust ingress, and reduce electromagnetic interference (EMI) within the controller chassis.
Typical deployment environments include:
- Oil & Gas Refineries – Protecting DCS racks in hazardous-area control rooms where particulate contamination is a concern.
- Chemical & Petrochemical Plants – Maintaining sealed rack environments in corrosive-atmosphere cabinets.
- Power Generation Facilities – Ensuring EMI shielding integrity in high-noise electrical environments.
- Pharmaceutical Manufacturing – Meeting cleanroom enclosure standards by sealing open chassis slots.
- Pulp & Paper / Water Treatment – Preventing moisture and airborne contaminants from entering partially populated HC900 racks.
- System Integrators & OEMs – Pre-populating spare slots during panel build to satisfy FAT/SAT inspection requirements.
Technical Specifications
| Part Number | 900TNF-0001 |
| Manufacturer | Honeywell Process Solutions |
| Compatible Platform | Honeywell HC900 Hybrid Controller / TotalPlant DCS |
| Function | Filler Block Cover – blank slot occupant for unused I/O positions |
| Mounting | Direct chassis slot insertion, tool-free clip retention |
| Material | Engineering-grade thermoplastic (UL94 V-0 rated) |
| Protection | Dust exclusion, EMI aperture closure, airflow management |
| Operating Temperature | 0 °C to +60 °C (consistent with HC900 rack rating) |
| Dimensions | Standard HC900 single-slot form factor |
| Weight | Approx. 50 g |
| RoHS Compliance | Yes |
Why Engineers Specify This Model
- OEM Exact-Fit – Manufactured to Honeywell’s original tooling; no modification required for HC900 chassis slots.
- EMI Aperture Control – Closes open slot apertures to maintain chassis shielding effectiveness per IEC 61000-4 immunity requirements.
- Airflow Management – Preserves designed internal airflow paths, preventing hot-spot formation on adjacent active modules.
- Inspection Compliance – Many end-user FAT/SAT checklists require all unused slots to be covered; 900TNF-0001 satisfies this requirement out of the box.
- Future Expansion Ready – Allows engineers to reserve physical slots for planned I/O expansion without leaving the rack open.
- Low-Cost Insurance – A negligible BOM line item that protects significantly more expensive I/O modules and power supplies from contamination-related failures.
Complete System Bill of Materials
The 900TNF-0001 is typically ordered alongside the following HC900 system components:
- 900C52-0243-00 – HC900 Controller Module (C50/C52 CPU)
- 900P24-0102 – HC900 24 VDC Power Supply Module
- 900B08-0001 – HC900 8-Slot I/O Rack / Backplane
- 900G32-0001 – HC900 32-Channel Digital Input Module
- 900A16-0102 – HC900 16-Channel Analog Input Module (4–20 mA)
- 900TNF-0001 – This item – Filler Block Cover (qty as required)
- HC900 Configuration Studio Software – Engineering workstation license
Compliance & Industry Standards
- UL 508A – Industrial Control Panel Standard
- IEC 61131-2 – Programmable Controllers: Equipment Requirements & Tests
- IEC 61000-4 Series – EMC Immunity (chassis aperture closure contribution)
- RoHS Directive 2011/65/EU – Restriction of Hazardous Substances
- CE Marking – European Conformity (as part of HC900 system assembly)
- ATEX / IECEx – Suitable for use in control rooms serving Zone 1/2 classified areas (verify system-level certification with Honeywell)
Quality Assurance & Sourcing
Konmask.com sources the Honeywell 900TNF-0001 through verified industrial distribution channels. Every unit is subject to the following quality controls before shipment:
- Visual and dimensional inspection against Honeywell OEM specifications
- Authenticity verification – no counterfeit or grey-market stock
- Anti-static packaging for safe transit
- Batch traceability records retained for 3 years
- Backed by Konmask’s 12-month supply quality guarantee
How to Source This Part
To request a quote or confirm stock availability for the Honeywell 900TNF-0001:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
- Provide your required quantity, delivery destination, and any project timeline for fastest response.
- Volume pricing available for orders of 10+ units.
Application-Specific FAQ
Q: Can the 900TNF-0001 be used in HC900 racks other than the 8-slot chassis?
A: Yes. The filler block cover is compatible with all standard HC900 I/O rack slot sizes, including 4-slot and 12-slot configurations.
Q: Is this part required for CE/UL compliance of the control panel?
A: While the filler block itself is not a certified component, leaving chassis slots open can void the EMC compliance of the overall HC900 system assembly. Filling all unused slots is strongly recommended by Honeywell’s installation guidelines.
Q: What is the lead time for the 900TNF-0001?
A: In-stock units typically ship within 2–5 business days internationally. Contact Konmask for current inventory status.
Q: Can I use a generic blank panel instead of the OEM 900TNF-0001?
A: Generic blanks may not match the HC900 slot geometry precisely, risking improper seating and reduced EMI shielding. The OEM part is recommended for warranty and compliance purposes.
Q: Do you supply the 900TNF-0001 in bulk for system integrators?
A: Yes. Konmask supports integrator and OEM bulk orders with competitive pricing and consolidated shipping. Contact us with your BOM for a project quote.
