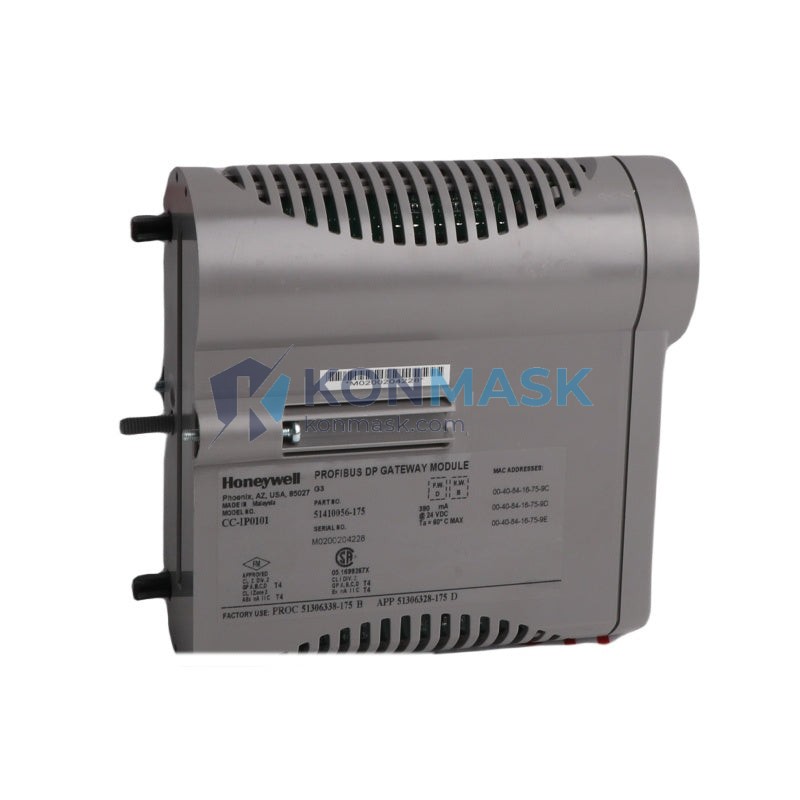

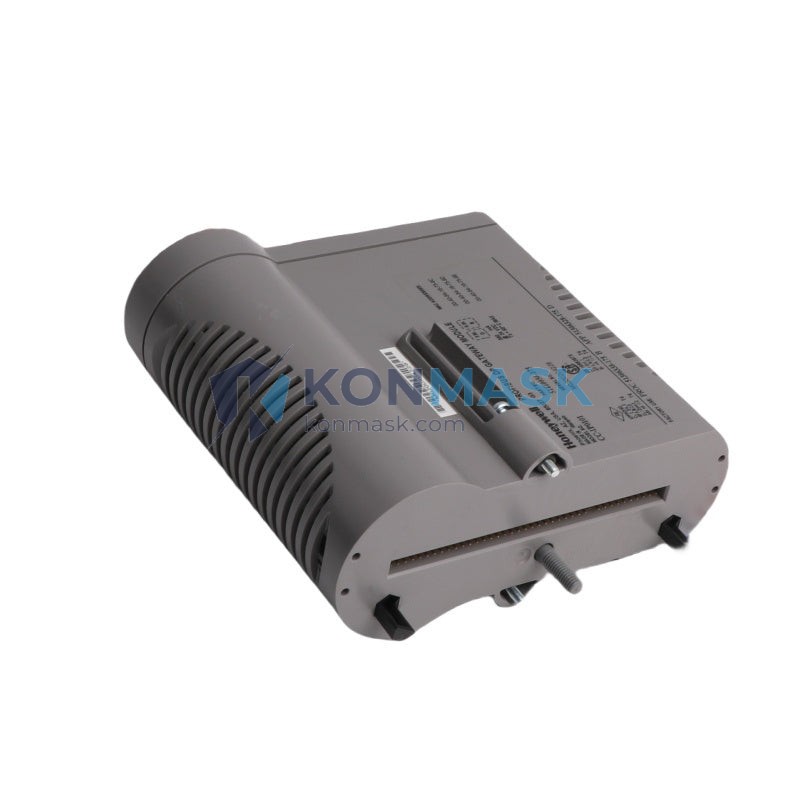

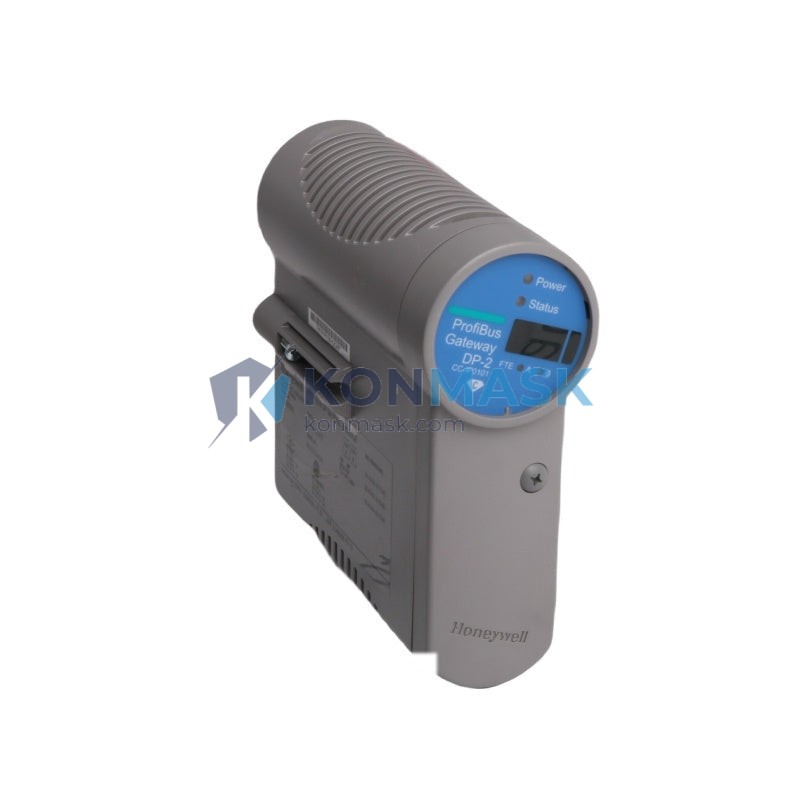

Honeywell CC-IP0101 Profibus DP Gateway Module | C300 DCS Fieldbus Interface
Engineering Background
The Honeywell CC-IP0101 is a dedicated Profibus DP gateway module engineered for seamless integration within Honeywell’s Experion PKS / C300 Distributed Control System architecture. Designed to bridge the gap between the C300 Controller and Profibus DP field device networks, this module enables deterministic, high-speed communication across complex industrial automation environments — from refinery process units to large-scale power generation facilities.
Product Positioning
The CC-IP0101 is the OEM-specified interface solution for engineers who require certified Profibus DP Class 1 Master functionality within the Honeywell Experion PKS platform. It eliminates the need for third-party protocol converters, reduces wiring complexity, and ensures full compatibility with Honeywell’s FDT/DTM device management framework. Procurement engineers sourcing replacement or expansion modules will find the CC-IP0101 to be the only drop-in compatible solution for C300-based Profibus DP segments.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | CC-IP0101 |
| Manufacturer | Honeywell Process Solutions |
| Product Series | Experion PKS / C300 Series |
| Module Type | Profibus DP Gateway / Fieldbus Interface Module |
| Fieldbus Protocol | Profibus DP (EN 50170 / IEC 61158) |
| Profibus Class | Class 1 Master (DPM1) |
| Max Profibus Nodes | Up to 125 slave devices per segment |
| Baud Rate | 9.6 kbps – 12 Mbps (auto-negotiated) |
| Communication Interface | C300 Controller backplane (EUCN / FTE) |
| Redundancy Support | Module-level redundancy supported |
| Power Supply | Supplied via C300 I/O chassis backplane |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Approvals / Certifications | CE, UL, FM (Class I Div 2) |
| Weight | Approx. 420 g |
| Form Factor | Single-slot C300 I/O chassis module |
| Firmware | Upgradeable via Experion PKS Engineering Tools |
| Country of Origin | United States |
Proven Application Environments
- Oil & Gas: Upstream wellhead automation, downstream refinery DCS integration with Profibus DP field instruments (pressure transmitters, control valves, flow meters)
- Power Generation: Turbine control systems, boiler management, and balance-of-plant automation using Profibus DP drives and actuators
- Chemical & Petrochemical: Batch process control, reactor management, and safety instrumented system (SIS) integration
- Pulp & Paper / Mining: High-noise industrial environments requiring robust fieldbus communication with EMI immunity
- Water & Wastewater: SCADA-integrated pump station and treatment plant automation
Engineering Advantages
- Native C300 Integration: No external gateway hardware required — the CC-IP0101 mounts directly in the C300 I/O chassis, reducing panel footprint and eliminating additional power supplies
- Deterministic Fieldbus Performance: Profibus DP cyclic polling ensures sub-millisecond process data exchange, critical for closed-loop control applications
- FDT/DTM Device Management: Full compatibility with Honeywell’s Field Device Manager (FDM) for online diagnostics, parameterization, and predictive maintenance
- Redundancy Architecture: Supports 1:1 module redundancy for high-availability process segments, minimizing unplanned downtime
- Scalable Node Capacity: Supports up to 125 Profibus DP slave devices per module, enabling large-scale field device networks from a single interface point
- Firmware Manageability: Remote firmware upgrades via Experion PKS Engineering Station without module removal
System Architecture & Signal Flow
The CC-IP0101 resides in the C300 Controller I/O chassis and communicates upstream via the Experion FTE (Fault Tolerant Ethernet) network to the Experion PKS server. Downstream, it acts as a Profibus DP Class 1 Master, cyclically polling all configured slave devices (transmitters, drives, valve positioners) on the Profibus DP segment. Process data is mapped directly into the C300 Controller’s data highway, where it is available for control strategy execution in Control Builder. Alarm and diagnostic data from Profibus DP slaves is surfaced in Experion Operator Station via standard HART/FDT pathways.
Typical signal flow: Experion PKS Server → FTE Network → C300 Controller → CC-IP0101 → Profibus DP Segment → Field Devices
Sourcing & Quality Verification
- All Honeywell CC-IP0101 modules supplied by Konmask.com are sourced from authorized distribution channels or verified OEM-surplus inventories
- Each unit undergoes visual inspection, label verification (part number, revision, serial number), and functional pre-shipment checks
- Original Honeywell packaging and documentation preserved where available
- Certificates of conformance (CoC) and test reports available upon request for critical process applications
- Traceability records maintained for all units — contact our technical team for full provenance documentation
Procurement Process
- Confirm Part Number: Verify CC-IP0101 against your Experion PKS BOM or C300 I/O chassis configuration drawing
- Request Quote: Contact support@konmask.com with quantity, required delivery date, and project site details
- Technical Review: Our engineering team will confirm firmware revision compatibility with your Experion PKS release
- Order Confirmation: Purchase order accepted via email; proforma invoice issued within 24 hours
- Shipping: DHL / FedEx international express with full tracking; export documentation (commercial invoice, packing list, CoC) included
- After-Sales Support: 12-month warranty on all supplied modules; technical support available via email and phone
Technical FAQ
Q: Is the CC-IP0101 compatible with all Experion PKS releases?
A: The CC-IP0101 is compatible with Experion PKS R400 and later. Firmware revision must match your C300 Controller firmware. Contact us to confirm compatibility with your specific release.
Q: Can the CC-IP0101 operate as a Profibus DP Class 2 Master?
A: No. The CC-IP0101 functions as a Class 1 Master (DPM1) for cyclic process data exchange. Class 2 acyclic services are handled via the Experion FDM application layer.
Q: What is the maximum cable length for the Profibus DP segment?
A: At 1.5 Mbps, maximum segment length is 200 m. At 93.75 kbps, up to 1200 m per segment. Repeaters can extend total network reach.
Q: Does the module support Profibus PA devices?
A: Profibus PA devices require a DP/PA coupler or link device on the Profibus DP segment. The CC-IP0101 itself is a DP master only.
Q: What is the lead time for CC-IP0101?
A: In-stock units ship within 1–3 business days. For large quantities or specific revision requirements, contact us for availability confirmation.
