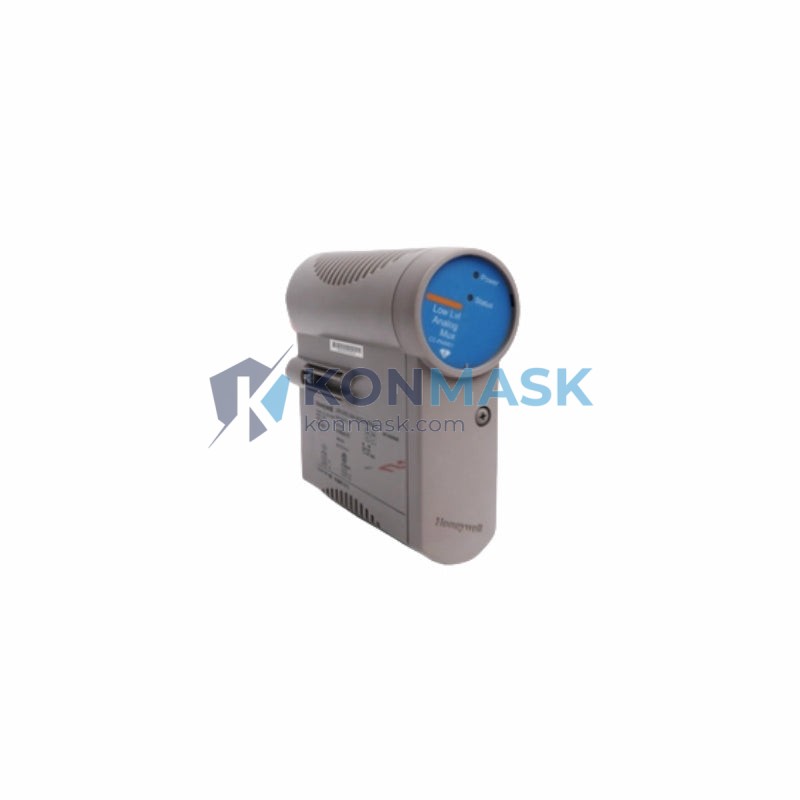

Honeywell CC-PAON01 / CC-PAIN01 Analog I/O Module – Experion PKS C300 Series
When a critical analog signal chain fails in a continuous process plant—whether in a refinery, chemical reactor, or power generation unit—the consequences cascade instantly: loss of loop control, process deviation alarms, potential safety shutdowns, and unplanned downtime that can cost tens of thousands of dollars per hour. The Honeywell CC-PAON01 and CC-PAIN01 Analog I/O Modules are the precision interface between your field instruments and the Experion PKS C300 controller, and without them, your DCS is blind to the physical world.
Within the Experion PKS C300 architecture, the CC-PAON01 (Analog Output) and CC-PAIN01 (Analog Input) modules occupy a foundational role: they deliver the high-resolution, HART-capable signal conditioning that industrial-grade process control demands. Honeywell’s Experion PKS platform is deployed in over 10,000 facilities worldwide across oil & gas, refining, chemicals, and power—making these modules among the most mission-critical I/O components in global industrial automation.
Technical Specifications
- Model Numbers: CC-PAON01 (Analog Output) / CC-PAIN01 (Analog Input)
- Series: Honeywell Experion PKS – C300 Controller I/O
- Signal Type: Analog (4–20 mA standard; HART protocol supported)
- Resolution: 16-bit A/D and D/A conversion
- Channels: 8 channels per module (isolated)
- Communication Bus: FTE (Fault Tolerant Ethernet) via C300 backplane
- Power Supply: Supplied via I/O Link from C300 controller chassis
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity: 5% to 95% non-condensing
- Mounting: Snap-fit onto Honeywell I/O Link chassis (CC-PCNT01 / CC-PCNT02)
- Weight: Approx. 210 g
- Certifications: CE, UL, FM (refer to Honeywell datasheet for full listing)
- Country of Origin: USA
Key Features & Benefits
- HART Pass-Through: Enables remote device diagnostics and configuration without breaking the 4–20 mA loop, reducing field maintenance trips.
- 16-Bit Resolution: Delivers precise signal fidelity critical for tight PID loop control in process applications.
- Channel Isolation: Per-channel isolation prevents ground loops and cross-channel interference in noisy industrial environments.
- Hot-Swap Capable: Modules can be replaced under power without shutting down the controller, minimizing process interruption.
- Integrated Diagnostics: Onboard self-diagnostics report channel health to Experion Station in real time, enabling predictive maintenance.
- Redundancy Support: Compatible with Honeywell’s redundant I/O Link architecture for SIL-rated and high-availability applications.
- Compact Form Factor: Optimized for high-density I/O marshalling cabinets, reducing panel footprint.
Industry & Equipment Applications
- Oil & Gas: Wellhead control, pipeline pressure/flow regulation, separator level control
- Refining & Petrochemicals: Distillation column control, reactor temperature loops, blending systems
- Power Generation: Boiler drum level, turbine speed control, feedwater flow regulation
- Chemicals & Specialty Chemicals: Batch reactor control, pH and conductivity loops
- Pulp & Paper: Digester pressure control, stock flow management
- Water & Wastewater: Pump speed control, dosing system regulation
System Integration & Compatible Parts
The CC-PAON01 and CC-PAIN01 are designed to integrate seamlessly within the Honeywell Experion PKS C300 ecosystem. Key compatible components include:
- CC-PCNT01 / CC-PCNT02 – I/O Link Chassis (8-slot and 16-slot)
- CC-TCNT01 / CC-TCNT02 – I/O Link Termination Assemblies
- CC-PDOB01 – Digital Output Module (companion I/O)
- CC-PDIB01 – Digital Input Module (companion I/O)
- CC-PCF901 – C300 Controller Firewall Module
- CC-PWRR01 – Redundant Power Supply Module
- Experion PKS R500+ – Compatible software release versions
Our Quality Assurance Process
At Konmask.com, every Honeywell module undergoes a rigorous multi-stage inspection before shipment:
- Visual Inspection: Examination of PCB, connectors, and housing for physical damage or counterfeit indicators
- Label & Firmware Verification: Part number, revision level, and firmware version confirmed against Honeywell documentation
- Functional Power-On Test: Module powered and self-diagnostic LEDs verified where applicable
- ESD-Safe Packaging: All modules shipped in anti-static bags with foam cushioning and moisture barrier packaging
- Traceability Documentation: Test records and inspection reports available upon request
How to Order
- Submit your inquiry via the Contact / RFQ form on this page
- Provide your required quantity, delivery timeline, and destination country
- Our technical team will confirm availability, lead time, and issue a formal quotation within 24 hours
- Upon PO confirmation, we arrange export documentation, customs clearance support, and tracked international shipping
📧 support@konmask.com | 📞 +0086 19859288691
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: 100% focus on DCS, PLC, and process control components from leading brands
- ✅ Global Export Experience: Serving clients in 40+ countries with full export documentation support
- ✅ Technical Pre-Sales Support: Our engineers can assist with compatibility verification and system integration questions
- ✅ Competitive Lead Times: Extensive supplier network ensures fast sourcing for both standard and obsolete parts
- ✅ Secure Transactions: T/T, L/C, and other B2B payment terms available
Frequently Asked Questions
Q: What is the difference between CC-PAON01 and CC-PAIN01?
A: The CC-PAON01 is an Analog Output module (controller → field device, e.g., control valves, positioners), while the CC-PAIN01 is an Analog Input module (field device → controller, e.g., transmitters, sensors). Both are 8-channel, 16-bit, HART-capable modules in the Experion PKS C300 I/O family.
Q: Are these modules compatible with Experion PKS R400 and earlier?
A: Compatibility depends on firmware revision. We recommend confirming your Experion PKS software release version with our technical team before ordering to ensure full compatibility.
Q: Can these modules be used in SIL-rated safety applications?
A: The CC-PAON01 / CC-PAIN01 are standard process I/O modules. For SIL-rated safety loops, Honeywell’s Safety Manager SC platform with dedicated safety I/O modules is recommended. Please consult our team for guidance.
Q: Do you supply new, refurbished, or surplus units?
A: We supply new-in-box, factory-surplus (unused), and professionally refurbished units depending on availability. Condition is clearly stated in the quotation. All units pass our QA inspection process.
Q: What is the typical lead time?
A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. For sourced units, lead time is 2–4 weeks. Contact us for current availability.
Q: Can you provide export documentation for customs clearance?
A: Yes. We provide commercial invoice, packing list, certificate of origin, and can assist with other export documentation as required by your country’s import regulations.
