Honeywell FC-PSU-UNI2450 – Universal AC Input Power Supply Module | ControlEdge PLC Platform
Engineering Background

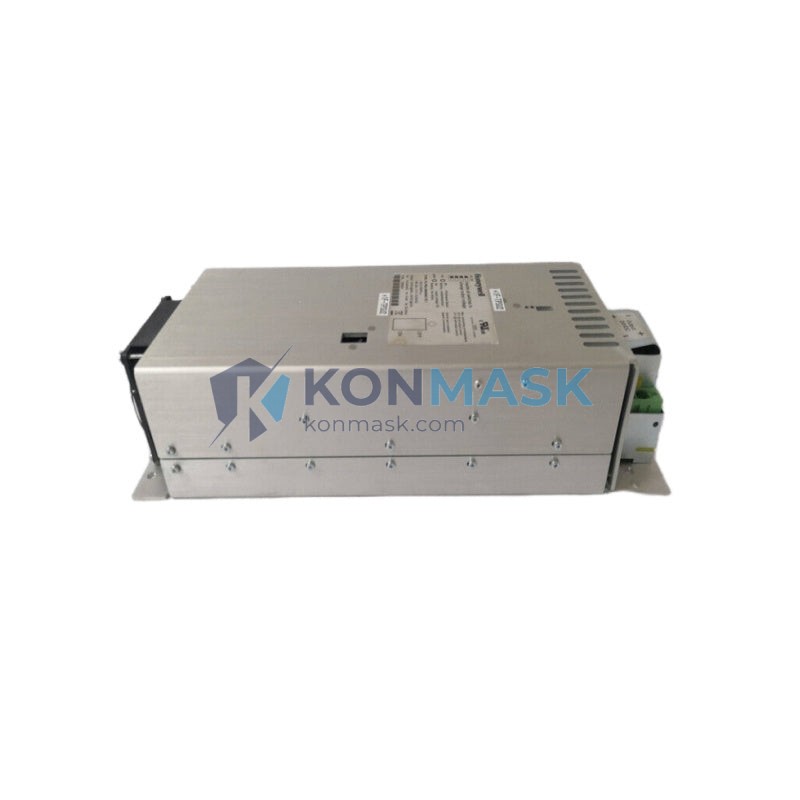

The Honeywell FC-PSU-UNI2450 is a universal-input power supply module engineered for the ControlEdge PLC platform — Honeywell’s next-generation programmable logic controller family designed for process and hybrid automation. As a critical infrastructure component, the FC-PSU-UNI2450 delivers stable, regulated 24 VDC power to the ControlEdge backplane and I/O modules, ensuring uninterrupted control system operation in demanding industrial environments worldwide.
Product Positioning
Targeted at procurement engineers and system integrators sourcing OEM replacement or expansion power supply modules for ControlEdge PLC installations, the FC-PSU-UNI2450 is the factory-specified PSU for ControlEdge HC900 and ControlEdge Unit Operations Controller (UOC) architectures. Its universal AC input range (85–264 VAC) eliminates the need for external voltage conditioning in global multi-voltage deployments.
Complete Technical Specifications
| Part Number | FC-PSU-UNI2450 |
| Manufacturer | Honeywell Process Solutions |
| Platform | ControlEdge PLC / HC900 / UOC |
| Module Type | Universal AC Input Power Supply Unit |
| Input Voltage | 85–264 VAC, 47–63 Hz (Universal) |
| Output Voltage | 24 VDC regulated |
| Output Current | Up to 5 A (nominal) |
| Output Power | 120 W maximum |
| Isolation | Input-to-output galvanic isolation |
| Protection | Over-voltage (OVP), over-current (OCP), short-circuit (SCP) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | ControlEdge backplane slot (DIN rail compatible chassis) |
| Weight | Approx. 300 g |
| Certifications | CE, UL, cUL, RoHS compliant |
| MTBF | >100,000 hours (per Honeywell specification) |
| Country of Origin | United States |
Proven Application Environments
- Oil & Gas: Wellhead control panels, compressor station automation, pipeline SCADA integration
- Petrochemical & Refining: Reactor control, distillation column automation, SIS auxiliary power
- Pharmaceutical & Life Sciences: Batch process control, clean-room automation, FDA 21 CFR Part 11 compliant systems
- Power Generation: Turbine auxiliary control, substation automation, Balance of Plant (BOP) systems
- Water & Wastewater: Pump station control, SCADA-integrated treatment plant automation
- Food & Beverage: CIP systems, packaging line control, temperature-controlled process automation
Engineering Advantages
- Universal AC Input (85–264 VAC): Eliminates step-down transformers in 110V/220V mixed-voltage facilities and global deployments
- Hot-Swap Capable: Designed for live replacement in redundant PSU configurations without system shutdown (verify with system architecture)
- Regulated 24 VDC Output: Tight voltage regulation protects sensitive I/O modules and field instruments from power transients
- Comprehensive Protection: Built-in OVP, OCP, and SCP circuits prevent cascade failures across the backplane
- High MTBF (>100,000 hrs): Reduces unplanned downtime and lifecycle replacement costs
- OEM Compatibility: Factory-specified module ensures full compatibility with ControlEdge firmware and diagnostics — zero third-party compatibility risk
System Architecture & Signal Flow
The FC-PSU-UNI2450 installs directly into the designated PSU slot of the ControlEdge chassis/backplane. AC mains power enters the module, is rectified and regulated to 24 VDC, and distributed via the backplane bus to the CPU module, communication modules, and I/O modules. The PSU communicates health status (power-good signal, fault flags) to the ControlEdge CPU for system-level diagnostics and alarm generation. In dual-PSU configurations, load sharing and automatic failover are managed by the backplane architecture.
Recommended system design: Always provision a redundant FC-PSU-UNI2450 in critical process applications to achieve N+1 power supply redundancy per IEC 61511 SIL requirements.
Sourcing & Quality Verification
- OEM Authenticity: All FC-PSU-UNI2450 units are verified against Honeywell authorized distributor channels with original manufacturer labeling, date codes, and traceability documentation
- Incoming Inspection: Each unit undergoes visual inspection, label verification, and functional power-on testing prior to shipment
- Counterfeit Prevention: Zero-tolerance policy for gray-market or counterfeit components — all units include original Honeywell packaging and documentation where available
- Warranty: 12-month Konmask.com quality warranty covering manufacturing defects; Honeywell OEM warranty terms apply where applicable
- Export Compliance: Units verified for export classification (ECCN) and shipped with appropriate commercial documentation for international procurement
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with required quantity, delivery timeline, and destination
- Quotation: Receive formal quotation with unit price, lead time, and shipping options within 24 business hours
- Order Confirmation: Issue a Purchase Order (PO) referencing part number FC-PSU-UNI2450; Konmask.com issues a Sales Order Acknowledgment
- Quality Documentation: Request Certificate of Conformance (CoC), test reports, or country-of-origin documentation at order placement
- Shipment & Tracking: Ships via DHL / FedEx / UPS Express with full tracking; customs documentation provided for international orders
- After-Sales Support: Technical support available for installation, commissioning, and warranty claims via email or phone
Technical FAQ
Q: Is the FC-PSU-UNI2450 compatible with both HC900 and ControlEdge UOC platforms?
A: The FC-PSU-UNI2450 is specified for the ControlEdge PLC platform. Verify chassis compatibility with your specific ControlEdge model using the Honeywell ControlEdge Hardware Reference Manual before ordering.
Q: Can I use the FC-PSU-UNI2450 in a redundant PSU configuration?
A: Yes. The ControlEdge chassis supports dual PSU slots for N+1 redundancy. Both PSUs share the load and provide automatic failover. Consult the system architecture guide for slot assignment.
Q: What is the lead time for FC-PSU-UNI2450?
A: Standard lead time is 3–7 business days for in-stock units. For large-quantity or expedited orders, contact Konmask.com directly for availability confirmation.
Q: Does Konmask.com provide a Certificate of Conformance?
A: Yes. CoC documentation is available upon request at order placement. Please specify documentation requirements in your RFQ.
Q: What input voltage does the FC-PSU-UNI2450 accept?
A: The module accepts 85–264 VAC at 47–63 Hz, compatible with both 110V (North America/Japan) and 220–240V (Europe/Asia/China) mains supplies without hardware modification.
