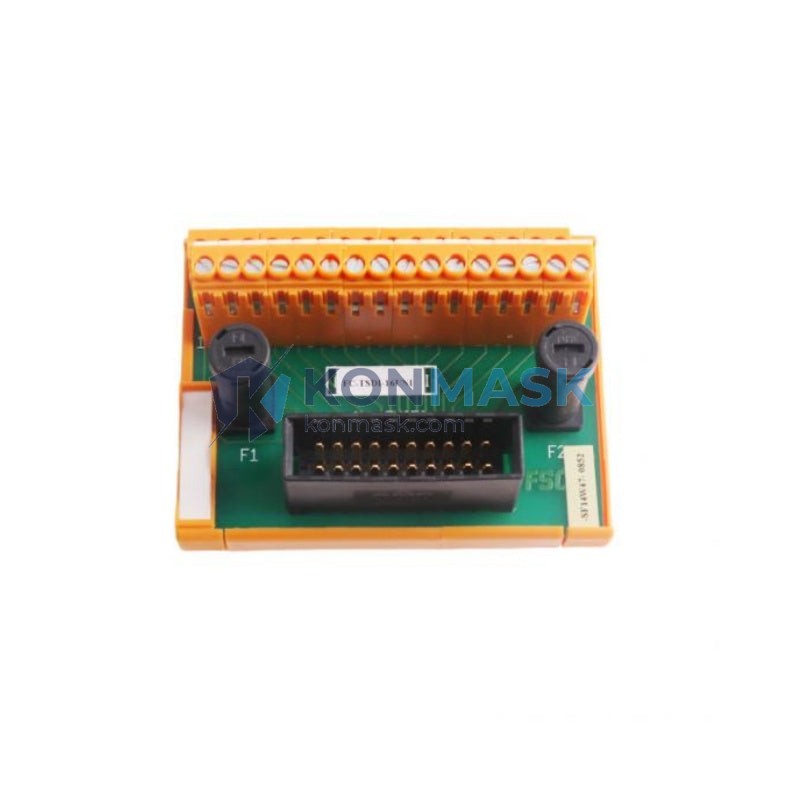

Honeywell FC-TDIO01 – Mixed Digital I/O Module | Experion PKS Platform
Engineering Background
The FC-TDIO01 is a field-proven digital I/O module developed by Honeywell for deployment within the Experion PKS (Process Knowledge System) distributed control architecture. Designed to meet the rigorous demands of continuous-process industries, this module bridges field-level discrete signals with the Experion controller backbone, enabling deterministic, high-integrity digital I/O management across safety-critical and production-critical loops.
Product Positioning
Targeted at automation engineers and procurement specialists managing DCS upgrades, greenfield installations, or spare-parts inventory for Honeywell Experion PKS systems, the FC-TDIO01 delivers mixed digital input/output capability in a single compact module. Its hot-swap design minimizes planned and unplanned downtime, making it the preferred choice for refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing environments where process continuity is non-negotiable.
Complete Technical Specifications
- Part Number / SKU: FC-TDIO01
- Manufacturer: Honeywell Process Solutions
- Series / Platform: Experion PKS – Series C I/O
- Module Type: Mixed Digital Input / Digital Output (DI/DO)
- Digital Inputs: 8 channels, 24 VDC, sourcing/sinking compatible
- Digital Outputs: 8 channels, 24 VDC, solid-state relay isolated
- Signal Isolation: Optical isolation per channel
- Input Voltage Range: 18–30 VDC (nominal 24 VDC)
- Output Current Rating: 0.5 A per channel (max)
- Backplane Interface: Experion Series C I/O bus
- Hot-Swap / Online Replacement: Yes – bumpless transfer supported
- Diagnostics: Per-channel fault detection, LED status indicators
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –40 °C to +85 °C
- Relative Humidity: 5–95% RH, non-condensing
- Weight: Approx. 240 g
- Certifications: CE, UL Listed, FM Approved
- Country of Origin: United States
Proven Application Environments
- Oil & Gas – upstream wellhead control, downstream refinery DCS loops
- Petrochemical & Chemical Processing – reactor interlock and valve control
- Power Generation – turbine control and BOP (Balance of Plant) I/O
- Pharmaceutical Manufacturing – batch process automation (21 CFR Part 11 environments)
- Pulp & Paper – continuous process line control
- Water & Wastewater Treatment – pump and valve sequencing
Engineering Advantages
- Mixed I/O Density: Combines 8 DI + 8 DO in one module slot, reducing chassis footprint and wiring complexity.
- Hot-Swap Capability: Replace or insert modules under live power without process interruption — critical for high-availability systems.
- Per-Channel Optical Isolation: Eliminates ground loops and protects the controller backplane from field-side transients.
- Integrated Diagnostics: Real-time fault reporting to Experion Station reduces MTTR (Mean Time to Repair).
- Backward Compatibility: Interoperable with existing Experion PKS C300 and ACE controller architectures.
- Wide Temperature Tolerance: Qualified for harsh industrial environments without additional enclosure conditioning.
System Architecture & Signal Flow
The FC-TDIO01 mounts directly into an Experion Series C I/O chassis (e.g., FC-PSCN01 power supply chassis). Field wiring terminates at the associated field termination assembly (FTA). Digital input signals are conditioned, optically isolated, and status-reported to the C300 controller via the Series C I/O bus at the configured scan rate. Digital output commands from the controller are latched, isolated, and driven to field devices (solenoids, relays, motor starters) through the solid-state output stage. All channel states and diagnostic flags are continuously mirrored to Experion Station for operator visibility and historian logging.
Sourcing & Quality Verification
- All FC-TDIO01 units sourced by Konmask.com are procured through verified industrial automation supply channels.
- Each unit undergoes visual inspection and functional pre-shipment verification.
- Original manufacturer labeling, firmware revision stickers, and serial numbers are preserved and documented.
- Counterfeit-risk mitigation: units are cross-referenced against Honeywell authorized part databases prior to listing.
- Packaging: anti-static ESD bag + foam-lined carton; humidity indicator card included for long-haul freight.
Procurement Process
- Confirm Compatibility: Verify your Experion PKS chassis model and firmware revision against FC-TDIO01 compatibility matrix (available on request).
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and export documentation (CO, packing list, commercial invoice).
- Place Order: Secure checkout via Konmask.com or via purchase order (NET terms available for qualified accounts).
- Shipping: DHL Express / FedEx International Priority standard; sea freight consolidation available for bulk orders. Export-controlled items shipped in compliance with EAR/ECCN regulations.
- After-Sales: 12-month warranty against manufacturing defects. RMA process initiated within 48 hours of defect report.
Technical FAQ
Q: Is the FC-TDIO01 compatible with Honeywell TDC 3000 systems?
A: No. The FC-TDIO01 is designed exclusively for the Experion PKS Series C I/O architecture. TDC 3000 systems use a different I/O bus and require HPM or LCN-compatible modules.
Q: Can I mix FC-TDIO01 with FC-SDO01 or FC-SDI01 modules in the same chassis?
A: Yes. Experion Series C I/O chassis support mixed module configurations. Slot assignment is managed via Experion Control Builder.
Q: What FTA (Field Termination Assembly) is required?
A: The FC-TDIO01 pairs with the FC-FTAI01 or equivalent Series C digital FTA. Confirm FTA model with your Honeywell system documentation or contact Konmask technical support.
Q: Is firmware upgrade required after installation?
A: Firmware is managed by the Experion PKS system. Upon insertion, the C300 controller will automatically load the appropriate firmware version if the system is configured for auto-download.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes. CoC and inspection records are available upon request for all units shipped from Konmask.com.
