Honeywell FS-SDO-0824 Safe Digital Output Module | Replacement, Equivalent & Selection Guide

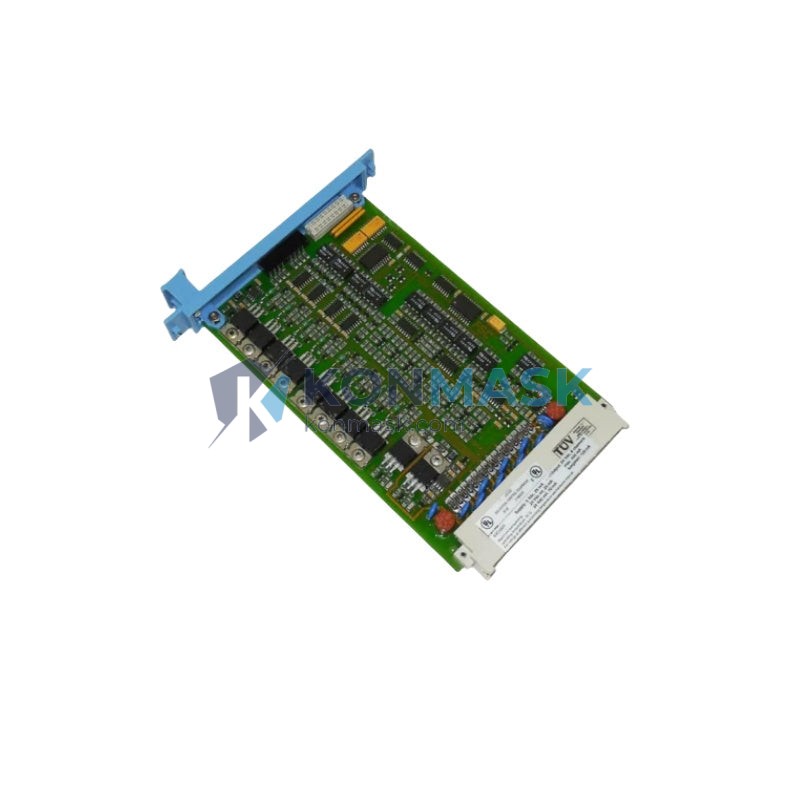

The Honeywell FS-SDO-0824 is a SIL-rated Safe Digital Output Module designed for the Honeywell Safety Manager (FSC/SM) platform. It provides 8-channel, 24 VDC digital outputs with built-in diagnostics and fault detection, making it a core component in safety-instrumented systems (SIS) across oil & gas, chemical, and power generation industries. This page serves as a comprehensive selection, replacement, and equivalency reference for engineers and procurement teams.
Technical Specifications
- Part Number: FS-SDO-0824
- Brand: Honeywell Process Solutions
- Series: Safety Manager / FSC (Fail-Safe Controller)
- Module Type: Safe Digital Output (SDO)
- Output Channels: 8 channels
- Output Voltage: 24 VDC
- Safety Integrity Level: SIL 2 / SIL 3 capable (IEC 61508)
- Diagnostic Coverage: High (built-in self-test)
- Communication: Backplane bus (FSC rack-based)
- Operating Temperature: 0 °C to +60 °C
- Certifications: TÜV, IEC 61508, IEC 61511
- Form Factor: Single-slot FSC rack module
- Weight: ~500 g
Compatible Replacement & Equivalent Models
When the FS-SDO-0824 is unavailable or end-of-life, the following models may serve as functional equivalents or drop-in replacements depending on your system revision and firmware version. Always verify compatibility with your system integrator before substitution.
- Honeywell FS-SDO-0824R – Revised hardware revision; direct replacement in most FSC racks
- Honeywell FS-SDO-0816 – 16-channel variant; suitable when channel expansion is needed
- Honeywell FS-SDO-0808 – 8-channel lower-density alternative for compact rack configurations
- Triconex 3805E (Schneider Electric) – Cross-brand SIL 3 digital output module; requires engineering review for protocol adaptation
- HIMA F3 DO 8/8 01 – HIMA SIL 3 digital output; compatible in hybrid SIS architectures with gateway
- Yokogawa ADV151-P50 – Equivalent safety DO for ProSafe-RS systems; not a direct swap but functionally comparable
Note: Cross-brand replacements require full MOC (Management of Change) review and re-validation per IEC 61511.
Why Choose the Original Model
- ✅ Certified SIL 2/3 performance – Pre-validated for IEC 61508 / IEC 61511 compliance
- ✅ Seamless FSC rack integration – No firmware changes or gateway required
- ✅ Built-in diagnostics – Continuous self-test reduces proof-test intervals
- ✅ Long field track record – Deployed in thousands of SIS installations globally
- ✅ OEM warranty & traceability – Full documentation chain for audits and insurance
Typical Applications
- Emergency Shutdown Systems (ESD) in oil & gas upstream/downstream
- Burner Management Systems (BMS) in power and utilities
- High-integrity pressure protection systems (HIPPS)
- Chemical reactor safety interlocks
- Offshore platform safety-instrumented systems
- LNG terminal process safety control
System Compatibility
- Platform: Honeywell Safety Manager (SM) / FSC (Fail-Safe Controller)
- Rack: FSC standard rack (8-slot / 16-slot)
- Power Supply: FSC-compatible 24 VDC rack power modules
- Software: Honeywell Safety Builder / FSC Engineering Tool
- Firmware: Compatible with FSC firmware v6.x and above (verify with Honeywell for latest)
- Communication Protocols: Modbus RTU (via FSC gateway), HART pass-through (field side)
Selection Guide
Use the following criteria to confirm the FS-SDO-0824 is the right module for your application:
- Step 1 – Verify SIL requirement: Confirm your SIL target (SIL 2 or SIL 3) from your SIL determination study (LOPA/HAZOP).
- Step 2 – Check channel count: FS-SDO-0824 provides 8 DO channels. If you need 16, consider FS-SDO-0816.
- Step 3 – Confirm rack slot availability: Module occupies one FSC rack slot. Verify free slots in your existing rack.
- Step 4 – Match firmware revision: Cross-reference your FSC firmware version with Honeywell’s compatibility matrix.
- Step 5 – Review load requirements: Confirm field device current draw does not exceed 24 VDC output capacity per channel.
- Step 6 – Procurement: Source from authorized distributors or certified refurbishers with full traceability documentation.
Quality Assurance & Sourcing
At Konmask.com, every Honeywell FS-SDO-0824 unit is:
- Sourced from verified supply chains with full traceability
- Inspected for physical integrity and label authenticity
- Tested for basic electrical continuity prior to dispatch
- Shipped with original packaging where available
- Accompanied by a Certificate of Conformance (CoC) on request
We specialize in industrial automation components for B2B buyers requiring reliable, spec-accurate parts with short lead times.
How to Order
- Online: Add to cart directly on this page
- Email RFQ: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Bulk / Project Orders: Contact us for volume pricing and lead-time commitments
- Lead Time: Typically 3–7 business days; expedited options available
Replacement & Compatibility FAQ
Q: Can I replace FS-SDO-0824 with FS-SDO-0824R without re-validation?
A: In most cases yes, as it is a hardware revision of the same model. However, always consult Honeywell’s change notice documentation and your site’s MOC procedure.
Q: Is the FS-SDO-0824 still in production?
A: Honeywell has transitioned some FSC modules to Safety Manager SC. Contact us to confirm current availability and recommended migration paths.
Q: Can this module be used in a non-Honeywell safety system?
A: No. The FS-SDO-0824 is designed exclusively for the Honeywell FSC/Safety Manager backplane and is not compatible with third-party racks without significant engineering adaptation.
Q: Do you provide a warranty?
A: Yes. We offer a standard 90-day functional warranty on all modules. Extended warranty options are available upon request.
Q: Can you supply the full FSC rack assembly?
A: Yes. We can source complete FSC rack assemblies, power supplies, and associated I/O modules. Contact us with your BOM for a project quote.
