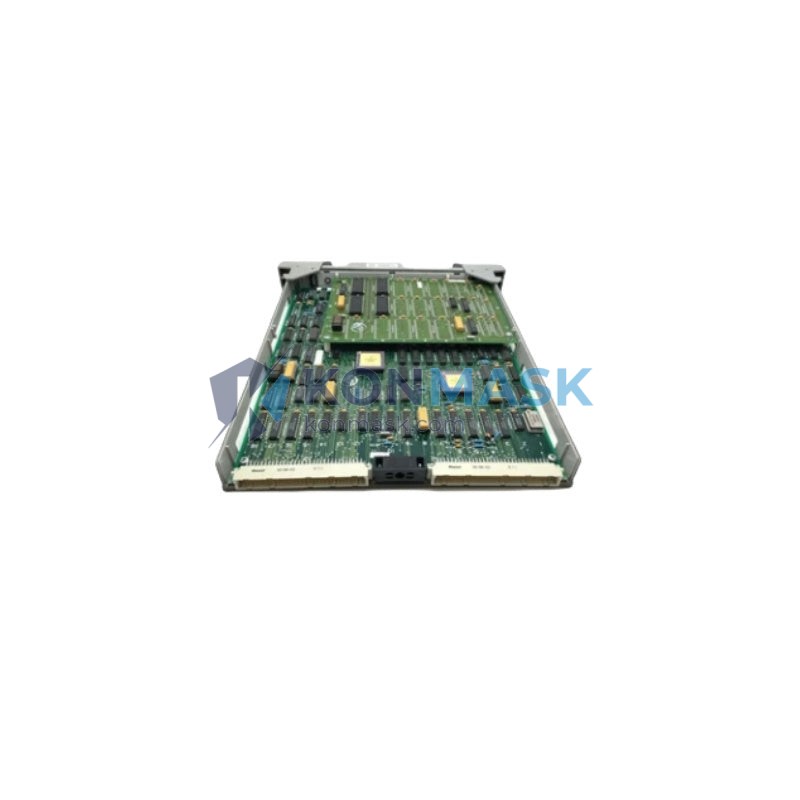

Honeywell FA-SDIL-1608 – 16-Channel Digital Input Module | Safety Manager FSC Platform
Engineering Background
The Honeywell FA-SDIL-1608 is a field-proven 16-channel digital input (DI) module designed exclusively for the Honeywell Safety Manager (FSC – Fail-Safe Controller) platform. Built to IEC 61508 and IEC 61511 standards, this module serves as the primary interface between field-level discrete sensors and the FSC safety logic solver, enabling reliable signal acquisition in safety-critical process environments.
Product Positioning
Targeted at process safety engineers and automation integrators working in oil & gas, petrochemical, power generation, and chemical processing industries, the FA-SDIL-1608 delivers deterministic, fault-tolerant digital input capability within SIL 2 and SIL 3 safety loops. It is the preferred choice for ESD (Emergency Shutdown), F&G (Fire & Gas), and BMS (Burner Management System) applications where signal integrity and diagnostic coverage are non-negotiable.
Complete Technical Specifications
- Part Number: FA-SDIL-1608
- Manufacturer: Honeywell Process Solutions
- Platform: Safety Manager / FSC (Fail-Safe Controller)
- Module Type: Digital Input (DI)
- Number of Channels: 16 channels
- Input Voltage: 24 VDC nominal
- Input Type: Discrete / dry contact / wet contact
- Safety Integrity Level: SIL 2 / SIL 3 capable (per IEC 61508)
- Diagnostic Coverage: High (internal self-test and line fault detection)
- Communication: Backplane bus to FSC CPU / Safety Manager controller
- Isolation: Galvanic isolation between field and logic side
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH, non-condensing
- Power Consumption: Per FSC system specification
- Mounting: FSC rack / backplane slot
- Certifications: TÜV, CE, IEC 61508, IEC 61511
- Weight: Approx. 500 g
- Country of Origin: USA / Netherlands (Honeywell FSC manufacturing)
Proven Application Environments
- Oil & Gas: Wellhead control panels, pipeline ESD systems, compressor shutdown logic
- Petrochemical & Refining: Reactor interlock systems, high-integrity pressure protection (HIPPS)
- Power Generation: Turbine protection, boiler management, generator interlock
- Chemical Processing: Batch process safety, toxic gas detection integration
- LNG / Offshore: Fire & gas detection input aggregation, platform ESD
- Water & Wastewater: Pump protection, overflow prevention interlocks
Engineering Advantages
- SIL-Rated Architecture: Designed and certified for use in SIL 2 and SIL 3 safety instrumented functions (SIFs), reducing functional safety risk without additional external components.
- High Diagnostic Coverage: Continuous self-diagnostics detect open-circuit, short-circuit, and stuck-at faults, minimizing dangerous undetected failures (λDU).
- Galvanic Isolation: Full isolation between field wiring and logic bus protects the safety controller from field-side transients and ground loops.
- Hot-Swap Capability: Supports module replacement under power in redundant FSC configurations, enabling maintenance without process shutdown.
- Seamless FSC Integration: Native backplane communication with Honeywell Safety Manager CPU eliminates protocol conversion overhead and ensures deterministic scan times.
- Long Service Life: Honeywell FSC components are designed for 20+ year operational lifespans, consistent with process industry asset management requirements.
System Architecture & Signal Flow
The FA-SDIL-1608 occupies a standard I/O slot within the FSC rack. Field-side discrete signals (24 VDC) are wired to the module’s terminal block or marshalling cabinet. The module conditions, filters, and validates each of the 16 input channels, then transmits the digital state data across the FSC backplane to the Safety Manager CPU. The CPU executes the configured safety logic (IEC 61131-3 / FSC application) and drives output modules accordingly. Internal diagnostics run continuously in parallel with signal acquisition, reporting fault states to the CPU for alarm annunciation and safe-state enforcement.
Typical signal path: Field sensor → FA-SDIL-1608 input terminal → galvanic isolation → backplane bus → FSC CPU safety logic → output module → final element (valve, relay, etc.)
Sourcing & Quality Verification
- All Honeywell FSC modules at Konmask.com are sourced through verified industrial automation supply channels.
- Each unit undergoes visual inspection and functional pre-shipment verification.
- Original Honeywell part markings, firmware labels, and serial numbers are preserved and traceable.
- Certificates of conformance (CoC) and test reports available upon request for critical safety applications.
- We do not supply counterfeit, refurbished-as-new, or grey-market components.
Procurement Process
- Step 1 – Inquiry: Contact us with your part number (FA-SDIL-1608), required quantity, and delivery timeline.
- Step 2 – Quotation: Receive a formal quotation with pricing, lead time, and availability confirmation within 24 hours.
- Step 3 – Order Confirmation: Submit purchase order (PO) or place order directly via Konmask.com checkout.
- Step 4 – Shipment: Secure packaging with ESD protection; DHL / FedEx / UPS express options available. Export documentation provided for international orders.
- Step 5 – After-Sales: Technical support and warranty claims handled by our engineering team.
Technical FAQ
Q: Is the FA-SDIL-1608 compatible with all FSC rack sizes?
A: Yes. The module is compatible with standard FSC I/O racks (4-slot, 8-slot, and 16-slot configurations) used in the Honeywell Safety Manager system.
Q: Can this module be used in a 1oo2 or 2oo3 voting architecture?
A: Yes. When configured in redundant FSC systems, multiple FA-SDIL-1608 modules can be assigned to the same logical input group to implement voted input architectures for SIL 3 applications.
Q: What is the input signal voltage range?
A: The module accepts 24 VDC nominal field signals. Refer to the Honeywell FSC Hardware Manual (document FS-SM-0820) for exact threshold voltages and wiring specifications.
Q: Is firmware upgrade required when replacing a module?
A: Replacement modules should match the existing firmware revision in the FSC system. Contact Konmask technical support for firmware compatibility guidance prior to installation.
Q: Do you provide the Honeywell FSC Hardware Manual?
A: Yes. Documentation packages including hardware manuals, wiring diagrams, and safety data sheets are available upon request for qualified engineering teams.
