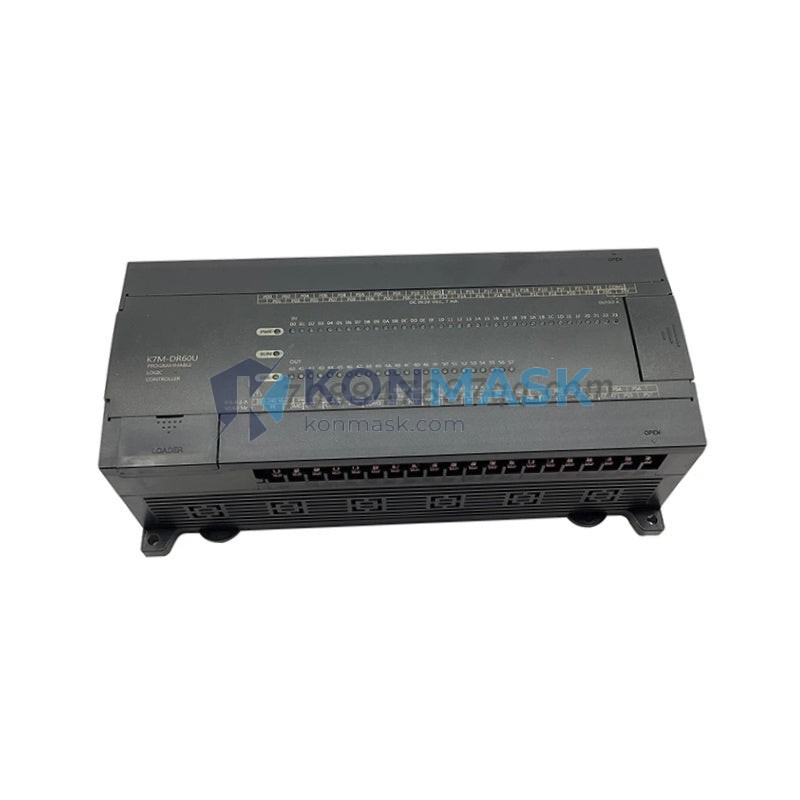

Honeywell K7M-DR60U PLC Module | Modicon M7 Series 60 I/O DC Input Relay Output

Honeywell K7M-DR60U PLC Module – Compact 60 I/O Controller | Modicon M7 Series

When a critical production line halts due to a failed programmable logic controller, every minute of downtime translates directly into lost revenue, missed delivery commitments, and cascading equipment faults. In high-demand industrial environments — from automotive assembly to water treatment — the PLC is the nerve center of the entire operation. Without a reliable, readily available replacement like the Honeywell K7M-DR60U, engineers face hours of troubleshooting, costly emergency procurement, and unplanned shutdowns that ripple across the supply chain.

The K7M-DR60U belongs to the Modicon M7 compact PLC series — a globally recognized platform engineered for demanding discrete and process control applications. With 60 onboard I/O points (36 DC inputs + 24 relay outputs), this all-in-one base unit eliminates the need for separate I/O expansion in small-to-medium machine control scenarios. Its proven architecture has made it a trusted choice for OEMs and system integrators across Asia, Europe, and the Americas, with millions of units deployed in active industrial service worldwide.

Technical Specifications

• Part Number: K7M-DR60U
• Series: Modicon M7 (Twido-compatible compact PLC)
• Total I/O Points: 60 (36 inputs + 24 outputs)
• Input Type: DC 24V digital inputs
• Output Type: Relay output
• Power Supply: AC 100–240V / DC 24V (model-dependent)
• Communication Ports: RS-485 serial (built-in); optional Ethernet/CANopen via expansion
• Programming Standard: IEC 61131-3 (Ladder, FBD, SFC, IL, ST)
• Memory: Program memory + data memory (non-volatile)
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 70°C
• Humidity: 10%–95% RH (non-condensing)
• Protection Rating: IP20
• Mounting: DIN rail or panel mount
• Weight: Approx. 1,060 g
• Certifications: CE, UL, cUL

Key Features & Benefits

• All-in-One Compact Design: 60 I/O points integrated into a single base unit — reduces panel space and wiring complexity by up to 40% compared to modular alternatives.
• Relay Output Versatility: Relay outputs support both AC and DC loads, enabling direct control of motors, solenoids, and contactors without additional interface relays.
• IEC 61131-3 Compliance: Supports all five standard PLC programming languages, allowing engineers to reuse existing code libraries and reduce commissioning time.
• Robust Serial Communication: Built-in RS-485 port enables Modbus RTU networking with HMIs, drives, and sensors — no additional communication module required for basic SCADA integration.
• Wide Power Supply Range: Accepts AC 100–240V input, making it suitable for global deployment without power conditioning equipment.
• Non-Volatile Memory: Program and data retention without battery backup in standard operation, reducing maintenance overhead.
• Proven Reliability: Designed for 24/7 continuous operation in industrial environments with vibration, EMI, and temperature cycling resistance.

Industry & Equipment Applications

• Manufacturing & Assembly Lines: Conveyor control, pick-and-place sequencing, end-of-line testing stations
• Building Automation: HVAC control, access control panels, lighting management systems
• Water & Wastewater Treatment: Pump station control, dosing systems, level monitoring
• Food & Beverage Processing: Filling machines, pasteurization lines, packaging equipment
• Textile & Printing Machinery: Tension control, web guiding, color registration
• OEM Machine Builders: Compact machine controllers where panel space is at a premium
• Energy & Utilities: Substation automation, generator control panels, renewable energy BOS

System Integration & Compatible Parts

The K7M-DR60U is designed for seamless integration within the Modicon M7 ecosystem and broader Honeywell/Schneider automation architectures:

• Expansion I/O Modules: Compatible with Modicon M7 digital and analog expansion modules (e.g., K7M-E08A, K7M-E16X series)
• Communication Adapters: Ethernet (TCP/IP), CANopen, and Profibus DP communication modules available for network integration
• HMI Panels: Compatible with Magelis/XBT series HMIs via Modbus RTU or Uni-Telway protocol
• Programming Software: TwidoSuite or TwidoSoft (legacy); Unity Pro for advanced applications
• Power Supplies: Schneider Electric Phaseo ABL series 24VDC power supplies recommended
• Cables & Connectors: Standard terminal block wiring; TSXCUSB485 USB-to-RS485 programming cable

Our Quality Assurance Process

At Konmask.com, every K7M-DR60U unit undergoes a rigorous multi-stage inspection before shipment:

• ✅ Authenticity Verification: Serial number and date code cross-referenced against manufacturer records
• ✅ Visual Inspection: Housing integrity, connector condition, label legibility, and seal verification
• ✅ Functional Power-On Test: Unit powered and self-diagnostic cycle confirmed
• ✅ Anti-Static Packaging: ESD-safe bags, foam cushioning, and moisture barrier packaging for safe international transit
• ✅ Documentation: Certificate of conformity and inspection report available upon request

How to Order

1. Submit an Inquiry: Contact us via the form below or email support@konmask.com with your required quantity and delivery timeline.
2. Receive a Quote: Our team will respond within 24 business hours with pricing, lead time, and shipping options.
3. Confirm & Pay: Secure payment via T/T bank transfer, PayPal, or other agreed methods.
4. Shipment & Tracking: Units shipped via DHL, FedEx, or UPS with full tracking provided.
5. After-Sales Support: 12-month warranty on all stocked units; technical support available via email and WhatsApp.

Why Choose Konmask.com?

• 🌐 Global Stock Network: Sourced from authorized distributors and verified secondary market channels across Asia, Europe, and North America
• ⚡ Fast Delivery: In-stock units typically ship within 1–3 business days; express delivery available to 150+ countries
• 🔒 Authenticity Guaranteed: Every unit traceable and inspected — zero tolerance for counterfeit parts
• 💬 Expert Technical Support: Our engineers have 10+ years of experience with Honeywell and Schneider automation systems
• 📦 Flexible MOQ: Single-unit orders accepted — no minimum order quantity for urgent replacement needs
• 🏭 B2B Specialist: Serving industrial buyers, MRO procurement teams, and system integrators worldwide

Frequently Asked Questions

Q: Is the Honeywell K7M-DR60U the same as the Schneider Electric K7M-DR60U?
A: Yes. The K7M-DR60U is a Modicon M7 series product manufactured by Schneider Electric and distributed/branded under Honeywell in certain markets. The hardware and firmware are identical; only the labeling may differ.

Q: What programming software is required for the K7M-DR60U?
A: The K7M-DR60U is programmed using TwidoSuite (recommended) or the legacy TwidoSoft software, both available from Schneider Electric. A USB-to-RS485 programming cable (e.g., TSXCUSB485) is required to connect a PC to the unit.

Q: Can the K7M-DR60U be expanded with additional I/O?
A: Yes. The base unit supports connection of Modicon M7 expansion modules to increase digital and analog I/O capacity beyond the built-in 60 points.

Q: What is the warranty on units purchased from Konmask.com?
A: All units carry a 12-month warranty covering manufacturing defects. Units are inspected and tested prior to shipment.

Q: Do you provide a certificate of origin or conformity?
A: Yes. Documentation including inspection reports and certificates of conformity are available upon request for all orders.

Q: What is the typical lead time for the K7M-DR60U?
A: In-stock units ship within 1–3 business days. For bulk orders or special configurations, lead time is confirmed at the time of quotation.

---
