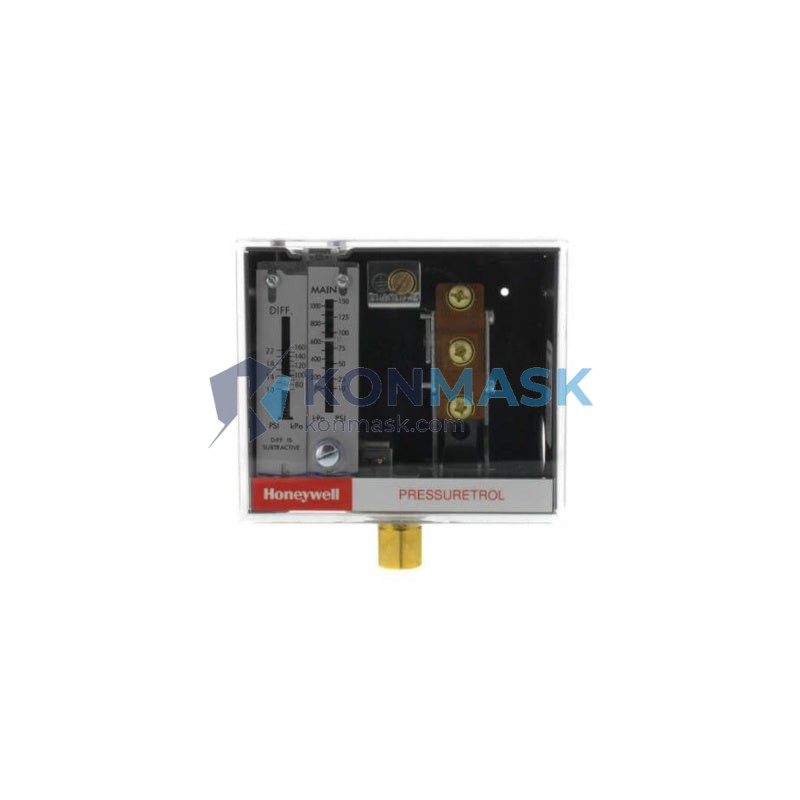

Steam Boiler Pressure Control Solution – Honeywell L404F1235 | Pressuretrol Series
Where This Product Is Used
The Honeywell L404F1235 Pressuretrol Controller is engineered for residential and light commercial steam heating systems. It is the industry-standard pressure-sensing device installed on steam boilers to automatically start and stop the burner based on system pressure, ensuring safe and efficient operation. Typical deployment environments include:
- Single-pipe and two-pipe steam heating systems in apartment buildings and multi-family residences
- Commercial HVAC steam distribution networks requiring precise cut-in/cut-out pressure management
- Boiler rooms in schools, hospitals, and industrial facilities where steam pressure must be tightly regulated
- Retrofit and replacement projects on legacy Honeywell Pressuretrol installations
- OEM integration into packaged steam boiler assemblies
Technical Specifications
- Model / SKU: L404F1235
- Brand: Honeywell (Resideo)
- Series: Pressuretrol®
- Control Type: Electromechanical pressure controller (SPDT)
- Pressure Range (Cut-In): 0.5 – 10 PSI adjustable
- Differential: 1 – 4 PSI adjustable
- Electrical Rating: 120 VAC, 60 Hz, 10.2 A full load / 61.2 A locked rotor
- Connection: ¼-inch NPT steam connection
- Enclosure: NEMA 1 (indoor use)
- Mounting: Direct-mount to boiler tapping or remote-mount via siphon
- Weight: 360 g
- Country of Origin: United States
Why Engineers Specify This Model
- Proven field reliability: The L404F series has decades of documented service life in demanding steam environments, reducing callback rates for HVAC contractors.
- Dual-adjustment design: Independent main scale (cut-in) and differential scale allow precise tuning without iterative trial-and-error, saving commissioning time.
- Direct OEM replacement: Pin-compatible with earlier L404A/B/C/D variants, enabling drop-in retrofits without re-piping or re-wiring.
- Fail-safe switching: SPDT contacts open the burner circuit on high pressure, preventing over-pressurization and conforming to ASME boiler safety requirements.
- Low installed cost: Compact form factor mounts directly to standard ¼-inch NPT boiler tappings, eliminating the need for additional fittings in most installations.
Complete System Bill of Materials
For a fully functional steam boiler pressure control loop, engineers typically specify the following alongside the L404F1235:
- Honeywell R8285A / R8285D Relay Center – burner control integration
- Honeywell L4006A Aquastat Controller – high-limit temperature backup
- McDonnell & Miller 67 Low Water Cut-Off – boiler protection
- Watts 174A Pressure Relief Valve – ASME-rated safety relief
- Siphon loop / pigtail (¼-inch NPT) – condensate protection for the Pressuretrol sensing element
- Isolation valve (¼-inch NPT ball valve) – service isolation without draining the boiler
Compliance & Industry Standards
- Listed by Underwriters Laboratories (UL)
- Compliant with ASME Boiler and Pressure Vessel Code (Section IV – Heating Boilers)
- Meets ANSI Z21.13 / CSA 4.9 requirements for gas-fired low-pressure steam and hot-water boilers
- RoHS compliant
Quality Assurance & Sourcing
Konmask.com sources the Honeywell L404F1235 exclusively through authorized industrial distributors and verified OEM supply chains. Every unit undergoes incoming inspection including:
- Verification of authentic Honeywell / Resideo part markings and date codes
- Functional continuity check on SPDT switching contacts
- Pressure-port integrity inspection prior to dispatch
- Anti-static, moisture-barrier packaging for transit protection
Counterfeit pressure controllers present serious safety risks in steam systems. We provide full traceability documentation upon request.
How to Source This Part
- In-stock orders: Add to cart and check out — standard lead time is 1–3 business days for dispatch.
- Bulk / project quantities: Contact support@konmask.com for volume pricing and project-specific lead times.
- Urgent requirements: Call +0086 19859288691 for same-day quotation on expedited stock.
- Technical pre-sales support: Our engineering team can confirm compatibility with your existing boiler model and control wiring before you order.
Application-Specific FAQ
Q: Is the L404F1235 compatible with my older Honeywell L404A Pressuretrol?
A: Yes. The L404F1235 is a direct functional replacement for the L404A, B, C, and D series. The ¼-inch NPT connection and SPDT wiring terminals are identical. No re-piping is required.
Q: What is the correct cut-in pressure setting for a residential steam system?
A: Most single-pipe residential steam systems operate correctly with a cut-in pressure of 0.5–1.5 PSI and a differential of 1 PSI. Higher settings cause water hammer and energy waste. Always verify with the boiler manufacturer’s documentation.
Q: Do I need a siphon (pigtail) with this controller?
A: Yes. A siphon loop filled with condensate is mandatory to protect the sensing bellows from live steam contact. Operating the L404F1235 without a siphon will damage the unit and void the warranty.
Q: Can this controller be used on a hot-water (hydronic) system?
A: No. The L404F1235 is rated for steam pressure only (0.5–10 PSI). For hydronic systems, specify the Honeywell L4006A Aquastat or equivalent high-limit controller.
Q: What is the typical service life?
A: Under normal operating conditions (clean steam, correct siphon installation, pressure within rated range), the L404F series routinely achieves 15–25 years of service life.
