Discrete Control Solution – Allen-Bradley 5094-OB16 | Flex 5000 Series

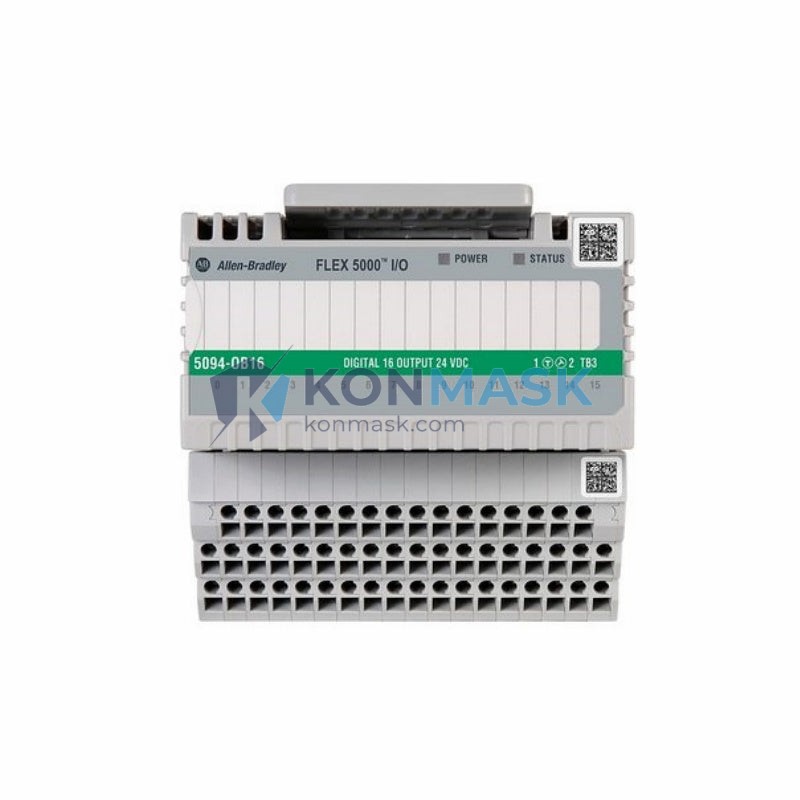

The Allen-Bradley 5094-OB16 is a 16-point 24VDC sourcing digital output module from the Rockwell Automation Flex 5000 I/O platform. Designed for high-density discrete control, it delivers reliable switching performance in demanding industrial environments — from automotive assembly lines to pharmaceutical packaging systems.
Where This Product Is Used
- Automotive Manufacturing: Controls solenoid valves, conveyor drives, and pneumatic actuators on body-in-white and powertrain assembly lines.
- Packaging & Material Handling: Drives reject gates, diverters, and indexing cylinders in high-speed packaging machinery.
- Food & Beverage Processing: Switches pumps, agitators, and filling valves in hygienic process lines requiring reliable discrete I/O.
- Pharmaceutical & Life Sciences: Controls actuators and indicators in validated batch manufacturing and filling systems.
- Water & Wastewater Treatment: Operates valve actuators, pump starters, and alarm outputs in remote lift stations and treatment plants.
- Oil & Gas / Petrochemical: Interfaces with motor control centers and shutdown valves in hazardous-area panel builds.
- Machine Tool & Robotics: Provides discrete command signals to servo drives, tool changers, and safety interlocks.
Technical Specifications
- Catalog Number: 5094-OB16
- Series: Flex 5000 I/O
- Manufacturer: Allen-Bradley / Rockwell Automation
- Output Points: 16 (sourcing, solid-state)
- Output Voltage: 24V DC
- Output Current: 0.5 A per point (max)
- Total Module Current: 4 A max (all points ON)
- Output Type: Transistor (sourcing / PNP)
- Communication: EtherNet/IP via Flex 5000 adapter
- Backplane Power: Supplied via Flex 5000 I/O bus
- Operating Temperature: 0 °C to 60 °C (32 °F to 140 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5–95% non-condensing
- Enclosure Rating: Open-type (panel mount)
- Weight: Approx. 500 g
- Dimensions (H × W × D): Per Rockwell Automation product drawing
Why Engineers Specify This Model
- High Channel Density: 16 outputs in a compact Flex 5000 form factor reduces panel footprint versus discrete relay banks.
- Solid-State Reliability: Transistor outputs eliminate mechanical wear, extending MTBF in high-cycle applications.
- EtherNet/IP Native: Seamless integration with Studio 5000 Logix Designer and FactoryTalk View for unified control and diagnostics.
- Point-Level Diagnostics: Per-channel fault reporting enables rapid troubleshooting without field instrumentation.
- Scalable Architecture: Mix-and-match with Flex 5000 analog, specialty, and safety modules on a single adapter.
- Hot-Swap Capable: Module replacement without full system shutdown minimizes production downtime.
Complete System Bill of Materials
- 5094-OB16 — 16-Point 24VDC Digital Output Module (this item)
- 5094-AENSFR — Flex 5000 EtherNet/IP Dual-Port Adapter (required)
- 5094-TB3 or 5094-TB3S — Spring-Clamp or Screw Terminal Base
- 1756-L8x / 5069-L3x — ControlLogix or CompactLogix Controller (application dependent)
- 1783-BMS series — Stratix Managed Switch (recommended for EtherNet/IP topology)
- 2198-H040-ERS3 — Kinetix 5700 Drive (if coordinating with servo axes)
Compliance & Industry Standards
- UL Listed (UL 508)
- CE Marked — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- RoHS Compliant — Directive 2011/65/EU
- cULus Listed
- ATEX / IECEx: Consult Rockwell Automation for hazardous-location variants
- EtherNet/IP conformance tested by ODVA
Quality Assurance & Sourcing
All modules listed on Konmask.com are sourced from authorized distributors and verified surplus channels. Each unit undergoes visual inspection and functional verification prior to dispatch. We provide:
- Genuine Rockwell Automation / Allen-Bradley part numbers — no counterfeits
- Traceability documentation available on request
- 30-day return policy for DOA units
- Secure anti-static packaging for international shipment
How to Source This Part
Ready to order the 5094-OB16? Follow these steps:
- Confirm your Flex 5000 adapter model and firmware revision with your controls engineer.
- Verify terminal base compatibility (5094-TB3 vs 5094-TB3S) for your wiring gauge.
- Add the 5094-OB16 to your cart or contact us for volume pricing and lead-time confirmation.
- Request a formal quotation via support@konmask.com for project BOM orders.
Application-Specific FAQ
Q: Is the 5094-OB16 compatible with ControlLogix 5580 controllers?
A: Yes. The Flex 5000 platform communicates over EtherNet/IP and is fully compatible with ControlLogix 5580, 5570, CompactLogix 5380, and 5480 controllers running Studio 5000 v24 or later.
Q: Can I mix 5094-OB16 with analog modules on the same adapter?
A: Yes. Flex 5000 supports mixed I/O configurations — digital, analog, and specialty modules can coexist on a single 5094-AENSFR adapter up to the backplane power budget.
Q: What is the maximum cable length for field wiring?
A: Rockwell recommends keeping field wiring under 30 m (100 ft) for 24VDC discrete I/O to minimize voltage drop and noise susceptibility. Shielded cable is recommended in high-EMI environments.
Q: Does this module support electronic fusing or short-circuit protection?
A: The 5094-OB16 provides per-channel overcurrent detection with diagnostic reporting. External fusing per Rockwell’s wiring diagram is still recommended for field device protection.
Q: Is a new or refurbished unit available?
A: Konmask.com stocks both new-in-box and tested surplus units. Contact us to confirm current availability and condition grade.
