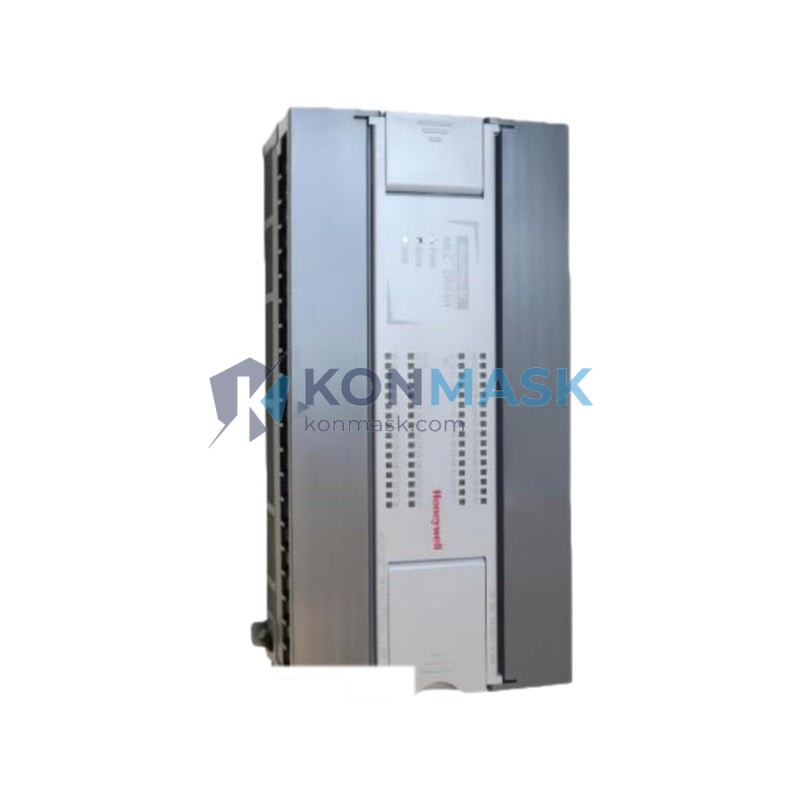

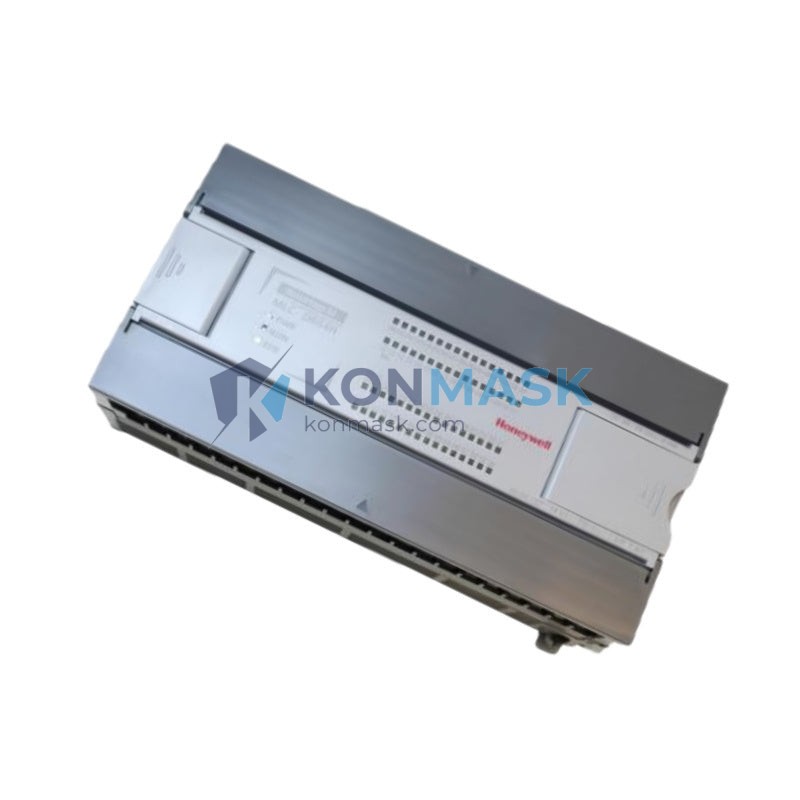

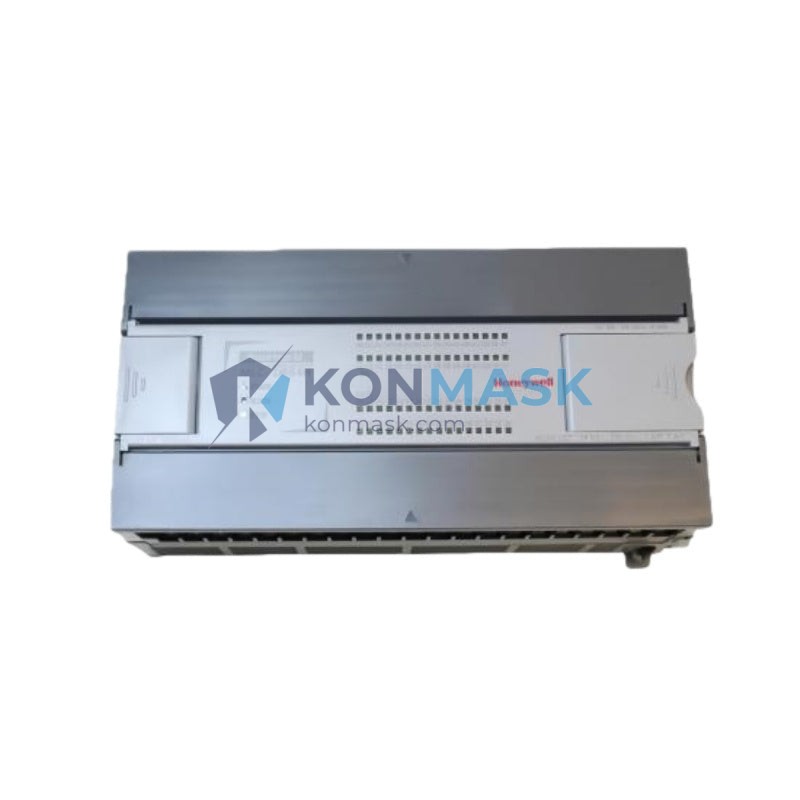

Honeywell MLC-DR32H – 32-Channel Relay Digital Output Module | Modular Logic Controller Platform
Engineering Background: The Honeywell Modular Logic Controller (MLC) platform was engineered for demanding industrial process environments where deterministic I/O response, high channel density, and long-term field reliability are non-negotiable. The MLC series is widely deployed across refining, petrochemical, power generation, and discrete manufacturing sectors as a proven DCS-adjacent control architecture.
Product Positioning: The MLC-DR32H is a 32-channel relay digital output module designed for high-density switching applications within the MLC backplane ecosystem. It provides electrically isolated relay contacts per channel, enabling direct interface to field devices such as solenoid valves, motor starters, alarm annunciators, and pilot lights — without the need for external interposing relays in most applications. For procurement engineers sourcing replacement or expansion I/O for existing Honeywell MLC installations, the MLC-DR32H is the factory-specified module for relay-type digital output requirements.
Complete Technical Specifications
- Part Number: MLC-DR32H
- Manufacturer: Honeywell Process Solutions
- Series / Platform: Modular Logic Controller (MLC)
- Module Type: Relay Digital Output Module
- Output Channels: 32 channels
- Output Type: Dry contact relay (normally open / normally closed)
- Contact Rating: Typically 2A @ 30 VDC / 0.5A @ 125 VAC (verify with datasheet for exact derating)
- Isolation: Channel-to-channel and channel-to-backplane optical isolation
- Backplane Interface: MLC standard backplane bus
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Consumption: Per MLC system power budget (refer to MLC system manual)
- Mounting: MLC backplane slot — hot-swap capable (system-dependent)
- Dimensions: Standard MLC module form factor
- Weight: Approx. 500 g
- Certifications: CE, UL/cUL listed (verify current certification status with Honeywell)
- Country of Origin: USA / Honeywell global manufacturing
Proven Application Environments
- Oil & Gas Upstream / Midstream: Wellhead control panels, compressor station ESD outputs, pipeline valve actuation
- Refining & Petrochemical: Reactor interlock outputs, pump motor starter control, flare system switching
- Power Generation: Turbine auxiliary control, generator protection relay outputs, switchgear interface
- Water & Wastewater Treatment: Pump sequencing, valve control, alarm output to SCADA
- Pharmaceutical / Life Sciences: Clean-room HVAC damper control, batch process valve sequencing
- Discrete Manufacturing: Conveyor control, machine safety interlock outputs, indicator lamp driving
- Building Automation: HVAC equipment switching, fire suppression interface, access control outputs
Engineering Advantages
- High Channel Density: 32 relay outputs in a single module slot reduces backplane footprint and cabinet space versus discrete relay panels
- Electrical Isolation: Per-channel isolation protects the controller backplane from field-side voltage transients and ground loops
- Direct Field Wiring: Eliminates interposing relay panels for most 24 VDC and low-voltage AC loads, reducing BOM cost and wiring complexity
- MLC Platform Continuity: Drop-in replacement for existing MLC installations — no firmware changes or backplane reconfiguration required
- Deterministic Scan Cycle: MLC architecture guarantees consistent output update timing critical for safety-related switching sequences
- Long Service Life: Honeywell relay modules are rated for extended mechanical and electrical endurance cycles, reducing maintenance intervals
- Diagnostic Visibility: Module-level status LEDs and backplane diagnostics enable rapid fault isolation without loop tracing
System Architecture & Signal Flow
The MLC-DR32H occupies a standard I/O slot on the MLC backplane. The MLC processor module communicates output states to the DR32H via the backplane bus on each scan cycle. The module’s internal relay drivers energize or de-energize the 32 individual relay coils based on the received output image. Field wiring connects to the module’s terminal block (or marshalling panel via cable), with each channel presenting a set of dry contacts to the field device. The optical isolation barrier between the backplane logic side and the relay contact side ensures that field-side faults — including voltage spikes, short circuits, and ground faults — do not propagate to the controller CPU or other I/O modules.
Typical Signal Path: MLC CPU → Backplane Bus → MLC-DR32H Output Image Register → Relay Driver → Relay Contact → Field Device (Solenoid / Starter / Lamp)
Sourcing & Quality Verification
- Source: Konmask.com sources MLC-DR32H modules from authorized distributors, certified surplus channels, and verified OEM stock — never counterfeit or grey-market supply chains
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment checks
- Traceability: Lot traceability documentation available on request for regulated industries (pharma, nuclear, defense)
- Condition: New, refurbished (tested), and surplus-new options available — condition clearly stated at time of quotation
- Warranty: 12-month warranty against defects in materials and workmanship; extended warranty available
- Lead Time: In-stock units ship within 1–3 business days; contact us for current availability
Procurement Process
- Submit RFQ: Email support@konmask.com with part number MLC-DR32H, required quantity, and delivery timeline
- Receive Quotation: We respond within 4 business hours with pricing, lead time, and stock condition details
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net terms (qualified accounts)
- Quality Documentation: Certificate of conformance, inspection report, and packing list provided with shipment
- Shipping: DHL / FedEx / UPS international express; EXW Xiamen or CIF destination available
- After-Sales Support: Technical support available post-delivery for installation and commissioning questions
Technical FAQ
Q: Is the MLC-DR32H compatible with all MLC backplane revisions?
A: The MLC-DR32H is designed for the standard MLC backplane. Compatibility with specific backplane hardware revisions should be confirmed against the Honeywell MLC system compatibility matrix or by contacting our technical team with your existing system details.
Q: Can the MLC-DR32H be hot-swapped during system operation?
A: Hot-swap capability depends on the MLC system configuration and the criticality of the outputs being controlled. Consult the MLC system manual and your site safety procedures before performing live module replacement.
Q: What is the maximum load current per relay channel?
A: Typically 2A resistive at 30 VDC. Inductive loads (solenoids, motor starters) require derating — refer to the official Honeywell MLC-DR32H datasheet for full derating curves.
Q: Do you supply the MLC-DR32H with a certificate of conformance?
A: Yes. A certificate of conformance is included with every shipment. Lot traceability and third-party inspection reports are available on request.
Q: What is the lead time for large quantity orders?
A: For orders of 5+ units, please submit an RFQ. We will confirm availability and lead time within one business day.
Q: Can Konmask provide technical support for MLC system integration?
A: Yes. Our engineering team can assist with I/O mapping, backplane slot allocation, and wiring recommendations for MLC-DR32H integration into existing or new MLC systems.
