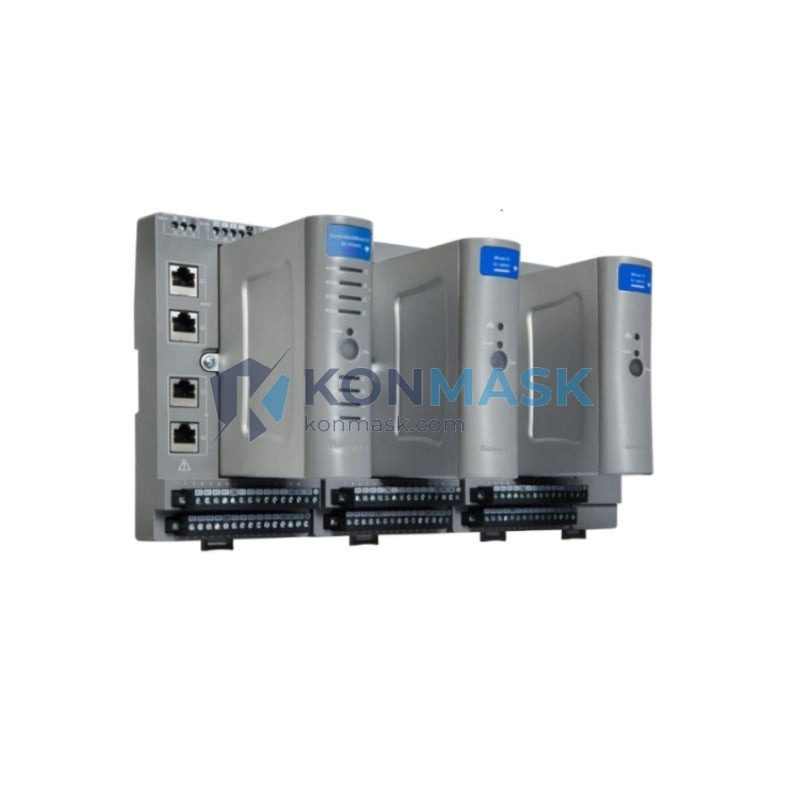

Honeywell SP-EMD171-ESD – ESD Terminal Module | Experion PKS Safety System Platform
Engineering Background: The Honeywell SP-EMD171-ESD is a dedicated Emergency Shutdown (ESD) terminal module engineered for use within Honeywell’s Experion PKS (Process Knowledge System) Safety Manager platform. Designed to meet the rigorous demands of Safety Instrumented Systems (SIS), this module provides the critical interface layer between field-wired safety devices and the safety logic solver, ensuring deterministic, fail-safe signal handling in high-consequence process environments.
Product Positioning: Targeted at process industries requiring IEC 61511 / IEC 61508 compliance, the SP-EMD171-ESD serves as a hardwired terminal assembly that supports the Safety Manager’s I/O subsystem. It is the preferred choice for procurement engineers specifying replacement or expansion components in existing Honeywell SIS architectures across oil & gas, petrochemical, power generation, and chemical processing facilities.
Complete Technical Specifications
| Part Number | SP-EMD171-ESD |
| Manufacturer | Honeywell Process Solutions |
| Product Series | Experion PKS Safety Manager |
| Module Type | ESD Terminal Module |
| Function | Emergency Shutdown (ESD) field wiring termination interface |
| System Compatibility | Honeywell Safety Manager / Experion PKS SIS |
| Safety Integrity Level | SIL 2 / SIL 3 capable (per system configuration) |
| Standards Compliance | IEC 61508, IEC 61511, TÜV-certified platform |
| Terminal Type | Screw-type field wiring terminals |
| Mounting | DIN rail / chassis-integrated, Safety Manager I/O chassis |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Weight | 220 g (approx.) |
| Enclosure / Protection | Panel-mount, suitable for industrial control cabinet installation |
| Communication Interface | Backplane-connected to Safety Manager I/O bus |
| Certifications | CE, TÜV, FM (per Honeywell Safety Manager system certification) |
Proven Application Environments
- Oil & Gas: Upstream wellhead ESD, midstream pipeline shutdown systems, LNG terminal safety interlocks
- Petrochemical & Refining: Reactor emergency shutdown, high-integrity pressure protection systems (HIPPS)
- Power Generation: Turbine trip systems, boiler management safety loops
- Chemical Processing: Exothermic reactor protection, toxic gas release prevention interlocks
- Offshore Platforms: Fire & gas system integration, process shutdown (PSD) and emergency shutdown (ESD) layers
- Water & Wastewater: Critical pump and valve safety interlock systems
Engineering Advantages
- Fail-Safe Architecture: Designed for de-energize-to-trip (DTT) logic, ensuring safe state on power loss or signal fault
- High Diagnostic Coverage: Integrated with Safety Manager’s continuous self-diagnostics for early fault detection
- Deterministic Response: Guaranteed response time within Safety Manager system scan cycle, critical for SIL loop calculations
- Simplified Field Wiring: Clearly labeled, segregated terminal blocks reduce installation errors and support loop testing
- Hot-Swap Compatibility: Supports maintenance replacement without full system shutdown (subject to system configuration)
- Long Service Life: Industrial-grade components rated for 20+ year operational lifecycle in continuous process environments
System Architecture & Signal Flow
The SP-EMD171-ESD integrates directly into the Honeywell Safety Manager I/O chassis. Field devices (e.g., emergency push buttons, pressure switches, solenoid valves) are wired to the terminal module’s screw terminals. Signals are conditioned and passed via the chassis backplane to the Safety Manager logic solver, which executes the SIL-rated safety function. The module provides galvanic isolation between field circuits and the logic solver backplane, protecting against ground loops and transient surges common in industrial field environments.
Signal Flow: Field Device → SP-EMD171-ESD Terminal → Backplane I/O Bus → Safety Manager Logic Solver → Final Element Actuation
Sourcing & Quality Verification
- Authenticity: All units sourced through verified industrial automation supply channels; original Honeywell labeling and serialization intact
- Condition: New surplus and refurbished units available; each unit undergoes functional inspection prior to shipment
- Documentation: Original Honeywell part number, revision level, and manufacturing date code verified on receipt
- Traceability: Full supply chain traceability records maintained; certificates of conformance available on request
- Warranty: 12-month operational warranty against manufacturing defects; return & replacement policy applies
- Anti-Counterfeit: Physical inspection against Honeywell OEM specifications; counterfeit units rejected at intake
Procurement Process
- Confirm Part Number: Verify SP-EMD171-ESD against your Safety Manager BOM and I/O chassis revision
- Submit RFQ: Contact Konmask via email or phone with quantity, required delivery, and any certification documentation needs
- Receive Quotation: Pricing and lead time confirmed within 1 business day for in-stock units
- Order Confirmation: Purchase order issued; export compliance and shipping documentation prepared
- Shipment & Tracking: Secure anti-static packaging; DHL / FedEx international express with full tracking
- Incoming Inspection Support: Konmask provides inspection checklist and datasheet to support your QC process
Technical FAQ
Q: Is the SP-EMD171-ESD compatible with all Honeywell Safety Manager chassis revisions?
A: The SP-EMD171-ESD is designed for the Honeywell Safety Manager platform within Experion PKS. Compatibility with specific chassis revisions should be confirmed against your system’s I/O configuration and firmware version. Contact Konmask for cross-reference support.
Q: Can this module be used in SIL 3 applications?
A: SIL 3 capability depends on the overall safety loop architecture, including redundancy configuration and proof test intervals. The Safety Manager platform supports SIL 3 in appropriate configurations; consult your Honeywell SIS engineer for loop SIL verification.
Q: What is the lead time for the SP-EMD171-ESD?
A: In-stock units ship within 1–3 business days. For larger quantities or specific revision requirements, lead time is typically 5–10 business days. Contact us for current stock status.
Q: Do you provide a certificate of conformance?
A: Yes. A certificate of conformance (CoC) is available for all units upon request. Traceability documentation can be provided to support your incoming inspection and SIS management of change (MOC) process.
Q: Can Konmask assist with identifying equivalent or replacement modules?
A: Yes. Our technical team can assist with cross-referencing Honeywell Safety Manager I/O modules and identifying compatible alternatives where the original part is obsolete or on extended lead time.
