Honeywell TC-ODD321 – DC Digital Output Module | Experion PKS / TDC 3000 Platform
Engineering Background

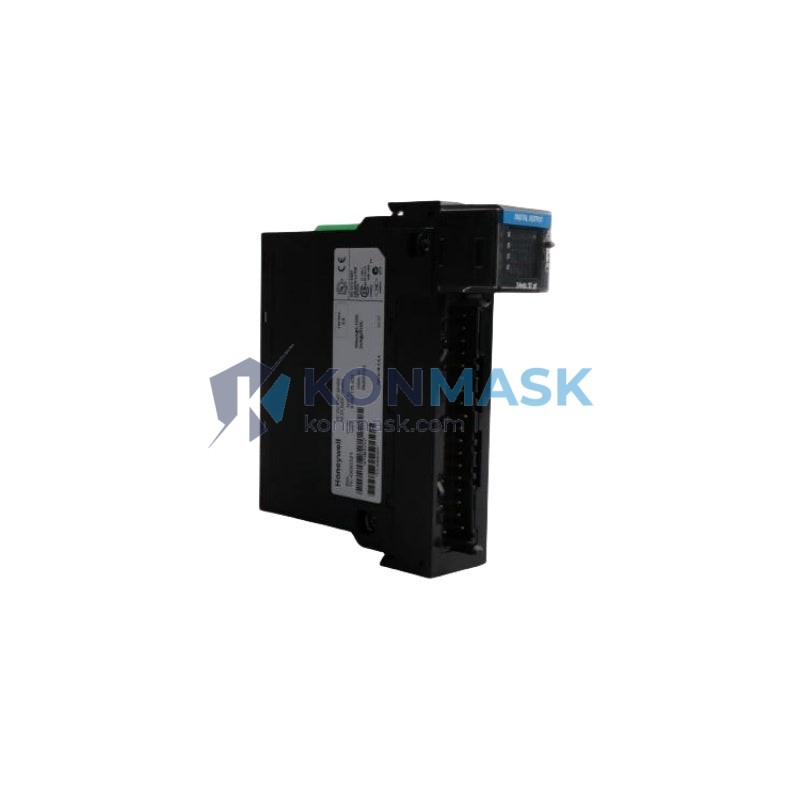

The Honeywell TC-ODD321 is a DC Digital Output Module designed for use within the Honeywell Experion PKS and TDC 3000 distributed control system (DCS) platforms. As a core I/O component of the C300 Controller architecture, it provides reliable discrete output control for field devices in demanding industrial environments. Konmask.com supplies this module as a verified, tested spare part to support plant maintenance, system expansion, and emergency replacement requirements.
Product Positioning
Targeted at process automation engineers and MRO procurement teams, the TC-ODD321 is the preferred choice for facilities running Honeywell Experion-based control infrastructure. Its plug-and-play compatibility with existing C300 I/O Link architecture minimizes commissioning time and reduces integration risk.
Complete Technical Specifications
| Part Number | TC-ODD321 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | DC Digital Output (DO) |
| Platform | Experion PKS / TDC 3000 / C300 Series |
| Output Channels | 32 channels (typical for ODD321 series) |
| Output Voltage | 24 VDC nominal |
| Output Type | Solid-state DC discrete output |
| Communication | I/O Link Bus (C300 backplane) |
| Mounting | I/O Link Termination Assembly (IOTA) |
| Operating Temperature | 0°C to 60°C |
| Weight | 600 g (approx.) |
| Form Factor | Standard Experion I/O card |
| Certifications | CE, UL (per Honeywell Experion platform) |
Proven Application Environments
- Oil & gas upstream/downstream process control
- Petrochemical and refinery DCS systems
- Power generation plant automation
- Pharmaceutical batch process control
- Pulp & paper and chemical manufacturing
- Water treatment and utilities automation
Engineering Advantages
- Seamless Integration: Direct plug-in replacement for existing TC-ODD321 slots within C300 I/O cabinets — no firmware changes required.
- High Channel Density: 32-channel output capacity reduces cabinet footprint and wiring complexity.
- Solid-State Reliability: No mechanical contacts; extended MTBF for continuous process environments.
- Hot-Swap Capable: Supports online replacement in redundant Experion configurations to minimize process downtime.
- Diagnostic Transparency: Channel-level fault reporting via Experion Station for rapid fault isolation.
System Architecture & Signal Flow
The TC-ODD321 mounts onto a dedicated IOTA (I/O Link Termination Assembly) within the Experion C300 I/O cabinet. The C300 Controller communicates with the module via the I/O Link bus, issuing discrete output commands that are converted to 24 VDC field signals. Each output channel drives field devices such as solenoid valves, motor starters, and indicator lamps. The module reports channel status and diagnostics back to the Experion Station HMI in real time.
Signal path: C300 Controller → I/O Link Bus → TC-ODD321 → IOTA Terminal Block → Field Device
Sourcing & Quality Verification
- All units sourced from authorized distributors or decommissioned plant inventory with documented provenance.
- Pre-shipment functional test performed on dedicated Experion test bench.
- Firmware version verified against Honeywell compatibility matrix prior to dispatch.
- Anti-static packaging with humidity indicator card; serial number and revision label intact.
- Certificate of conformance available upon request.
Procurement Process
- Submit your RFQ via support@konmask.com or the product page inquiry form.
- Receive a formal quotation with lead time, unit price, and shipping options within 24 hours.
- Confirm purchase order — payment via T/T, PayPal, or credit card accepted.
- Module ships within 1–3 business days; express DHL/FedEx available for urgent requirements.
- Post-delivery technical support provided by Konmask engineering team.
Technical FAQ
Q: Is the TC-ODD321 compatible with both Experion PKS R310 and R500?
A: Yes. The TC-ODD321 is compatible across Experion PKS releases R310 through R500 and later, subject to the C300 firmware version in use. Contact us to confirm compatibility with your specific release.
Q: Can this module be used without an IOTA?
A: No. The TC-ODD321 requires a matching IOTA for field wiring termination. The IOTA part number should be confirmed against your cabinet drawing before ordering.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all tested modules. Extended warranty options are available upon request.
Q: Can you supply the matching IOTA or C300 controller?
A: Yes. Konmask.com stocks a broad range of Experion PKS components. Contact us with your full BOM for a consolidated quotation.
