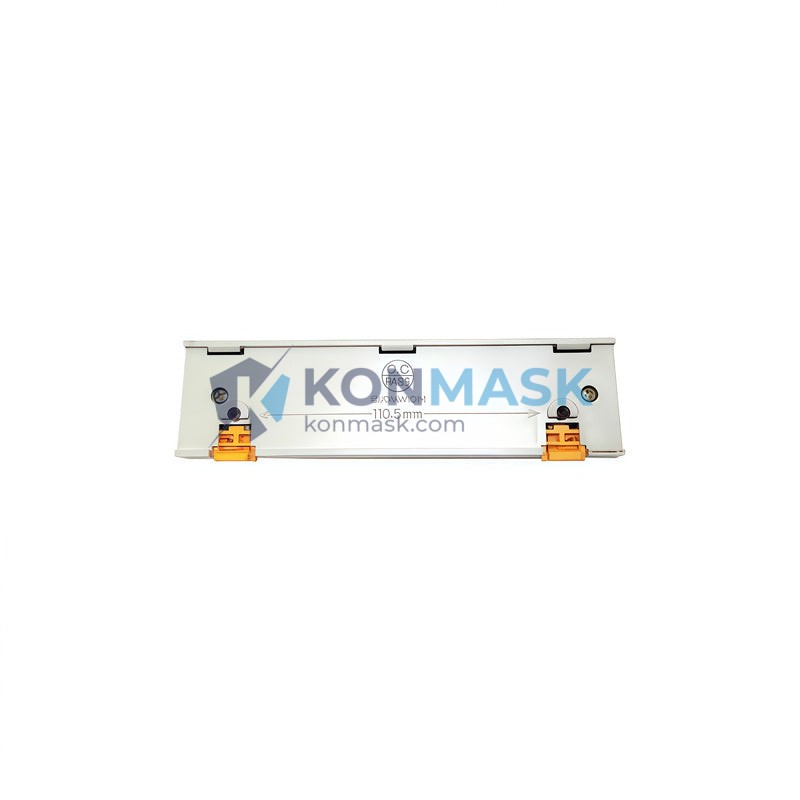

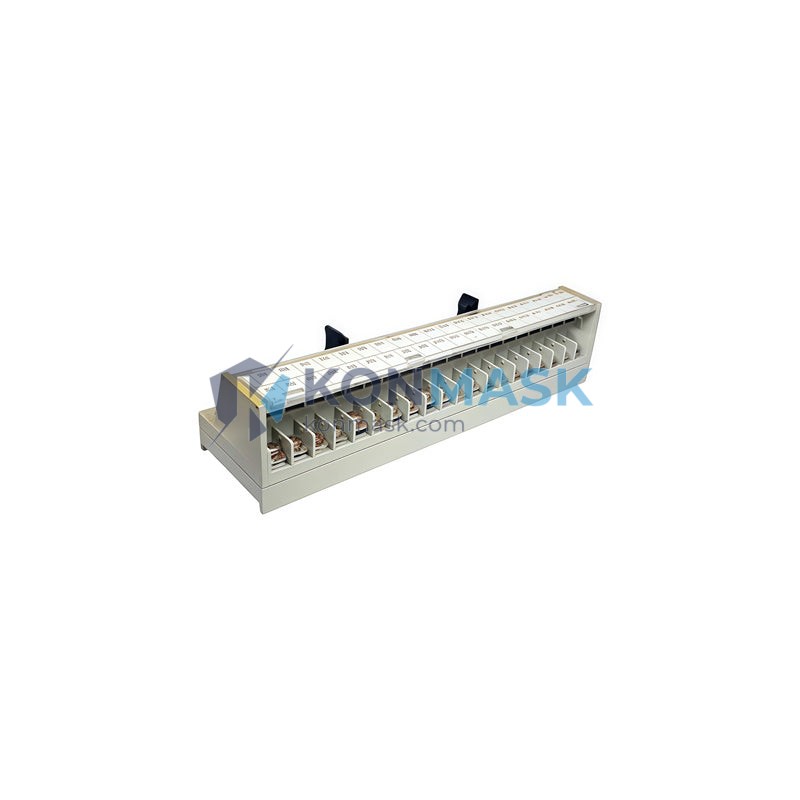

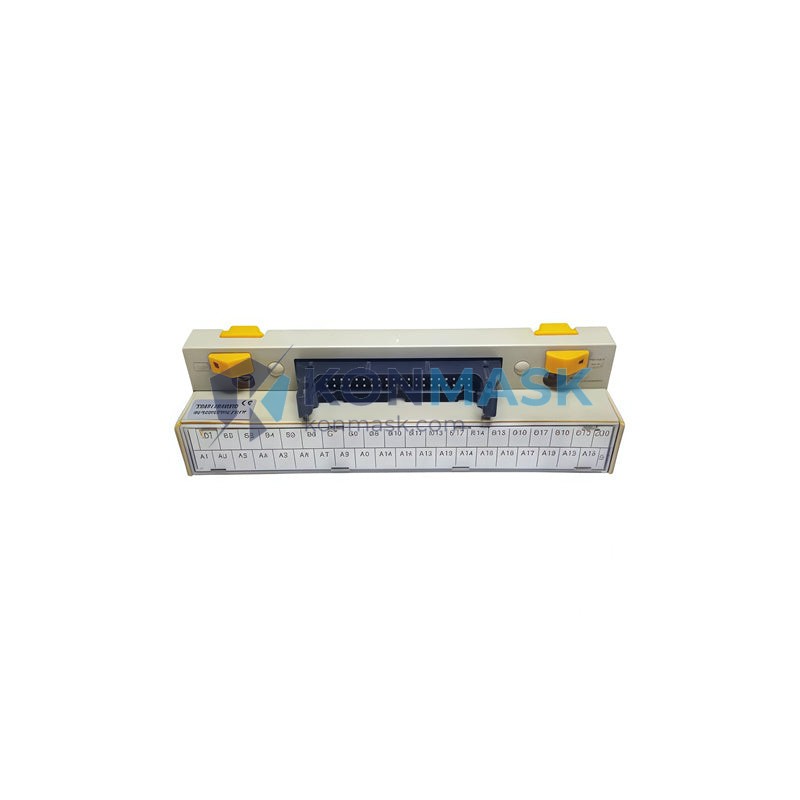

Honeywell TG7-1H40S – Smart Link Terminal Board | TDC-3000 DCS Platform
Engineering Background: The Honeywell TG7-1H40S is a Smart Link Terminal Board designed for integration within Honeywell’s TDC-3000 Distributed Control System (DCS) architecture. As a critical interface component, it bridges field wiring to the Smart Link highway, enabling reliable signal routing and I/O termination in process automation environments across refining, petrochemical, power generation, and advanced manufacturing facilities.
Product Positioning: Engineered for procurement engineers and control system integrators who require a verified, drop-in replacement or expansion module for existing TDC-3000 installations. The TG7-1H40S delivers OEM-specification performance with full backward compatibility, minimizing re-engineering costs and downtime risk during system upgrades or maintenance cycles.
Complete Technical Specifications
- Part Number / SKU: TG7-1H40S
- Manufacturer: Honeywell Process Solutions
- Product Series: TDC-3000 Smart Link Platform
- Module Type: Smart Link Terminal Board
- Form Factor: DIN-rail / rack-mount terminal board
- Terminal Count: 40-point field wiring termination
- Signal Interface: Smart Link Highway (SLH) compatible
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5% to 95% non-condensing
- Power Supply: Derived from backplane / Smart Link bus
- Weight: Approx. 300 g
- Compliance: CE, UL listed (per OEM certification)
- Country of Origin: USA (Honeywell OEM)
Proven Application Environments
- Oil & Gas refining and upstream process control
- Petrochemical and chemical plant DCS expansions
- Power generation (thermal, nuclear auxiliary systems)
- Pulp & paper and continuous process manufacturing
- Pharmaceutical batch and continuous process automation
- TDC-3000 system lifecycle extension and spare parts programs
Engineering Advantages
- OEM-Identical Pinout: Direct replacement for existing TG7-1H40S installations — no re-wiring or re-configuration required.
- Smart Link Highway Compatibility: Full protocol compliance with Honeywell SLH for seamless data acquisition and control loop integrity.
- 40-Point High-Density Termination: Reduces cabinet footprint and simplifies field cable management in high-channel-count applications.
- Robust Industrial Construction: Designed to withstand EMI, vibration, and thermal cycling typical of heavy industrial environments.
- Long-Term Availability: Sourced through verified channels to support TDC-3000 lifecycle programs beyond OEM end-of-sale dates.
System Architecture & Signal Flow
The TG7-1H40S interfaces field instrument wiring (4–20 mA, discrete I/O, or thermocouple inputs depending on paired I/O module) to the Honeywell Smart Link Highway. Field cables terminate at the board’s screw-terminal blocks; signals are conditioned and routed via the Smart Link bus to the associated Process Manager (PM) or High-Performance Process Manager (HPPM) controller. The terminal board mounts in the standard Honeywell I/O cabinet and mates with the corresponding I/O module via the backplane connector, maintaining full galvanic isolation and signal integrity across the control loop.
Sourcing & Quality Verification
- Source: Procured from authorized distributors and verified surplus channels with full traceability documentation.
- Inspection: Each unit undergoes visual inspection, label verification (part number, revision, date code), and functional continuity checks prior to shipment.
- Packaging: Anti-static ESD packaging with moisture barrier bag and desiccant; outer carton with shock-absorbing foam insert.
- Documentation: Certificate of conformance (CoC) and test report available upon request.
- Warranty: 12-month warranty against manufacturing defects from date of shipment.
Procurement Process
- Confirm Part Number: Verify TG7-1H40S matches your system BOM and cabinet drawing revision.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and CoC documentation.
- Place Order: Purchase directly via this listing or submit a PO to our sales team.
- Shipping: DHL / FedEx international express; export documentation (commercial invoice, packing list, HS code 8537.10) provided.
- Incoming Inspection: We recommend incoming QC per your site’s spare parts acceptance procedure upon receipt.
Technical FAQ
Q: Is the TG7-1H40S compatible with both TDC-3000 and Experion PKS systems?
A: The TG7-1H40S is designed for the TDC-3000 Smart Link architecture. Compatibility with Experion PKS depends on the specific I/O subsystem configuration — please consult your Honeywell system documentation or contact us for clarification.
Q: Can this terminal board be used with any I/O module, or is it paired to a specific type?
A: The terminal board is paired with a specific I/O module type (analog input, analog output, or digital I/O) as defined in the TDC-3000 cabinet design. Confirm the paired module part number from your cabinet drawing before ordering.
Q: Do you provide installation support or commissioning assistance?
A: We provide technical documentation and pre-sales engineering consultation. On-site commissioning is the responsibility of the end-user’s qualified control system engineer.
Q: What is the lead time for this part?
A: Typically 3–7 business days for in-stock units. Contact us for real-time availability confirmation.
Q: Is a Certificate of Conformance (CoC) available?
A: Yes. CoC and inspection reports are available upon request at time of order.
