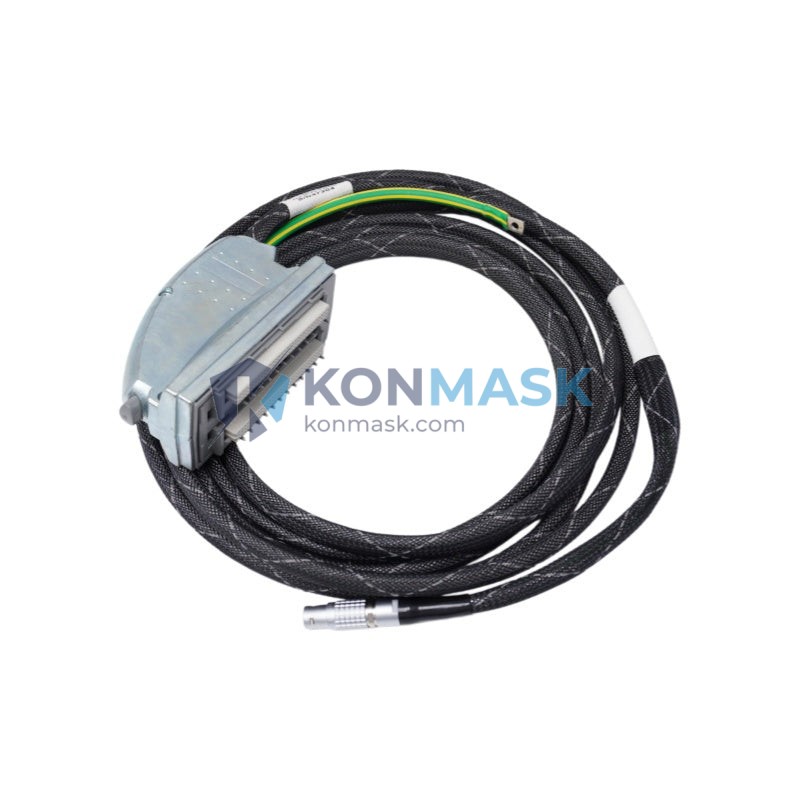

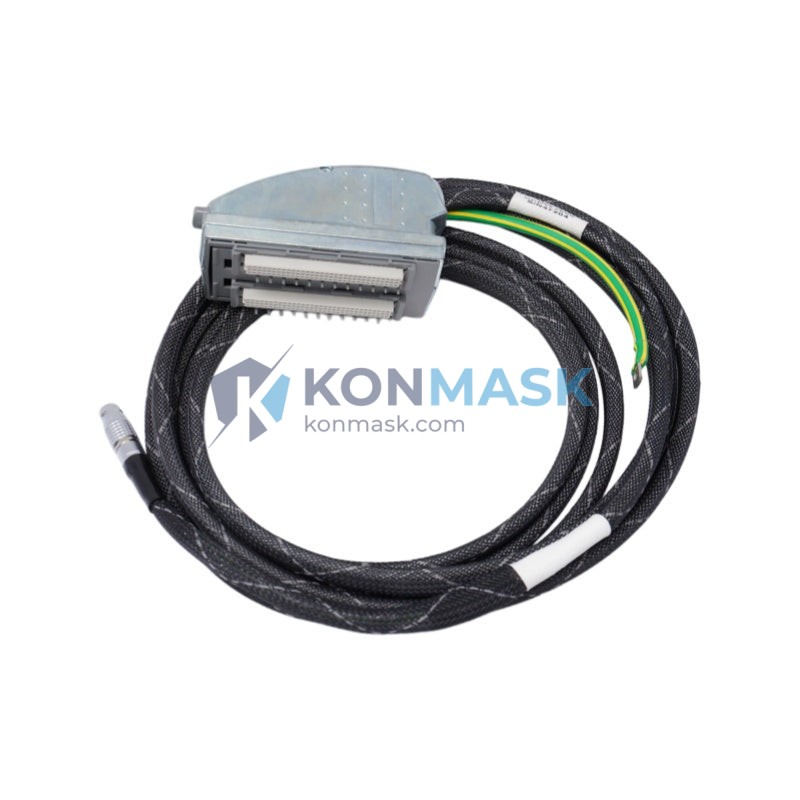

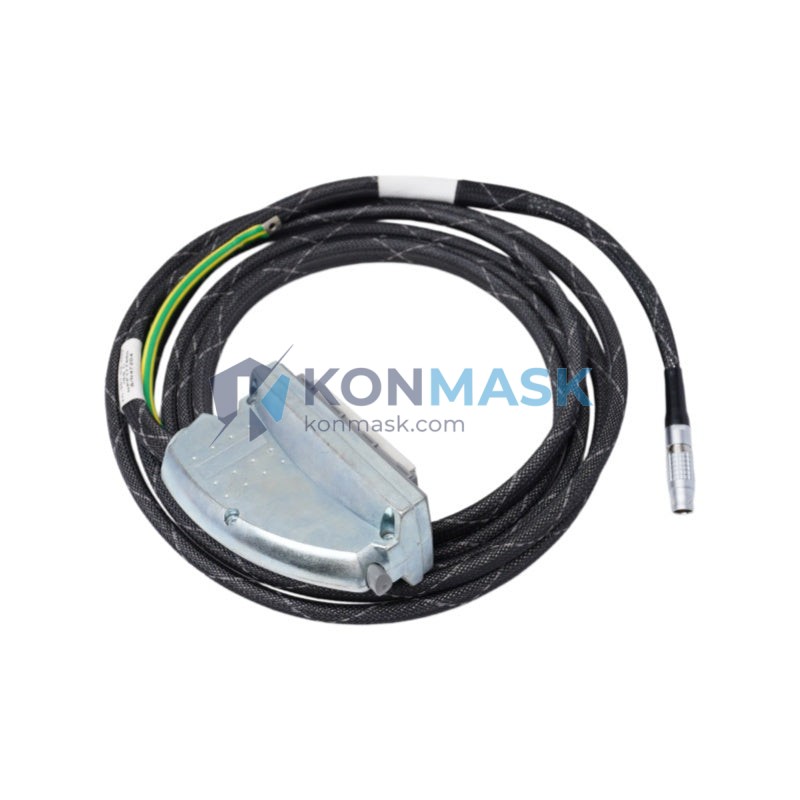

ICS Triplex TC-201-02-10M5 Chassis Power Cable – Trusted Controller Series
When a chassis power cable fails in a safety-critical control system, the consequences extend far beyond a simple shutdown. In high-availability industrial environments — oil & gas platforms, chemical processing plants, and power generation facilities — an unplanned outage caused by a faulty or incompatible power cable can trigger cascading failures, compromise SIL-rated safety loops, and result in production losses measured in tens of thousands of dollars per hour. The ICS Triplex TC-201-02-10M5 Chassis Power Cable is engineered to eliminate this risk, providing a purpose-built, OEM-specified interconnect that keeps your Trusted Controller chassis energized and your safety system fully operational.
The TC-201-02-10M5 occupies a critical position within the ICS Triplex Trusted Controller product family — one of the most widely deployed Triple Modular Redundancy (TMR) safety platforms in the global process automation industry. Designed to IEC 61508 SIL 3 standards, the Trusted Controller architecture is the backbone of safety instrumented systems (SIS) across major EPC contractors and end-user facilities worldwide. This chassis power cable is not a generic accessory; it is a precision-specified component whose conductor gauge, connector keying, shielding, and length (10 meters, 5-conductor) are validated as part of the system’s overall safety certification.
Technical Specifications
- Part Number: TC-201-02-10M5
- Manufacturer: ICS Triplex (Rockwell Automation)
- Series: Trusted Controller (TC Series)
- Cable Type: Chassis Power Cable
- Cable Length: 10 Meters
- Conductors: 5-Conductor
- Weight: 2,680 g (approx.)
- Application: TMR Safety Instrumented System (SIS) Chassis Power Distribution
- Compliance: Designed for use within IEC 61508 SIL 3 certified Trusted Controller systems
- Condition Available: New, Surplus New, Refurbished
Key Features & Benefits
- OEM-Specified Interconnect: Manufactured to ICS Triplex’s exact electrical and mechanical specifications, ensuring full compatibility and preserving system safety certification.
- 10-Meter Reach: The extended 10M length provides installation flexibility for distributed chassis configurations and remote power distribution panels.
- 5-Conductor Design: Supports the power distribution architecture of the Trusted Controller chassis, including redundant power feed paths essential for TMR operation.
- Robust Construction: Industrial-grade insulation and shielding protect signal integrity in electrically noisy plant environments.
- Plug-and-Play Replacement: Keyed connectors prevent mis-wiring during maintenance, reducing human error risk during hot-standby changeovers.
- Long Service Life: Rated for continuous duty in demanding industrial environments, minimizing lifecycle replacement costs.
Industry & Equipment Applications
- Oil & Gas: Offshore platform ESD systems, onshore pipeline HIPPS, and compressor station SIS panels using Trusted Controller TMR architecture.
- Petrochemical & Refining: Reactor shutdown systems, fired heater safety loops, and distillation column protection where SIL 3 integrity is mandated.
- Power Generation: Turbine protection systems and boiler management systems integrated with Trusted Controller chassis.
- LNG & FLNG: Liquefaction train safety systems requiring continuous power availability to the SIS controller chassis.
- Chemical Processing: Batch reactor interlocks and emergency depressurization systems built on the ICS Triplex platform.
- Nuclear & Utilities: High-reliability control applications where cable integrity is subject to periodic proof testing.
System Integration & Compatible Parts
The TC-201-02-10M5 is designed for use within the ICS Triplex Trusted Controller ecosystem. Compatible and commonly co-ordered components include:
- TC-201-01 / TC-201-02 – Trusted Controller Chassis variants
- TC-CCF01 – Trusted Controller Communication Module
- TC-PRR021 – Trusted Controller Processor Module
- TC-OAV081 – Trusted Analog Voting Output Module
- TC-IAH161 – Trusted Digital Input Module
- ICS Triplex Power Supply Units (PSU) compatible with TC Series chassis
When sourcing replacement cables, always verify the chassis model and power supply configuration with your system documentation to confirm the correct cable variant (length and conductor count).
Our Quality Assurance Process
At Konmask.com, every ICS Triplex component undergoes a structured verification process before shipment:
- Visual Inspection: Connectors, insulation jacket, and labeling are inspected against OEM reference standards.
- Continuity & Insulation Testing: Each cable is tested for conductor continuity and insulation resistance to confirm electrical integrity.
- Authenticity Verification: Part markings, date codes, and packaging are cross-referenced against manufacturer documentation to screen for counterfeit components.
- Secure Packaging: Anti-static and moisture-barrier packaging protects the cable during international transit.
- Traceability Documentation: Test records and sourcing documentation are available upon request for audit and compliance purposes.
How to Order
- Submit your inquiry via the Contact / Request a Quote form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical sales team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange export documentation, customs clearance support, and your preferred shipping method (DHL, FedEx, sea freight, etc.).
For urgent requirements, contact us directly at [email protected] or +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on DCS, PLC, and SIS components — not a general electronics distributor.
- Global Export Experience: We ship to over 60 countries with full export documentation, including commercial invoices, packing lists, and certificates of origin.
- Obsolescence & Hard-to-Find Parts: We maintain access to surplus and refurbished ICS Triplex inventory for discontinued or long-lead-time items.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility verification, and system documentation review.
- Competitive Pricing: Direct sourcing relationships and efficient operations allow us to offer market-competitive pricing on genuine components.
Frequently Asked Questions
Q: Is the TC-201-02-10M5 an OEM ICS Triplex part or a third-party compatible cable?
A: We supply genuine OEM ICS Triplex (Rockwell Automation) parts as well as certified surplus units. All items are clearly identified by condition. We do not supply uncertified third-party substitutes for safety-system cables.
Q: Can I use a shorter cable variant in place of the 10M version?
A: Cable length is specified by the system layout and chassis-to-power-panel distance. Substituting a different length may violate voltage drop limits or create installation hazards. Always consult your system drawings before substituting cable variants.
Q: What is the lead time for the TC-201-02-10M5?
A: Lead time depends on current stock availability. Submit an inquiry and we will confirm availability and estimated delivery within 1 business day.
Q: Do you provide export documentation for international orders?
A: Yes. We provide full export documentation including commercial invoice, packing list, and certificate of origin. We can also assist with customs classification guidance upon request.
Q: Can you supply the TC-201-02-10M5 in quantity for a plant-wide spares program?
A: Yes. We support both single-unit emergency replacements and bulk procurement for maintenance, repair, and operations (MRO) spares programs. Contact us to discuss volume pricing.
