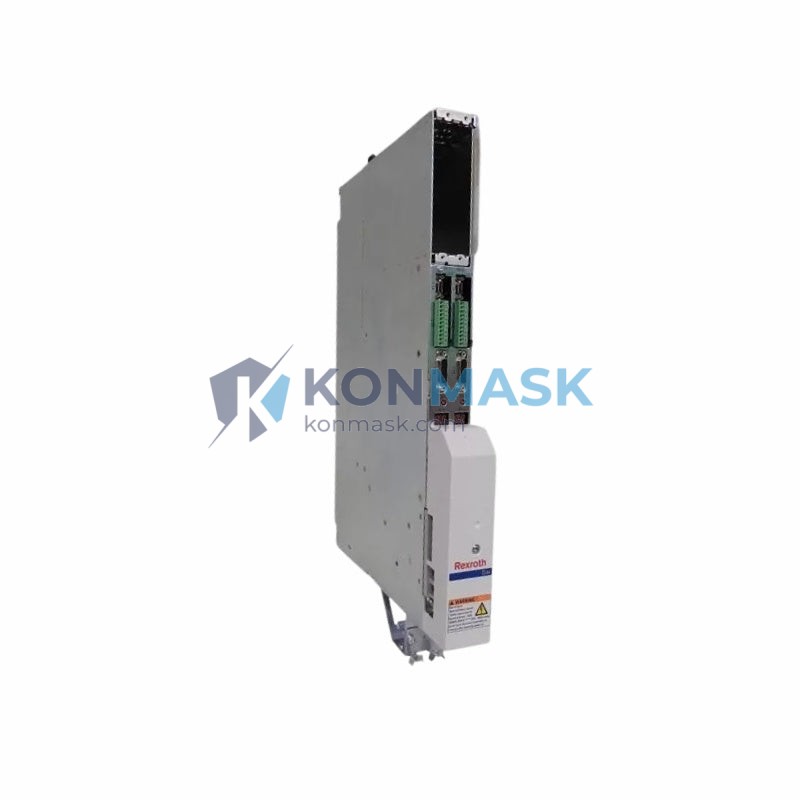

Indramat HDS04.2-W200N-HS23-01-FW High-Performance AC Servo Drive Controller – HDS Series
When a servo drive fails on the production floor, the consequences are immediate and costly: CNC machining centers halt mid-cycle, robotic assembly lines freeze, and every minute of unplanned downtime translates directly into lost revenue and missed delivery commitments. The Indramat HDS04.2-W200N-HS23-01-FW is not a commodity component — it is the precision power conversion heart of high-dynamic servo systems, and no generic substitute can replicate its closed-loop performance, firmware compatibility, or integration depth within Rexroth DIAX04 and ECODRIVE architectures.
Within the Indramat HDS (High Dynamic Servo Drive) series, the HDS04.2-W200N-HS23-01-FW occupies the high-power tier, rated at 200A continuous output current with firmware variant FW for advanced motion control applications. This model is widely deployed across European and Asian automotive OEMs, precision machine tool builders, and semiconductor equipment manufacturers — industries where axis positioning accuracy and dynamic response are non-negotiable. As legacy Rexroth Indramat systems remain in service globally well into the 2030s, sourcing a verified, tested HDS04.2-W200N-HS23-01-FW has become a critical supply chain priority for maintenance engineers worldwide.
Technical Specifications
- Manufacturer: Indramat / Bosch Rexroth
- Part Number (SKU): HDS04.2-W200N-HS23-01-FW
- Series: HDS — High Dynamic Servo Drive
- Generation: HDS04.2 (4th generation, 2nd revision)
- Continuous Output Current: 200A (W200N designation)
- Drive Type: AC Servo Drive Controller
- Firmware Variant: FW (Field-programmable, application-specific)
- Cooling Method: Forced air / integrated heat sink (HS23)
- Communication Interface: SERCOS, Profibus-DP (firmware dependent)
- Compatible Controllers: Rexroth DIAX04, ECODRIVE03, IndraMotion MLD
- Weight: 19 kg (approx.)
- Condition: New / Refurbished / Used — specify on inquiry
Key Features & Benefits
- High Dynamic Response: The HDS04.2 platform delivers exceptional torque bandwidth, enabling sub-millisecond current loop response critical for precision contouring and high-speed pick-and-place operations.
- 200A High-Power Output: The W200N rating supports large-frame servo motors, making this drive suitable for heavy-duty axes in press lines, large machining centers, and winding machines.
- Firmware Flexibility (FW): The FW firmware designation allows application-specific parameter sets, supporting both velocity and position control modes without hardware changes.
- Integrated Safety Functions: Compliant with legacy Indramat safety relay architectures, supporting Safe Torque Off (STO) equivalent functions for CE-marked machine safety circuits.
- Robust Industrial Design: Designed for 24/7 continuous operation in harsh industrial environments, with conformal-coated PCBs and industrial-grade capacitor banks.
- Drop-in Replacement Compatibility: Direct replacement for HDS04.2-W200N-HS23-01-FW units in existing Rexroth drive cabinets — no rewiring or parameter migration required when replacing like-for-like.
Industry & Equipment Applications
- Automotive Manufacturing: Body welding robots, transfer press lines, engine assembly stations
- CNC Machine Tools: Horizontal machining centers, 5-axis milling machines, grinding machines
- Semiconductor & Electronics: Wafer handling systems, PCB drilling machines, SMT pick-and-place
- Plastics & Packaging: Injection molding machines, servo-driven packaging lines
- Printing & Converting: Web tension control systems, rotary die-cutting machines
- Textile Machinery: High-speed winding and unwinding axes
System Integration & Compatible Parts
The HDS04.2-W200N-HS23-01-FW is designed to operate within the Rexroth Indramat DIAX04 and ECODRIVE03 drive system ecosystems. Compatible and frequently co-ordered components include:
- Indramat HZK01 / HZK02 — DC Bus Capacitor Modules
- Indramat HVR02 / HVR03 — Regenerative Power Supply Units
- Indramat MKD / MHD Series — AC Servo Motors (matched to HDS04.2)
- Rexroth CSH01 / CSB01 — DIAX04 Drive Controllers
- Indramat IKS / IKG — Encoder and Power Cables
- Rexroth BTA / BTV — Operator Panels for parameter commissioning
Contact our technical team to verify firmware version compatibility and motor-drive matching before ordering.
Our Quality Assurance Process
Every Indramat HDS04.2-W200N-HS23-01-FW unit sourced through Konmask.com undergoes a structured verification process before shipment:
- Visual Inspection: PCB, capacitors, IGBT modules, and connectors checked for physical damage, corrosion, or burn marks.
- Power-On Functional Test: Unit powered and self-diagnostic routines verified; fault codes cleared and drive enable confirmed.
- Firmware Version Verification: Firmware label and internal version string confirmed against customer’s system requirements.
- Parameter Backup: Where applicable, factory default parameters are loaded and verified.
- Secure Packaging: Anti-static packaging with foam cushioning and moisture barrier for international freight.
How to Order
- Submit your inquiry via the Contact / Request a Quote button on this page.
- Provide your required quantity, preferred condition (new / refurbished / used), and any firmware version requirements.
- Our team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon order confirmation, we arrange secure packaging and international freight with full tracking.
- Post-delivery technical support is available for installation and commissioning questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, servo drive, and motion control components — not a general electronics distributor.
- Global Sourcing Network: Access to verified stock from OEM-authorized channels and certified refurbishers across Europe, North America, and Asia.
- Technical Expertise: Our team includes experienced automation engineers who can advise on compatibility, firmware, and system integration.
- Transparent Condition Grading: Every unit is clearly graded and documented — no surprises on arrival.
- Responsive B2B Service: Dedicated account support for MRO buyers, OEM procurement teams, and system integrators.
Frequently Asked Questions
Q: Is the HDS04.2-W200N-HS23-01-FW still in production?
A: Indramat HDS series drives have been discontinued by Bosch Rexroth. However, Konmask.com maintains access to new-old-stock and professionally refurbished units to support ongoing maintenance requirements.
Q: Can this drive replace an HDS04.2-W200N-HS23-01-FW with a different firmware suffix?
A: Firmware variants affect supported communication protocols and control modes. Please contact us with your existing firmware version so we can confirm compatibility before shipment.
Q: What is the lead time for this part?
A: Lead time depends on current stock availability. In-stock units typically ship within 3–5 business days. Out-of-stock units are sourced within 2–4 weeks. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. Refurbished units carry a 12-month functional warranty. New-old-stock units are covered by our standard 6-month warranty. Terms are detailed in our quotation.
Q: Can you assist with installation and commissioning?
A: We provide remote technical support for parameter setup and fault diagnosis. On-site support can be arranged through our partner network upon request.
Q: Do you accept returns?
A: Returns are accepted within 30 days for units in original, uninstalled condition. Please review our Returns Policy or contact support@konmask.com for details.
