INERTIA DYNAMICS M1819-0002 Spring-Applied Electromagnetic Brake | Replacement, Equivalent & Selection Guide

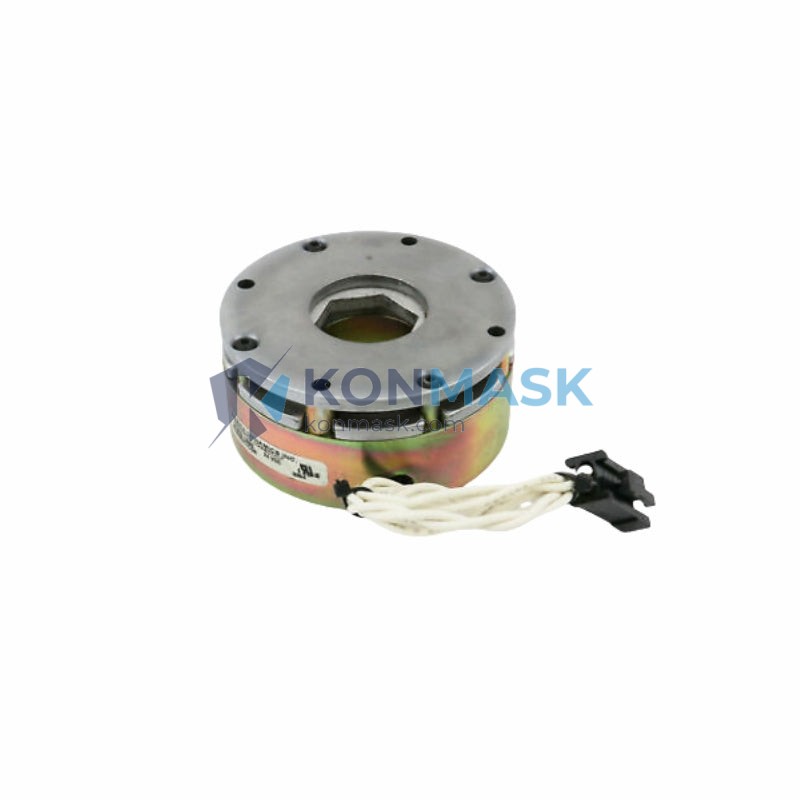

The INERTIA DYNAMICS M1819-0002 (cross-reference: MQDB011AAD03 / 9101-1999 / DDM-005X-DN-AM3) is a spring-applied, electrically released electromagnetic brake engineered for fail-safe holding and dynamic stopping in precision motion control systems. When power is removed, the spring mechanism instantly engages — making it the preferred choice for safety-critical and vertical-axis applications across industrial automation, robotics, and packaging machinery.
Technical Specifications
- Part Number: M1819-0002
- Cross Reference: MQDB011AAD03 | 9101-1999 | DDM-005X-DN-AM3
- Brand: INERTIA DYNAMICS (Altra Industrial Motion)
- Type: Spring-Applied, Electrically Released Electromagnetic Brake
- Series: DDM / MQDB Series
- Operating Principle: Fail-safe (spring engages on power loss)
- Weight: 20 g (module/component)
- Mounting: Flange / face mount (verify with dimensional drawing)
- Condition: New / Surplus New
Compatible Replacement & Equivalent Models
Engineers sourcing a replacement for the M1819-0002 should verify torque rating, bore size, voltage, and mounting pattern before substituting. The following models are commonly evaluated as equivalents or functional replacements:
- INERTIA DYNAMICS DDM-005X-DN-AM3 — Direct OEM cross-reference; same series, confirm voltage variant
- INERTIA DYNAMICS MQDB011AAD03 — Factory alternate part number for M1819-0002
- INERTIA DYNAMICS 9101-1999 — Legacy catalog number; functionally equivalent
- Warner Electric MCS-205 — Comparable spring-applied micro brake; verify torque and bore
- Ogura OPB-5N — Alternative fail-safe brake for similar torque class; check mounting
- Kendrion 24V Spring Brake (compact series) — European equivalent; confirm interface dimensions
⚠ Always verify: static torque (Nm), bore diameter (mm/in), supply voltage (VDC), and bolt circle before finalizing a replacement.
Why Choose the Original Model
- OEM-Matched Performance: Designed to exact torque and response-time specs of the original machine BOM — no tuning required
- Fail-Safe by Design: Spring engagement guarantees braking on power loss, E-stop, or cable fault — critical for safety compliance
- Compact Form Factor: Lightweight at 20 g; ideal for servo motor shaft mounting without adding inertia
- Proven Reliability: INERTIA DYNAMICS (Altra Industrial Motion) brakes are specified in thousands of global installations
- Multi-Reference Traceability: Stocked under M1819-0002, MQDB011AAD03, and DDM-005X-DN-AM3 for easy cross-referencing across MRO systems
Typical Applications
- Servo motor holding brakes on CNC machining centers and multi-axis robots
- Vertical-axis ball screw drives requiring gravity-load holding on E-stop
- Packaging and labeling machine indexing stations
- Medical imaging and surgical robot joint locking
- Semiconductor wafer handling and precision positioning stages
- Conveyor and material handling emergency stop systems
System Compatibility
- Motor Interface: Compatible with servo and stepper motors in the micro-to-fractional HP class; shaft bore must be confirmed
- Drive/Controller: Works with any servo drive capable of switching the brake coil via digital output (24 VDC typical)
- Safety Systems: Suitable for integration with STO (Safe Torque Off) and SBC (Safe Brake Control) safety functions per IEC 62061 / ISO 13849
- Environment: Suitable for standard industrial environments; consult datasheet for IP rating and temperature range
Selection Guide
Use the following criteria to confirm the M1819-0002 is the correct brake for your application — or to identify the best replacement:
- Step 1 — Torque: Match static holding torque (Nm) to your load inertia and deceleration requirement
- Step 2 — Bore & Shaft: Confirm shaft diameter and keyway/set-screw interface
- Step 3 — Voltage: Verify coil voltage (typically 24 VDC); check drive output capability
- Step 4 — Mounting: Match bolt circle, pilot diameter, and face dimensions to motor flange
- Step 5 — Response Time: For high-cycle or safety applications, confirm engage/release time meets system requirements
- Step 6 — Environment: Check IP rating, temperature range, and any ATEX/hazardous-area requirements
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Each part inspected for physical integrity, correct labeling, and part number traceability before shipment
- Original manufacturer packaging preserved where available
- Traceable documentation (datasheet, test records) provided on request
- Konmask.com specializes in hard-to-find and obsolete industrial automation components with global sourcing capability
How to Order
- Part Number: M1819-0002 (also accepted: MQDB011AAD03 / 9101-1999 / DDM-005X-DN-AM3)
- Lead Time: Contact us for real-time stock and lead time confirmation
- Minimum Order: 1 piece
- Shipping: Worldwide express shipping available; DHL / FedEx / UPS
- Quote Request: Email support@konmask.com with quantity and required delivery date
- Payment: T/T, PayPal, credit card accepted
Replacement & Compatibility FAQ
Q: Is MQDB011AAD03 the same as M1819-0002?
A: Yes. MQDB011AAD03 is an alternate factory part number for the same brake assembly. Both numbers refer to the identical unit.
Q: Can I replace M1819-0002 with a Warner Electric or Ogura brake?
A: Functionally possible if torque, bore, voltage, and mounting dimensions match. We recommend requesting a dimensional drawing comparison before substituting a different brand.
Q: What voltage does the M1819-0002 coil operate at?
A: Typically 24 VDC for the DDM/MQDB series. Please confirm with the original machine documentation or contact us for the datasheet.
Q: Is this brake suitable for STO/SBC safety functions?
A: Spring-applied brakes are inherently fail-safe and are commonly used in SBC-compliant safety architectures. Formal safety certification depends on the complete system design and must be validated by the machine builder.
Q: Do you offer volume pricing for OEM or MRO procurement?
A: Yes. Contact support@konmask.com with your annual volume requirement for a tiered pricing quote.
