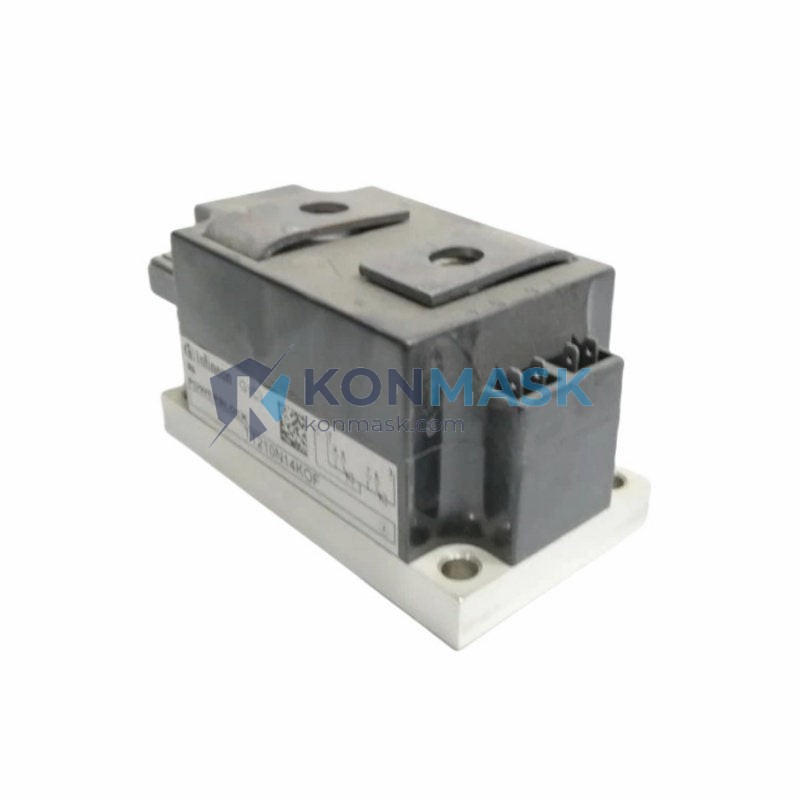

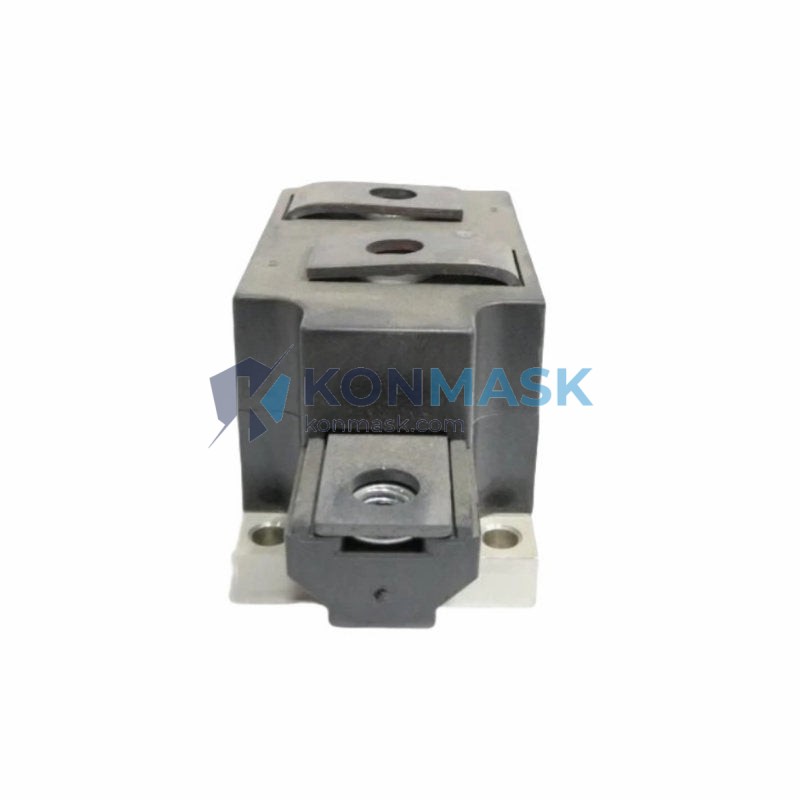

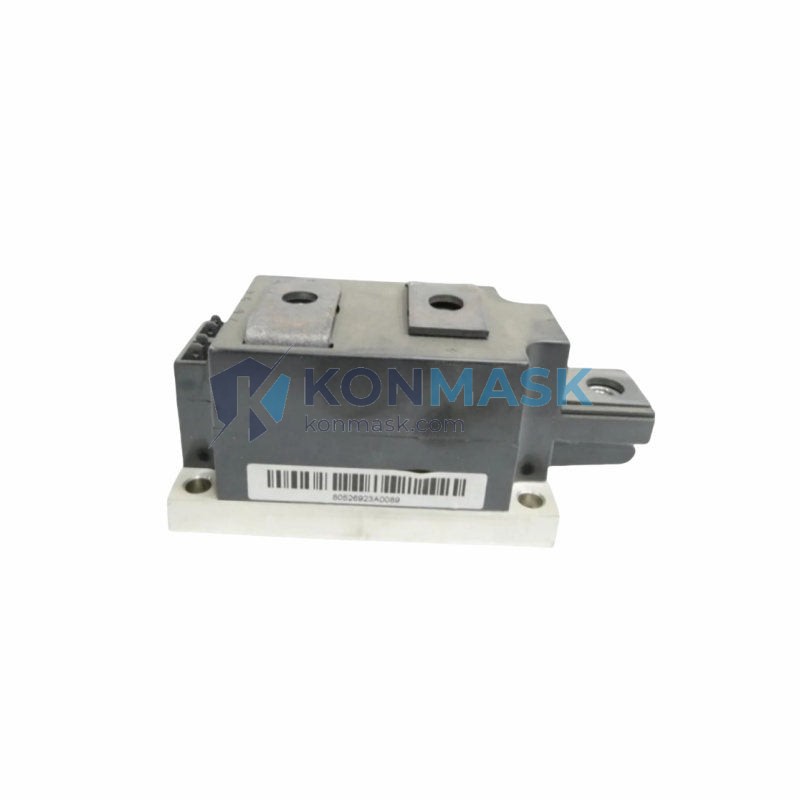

Infineon TT210N14KOF – High-Current SCR Thyristor Module | ISOPLUS i4-PAC Platform
Engineering Background: The TT210N14KOF is a dual thyristor (SCR) module from Infineon Technologies’ proven ISOPLUS i4-PAC series, engineered for demanding industrial AC power control applications. With a repetitive peak off-state voltage (VDRM) of 1400 V and an average on-state current (ITAV) of 210 A per arm, this module delivers the current density and blocking capability required in medium-voltage drive systems, soft-starters, and phase-angle controllers.
Product Positioning: Designed for procurement engineers and system integrators sourcing reliable power semiconductor modules for industrial automation, motor control, and energy conversion infrastructure. Konmask.com supplies genuine Infineon TT210N14KOF modules with full traceability, supporting both OEM production runs and MRO replacement requirements.
Complete Technical Specifications
| Parameter | Value | Conditions |
|---|---|---|
| Part Number (SKU) | TT210N14KOF | — |
| Manufacturer | Infineon Technologies AG | — |
| Module Type | Dual Thyristor (SCR) Module | — |
| Platform / Package | ISOPLUS i4-PAC | Isolated base, screw terminals |
| VDRM / VRRM | 1400 V | Repetitive peak off-state / reverse voltage |
| ITAV | 210 A | Average on-state current per arm, Tc = 85 °C |
| ITSM | 3800 A | Non-repetitive surge current, t = 10 ms |
| I2t | 72000 A²s | For fusing |
| VT0 | 1.05 V | Threshold voltage |
| rT | 1.5 mΩ | Slope resistance |
| IGT | ≤ 150 mA | Gate trigger current |
| VGT | ≤ 3 V | Gate trigger voltage |
| Tj (Operating) | -40 °C to +125 °C | Junction temperature range |
| Tstg | -40 °C to +125 °C | Storage temperature |
| Visol | 3600 VRMS | Isolation voltage (1 min) |
| Rth(j-c) | 0.09 K/W | Thermal resistance junction-to-case per arm |
| Rth(c-s) | 0.04 K/W | Thermal resistance case-to-sink |
| Mounting Torque | 3 N·m | Module-to-heatsink |
| Terminal Torque | 6 N·m | Power terminals |
| Weight | approx. 280 g | — |
| RoHS Compliance | Yes | EU Directive 2011/65/EU |
Proven Application Environments
- AC Motor Soft-Starters – Phase-angle voltage ramp control for induction motors up to several hundred kW
- Industrial Heating Systems – Resistance furnace and infrared heater power regulation
- Medium-Voltage Drives – Front-end rectifier and regenerative braking stages
- UPS & Power Conditioning – Static transfer switches and bypass thyristor assemblies
- Electrochemical Processes – Electrolysis rectifier bridges requiring high surge tolerance
- Crane & Hoist Control – Dynamic braking and reversing duty cycles
- Renewable Energy Inverters – Grid-tie thyristor bridges in wind and hydro converters
Engineering Advantages
- ISOPLUS i4-PAC Isolated Base: Eliminates the need for external insulation pads; simplifies heatsink assembly and reduces thermal interface resistance.
- High Surge Capability (ITSM = 3800 A): Withstands fault-current transients without requiring oversized fusing, reducing BOM cost.
- Low Threshold Voltage (VT0 = 1.05 V): Minimises conduction losses at rated current, improving system efficiency.
- Wide Junction Temperature Range (−40 °C to +125 °C): Suitable for outdoor enclosures and harsh industrial environments.
- 3600 VRMS Isolation: Meets reinforced insulation requirements for 690 V AC bus applications.
- Screw-Terminal Construction: Compatible with standard busbar and cable lug connections; no special tooling required.
System Architecture & Signal Flow
The TT210N14KOF houses two thyristors in an inverse-parallel (anti-parallel) or series configuration depending on circuit topology. In a typical three-phase AC controller, three TT210N14KOF modules form a full six-pulse thyristor bridge:
- Gate Drive: Pulse transformer or optocoupler-isolated gate driver → IGT ≤ 150 mA / VGT ≤ 3 V trigger requirement is compatible with standard SCR gate driver ICs (e.g., Infineon TCA785, ST UC3525).
- Thermal Path: Junction → Case (Rth(j-c) = 0.09 K/W) → Heatsink interface (Rth(c-s) = 0.04 K/W) → Forced-air or liquid-cooled heatsink.
- Snubber Network: RC snubber (typically 0.1 µF / 100 Ω) recommended across each thyristor for dV/dt suppression in inductive load circuits.
- Fusing: Semiconductor-grade fast-acting fuses rated to I2t ≤ 72000 A²s must be used for short-circuit protection.
Sourcing & Quality Verification
- Origin: Genuine Infineon Technologies AG production; manufactured in Germany / Malaysia per Infineon’s global fab network.
- Traceability: Each module carries Infineon date code, lot number, and factory mark. Konmask verifies authenticity against Infineon’s authorised distributor documentation.
- Storage Conditions: Maintained at 15–30 °C, RH ≤ 60%, ESD-protected warehouse prior to shipment.
- Inspection: Visual inspection + gate trigger test performed on request for orders ≥ 10 pcs.
- Certification: RoHS compliant; CE marking applicable to end-equipment; UL recognition available per Infineon datasheet.
Procurement Process
- Step 1 – Inquiry: Submit quantity and required delivery date via the order form or email support@konmask.com.
- Step 2 – Quotation: Konmask responds within 1 business day with price, lead time, and stock confirmation.
- Step 3 – Order Confirmation: Purchase order accepted via email or Shopify checkout; payment by T/T, PayPal, or credit card.
- Step 4 – Shipment: DHL / FedEx express worldwide; EXW Xiamen or CIF available for bulk orders. Typical dispatch: 1–3 business days from payment.
- Step 5 – After-Sales: 12-month warranty against manufacturing defects; DOA replacement within 7 days of receipt.
Technical FAQ
Q: Can TT210N14KOF replace TT210N12KOF in my existing design?
A: Yes, with caution. The 14KOF suffix denotes 1400 V VDRM vs. 1200 V for 12KOF. The higher blocking voltage provides additional margin; verify gate drive compatibility and snubber values remain appropriate.
Q: What heatsink is recommended for continuous 210 A operation?
A: At Tj,max = 125 °C and Tambient = 40 °C, total Rth(heatsink-ambient) must be ≤ 0.30 K/W per arm. A forced-air heatsink with thermal resistance ≤ 0.25 K/W (e.g., Fischer SK 47 series or equivalent) is recommended.
Q: Is the isolated base sufficient for 690 V AC bus applications?
A: Yes. The 3600 VRMS isolation rating exceeds the reinforced insulation requirement (2 × 690 V × √2 + 1000 V ≈ 2950 V) per IEC 61800-5-1.
Q: What is the minimum gate pulse width for reliable triggering?
A: Infineon recommends a minimum gate pulse width of 10 µs at IGT = 150 mA for inductive loads. For resistive loads, 5 µs is typically sufficient.
Q: Do you offer consignment or Kanban supply agreements?
A: Yes. Contact support@konmask.com to discuss blanket orders, scheduled releases, and VMI arrangements for production volumes.
