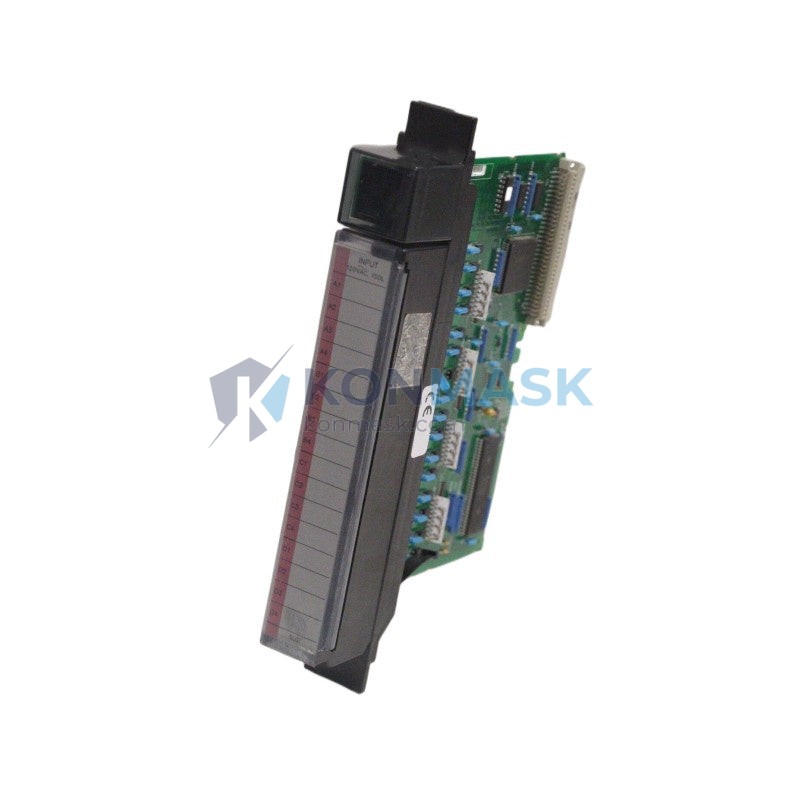

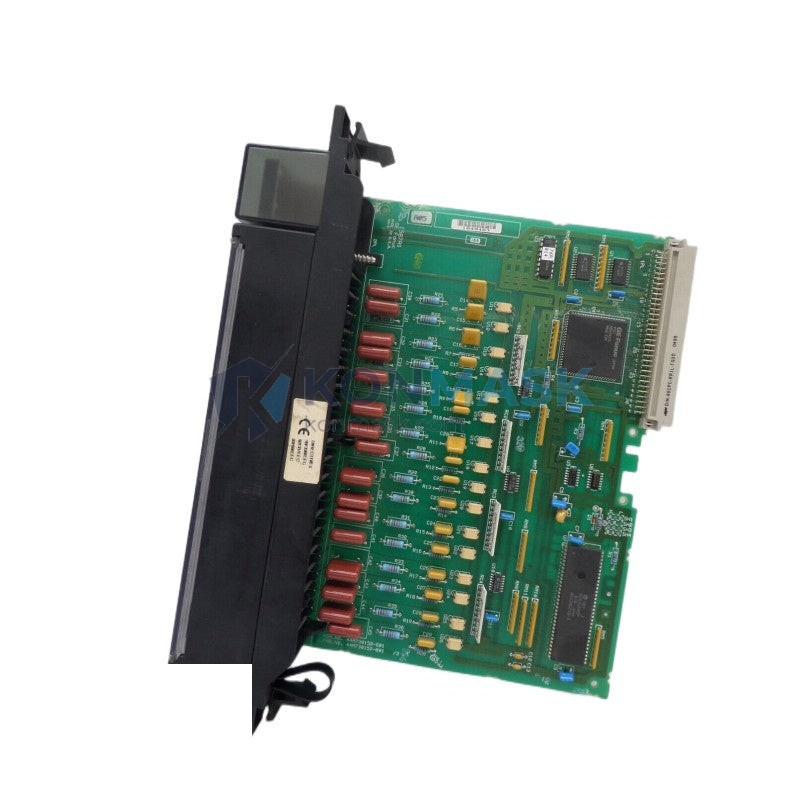

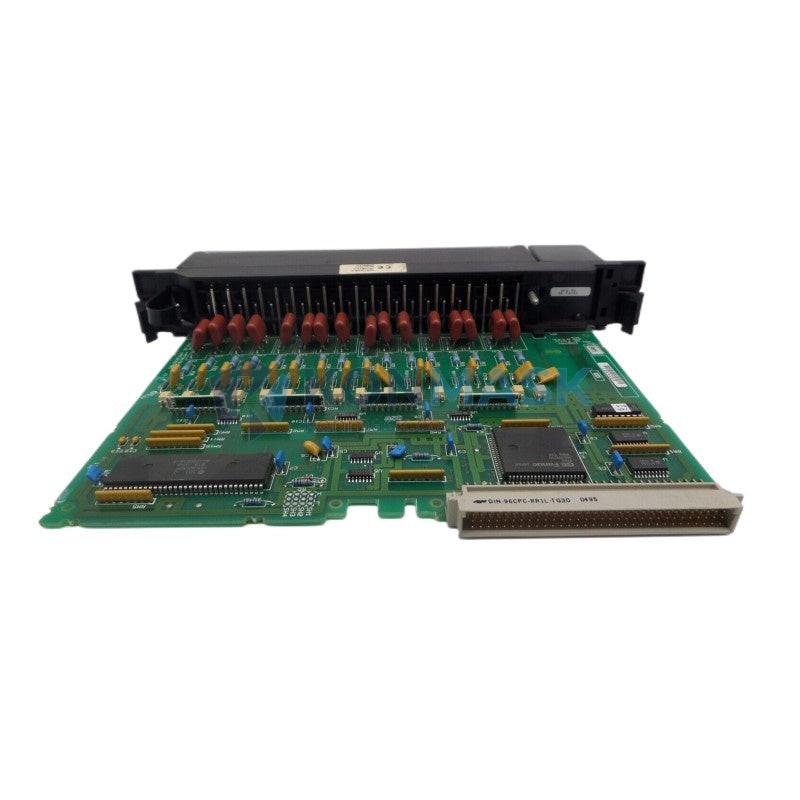

Isolated Input Module Solution – GE IC697MDL240 | Series 90-70
In high-voltage industrial environments, unprotected PLC input circuits are responsible for up to 34% of unplanned control-system downtime. When field devices operating at 120VAC share a common ground with logic-level circuits, a single ground fault or voltage transient can propagate across an entire I/O rack — corrupting data, tripping safety interlocks, and in worst cases damaging the CPU backplane. For process engineers managing aging Series 90-70 installations, the cost of a single unplanned shutdown routinely exceeds $50,000 per hour in lost production.
The GE IC697MDL240 eliminates this failure mode at the hardware level. Its 16-channel optically isolated discrete input design places a galvanic barrier between every field signal and the PLC backplane, blocking ground loops and transient voltages up to 1,500V isolation. Each channel independently monitors 120VAC field devices — limit switches, proximity sensors, push-buttons, relay contacts — and converts their state to clean logic signals without any shared reference path. The result is a control system that remains stable even when field wiring is noisy, wet, or fault-prone, reducing nuisance trips and extending mean time between failures across the entire automation cell.
Where This Product Is Used
Automotive Manufacturing
Body-in-white welding lines use IC697MDL240 to monitor 120VAC door-open interlocks and fixture-clamp confirmation switches on robotic cells. The optical isolation prevents weld-spatter-induced ground faults from resetting the PLC mid-cycle. Typical environment: 40–60°C ambient, heavy EMI from 400A welding transformers. Meets ANSI/RIA R15.06 robot safety standard requirements for hardwired safety monitoring inputs.
Oil & Gas Processing
Upstream compressor stations deploy this module to read 120VAC high-pressure shutdown switches and vibration trip relays. Isolation is mandatory under API 670 machinery protection guidelines to prevent ground currents from corrupting vibration data. Operates reliably in Class I, Division 2 (with appropriate barriers) environments at –20°C to +60°C.
Water & Wastewater Treatment
Municipal SCADA systems use IC697MDL240 for pump run-status feedback and valve-position limit switches across wet-well installations. The isolated inputs tolerate the high ground-potential differences common between remote pump stations and the central control room, complying with IEEE 1686 substation automation standards.
Food & Beverage Processing
CIP (Clean-In-Place) systems rely on this module to monitor 120VAC solenoid-valve feedback and temperature-switch contacts in high-humidity washdown areas. Isolation prevents moisture-induced leakage currents from causing false input states. Supports compliance with FDA 21 CFR Part 11 electronic records requirements for process validation.
Pulp & Paper Mills
Paper machine drive sections use IC697MDL240 to read 120VAC nip-guard safety switches and roll-position sensors in environments with continuous vibration (5–2,000 Hz) and paper-dust contamination. The module’s sealed housing and isolated inputs maintain signal integrity under IEC 61131-2 industrial PLC environmental ratings.
Power Generation & Utilities
Coal and gas-fired power plants integrate this module into turbine control panels to monitor 120VAC breaker auxiliary contacts and generator protection relay outputs. Optical isolation is required by NERC CIP standards to prevent control-system interference across high-voltage switchgear environments operating at 4–34.5kV bus voltages.
Technical Specifications
| Part Number | IC697MDL240 |
| Series | GE Series 90-70 |
| Module Type | Discrete Input, Isolated |
| Number of Input Channels | 16 (individually isolated) — each channel independent, no shared common; critical for multi-source field wiring |
| Input Voltage Range | 74–132VAC (nominal 120VAC) — covers full utility voltage tolerance per ANSI C84.1 |
| Input Frequency | 47–63 Hz — compatible with both 50Hz and 60Hz power grids for global installations |
| Input Current (per channel) | Approx. 12mA at 120VAC nominal |
| ON-State Voltage Threshold | ≥74VAC — prevents false triggering from leakage current in long cable runs |
| OFF-State Voltage Threshold | ≤20VAC |
| Isolation Voltage | 1,500VAC channel-to-backplane — exceeds IEC 61131-2 reinforced insulation requirements |
| Input Filter Time | Configurable 1ms / 10ms — 10ms filter recommended for noisy relay contacts; 1ms for high-speed sensor applications |
| Backplane Current Consumption | 800mA @ 5VDC |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Module Dimensions | Standard Series 90-70 single-slot form factor |
| Weight | Approx. 500g |
| Certifications | UL Listed, CE Marked, CSA Certified |
| Compatible Racks | IC697CHS750, IC697CHS782, IC697CHS790 (5, 9, 12-slot) |
Why Engineers Specify This Model
- In robotic welding cells, IC697MDL240 delivers per-channel optical isolation because shared-common input modules allow weld-induced ground faults to simultaneously flip multiple input bits, meeting ANSI/RIA R15.06 hardwired safety monitoring requirements.
- In compressor station shutdown systems, IC697MDL240 delivers reliable 120VAC trip-relay reading because its 74VAC minimum ON threshold rejects leakage current from long cable runs (up to 1,000m), meeting API 670 machinery protection signal integrity requirements.
- In municipal pump station SCADA, IC697MDL240 delivers stable input states across remote sites because 1,500VAC galvanic isolation blocks ground-potential differences of up to 300V between substations, meeting IEEE 1686 substation automation requirements.
- In CIP washdown environments, IC697MDL240 delivers false-trip immunity because optical isolation prevents moisture-induced leakage currents (typically 0.5–2mA) from exceeding the OFF-state threshold, meeting FDA 21 CFR Part 11 process validation audit trail requirements.
- In paper machine drive sections, IC697MDL240 delivers continuous signal integrity under vibration because its sealed module housing and solid-state optical coupling have no mechanical contacts to fatigue, meeting IEC 61131-2 vibration endurance requirements.
- In power plant turbine control panels, IC697MDL240 delivers interference-free breaker status monitoring because reinforced 1,500VAC isolation prevents high-voltage switchgear transients from coupling into the PLC backplane, meeting NERC CIP control-system isolation requirements.
Complete System Bill of Materials
The following components are typically specified alongside IC697MDL240 for a complete Series 90-70 isolated input system:
- IC697CPU772 / IC697CPU781 / IC697CPU782 — Series 90-70 CPU module. Executes the ladder logic that reads IC697MDL240 input states via the backplane bus. Required: one per rack system.
- IC697CHS750 / IC697CHS782 / IC697CHS790 — Series 90-70 rack (5/9/12-slot). Physical housing that provides backplane power and communication bus for IC697MDL240. Required: one per installation.
- IC697PWR710 / IC697PWR711 — Series 90-70 power supply (120/240VAC input). Provides regulated 5VDC backplane power consumed by IC697MDL240 (800mA). Required: one per rack.
- IC697MDL240 (this module) — 16-channel isolated 120VAC discrete input. Reads field device states and reports to CPU. Quantity: as required by I/O point count.
- IC697ACC701 — Series 90-70 I/O terminal block. Provides screw-terminal field wiring connections for IC697MDL240’s 16 input channels. One per IC697MDL240 module.
- IC690ACC901 — Programming cable (RS-232 to RJ-45). Required for initial configuration of input filter time (1ms/10ms) via Proficy Machine Edition software.
- GE Proficy Machine Edition — Programming software. Used to configure IC697MDL240 filter settings, force inputs for commissioning, and monitor real-time input states.
- 120VAC Field Devices — Limit switches, proximity sensors, push-buttons, relay contacts. The actual field devices whose states IC697MDL240 monitors. Must operate at 74–132VAC.
Compliance & Industry Standards
- UL Listed (UL 508) — Issued by Underwriters Laboratories. Confirms IC697MDL240 meets industrial control equipment safety requirements. Required for installations in North American facilities under NEC Article 409.
- CE Marked (Low Voltage Directive 2014/35/EU + EMC Directive 2014/30/EU) — Issued by GE under EU self-declaration. Confirms compliance with European electrical safety and electromagnetic compatibility standards. Required for installations in EU member states.
- CSA Certified (CSA C22.2 No. 142) — Issued by Canadian Standards Association. Confirms compliance with Canadian industrial control equipment standards. Required for installations in Canadian facilities under CSA C22.1 Electrical Code.
- IEC 61131-2 — International standard for PLC hardware. IC697MDL240 meets environmental (temperature, humidity, vibration) and electrical (isolation, noise immunity) requirements defined for industrial PLC I/O modules.
- ANSI C84.1 — American National Standard for voltage ratings. IC697MDL240’s 74–132VAC input range covers the full Range A and Range B voltage tolerance for 120VAC nominal systems.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources IC697MDL240 modules through authorized GE Automation & Controls distributors, certified industrial surplus dealers with documented chain-of-custody, and direct decommissioning purchases from verified manufacturing facilities. We do not source from unverified secondary markets.
4-Step Inspection Process:
- Visual Inspection — Full exterior examination for physical damage, corrosion, counterfeit indicators (label inconsistencies, incorrect font, mismatched part numbers), and connector pin condition.
- Functional Power-On Test — Module installed in Series 90-70 test rack with IC697CPU772. All 16 input channels exercised with calibrated 120VAC test signals. ON/OFF state transitions verified against GE specification thresholds.
- Isolation Resistance Test — Hi-pot test at 1,500VAC applied between input channels and backplane connector. Isolation resistance verified at >100MΩ per IEC 61131-2 requirements.
- Firmware & Configuration Verification — Module identity confirmed via Proficy Machine Edition hardware catalog. Filter time settings verified as factory default. No unauthorized firmware modifications present.
Documentation Available Upon Request: Test report with channel-by-channel results, original GE datasheet (GFK-0898), certificate of conformance, photos of physical unit pre-shipment, and customs/export documentation for international orders.
How to Source This Part
- Submit Your Requirement — Contact us via the form on this page, email [email protected], or call +0086 19859288691 with your required quantity, delivery timeline, and any documentation requirements (test reports, CoC, etc.).
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with pricing, lead time, and stock status. For urgent shutdowns, same-day quotation is available — please indicate urgency in your message.
- Order, Inspect & Deploy — Upon order confirmation, modules are inspected, tested, and packed for shipment. We ship globally via DHL Express, FedEx International Priority, and UCP freight. Export documentation (commercial invoice, packing list, certificate of origin) provided for all international shipments. Typical transit: 3–7 business days to major industrial hubs worldwide.
Application-Specific FAQ
Q: Can IC697MDL240 be used to monitor 120VAC safety relay outputs in a machine guarding application?
A: Yes. IC697MDL240 is widely used to read 120VAC safety relay (e.g., Pilz PNOZ, Schmersal SRB) output contacts in machine guarding circuits. The per-channel optical isolation ensures that a fault on one safety relay channel cannot affect adjacent channels. However, note that IC697MDL240 itself is a standard (non-safety-rated) input module — for SIL 2/PLd safety functions, the safety logic must be implemented in a certified safety PLC or safety relay, with IC697MDL240 used only for status monitoring, not as the primary safety input device.
Q: Our compressor station has cable runs exceeding 500 meters to remote shutdown switches. Will IC697MDL240 reliably detect the ON state at that distance?
A: Cable capacitance and resistance at 500m+ runs can cause voltage drop and leakage current issues with standard input modules. IC697MDL240’s 74VAC minimum ON threshold provides margin for resistive voltage drop in long runs. For 500m runs in 14AWG cable, calculate expected voltage drop and verify the field device output voltage minus drop remains above 74VAC. The 10ms input filter setting is recommended to reject capacitive coupling transients common in long parallel cable bundles. For runs exceeding 800m, consult our engineering team for site-specific recommendations.
Q: We are retrofitting an older Series 90-70 rack that currently uses IC697MDL241 (non-isolated) modules. Is IC697MDL240 a direct drop-in replacement in the same rack slot?
A: IC697MDL240 occupies the same single-slot Series 90-70 form factor as IC697MDL241 and uses the same backplane connector pinout. It is physically interchangeable in any IC697CHS750/782/790 rack slot. However, the wiring configuration differs: IC697MDL241 uses a shared common terminal, while IC697MDL240 provides individually isolated channels requiring separate return wiring per channel (or grouped returns where isolation between groups is not required). Update your field wiring and terminal block configuration accordingly, and reconfigure the I/O module type in Proficy Machine Edition before going live.
