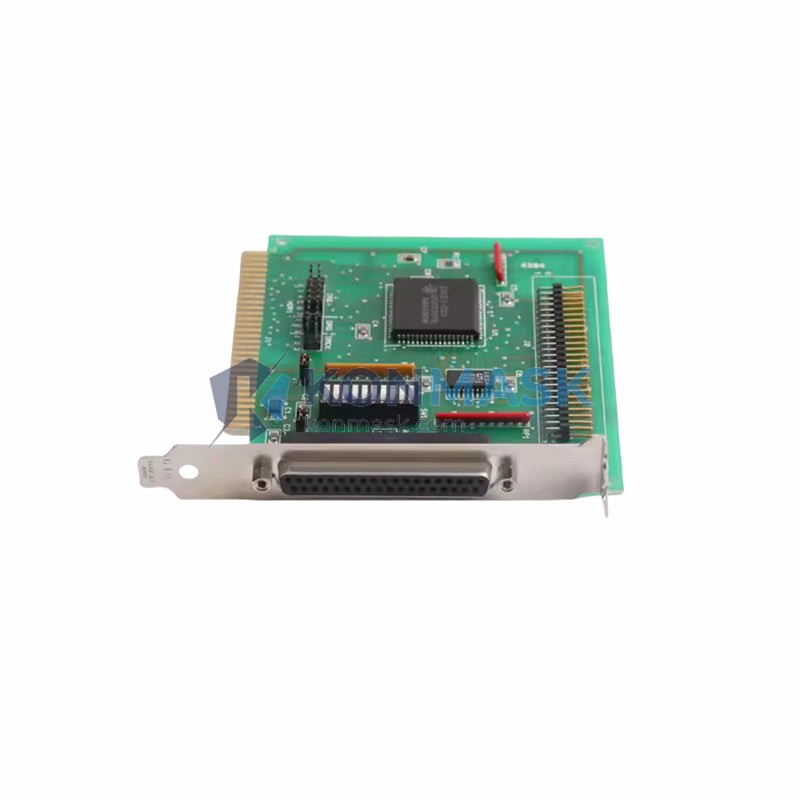

KLA-Tencor 23663-001 / FAB 23662-000 / 941302 Communications Board – High-Reliability Signal Interface PCB | KLA Inspection Platform
Engineering Background
KLA-Tencor is the global leader in process control and yield management solutions for the semiconductor industry. The KLA 23663-001 (FAB 23662-000 / 941302) Communications Board is a precision-engineered printed circuit board designed for internal signal routing, inter-subsystem communication, and data bus management within KLA-Tencor wafer inspection and metrology platforms. This board plays a critical role in maintaining deterministic, low-latency communication between the tool’s optical, mechanical, and computational subsystems.
Product Positioning
Sourced directly from verified OEM supply chains and certified refurbishment partners, this communications board is the preferred replacement component for field service engineers and fab maintenance teams managing KLA-Tencor inspection tool uptime. It is fully compatible with the original system architecture and requires no firmware modification upon installation.
Complete Technical Specifications
| Part Number (Primary) | 23663-001 |
| Fabrication Number | FAB 23662-000 |
| Assembly Reference | 941302 |
| Component Type | Communications Board (PCB Assembly) |
| OEM / Manufacturer | KLA-Tencor Corporation |
| Platform Compatibility | KLA-Tencor Wafer Inspection & Metrology Systems |
| Board Function | Inter-subsystem signal routing, data bus communication, I/O interface management |
| Form Factor | PCB Assembly (OEM form factor) |
| Weight | 1,140 g (approx.) |
| Condition | New / Refurbished OEM (specify at inquiry) |
| Warranty | 90-day functional warranty (standard); extended available |
| Lead Time | In-stock: ships within 3–5 business days; ex-stock subject to availability |
Proven Application Environments
- KLA-Tencor wafer surface inspection tools (brightfield / darkfield platforms)
- KLA-Tencor optical critical dimension (OCD) metrology systems
- Semiconductor fab process control equipment requiring PCB-level replacement
- Field service and preventive maintenance (PM) cycles at 200mm / 300mm fabs
- Spare parts inventory programs for high-availability fab environments
- Tool refurbishment and resale operations (used equipment dealers, integrators)
Engineering Advantages
- OEM-matched architecture: Drop-in replacement with no signal re-mapping or firmware changes required
- Verified part traceability: Each unit carries original OEM markings (23663-001 / FAB 23662-000 / 941302) for full audit trail compliance
- Functional test prior to shipment: Boards are bench-tested against KLA-Tencor communication protocol specifications before dispatch
- Reduced MTTR: Stocking this board eliminates multi-week OEM lead times, directly reducing mean time to repair (MTTR) for critical inspection tools
- Dual-reference cross-matching: Three-number identification (23663-001 / FAB 23662-000 / 941302) ensures unambiguous part verification during procurement
System Architecture & Signal Flow
The KLA 23663-001 Communications Board operates as the central signal arbitration layer within its host subsystem. It interfaces with upstream controller boards via standardized bus protocols and downstream I/O modules via dedicated connector arrays. The board’s communication fabric supports deterministic data transfer essential for real-time defect detection algorithms and stage synchronization in high-throughput wafer scanning operations.
Key interface points include: primary data bus connectors, auxiliary I/O headers, power regulation inputs, and diagnostic test points accessible for in-situ troubleshooting without full board extraction.
Sourcing & Quality Verification
- Source: OEM surplus, certified refurbishment partners, and controlled decommission programs
- Inspection: Visual inspection (IPC-A-610 Class 2 reference standard), functional bench test, and ESD-safe handling throughout
- Packaging: Anti-static bag + foam-lined carton; humidity indicator card included for long-distance shipments
- Documentation: Certificate of conformance (CoC) available upon request; photos of actual unit provided pre-shipment
- Counterfeit mitigation: All units verified against OEM markings; no remarked or cloned assemblies supplied
Procurement Process
- Confirm part numbers: Verify 23663-001 / FAB 23662-000 / 941302 against your tool’s BOM or field service manual
- Request a quote: Contact support@konmask.com with quantity, required condition (new/refurb), and delivery timeline
- Review pre-shipment photos: We provide actual unit images and CoC before payment confirmation
- Place order & ship: DHL / FedEx express available; export documentation (commercial invoice, packing list) included for international shipments
- Receive & install: ESD precautions required; consult KLA-Tencor field service documentation for installation procedure
Technical FAQ
Q: Is this board compatible with all KLA-Tencor inspection platforms?
A: Compatibility is specific to the tool model and subsystem. Please provide your tool model number when inquiring to confirm fitment.
Q: Can you provide the original KLA-Tencor datasheet?
A: OEM datasheets for internal PCB assemblies are not publicly released. We can provide physical inspection photos, connector pinout observations, and functional test reports.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time is 2–6 weeks depending on market availability. Contact us to join a priority notification list.
Q: Do you offer exchange / core return programs?
A: Yes. Core exchange pricing is available for customers returning a functional or repairable unit. Contact us for exchange terms.
Q: Is export compliance documentation available?
A: Yes. We provide commercial invoice, packing list, and HS code classification. ECCN classification available upon request for US-origin controlled items.
