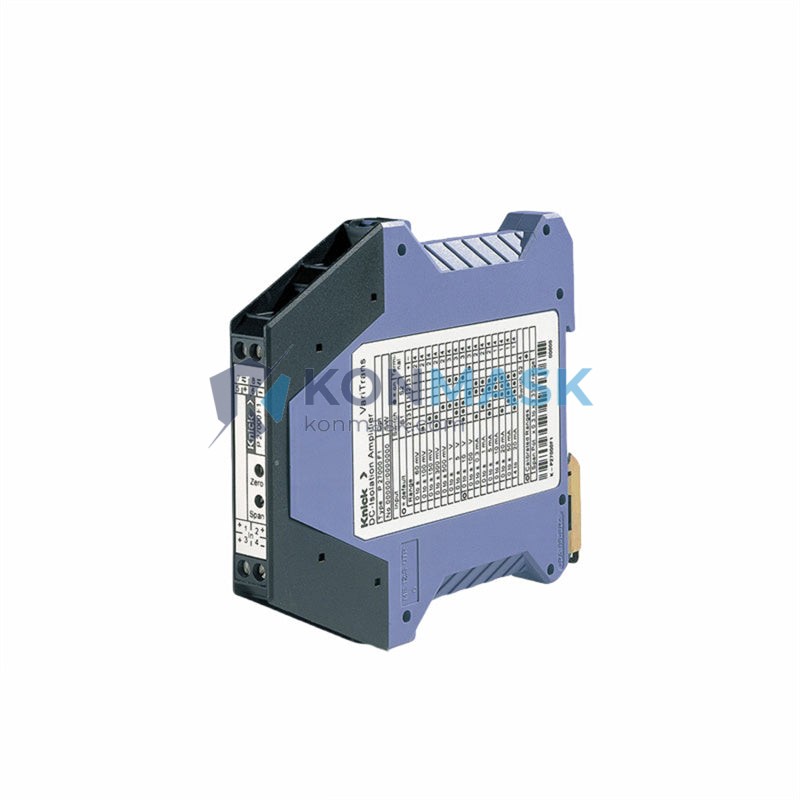

Knick P27000-H1 – Universal Signal Conditioner | Stratos Series
Engineering Background: The Knick P27000-H1 is a high-precision universal signal conditioner engineered for demanding industrial measurement and control environments. Developed by Knick Elektronische Messgeräte GmbH & Co. KG — a German precision instrumentation leader with over 75 years of engineering heritage — the P27000-H1 belongs to the Stratos series of programmable isolation amplifiers designed to meet the rigorous requirements of process automation, energy management, and safety-critical systems.
Product Positioning: The P27000-H1 serves as a universal interface between field-level sensors and control system inputs, providing galvanic isolation, signal conversion, and conditioning in a compact DIN rail package. It is the preferred choice for procurement engineers who require a single configurable module capable of handling multiple signal types without hardware redesign.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P27000-H1 |
| Manufacturer | Knick Elektronische Messgeräte GmbH & Co. KG |
| Series | Stratos / P27000 |
| Function | Universal Signal Conditioner / Isolation Amplifier |
| Input Signal Types | Current (0/4–20 mA), Voltage (0–10 V), Thermocouple, RTD (Pt100/Pt1000), Potentiometer |
| Output Signal | 0/4–20 mA, 0–10 V (configurable) |
| Isolation Voltage | ≥ 2.5 kV AC (input / output / power supply, 3-way isolation) |
| Accuracy | ≤ 0.1% of full scale |
| Supply Voltage | 24 V DC (18–30 V DC) |
| Power Consumption | ≤ 2 W typical |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | DIN Rail (EN 60715 / TS 35) |
| Housing Width | 12.5 mm (ultra-slim) |
| Protection Class | IP20 |
| Certifications | CE, UL, cUL, ATEX (Ex ia), SIL 2 capable |
| Weight | ~1560 g (packaged) |
| Configuration | PC software (Knick KonfigSet) or front-panel DIP switches |
Proven Application Environments
- Oil & Gas: Wellhead monitoring, pipeline pressure/temperature signal isolation to DCS/SCADA
- Chemical & Petrochemical: Hazardous area signal conditioning (ATEX Zone 1/2), intrinsically safe loops
- Power Generation: Generator protection panels, turbine monitoring signal chains
- Water & Wastewater: Flow, level, and pH sensor signal conversion to PLC analog inputs
- Pharmaceutical: GMP-compliant process monitoring with high-accuracy signal integrity
- Building Automation: HVAC sensor integration, energy metering signal conditioning
- Marine & Offshore: Vibration-resistant DIN rail installation in control cabinets
Engineering Advantages
- 3-Way Galvanic Isolation: Complete electrical separation between input, output, and power supply eliminates ground loops and protects sensitive control equipment
- Universal Input Flexibility: Single hardware SKU handles current, voltage, thermocouple, RTD, and potentiometer inputs — reduces spare parts inventory complexity
- Ultra-Slim 12.5 mm Profile: Maximizes DIN rail density in compact control cabinets; up to 80 modules per meter
- SIL 2 Capable: Suitable for use in functional safety applications per IEC 61508 — supports safety loop architectures
- Software Configurable: Knick KonfigSet PC software enables rapid reconfiguration without hardware changes, reducing commissioning time
- High Accuracy ≤ 0.1%: Meets precision requirements for custody transfer, energy metering, and quality-critical process control
- Wide Temperature Range: Reliable operation from -20°C to +60°C covers most industrial cabinet environments without additional climate control
System Architecture & Signal Flow
The P27000-H1 operates as a transparent signal bridge within the control loop architecture:
- Field Input Stage: Accepts raw sensor signal (mA, mV, Ω, or thermocouple EMF) with input protection against transients and reverse polarity
- Galvanic Isolation Barrier: Transformer-based 3-way isolation block eliminates common-mode interference and ground potential differences between field and control levels
- Signal Processing Core: High-resolution A/D and D/A conversion with linearization algorithms for thermocouple and RTD inputs; configurable scaling and offset
- Output Stage: Drives standard 0/4–20 mA or 0–10 V signals into PLC/DCS analog input cards with ≤ 0.1% accuracy
- Diagnostics: LED status indication for power, signal validity, and fault conditions; optional HART pass-through on select variants
Compatible control system interfaces: Siemens S7/S5, ABB 800xA, Honeywell Experion, Yokogawa CENTUM, Emerson DeltaV, Rockwell ControlLogix, Schneider Modicon, and all standard 4–20 mA analog input cards.
Sourcing & Quality Verification
- Authorized Supply Chain: Konmask.com sources P27000-H1 units through verified industrial distribution channels with full traceability documentation
- Incoming Inspection: Each unit undergoes visual inspection, label verification (part number, date code, firmware version), and functional power-on test before dispatch
- Authenticity Guarantee: Genuine Knick factory packaging, CE/UL markings, and calibration certificates supplied where applicable
- Condition: New-in-box (NIB) and factory-refurbished (FR) options available — condition clearly stated on each listing
- Documentation: Datasheet, installation manual, and KonfigSet software download links provided with every order
Procurement Process
- Confirm Part Number: Verify P27000-H1 against your BOM or existing installation — check suffix codes for variant-specific options (e.g., HART, Ex ia)
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and availability confirmation
- Submit PO: Purchase orders accepted via email; proforma invoice issued within 24 hours
- Shipping: DHL Express / FedEx International Priority standard; sea freight available for bulk orders; export documentation (CO, packing list, commercial invoice) included
- After-Sales: 12-month warranty on all units; technical support from Konmask engineering team for installation and configuration queries
Technical FAQ
Q: Can the P27000-H1 replace a Knick P11000 or P21000 in an existing installation?
A: The P27000-H1 is the successor platform to the P11000/P21000 series with backward-compatible signal ranges. Terminal assignments may differ — consult the wiring diagram before direct substitution.
Q: Is the P27000-H1 approved for use in ATEX Zone 1 hazardous areas?
A: Yes, with the appropriate Ex ia certification variant. Confirm the full model suffix includes the ATEX designation before installation in classified areas.
Q: What is the maximum loop resistance for 4–20 mA output?
A: The output stage drives up to 750 Ω load at 24 V DC supply — sufficient for most PLC analog input cards and HART communicators in the loop.
Q: Can multiple P27000-H1 units share a single 24 V DC power rail?
A: Yes. Each module draws ≤ 2 W; a standard 10 A / 24 V DC PSU supports up to 120 modules on a shared bus with appropriate fusing per segment.
Q: How do I configure the input/output range without a PC?
A: Front-panel DIP switches allow basic range selection. For full parameter access including linearization tables and scaling, Knick KonfigSet software (free download) connected via the front-panel USB/RS-232 port is required.
Q: What is the typical delivery lead time from Konmask?
A: In-stock units ship within 1–3 business days. For out-of-stock items, lead time is 2–6 weeks depending on factory availability. Contact us for real-time stock status.
