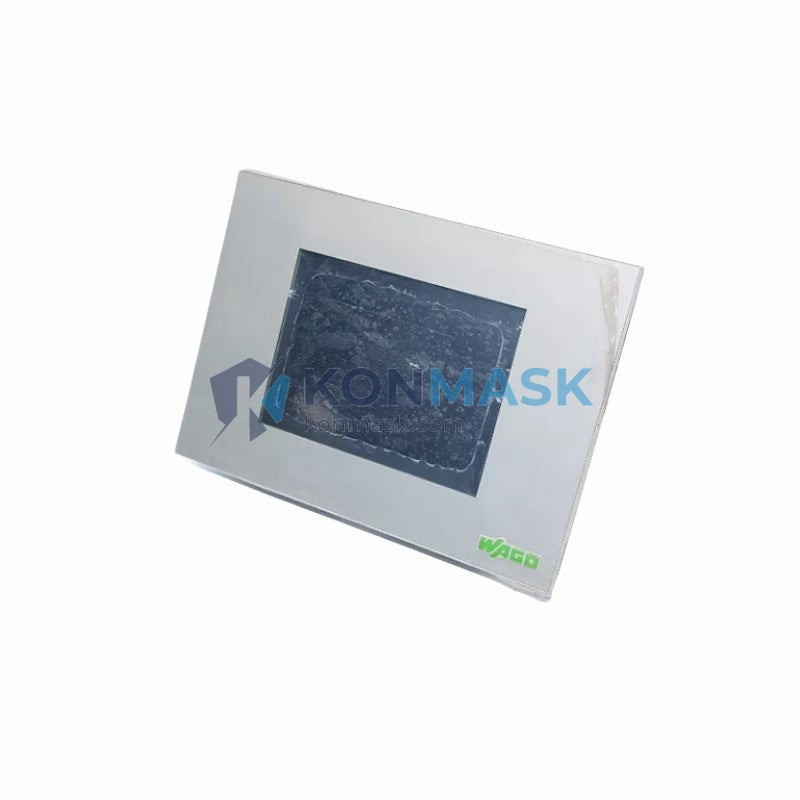

Industrial Control Panel Solution – WAGO 0762-3057/0001-0000 | 750/760 Series
Where This Product Is Used
The WAGO 0762-3057/0001-0000 I/O Control Panel Module is engineered for demanding industrial environments where reliable signal distribution and modular I/O expansion are critical. Typical deployment scenarios include:
- Building Automation Systems (BAS): HVAC control panels, lighting management, and energy monitoring in commercial and industrial facilities.
- Process Engineering: Chemical plants, water treatment facilities, and oil & gas installations requiring robust field-level I/O interfacing.
- Machine Control Cabinets: OEM machine builders integrating modular I/O into compact control enclosures on production lines.
- Renewable Energy Infrastructure: Solar inverter control panels, wind turbine monitoring systems, and battery energy storage management.
- Transportation & Infrastructure: Railway signaling panels, tunnel ventilation control, and smart grid substations.
- Food & Beverage Manufacturing: Hygienic process control panels with IP-rated enclosures requiring DIN-rail mounted I/O modules.
Technical Specifications
| Part Number | 0762-3057/0001-0000 |
| Manufacturer | WAGO |
| Series | WAGO-I/O-SYSTEM 750/760 |
| Product Type | I/O Control Panel Module |
| Mounting | DIN Rail (EN 60715 / TS 35) |
| Communication | Compatible with WAGO 750/760 fieldbus couplers (PROFIBUS, MODBUS, EtherNet/IP, PROFINET, BACnet, etc.) |
| Operating Temperature | -20 °C to +55 °C |
| Protection Class | IP20 |
| Weight | Approx. 300 g |
| Certifications | CE, UL, ATEX (refer to official WAGO datasheet for full listing) |
Note: Always verify specifications against the official WAGO product datasheet prior to system design.
Why Engineers Specify This Model
- Modular Scalability: Slots seamlessly into the WAGO 750/760 I/O system, allowing engineers to expand or reconfigure control panels without rewiring.
- Fieldbus Agnostic: Works across all major WAGO fieldbus couplers — one module, multiple protocol environments.
- Spring-Clamp Wiring Technology: WAGO’s signature CAGE CLAMP® connections deliver vibration-proof, maintenance-free terminations that outperform screw terminals in harsh environments.
- Compact Footprint: High channel density in a narrow DIN-rail profile reduces panel space and cabinet costs.
- Long Product Lifecycle: WAGO’s 750/760 platform has a proven multi-decade lifecycle, protecting capital investment in installed base systems.
- Global Approvals: CE, UL, and ATEX certifications support deployment across North American, European, and hazardous-area projects.
Complete System Bill of Materials
For a fully operational WAGO-I/O-SYSTEM control panel, the following components are typically specified alongside the 0762-3057/0001-0000:
- WAGO 750-Series Fieldbus Coupler (e.g., 750-352 PROFIBUS, 750-370 MODBUS, 750-352 EtherNet/IP)
- WAGO 750-Series Digital Input Modules (e.g., 750-1405, 750-1406)
- WAGO 750-Series Digital Output Modules (e.g., 750-1504, 750-1506)
- WAGO 750-Series Analog Input/Output Modules
- WAGO 750-600 End Module (system termination)
- 24 VDC DIN Rail Power Supply (e.g., WAGO 787-series or equivalent)
- DIN Rail, Cable Duct, and Enclosure Hardware
Contact support@konmask.com for complete BOM sourcing assistance.
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive.
- UL Listed: Recognized for use in North American industrial control panels per UL 508A.
- IEC 61131-2: Programmable controller hardware compliance.
- EN 60715: DIN rail mounting standard.
- ATEX / IECEx: Consult WAGO documentation for hazardous area zone ratings applicable to this module variant.
- RoHS Compliant: Restriction of Hazardous Substances Directive (EU 2011/65/EU).
Quality Assurance & Sourcing
Konmask.com specializes in the procurement and distribution of industrial automation components from globally recognized manufacturers. Every unit of the WAGO 0762-3057/0001-0000 offered through our platform is:
- Sourced through verified supply channels with full traceability.
- Inspected for physical integrity, label authenticity, and packaging condition prior to dispatch.
- Stored in ESD-safe, climate-controlled warehousing to preserve component integrity.
- Accompanied by documentation support including datasheets, certificates of conformity, and customs documentation upon request.
How to Source This Part
Konmask.com offers flexible procurement options for the WAGO 0762-3057/0001-0000:
- Single Unit & Small Batch: Available for immediate order via this product page.
- Project Quantity & BOM Sourcing: Submit your full bill of materials to support@konmask.com for a consolidated quotation.
- Urgent / Emergency Orders: Contact us directly at +0086 19859288691 for expedited sourcing and shipping options.
- Global Shipping: We ship to over 50 countries with DHL, FedEx, and UPS express options. Export documentation and customs support included.
Application-Specific FAQ
Q: Is the WAGO 0762-3057/0001-0000 compatible with PROFINET or EtherNet/IP systems?
A: Yes. This module integrates with the WAGO 750/760 I/O system, which supports all major fieldbus and Industrial Ethernet protocols via the appropriate coupler module. The I/O module itself is protocol-agnostic.
Q: Can this module be used in a hazardous (Ex) area?
A: Certain WAGO 750/760 variants carry ATEX/IECEx ratings. Verify the specific Ex zone rating in the official WAGO product datasheet for this part number before installation in classified areas.
Q: What is the maximum number of modules per WAGO I/O station?
A: The WAGO 750/760 system supports up to 64 I/O modules per fieldbus node, depending on the coupler type and power budget. Consult WAGO’s system design guidelines for your specific configuration.
Q: Do you provide a warranty on this product?
A: Yes. Konmask.com provides a quality guarantee on all products. Contact support@konmask.com for warranty terms and return procedures.
Q: Can I request a certificate of conformity or test report?
A: Yes. Documentation packages including CoC, WAGO datasheets, and customs invoices are available upon request for all orders.
