EtherNet/IP ↔ PROFINET Solution — ProSoft Technology PLX32-EIP-PND | PLX32 Series

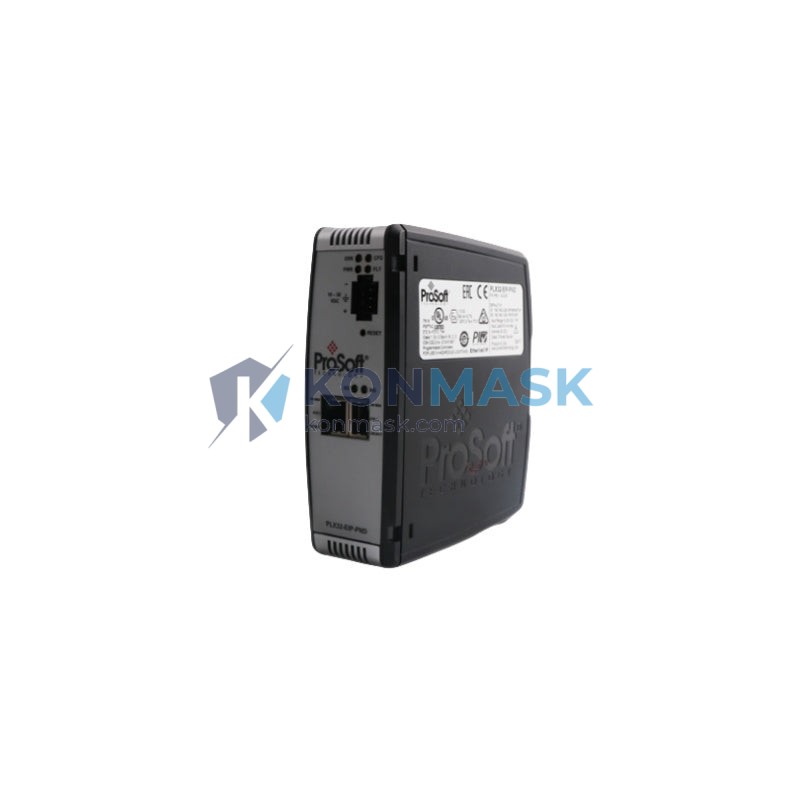

The ProSoft PLX32-EIP-PND is a standalone, DIN-rail-mounted protocol gateway that provides seamless, real-time data exchange between EtherNet/IP and PROFINET IO networks. Designed for engineers who must integrate Allen-Bradley / Rockwell Automation controllers with Siemens PROFINET devices — or any cross-vendor automation topology — this module eliminates the need for custom middleware or OPC bridging.
Where This Product Is Used
The PLX32-EIP-PND is specified across a wide range of industrial environments where two dominant industrial Ethernet protocols must coexist:
- Automotive Assembly Lines — Connecting Rockwell ControlLogix/CompactLogix PLCs to Siemens PROFINET-based robot controllers, vision systems, and servo drives.
- Food & Beverage Processing — Bridging EtherNet/IP-based SCADA systems to PROFINET field devices such as Festo valve terminals and Siemens ET 200 distributed I/O.
- Pharmaceutical Manufacturing — Enabling validated data paths between Allen-Bradley safety PLCs and PROFINET-connected filling/packaging machinery.
- Water & Wastewater Treatment — Integrating legacy EtherNet/IP RTUs with modern PROFINET sensor networks for unified SCADA visibility.
- Material Handling & Logistics — Linking EtherNet/IP conveyor controllers to PROFINET-based barcode scanners, VFDs, and sorter drives.
- Oil & Gas Upstream/Midstream — Providing protocol translation at remote skid-mounted control panels where mixed-vendor equipment is standard.
- Machine OEM / Panel Builders — Delivering a compact, certified gateway that ships inside control panels destined for global customers with mixed PLC ecosystems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | PLX32-EIP-PND |
| Series | PLX32 |
| Manufacturer | ProSoft Technology |
| Protocol Side A | EtherNet/IP (Adapter / Scanner) |
| Protocol Side B | PROFINET IO (Controller / Device) |
| Network Ports | 2 × RJ45 10/100 Mbps (independent) |
| Data Capacity | Up to 248 bytes IN / 248 bytes OUT per connection |
| Power Supply | 24 VDC (±10%), <3 W typical |
| Mounting | 35 mm DIN Rail |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions (W×H×D) | Approx. 35 × 100 × 115 mm |
| Weight | 240 g |
| Configuration Interface | ProSoft Configuration Builder (PCB) software, free download |
| Certifications | CE, UL, cUL, RoHS |
Why Engineers Specify This Model
- Dual-Role Flexibility — Operates as EtherNet/IP Adapter or Scanner AND as PROFINET IO Controller or Device, covering virtually all integration topologies without additional hardware.
- Zero-PLC-Code Translation — Data mapping is configured entirely within ProSoft Configuration Builder; no ladder logic or function blocks required on either PLC side.
- Deterministic Latency — Sub-10 ms cycle times ensure real-time process data integrity across both networks.
- Compact DIN-Rail Form Factor — Fits inside standard control panels without dedicated rack space or backplane slots.
- Free Lifetime Software — ProSoft Configuration Builder is provided at no cost with full diagnostic and live data monitoring tools.
- Proven Interoperability — Tested with Allen-Bradley ControlLogix, CompactLogix, MicroLogix and Siemens S7-300/400/1200/1500 families.
Complete System Bill of Materials
A typical PLX32-EIP-PND integration requires the following components:
- ProSoft PLX32-EIP-PND Gateway (this unit)
- 24 VDC DIN-rail power supply (e.g., Phoenix Contact QUINT or equivalent)
- Managed industrial Ethernet switch with PROFINET support (e.g., Hirschmann, Siemens SCALANCE)
- Cat5e / Cat6 shielded Ethernet patch cables (RJ45, industrial rated)
- 35 mm DIN rail section + end stops
- ProSoft Configuration Builder software (free, Windows PC)
- USB-to-serial or direct Ethernet programming cable (for initial configuration)
Compliance & Industry Standards
- EtherNet/IP — ODVA conformance tested
- PROFINET — PI (PROFIBUS & PROFINET International) certified
- CE Marking — EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU
- UL / cUL Listed — UL 508 Industrial Control Equipment
- RoHS Compliant — Directive 2011/65/EU
- IP20 Enclosure Rating — Suitable for installation inside control panels
Quality Assurance & Sourcing
Konmask.com sources the PLX32-EIP-PND exclusively through authorized industrial distribution channels. Every unit undergoes the following before shipment:
- Visual inspection and label verification against ProSoft factory markings
- Power-on functional test confirming LED status and communication port activity
- Firmware version verification against current ProSoft release notes
- Anti-static packaging with humidity indicator card
- Certificate of conformance available upon request
We maintain traceability records for all units. Counterfeit-free guarantee backed by our supplier audit process.
How to Source This Part
- Add to Cart — Click the purchase button above for immediate checkout.
- Request a Quote — For volume orders (>5 units), OEM pricing, or project-based procurement, email support@konmask.com with your project details.
- Lead Time — In-stock units ship within 1–3 business days. Ex-stock lead time for bulk orders: 5–10 business days.
- Export Compliance — We handle HTS classification and export documentation for international shipments. Contact us for DDP/DAP Incoterms options.
- Technical Pre-Sales Support — Our automation engineers can review your network architecture and confirm compatibility before purchase.
Application-Specific FAQ
Q: Can the PLX32-EIP-PND connect a ControlLogix PLC (EtherNet/IP Scanner) to a Siemens ET 200SP (PROFINET Device)?
A: Yes. Configure the gateway as an EtherNet/IP Adapter on the Rockwell side and as a PROFINET IO Controller on the Siemens side. The ET 200SP appears as a standard PROFINET device to the gateway.
Q: How many PROFINET IO devices can the PLX32-EIP-PND control simultaneously?
A: The PLX32-EIP-PND operates as a PROFINET IO Controller and can manage multiple IO devices within its 248-byte data capacity per direction. Consult the ProSoft user manual for exact device count limits based on your data volume.
Q: Is configuration software included or separately licensed?
A: ProSoft Configuration Builder (PCB) is free to download from ProSoft Technology’s website. No license fees apply.
Q: Does this gateway support explicit messaging (EtherNet/IP) in addition to implicit I/O?
A: The PLX32-EIP-PND primarily handles implicit (Class 1) I/O connections. For explicit messaging requirements, review ProSoft’s PLX51 series as an alternative.
Q: What is the warranty period?
A: ProSoft Technology provides a standard 1-year limited warranty. Konmask.com extends an additional 90-day DOA (Dead on Arrival) replacement guarantee on all units sold through our platform.
Q: Can this unit be used in a Class I Division 2 (C1D2) hazardous location?
A: The PLX32-EIP-PND is rated IP20 and is not intrinsically safe. For hazardous locations, install within a certified purged/pressurized enclosure or consult ProSoft for ATEX/IECEx-rated alternatives.
