Kollmorgen AKD-P00306-NBEC-0069 3A Servo Drive | Replacement, Equivalent & Selection Guide

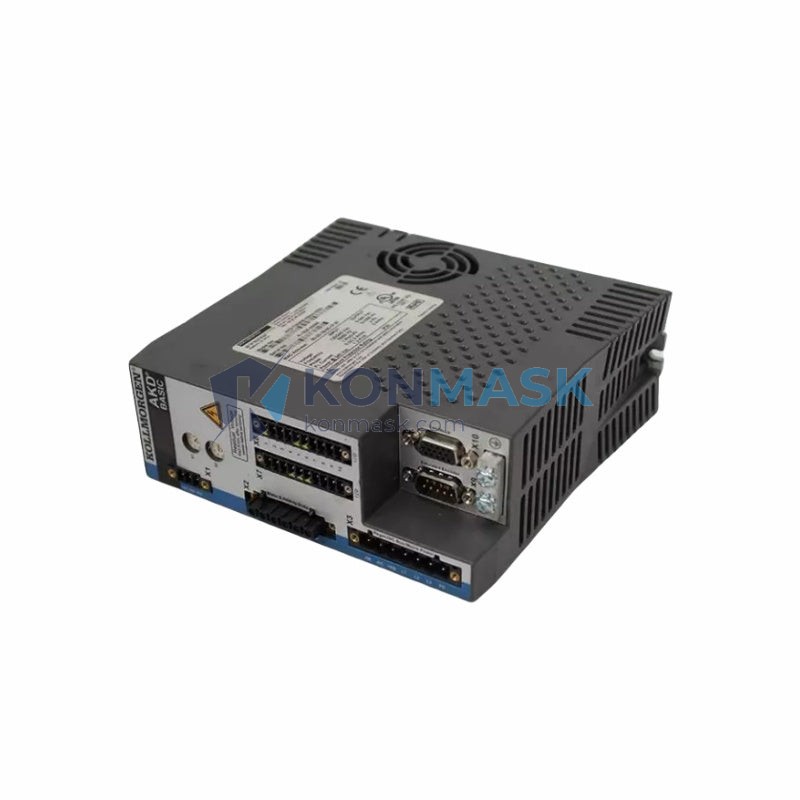

The Kollmorgen AKD-P00306-NBEC-0069 (also referenced as CET002000003) is a compact, high-performance servo drive from Kollmorgen’s industry-leading AKD Series. This page serves as a comprehensive selection and sourcing reference for engineers, procurement teams, and system integrators evaluating this model or seeking compatible alternatives.
Technical Specifications
- Manufacturer: Kollmorgen
- Part Number: AKD-P00306-NBEC-0069
- Cross Reference / OEM Code: CET002000003
- Series: AKD (Advanced Kollmorgen Drive)
- Continuous Output Current: 3 A
- Peak Output Current: 6 A
- Supply Voltage: 120–240 VAC, single-phase / three-phase
- DC Bus Voltage: 170–340 VDC
- Feedback Interface: EnDat 2.2 / SFD3 / Resolver / Incremental Encoder
- Communication: EtherCAT (EC suffix)
- Control Mode: Position / Velocity / Torque
- Protection Class: IP20
- Operating Temperature: 0–45 °C (ambient)
- Weight: ~13.6 kg (packaged)
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or near-equivalent replacements for the AKD-P00306-NBEC-0069. Always verify electrical and mechanical compatibility before substitution.
- Kollmorgen AKD-P00306-NAEC-0000 — Same current rating, analog/pulse interface variant
- Kollmorgen AKD-P00306-NBCC-0000 — CANopen communication variant
- Kollmorgen AKD2G-SPE-3V06-I0-0000 — Next-generation AKD2G platform, 3 A, EtherCAT
- Siemens SINAMICS S210 1FK2-CT3 — Cross-brand equivalent for EtherCAT servo systems
- Yaskawa SGD7S-2R8A00A — 2.8 A SERVOPACK, compatible in many retrofit scenarios
- Beckhoff AX5103 — 3 A EtherCAT servo drive, suitable for TwinCAT environments
Note: Cross-brand replacements require parameter re-mapping and motor re-tuning. Contact support@konmask.com for application-specific guidance.
Why Choose the Original Model
- Drop-in compatibility: Zero re-engineering for existing AKD-based machine designs
- Kollmorgen WorkBench software: Full auto-tuning, oscilloscope, and commissioning support
- PDMM/PCMM integration: Native support for Kollmorgen’s multi-axis motion controllers
- Proven reliability: Widely deployed in packaging, semiconductor, and medical automation
- Firmware continuity: Seamless upgrade path within the AKD ecosystem
Typical Applications
- Packaging machinery (pick-and-place, form-fill-seal)
- Semiconductor wafer handling and inspection equipment
- Medical device assembly and laboratory automation
- CNC machine tool axes and robotic joint control
- Printing and converting machinery
- Electronic assembly and SMT equipment
System Compatibility
- Motors: Kollmorgen AKM, CDDR, TBM, and compatible third-party servo motors
- Controllers: Kollmorgen PDMM, PCMM, AKD-N (decentralized), Beckhoff CX/EK series (EtherCAT master)
- Software: Kollmorgen WorkBench v2.x+, TwinCAT 3 (via EtherCAT), KINGSTAR
- Fieldbus: EtherCAT (CoE — CAN application protocol over EtherCAT)
- Safety: STO (Safe Torque Off) — IEC 61800-5-2 compliant
Selection Guide
Use the following criteria to confirm the AKD-P00306-NBEC-0069 is the right choice, or to identify the correct alternative:
- Step 1 — Current rating: Confirm motor continuous current ≤ 3 A and peak ≤ 6 A
- Step 2 — Supply voltage: Verify site supply is 120–240 VAC single or three-phase
- Step 3 — Feedback type: Match encoder protocol (EnDat 2.2, SFD3, resolver, or incremental)
- Step 4 — Fieldbus: Confirm EtherCAT master is available; if CANopen or analog, select -NBCC or -NAEC variant
- Step 5 — Safety requirements: STO is standard; if SIL2/PLd is required, confirm firmware version
- Step 6 — Enclosure: IP20 is panel-mount only; for harsh environments consider IP65 motor + sealed cabinet
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and serial number verification
- Original manufacturer packaging preserved where available
- Traceable documentation (test reports, CoC) available on request
- Warranty: 12 months from shipment date
How to Order
- Add to cart directly, or contact us for volume pricing and lead time confirmation
- Provide your application details (motor model, controller, fieldbus) for compatibility verification
- Request a formal quotation via support@konmask.com
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS worldwide; export documentation included
Replacement & Compatibility FAQ
Q: Can I replace AKD-P00306-NBEC-0069 with an AKD2G?
A: Yes, but the AKD2G uses a different connector pinout and WorkBench 2 software. A wiring adapter and re-commissioning are required.
Q: Is this drive compatible with non-Kollmorgen motors?
A: Yes, with third-party motors that support EnDat 2.2 or incremental encoder feedback. Motor data must be manually entered in WorkBench.
Q: What is the difference between -NBEC and -NAEC?
A: -NBEC = EtherCAT fieldbus; -NAEC = Analog/Pulse (step-direction) interface. All other specs are identical.
Q: Can I use this drive in a multi-axis EtherCAT ring topology?
A: Yes. The AKD supports EtherCAT daisy-chain topology with up to 65,535 nodes per segment.
Q: Do you provide a test report before shipment?
A: Yes, functional test reports are available upon request at no additional charge.
