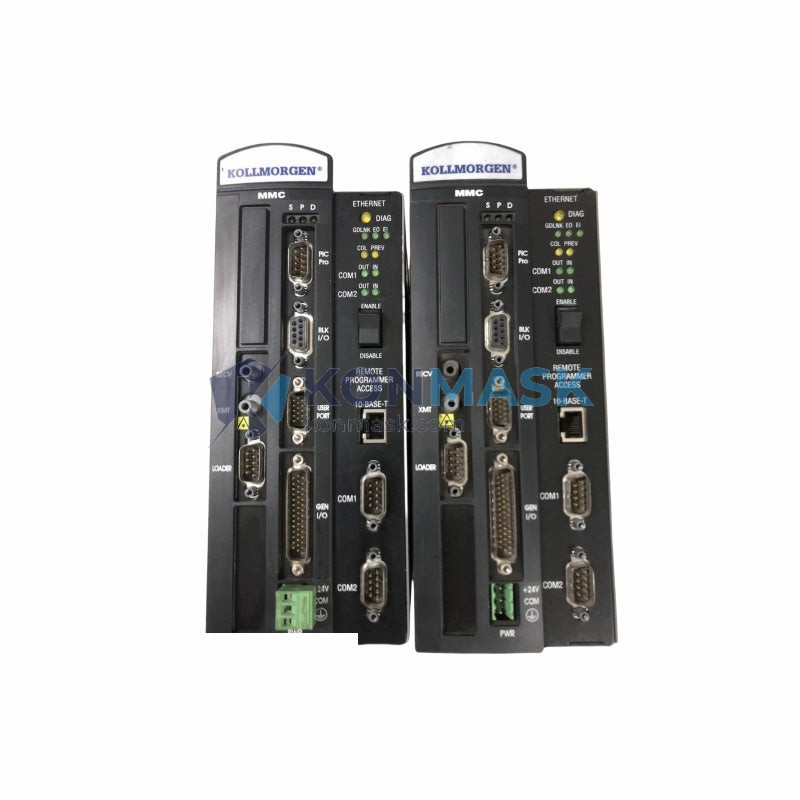

Kollmorgen MMC-S8 – 8-Axis SERCOS+ AC Servo Drive | S600 Platform
Engineering Background: The Kollmorgen MMC-S8 is a high-performance multi-axis motion controller built on the proven S600 servo platform. Designed for demanding CNC, robotics, and industrial automation environments, it leverages the SERCOS (Serial Real-time Communication System) fiber-optic ring bus to deliver deterministic, synchronized control across up to 8 servo axes.
Product Positioning: The MMC-S8 targets OEM machine builders and system integrators who require a centralized, high-throughput motion controller capable of coordinating complex multi-axis trajectories with microsecond-level synchronization. It is the preferred choice for retrofit and new-build CNC machining centers, packaging lines, and precision assembly systems.
Complete Technical Specifications
- Model / SKU: MMC-S8
- Manufacturer: Kollmorgen (Danaher Motion)
- Platform / Series: S600 / SERCOSPLUS
- Controlled Axes: Up to 8 axes via SERCOS fiber-optic ring
- Communication Bus: SERCOS II / SERCOS+ (fiber-optic, 2 Mbit/s – 16 Mbit/s)
- Cycle Time: 250 µs – 4 ms (configurable)
- Programming Environment: Kollmorgen Automation Suite (KAS) / AKD WorkBench compatible
- I/O Interface: Digital I/O expansion via SERCOS ring nodes
- Feedback Support: Encoder, resolver, SinCos, EnDat 2.1/2.2, Hiperface
- Power Supply: 24 VDC logic; axis power via S600-series drive modules
- Operating Temperature: 0 °C – 45 °C (32 °F – 113 °F)
- Storage Temperature: -25 °C – 70 °C
- Protection Rating: IP20 (panel-mount)
- Weight: 13.6 kg (as shipped)
- Certifications: CE, UL (verify with datasheet for specific listing)
- Country of Origin: USA / Germany (Kollmorgen global manufacturing)
Proven Application Environments
- CNC machining centers (milling, turning, grinding) requiring coordinated multi-axis interpolation
- High-speed packaging and form-fill-seal machines with electronic line shafting
- Semiconductor wafer handling and precision pick-and-place robotics
- Printing and converting machinery with register control
- Textile and winding machines requiring tension and speed synchronization
- Retrofit of legacy SERCOS-based machine tools to modern control architectures
Engineering Advantages
- Deterministic SERCOS Ring: Fiber-optic bus eliminates EMI interference and guarantees hard real-time synchronization across all 8 axes simultaneously.
- Scalable Architecture: Modular S600 drive modules can be added or reconfigured without replacing the MMC-S8 controller, protecting capital investment.
- Rich Feedback Compatibility: Native support for EnDat 2.2 and Hiperface DSL reduces wiring complexity and supports single-cable motor solutions.
- Proven Field Reliability: Kollmorgen S600 platform has accumulated millions of operating hours in production environments globally.
- Integrated Safety Ready: Compatible with STO (Safe Torque Off) and SS1 safety functions when paired with appropriate S600 drive modules.
System Architecture & Signal Flow
The MMC-S8 operates as the SERCOS ring master. The fiber-optic ring connects the MMC-S8 to each S600 series drive slave node in a daisy-chain topology. Each SERCOS telegram carries position commands, velocity feed-forwards, and status feedback within a single deterministic cycle. The host PLC or CNC communicates with the MMC-S8 via Ethernet (EtherNet/IP or Modbus TCP depending on firmware version) or a dedicated fieldbus interface card. Encoder feedback from each motor is processed locally at the S600 drive and reported back to the MMC-S8 via the SERCOS ring, minimizing latency and cable runs.
Sourcing & Quality Verification
- Source: Konmask.com sources MMC-S8 units from authorized distributors, decommissioned OEM lines, and certified refurbishers with full traceability documentation.
- Inspection: Each unit undergoes visual inspection, firmware version verification, and functional power-on testing prior to shipment.
- Warranty: 90-day replacement warranty against DOA and latent defects. Extended warranty available on request.
- Documentation: Original Kollmorgen datasheet, wiring diagrams, and KAS software download links provided with every order.
- Counterfeit Prevention: Serial number and date code verified against Kollmorgen manufacturing records where available.
Procurement Process
- Submit your RFQ via the product page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a formal quotation with lead time, unit price, and shipping options within 1 business day.
- Confirm purchase order; payment accepted via T/T wire transfer, PayPal, or credit card.
- Unit ships within 3–5 business days from our warehouse; express DHL/FedEx available.
- Tracking number and commercial invoice provided for customs clearance.
Technical FAQ
Q: Is the MMC-S8 compatible with SERCOS III?
A: No. The MMC-S8 uses SERCOS II / SERCOS+ (fiber-optic). SERCOS III uses Ethernet physical layer and requires a different controller. Verify your existing ring topology before ordering.
Q: Can the MMC-S8 control fewer than 8 axes?
A: Yes. The SERCOS ring can be populated with 1–8 S600 drive nodes. Unused axis slots do not require hardware.
Q: What software is required for commissioning?
A: Kollmorgen Automation Suite (KAS) or the legacy S600 WorkBench tool. Contact us for software access links included with purchase.
Q: Do you provide a test report?
A: Yes. A power-on functional test report is available upon request at time of order.
Q: What is the lead time for stock units?
A: In-stock units ship within 3–5 business days. Out-of-stock lead time is 4–8 weeks depending on sourcing channel.
