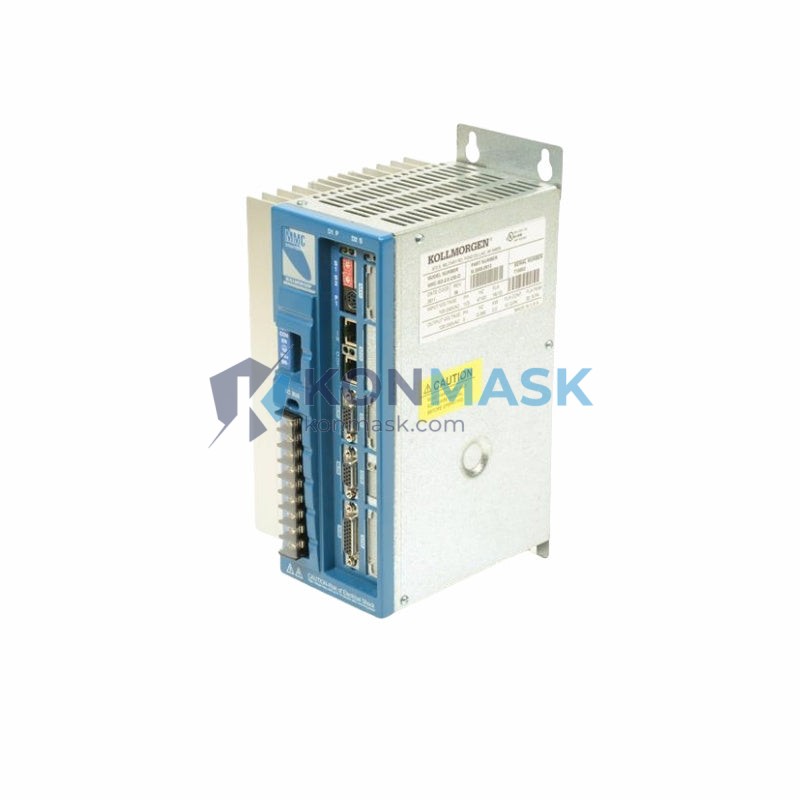

Industrial Motion Control Solution – Kollmorgen MMC-SD-2.4-460-D | Cartridge Series Servo Drive
Where This Product Is Used
The Kollmorgen MMC-SD-2.4-460-D is a compact, high-performance servo drive power output module engineered for precision motion control in demanding industrial environments. Engineers and system integrators specify this module across a wide range of applications:
- CNC Machining Centers – Axis control for milling, turning, and grinding machines requiring tight positional accuracy
- Robotic Assembly Lines – Multi-axis coordinated motion in automotive and electronics manufacturing
- Packaging Machinery – High-speed pick-and-place, form-fill-seal, and labeling systems
- Semiconductor Fabrication Equipment – Ultra-precise wafer handling and stage positioning
- Medical Device Manufacturing – Servo-controlled dispensing, cutting, and assembly automation
- Textile & Printing Machinery – Tension control and registration systems
- Material Handling & Conveyors – Synchronized multi-axis transport systems
Technical Specifications
| Part Number | MMC-SD-2.4-460-D |
| Brand | Kollmorgen |
| Series | MMC Cartridge Series |
| Module Type | Servo Drive Power Output Module |
| Continuous Output Current | 2.4 A |
| Input Voltage | 460 V AC (3-phase) |
| Drive Topology | PWM Servo Amplifier |
| Form Factor | Cartridge / Plug-in Module |
| Feedback Compatibility | Encoder, Resolver (per system configuration) |
| Weight | 400 g (approx.) |
| Country of Origin | USA |
Why Engineers Specify This Model
- Cartridge Form Factor – Hot-swap capable plug-in design minimizes machine downtime during replacement
- 460 V Input – Directly compatible with North American and international 3-phase industrial power infrastructure
- 2.4 A Continuous Rating – Right-sized for small-to-medium servo motors without oversizing the drive cabinet
- Kollmorgen MMC Ecosystem – Seamlessly integrates with Kollmorgen MMC motion controllers and AKM servo motors
- Proven Field Reliability – Widely deployed in OEM machine platforms with long service life
- Compact Footprint – Reduces panel space requirements in multi-axis systems
Complete System Bill of Materials
For a complete Kollmorgen MMC servo axis, engineers typically specify the following alongside the MMC-SD-2.4-460-D:
- Kollmorgen MMC Motion Controller (e.g., MMC-3 or MMC-4 series)
- Kollmorgen AKM Series Servo Motor (matched to 2.4 A drive rating)
- Kollmorgen MMC Power Supply Module
- Encoder or Resolver Feedback Cable Assembly
- Motor Power Cable (shielded, per Kollmorgen cable specification)
- 24 VDC Control Power Supply
- Safety Relay / STO (Safe Torque Off) Module (if required by machine safety standard)
Compliance & Industry Standards
- Designed and manufactured in compliance with UL 508C (Power Conversion Equipment)
- CE Marking compliant for EU machinery directive (2006/42/EC)
- RoHS compliant
- Compatible with IEC 61800 series (Adjustable Speed Electrical Power Drive Systems)
- Suitable for use in NFPA 79 compliant machine electrical systems
Quality Assurance & Sourcing
At Konmask.com, every Kollmorgen MMC-SD-2.4-460-D unit is:
- Sourced from verified industrial supply channels and authorized distributors
- Inspected for physical integrity, label authenticity, and connector condition prior to listing
- Stored in ESD-safe, climate-controlled warehouse conditions
- Shipped with full traceability documentation upon request
- Backed by our 30-day return policy for unused, uninstalled units
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly on this page for immediate checkout
- Email RFQ: [email protected] – include your required quantity and delivery timeline
- Phone / WhatsApp: +0086 19859288691 – speak directly with our automation parts specialists
- Bulk Orders: Volume pricing available for OEM and MRO procurement – contact us for a tiered quote
Application-Specific FAQ
- Q: Is the MMC-SD-2.4-460-D compatible with 480 V systems?
- A: The module is rated for 460 V nominal input. Many 480 V systems operate within the acceptable voltage tolerance range; please verify against the full Kollmorgen MMC-SD datasheet for your specific installation.
- Q: Can this drive be used as a direct replacement for a failed unit in an existing MMC system?
- A: Yes. The cartridge form factor is designed for direct plug-in replacement within the MMC chassis. No re-wiring of the power bus is required.
- Q: What servo motors are matched to the 2.4 A output rating?
- A: Kollmorgen AKM series motors in the lower frame sizes (AKM2x, AKM3x) are typically matched to this drive rating. Consult the Kollmorgen motor-drive sizing tool for exact pairing.
- Q: Do you provide a datasheet or installation manual?
- A: Yes. Contact us at [email protected] and we will provide the relevant Kollmorgen technical documentation for this part number.
- Q: What is the lead time for this part?
- A: In-stock units ship within 1–3 business days. For large quantity orders, lead time may vary — contact us for availability confirmation.
