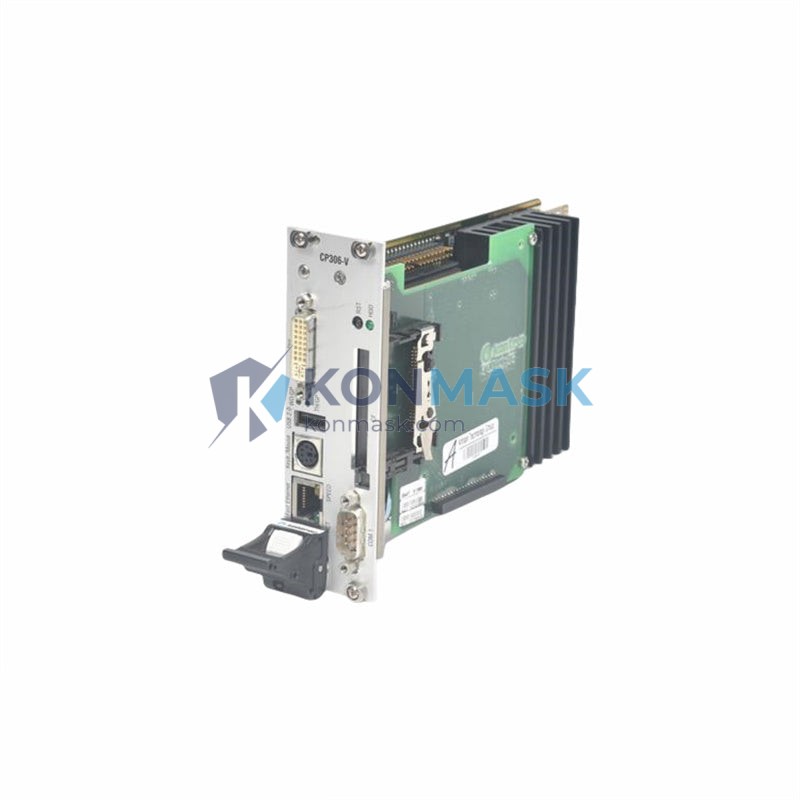

KONTRON CP306-V CompactPCI CPU Control Board | Replacement, Equivalent & Selection Guide
The KONTRON CP306-V is a high-performance CompactPCI (cPCI) single-board computer / control board designed for demanding industrial automation, telecommunications, and embedded computing applications. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Part Number (MPN) | CP306-V |
| Brand / Manufacturer | KONTRON |
| Form Factor | CompactPCI (cPCI) 3U |
| Module Type | CPU / Control Board (Single Board Computer) |
| Bus Interface | CompactPCI (PICMG 2.0) |
| Weight | 1,380 g (approx.) |
| Condition | New / Refurbished Available |
| Compliance | CE, RoHS |
Need full datasheet? Contact support@konmask.com for the complete technical specification sheet.
Compatible Replacement & Equivalent Models
If the KONTRON CP306-V is discontinued, end-of-life (EOL), or out of budget, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration:
- KONTRON CP306-R — Same series, alternate revision; verify BIOS and I/O compatibility
- KONTRON CP307 — Next-generation cPCI CPU board with enhanced processing; backward-compatible in most cPCI backplanes
- Emerson / Artesyn ATCA-7365 — AdvancedTCA alternative for telecom-grade deployments
- Radisys EPC-3305 — CompactPCI equivalent for process control environments
- Advantech MIC-3395 — cPCI CPU module with similar I/O profile; confirm slot and power requirements
⚠ Important: Always verify backplane pinout, power budget, BIOS version, and OS driver compatibility before substituting any control board in a live system.
Why Choose the Original KONTRON CP306-V
- ✅ Proven field reliability in 24/7 industrial and telecom environments
- ✅ KONTRON ecosystem support — firmware, BSP, and long-term software maintenance
- ✅ Exact form-fit-function — no integration risk vs. third-party alternatives
- ✅ Certified compliance — CE, RoHS, and PICMG 2.0 standard conformance
- ✅ Stable supply — Konmask.com maintains stock of new and refurbished units
Typical Applications
- Industrial process control and SCADA systems
- Telecommunications infrastructure (central office, edge nodes)
- Railway and transportation control systems
- Defense and aerospace embedded computing
- Medical imaging and diagnostic equipment
- Factory automation and robotics controllers
System Compatibility
- Backplane: CompactPCI (PICMG 2.0) 3U chassis, 32-bit / 64-bit PCI bus
- OS Support: VxWorks, QNX, Linux (kernel 2.6+), Windows Embedded
- Chassis: Compatible with standard 3U cPCI chassis from Schroff, Elma, Pixus, and Pentair
- Power: Standard cPCI power supply; verify slot power allocation before installation
Selection Guide
Use the checklist below to confirm the CP306-V is the right choice — or to identify the best alternative:
- ☐ Form factor: Does your chassis support 3U CompactPCI modules?
- ☐ Slot type: System slot (CPU) or peripheral slot? CP306-V is a system-slot CPU board.
- ☐ Processing requirement: Match CPU speed and RAM to your application’s real-time demands.
- ☐ I/O interfaces: Confirm required ports (Ethernet, serial, USB, PMC/XMC) are present.
- ☐ Operating temperature: Standard (0–55 °C) or extended/ruggedized range needed?
- ☐ OS / BSP: Verify KONTRON BSP availability for your target operating system.
- ☐ EOL status: Contact Konmask.com to confirm current production or refurbished availability.
Quality Assurance & Sourcing
- 🔍 Authenticity verified — all units sourced from authorized channels or certified refurbishers
- 📦 Anti-static packaging with full visual and functional inspection before shipment
- 🛡 Warranty: 90-day replacement warranty on all units (extended warranty available on request)
- 📋 Traceability: Serial number and batch documentation provided upon request
- 🚚 Global shipping — DHL / FedEx express available; export documentation included
How to Order
- Add the KONTRON CP306-V to your cart and proceed to checkout, or
- Email support@konmask.com with your PO or RFQ
- Include: quantity, required delivery date, destination country, and any special requirements
- Our team responds within 1 business day with availability confirmation and lead time
Phone / WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Website: https://konmask.com
Replacement & Compatibility FAQ
Q: Is the KONTRON CP306-V still in production?
A: The CP306-V may be end-of-life (EOL). Konmask.com stocks new-old-stock (NOS) and certified refurbished units. Contact us for current availability.
Q: Can I replace CP306-V with CP307 directly?
A: In most cases yes, but you must verify BIOS compatibility, backplane power budget, and OS driver support. We recommend bench testing before field deployment.
Q: Do you provide a test report or inspection certificate?
A: Yes. Functional test reports are available upon request for all refurbished units.
Q: What is the lead time for CP306-V?
A: In-stock units ship within 2–3 business days. Out-of-stock units typically have a 2–4 week lead time depending on sourcing.
Q: Can you source other KONTRON CompactPCI modules?
A: Yes. Konmask.com specializes in industrial automation and embedded computing components. Send us your full BOM for a quote.
