KUKA 00-168-334 HMI Teach Pendant Control Panel | Replacement, Equivalent & Selection Guide

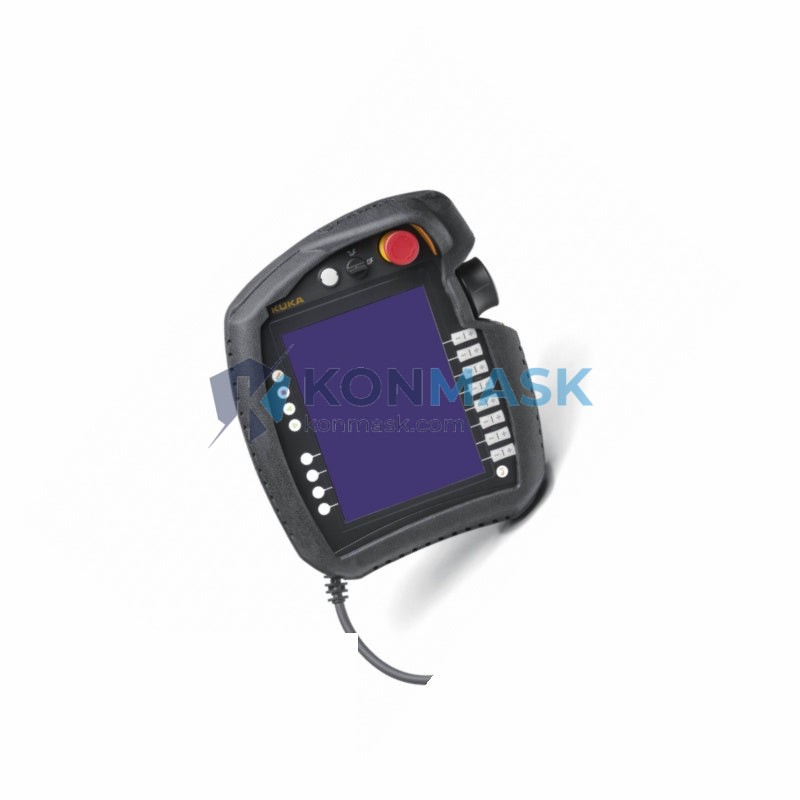

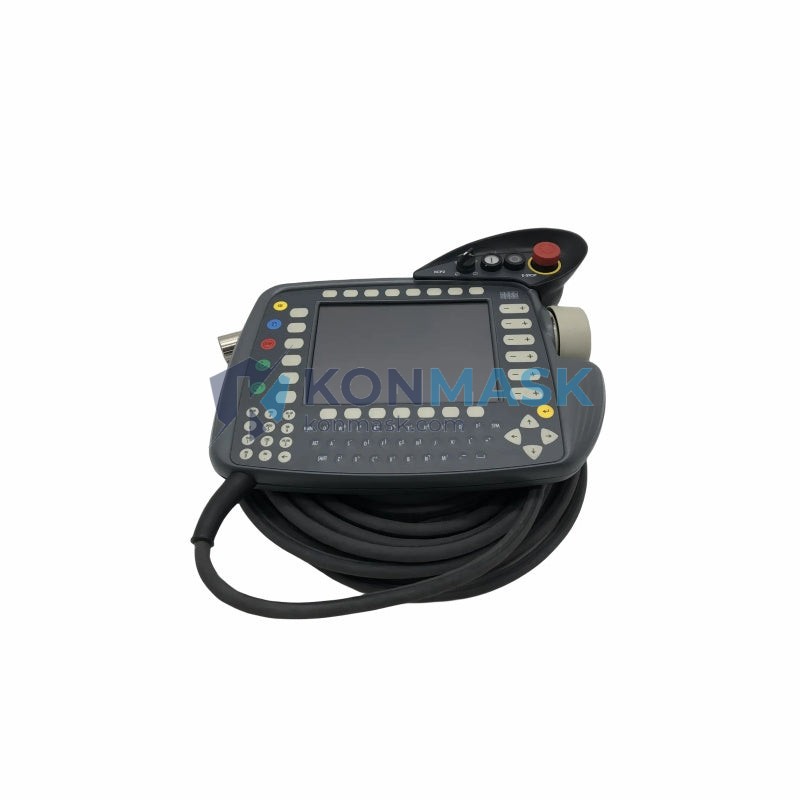

The KUKA 00-168-334 is an OEM HMI Teach Pendant Control Panel designed for KUKA robotic systems, primarily the KRC4 controller series. This unit serves as the primary human-machine interface for programming, jogging, and monitoring KUKA industrial robots. At Konmask.com, we specialize in sourcing genuine and compatible automation components to help engineers make confident selection decisions.
Technical Specifications
- Part Number: 00-168-334
- Manufacturer: KUKA Roboter GmbH
- Series: KRC4 HMI Teach Pendant
- Type: HMI Control Panel / Teach Pendant
- Display: Color touchscreen interface
- Communication Interface: Proprietary KUKA KRC4 bus
- Weight: Approx. 323 g
- Compatibility: KUKA KRC4, KRC4 compact, KRC4 smallsize controllers
- Condition Available: New, Refurbished, Exchange
Compatible Replacement & Equivalent Models
If the KUKA 00-168-334 is unavailable or out of budget, the following models may serve as direct or functional replacements depending on your controller firmware version:
- KUKA 00-168-334 — Original OEM unit (this listing)
- KUKA 00-130-051 — Earlier KRC4 teach pendant variant; verify firmware compatibility
- KUKA 00-177-547 — Upgraded SmartPAD variant for KRC4; check connector pinout
- KUKA SmartPAD-2 — Next-generation HMI; requires KRC4 firmware ≥ V8.3
- Third-party compatible teach pendants — Contact us for cross-reference validation
⚠ Always verify firmware version and connector type before substituting teach pendant models.
Why Choose the Original Model
- ✅ Full OEM compatibility — zero configuration risk with existing KRC4 systems
- ✅ Certified KUKA safety functions (enabling device, emergency stop) pre-validated
- ✅ Plug-and-play replacement — no firmware patching required for same-generation units
- ✅ Genuine KUKA part traceability for warranty and audit compliance
- ✅ Optimized ergonomics and display calibration for KUKA robot programming workflows
Typical Applications
- KUKA KRC4 industrial robot programming and jogging
- Automotive body-in-white welding and assembly lines
- Palletizing, material handling, and pick-and-place cells
- Collaborative robot (cobot) integration with KRC4 compact
- Spare/replacement unit for production line maintenance
System Compatibility
| Controller | Compatible | Notes |
|---|---|---|
| KUKA KRC4 | ✅ Yes | Primary target platform |
| KUKA KRC4 compact | ✅ Yes | Verify cable length |
| KUKA KRC4 smallsize | ✅ Yes | Check mounting bracket |
| KUKA KRC2 | ❌ No | Different connector standard |
| KUKA KRC5 | ⚠ Partial | Requires firmware validation |
Selection Guide
Use this guide to confirm the KUKA 00-168-334 is the right choice for your application:
- Step 1 — Identify your controller: Confirm your robot uses a KRC4 series controller (label on controller cabinet).
- Step 2 — Check firmware version: Navigate to KUKA smartHMI → About → Software version. KRC4 V8.x is fully supported.
- Step 3 — Verify connector type: The 00-168-334 uses the standard KRC4 SmartPAD connector. Compare with your existing cable.
- Step 4 — Assess condition requirement: For production-critical lines, specify New OEM. For backup/training units, Refurbished is cost-effective.
- Step 5 — Contact Konmask: Send your robot nameplate data (type, serial number, KRC version) for final confirmation.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and power-on test available on request
- Serialized traceability documentation provided
- Packaging: anti-static foam, double-boxed for international freight
- Lead time: In-stock units ship within 2 business days; sourced units 5–15 business days
How to Order
- Add KUKA 00-168-334 to cart and proceed to checkout, or
- Email [email protected] with your PO and robot nameplate details
- WhatsApp / Phone: +0086 19859288691 for urgent requirements
- Bulk / project orders: request a formal quotation with lead time and warranty terms
Replacement & Compatibility FAQ
Q: Can I use KUKA 00-168-334 on a KRC2 controller?
A: No. The KRC2 uses a different teach pendant connector and communication protocol. You need a KRC2-specific SmartPAD.
Q: Is the 00-168-334 the same as the KUKA SmartPAD?
A: Yes — 00-168-334 is the KUKA part number for the SmartPAD HMI unit used on KRC4 systems.
Q: Can a refurbished unit replace a failed teach pendant without reprogramming?
A: In most cases yes, as robot programs are stored on the KRC4 controller, not the teach pendant. Confirm with your KUKA service engineer.
Q: Do you provide a warranty?
A: Yes — 90-day functional warranty on all units. Extended warranty available on request.
Q: What is the lead time for out-of-stock units?
A: Typically 5–15 business days depending on sourcing region. Contact us for real-time availability.
