Genuine KUKA KSD1-16 KSD (KUKA Servo Drive) – KR C2 Platform - Industrial Automation Part

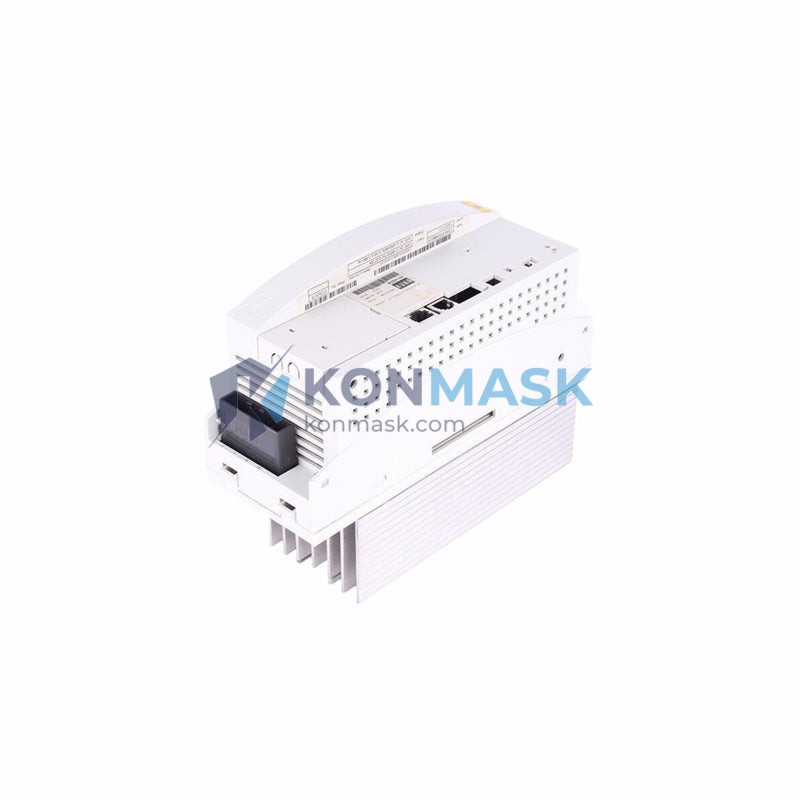

KUKA KSD1-16 Servo Drive | KR C2 Robot Controller Axis Module

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: KSD1-16 Category: KUKA Tags: Industrial Robot, KR C2, KSD1-16, KUKA, servo drive

Description

KUKA KSD1-16 Servo Drive – 16A Axis Drive Module for KR C2 Robot Controllers

When a servo drive fails on a KUKA robot production line, the entire cell stops. Every minute of unplanned downtime in automotive welding, palletizing, or precision assembly translates directly into lost output and escalating maintenance costs. The KUKA KSD1-16 is the axis-specific servo drive that keeps your KR C2-based robots running — and without a genuine, compatible replacement, getting back online can take days or weeks.

The KSD1-16 is a 16-ampere servo drive module designed exclusively for the KUKA KR C2 robot controller platform. Within the KSD series lineup — which spans from the compact KSD1-08 to the high-current KSD1-48 — the KSD1-16 occupies the mid-range position, making it the most widely deployed axis drive across KUKA’s KR 6, KR 16, and KR 30 robot families. Its global installed base in automotive, electronics, and general manufacturing makes it one of the most sought-after spare parts in the industrial robot aftermarket.

Technical Specifications

Part Number / SKU: KSD1-16
Brand: KUKA Roboter GmbH
Series: KSD (KUKA Servo Drive) – KR C2 Platform
Rated Output Current: 16 A
Compatible Controller: KUKA KR C2, KR C2 ed05
Drive Type: AC Servo Axis Drive Module
Weight: 1,380 g (approx.)
Mounting: DIN rail / cabinet-integrated slot mount
Communication Interface: KUKA proprietary KSB bus
Condition Available: New (OEM), Refurbished, Used-Tested

Key Features & Benefits

Axis-Dedicated Architecture: Each KSD1-16 controls a single robot axis, enabling precise torque and velocity regulation with minimal cross-axis interference.
Plug-and-Play Replacement: Direct drop-in replacement for failed KSD1-16 units in existing KR C2 cabinets — no firmware re-flashing required in most configurations.
Robust Thermal Design: Integrated heat sink and thermal protection circuitry ensure reliable operation in high-duty-cycle industrial environments.
Wide Robot Compatibility: Supports KUKA KR 6, KR 16, KR 30, KR 60, and other KR C2-platform robots depending on axis assignment.
Fast Fault Diagnostics: Onboard LED status indicators and KSB bus error reporting enable rapid fault isolation during maintenance.
Genuine OEM Quality: Sourced from verified supply channels; each unit undergoes functional verification before shipment.

Industry & Equipment Applications

Automotive Manufacturing: Spot welding, MIG/MAG welding, body-in-white assembly lines using KUKA KR 16 and KR 30 robots.
Electronics & Semiconductor: PCB handling, component placement, and precision dispensing cells.
Food & Beverage: High-speed palletizing and packaging lines with KUKA KR 6 robots.
Metal Fabrication: Press tending, laser cutting, and deburring automation.
Logistics & Warehousing: Robotic sorting and order-picking systems.

System Integration & Compatible Parts

The KSD1-16 operates within the KUKA KR C2 controller ecosystem. Commonly paired components include:

KPS-600 – KUKA Power Supply Unit (main cabinet PSU)
KSD1-08 – Lower-current axis drive for lighter axes (A4–A6)
KSD1-48 – High-current drive for heavy-payload axis 1
DSE-IBS – KUKA Drive System Electronics / interface board
KR C2 Cabinet – Complete controller enclosure
KUKA Teach Pendant (KCP2) – Programming and diagnostics interface

When replacing a KSD1-16, always verify the KSB bus address configuration and inspect the KPS-600 power supply for upstream faults before installation.

Our Quality Assurance Process

✅ Visual Inspection: All units checked for physical damage, burnt components, and connector integrity.
✅ Functional Power-On Test: Drive is energized and bus communication verified on a compatible KR C2 test bench.
✅ Parameter Verification: Axis configuration and firmware version documented and matched to order requirements.
✅ Anti-Static Packaging: Shipped in ESD-safe bags with foam padding inside double-wall cartons.
✅ Traceability: Each unit ships with a test report and serial number record.

How to Order

Submit an inquiry via the “Get a Quote” button or email [email protected].
Provide your robot model, controller serial number, and required quantity.
Receive a formal quotation with lead time and shipping options within 24 hours.
Confirm order and arrange payment via T/T, PayPal, or other agreed methods.
Unit ships with full documentation; tracking number provided same day.

Why Choose Konmask.com?

🌐 Global B2B Supplier specializing in KUKA, Siemens, ABB, Fanuc, and Yaskawa automation components.
📦 In-Stock & Ready to Ship – most items dispatched within 1–3 business days.
🔧 Technical Support – our engineers can assist with compatibility verification and installation guidance.
📋 Flexible MOQ – single-unit orders accepted; volume pricing available for MRO and OEM buyers.
🛡️ Warranty – all tested units carry a 90-day functional warranty.
✈️ Worldwide Shipping via DHL, FedEx, UPS, and sea freight for bulk orders.

Frequently Asked Questions

Q: Is the KSD1-16 compatible with the KR C2 ed05 controller?: A: Yes. The KSD1-16 is compatible with both the standard KR C2 and the KR C2 ed05 (edition 2005) variants, provided the KSB bus address is correctly configured.
Q: Can I use a KSD1-16 to replace a KSD1-08 on the same axis?: A: Not directly. The KSD series drives are current-rated for specific axes. Substituting a higher-rated drive requires verification of the motor’s rated current and the KPS-600 capacity. Contact our technical team before attempting cross-rating substitution.
Q: What is the lead time for a new OEM KSD1-16?: A: Refurbished and used-tested units typically ship within 1–3 business days. New OEM units may require 2–4 weeks depending on availability. Contact us for current stock status.
Q: Do you provide a warranty on used/refurbished KSD1-16 drives?: A: Yes. All refurbished and used-tested units carry a 90-day functional warranty covering drive failure under normal operating conditions.
Q: How do I identify a faulty KSD1-16?: A: Common symptoms include KSS error codes (e.g., KSS 00710, KSS 00720), axis-specific fault LEDs on the drive, or the robot controller reporting a drive communication timeout. Our team can assist with remote fault diagnosis.
