Multi-Axis Servo Motion Solution — Allen-Bradley 2094-BM05-M | Kinetix 6000 Series

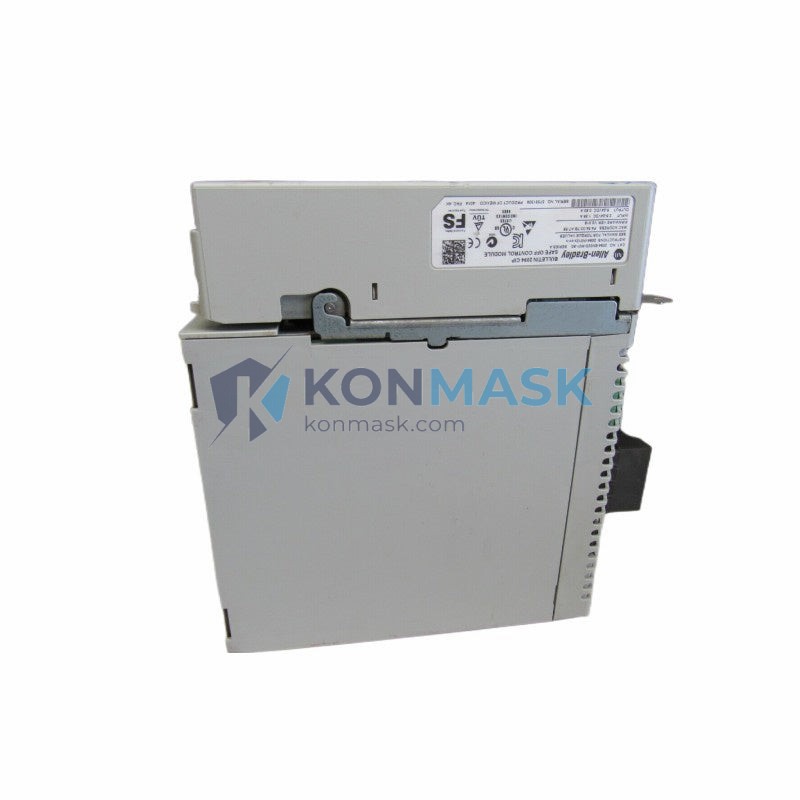

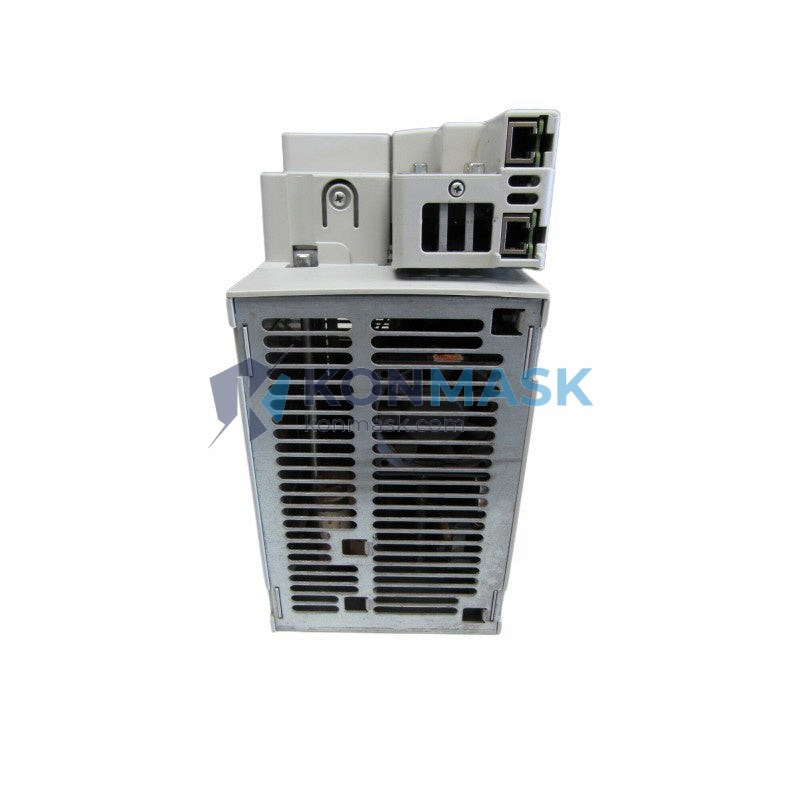

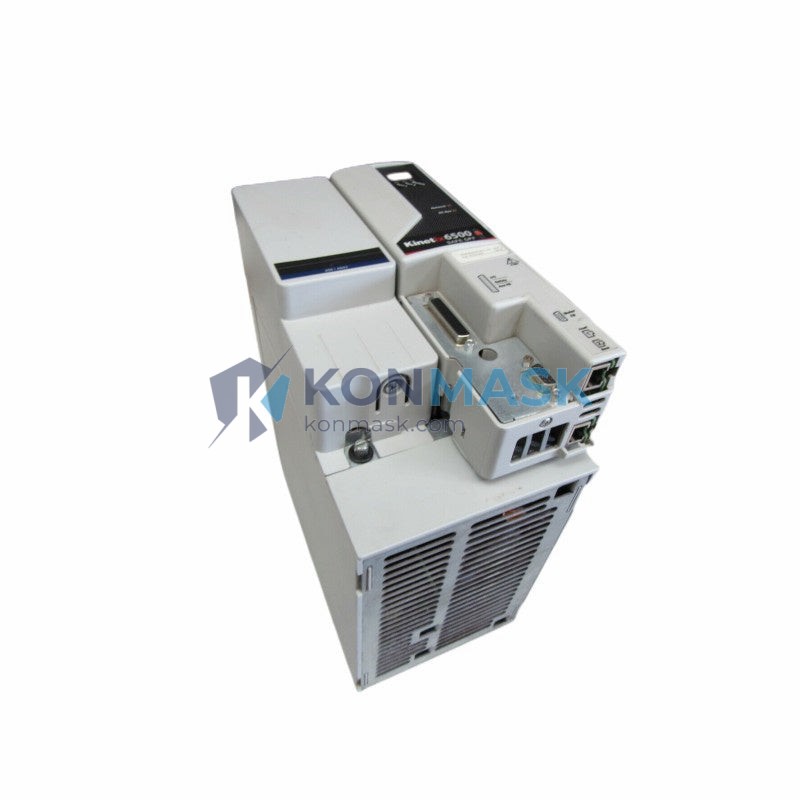

The Allen-Bradley 2094-BM05-M is a high-performance axis module within the Kinetix 6000 multi-axis servo drive family, engineered for demanding motion control applications where precision, throughput, and system integration are non-negotiable. Designed to mount on the 2094 series IAM/AM shared DC bus architecture, this module delivers coordinated multi-axis motion with deterministic control via EtherNet/IP and SERCOS interface.
Where This Product Is Used
The 2094-BM05-M is specified by motion engineers and system integrators across a wide range of industrial verticals:
- Automotive Assembly Lines — Coordinated servo motion for welding robots, transfer presses, and body-in-white handling systems requiring sub-millisecond synchronization.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning machines where multi-axis coordination directly impacts OEE.
- Printing & Converting — Web tension control and register mark tracking on flexographic and gravure presses.
- Semiconductor & Electronics Manufacturing — Precision gantry and XY stage control in SMT placement and wafer handling equipment.
- Material Handling & Conveyance — Synchronized multi-zone conveyor systems and palletizing cells.
- Food & Beverage Processing — Hygienic-environment servo motion for slicing, portioning, and packaging lines.
- Machine Tool & CNC — Axis interpolation for milling, grinding, and turning centers requiring tight contouring accuracy.
Technical Specifications
| Catalog Number | 2094-BM05-M |
| Series | Kinetix 6000 Multi-Axis Servo Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | Axis Module (AM) — Shared DC Bus |
| Continuous Output Current | 5 A RMS |
| Peak Output Current | 15 A RMS |
| DC Bus Voltage | Shared from IAM (2094-BC01-MP5 or equivalent) |
| Control Interface | SERCOS II / EtherNet/IP (via IAM) |
| Feedback Supported | Incremental Encoder, Absolute Encoder, Resolver |
| Motor Compatibility | MPL, MPM, MPS, TL, TLY Series Servo Motors |
| Mounting | 2094 Series Bulletin Power Rail |
| Ambient Temperature | 0 – 50 °C (operating) |
| Protection Rating | IP20 (panel-mount) |
| Weight | 5.44 kg |
| Certifications | UL, CE, cUL |
Why Engineers Specify This Model
- Shared DC Bus Architecture — Regenerative energy from decelerating axes is redistributed to accelerating axes on the same bus, reducing net energy consumption by up to 30% versus standalone drives.
- Compact Footprint — The 2094-BM05-M occupies minimal panel space while delivering 5 A continuous / 15 A peak, enabling dense multi-axis configurations in space-constrained enclosures.
- Deterministic Motion Coordination — SERCOS II interface provides microsecond-level synchronization across all axes on the power rail, critical for electronic gearing and camming applications.
- Seamless Studio 5000 Integration — Native integration with Logix Designer eliminates third-party motion configuration tools; axis tuning, scaling, and cam profiles are managed within a single programming environment.
- Broad Motor Compatibility — Supports the full Allen-Bradley servo motor portfolio including MPL, MPM, MPS, TL, and TLY series, with auto-identification via electronic nameplate (EEPROM).
- Proven Field Reliability — Kinetix 6000 has accumulated millions of operating hours across global installations; the 2094-BM05-M benefits from Rockwell’s mature firmware and extensive application library.
Complete System Bill of Materials
A complete Kinetix 6000 multi-axis system requires the following components alongside the 2094-BM05-M:
- Integrated Axis Module (IAM) — e.g., 2094-BC01-MP5 (provides AC input rectification, DC bus, and first axis control)
- 2094 Series Power Rail — e.g., 2094-PRF (4-slot) or 2094-PRS7 (7-slot); sized to total axis count
- Servo Motor — MPL-B430P-MK22AA or equivalent; matched to load inertia and torque requirements
- Feedback Cable — 2090-XXNFMF-Sxx (motor-to-drive feedback cable, shielded)
- Power Cable — 2090-XXNPMF-16Sxx (motor power cable)
- ControlLogix / CompactLogix Controller — 1756-L7x or 1769-L3x with SERCOS or EtherNet/IP motion module
- SERCOS Interface Module — 1756-M08SE (if using SERCOS II topology)
- 24 VDC Control Power Supply — 1606-XLP95E or equivalent (for drive control circuitry)
- Line Filter — 2094-XL75S-C1 (EMC compliance for CE-marked installations)
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment (North American market)
- cUL — Canadian equivalent listing
- CE Marking — Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)
- IEC 61800-3 — Adjustable Speed Electrical Power Drive Systems — EMC requirements
- IEC 61800-5-1 — Safety requirements for adjustable speed drive systems
- RoHS Compliant — Restriction of Hazardous Substances Directive
- REACH — Compliant with EU chemical substance regulations
Quality Assurance & Sourcing
Konmask.com sources the 2094-BM05-M through verified industrial distribution channels with full traceability. Every unit offered through our platform undergoes the following quality process:
- Visual & Physical Inspection — Enclosure integrity, connector condition, label authenticity, and firmware revision verification.
- Functional Verification — Where applicable, units are bench-tested for power-up self-diagnostics and communication response prior to dispatch.
- Authenticity Screening — Serial number cross-reference against known counterfeit indicators; sourced from authorized or traceable secondary-market channels only.
- Secure Packaging — Anti-static packaging with shock-absorbing foam inserts; humidity indicator cards included for long-haul shipments.
- Documentation — Certificate of conformance and inspection report available upon request.
How to Source This Part
- Confirm your system configuration — Identify your existing IAM catalog number, power rail slot count, and motor series to ensure compatibility.
- Verify firmware revision requirements — Check your ControlLogix firmware version against the Kinetix 6000 compatibility matrix (Rockwell Publication 2094-TD002).
- Submit an inquiry — Contact us at support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive quotation & lead time — We respond within 1 business day with pricing, availability, and estimated ship date.
- Place order & track shipment — Orders are processed with full tracking; express DHL/FedEx options available for urgent requirements.
Application-Specific FAQ
Q: Can the 2094-BM05-M operate as a standalone drive without an IAM?
A: No. The 2094-BM05-M is an Axis Module that requires a 2094 series Integrated Axis Module (IAM) to provide AC-to-DC rectification and shared bus power. It cannot operate independently.
Q: How many 2094-BM05-M modules can share a single power rail?
A: The number of axis modules is limited by the power rail slot count (up to 7 slots on a 2094-PRS7) and the total continuous current capacity of the IAM. Always verify total axis current draw against IAM rated output.
Q: Is this module compatible with EtherNet/IP motion (CIP Motion)?
A: The Kinetix 6000 series uses SERCOS II as its primary motion interface. For CIP Motion over EtherNet/IP, consider the Kinetix 6500 (2094-EN02D-M01-S1) or Kinetix 5700 series instead.
Q: What is the typical lead time for the 2094-BM05-M?
A: Stock availability varies. Contact us directly for real-time inventory status. For in-stock units, standard shipping is 3–7 business days internationally.
Q: Can Konmask provide a warranty on this part?
A: Yes. We offer a 90-day functional warranty on all units. Extended warranty options are available upon request.
Q: Do you supply the complete Kinetix 6000 system (IAM + AM + power rail)?
A: Yes. We can source complete system kits or individual components. Provide your full BOM and we will quote the entire system.
