LAM RESEARCH ECM01.1-PB01-NN OM80-HC12-V7 – Drive Controller Accessory Module | Semiconductor Equipment Platform
Engineering Background

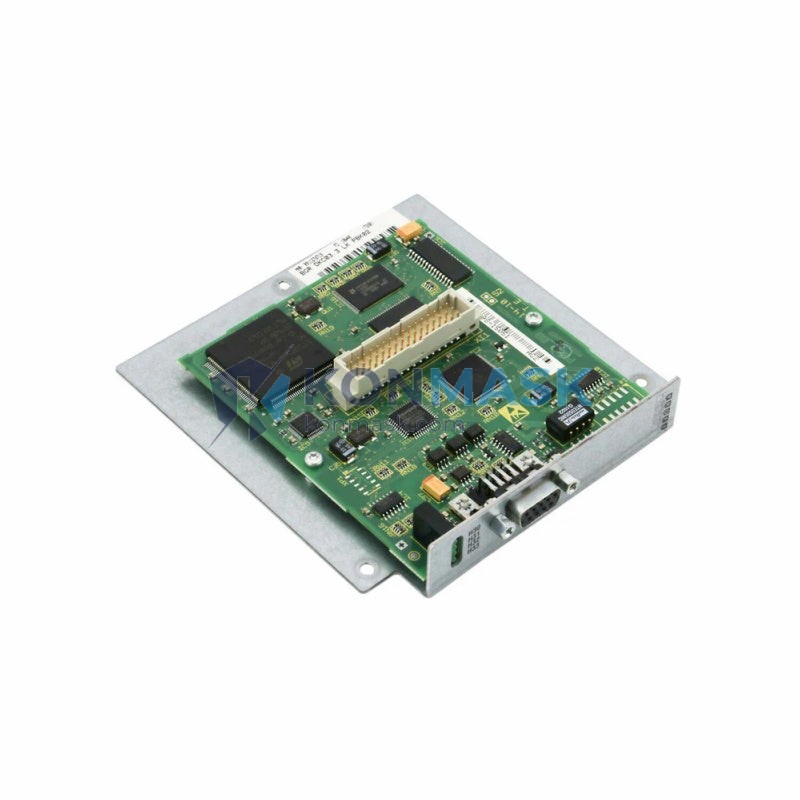

The ECM01.1-PB01-NN is a drive controller accessory module manufactured by LAM RESEARCH, one of the world’s leading suppliers of semiconductor wafer fabrication equipment and services. This module carries the internal part number 0242-30288 and is identified by the configuration code OM80-HC12-V7, indicating its specific hardware revision and interface variant within the LAM RESEARCH drive control architecture.
Product Positioning
Designed for integration into LAM RESEARCH etch and deposition systems, this accessory module supports the drive control subsystem responsible for precise motion, power delivery, and process coordination. It is a critical spare and replacement component for fab engineers maintaining uptime on LAM RESEARCH platforms. Konmask.com supplies this part from verified surplus and refurbished inventory, enabling procurement teams to source hard-to-find modules with confidence.
Complete Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | LAM RESEARCH |
| Part Number | ECM01.1-PB01-NN |
| Internal P/N | 0242-30288 |
| Configuration Code | OM80-HC12-V7 |
| Product Type | Drive Controller Accessory Module |
| Platform | LAM RESEARCH Semiconductor Equipment |
| Hardware Revision | V7 |
| Interface Type | HC12 |
| Output Class | OM80 |
| Mounting | Module / Board-level |
| Weight | 2,600 g (approx.) |
| Condition | Surplus / Refurbished (tested) |
| Shipping | Worldwide — EXW Xiamen, China |
Proven Application Environments
- LAM RESEARCH Kiyo, Flex, and Versys etch systems
- LAM RESEARCH SPEED and Altus CVD/ALD deposition platforms
- Drive control subsystem maintenance and emergency replacement
- Semiconductor fab MRO (Maintenance, Repair & Operations) programs
- OEM-equivalent spare parts programs for 200mm and 300mm wafer fabs
Engineering Advantages
- OEM-Matched Configuration: Part number ECM01.1-PB01-NN with P/N 0242-30288 ensures direct compatibility with LAM RESEARCH BOM specifications.
- Hardware Revision V7: Latest identified revision in this module family, incorporating accumulated engineering improvements.
- Reduced Lead Time: Surplus stock available for immediate dispatch — eliminates 12–26 week OEM lead times.
- Tested & Verified: Each unit undergoes functional inspection prior to shipment.
- Global Logistics: Shipped with full commercial invoice, packing list, and ESD-safe packaging.
System Architecture & Signal Flow
Within the LAM RESEARCH drive control architecture, the ECM01.1-PB01-NN module interfaces between the system controller backplane and the downstream drive output stage. The OM80 output class designates the power/signal output rating, while HC12 specifies the hardware communication interface standard used for inter-module signaling. The V7 hardware revision reflects the board-level component and firmware baseline. This module is typically seated in a dedicated slot within the drive controller chassis and communicates via the LAM RESEARCH proprietary backplane bus.
Sourcing & Quality Verification
- All units sourced from decommissioned fab equipment or authorized surplus channels.
- Visual inspection: PCB, connectors, and housing integrity verified.
- Functional test performed where applicable.
- ESD-safe anti-static packaging with foam cushioning for international transit.
- Certificate of conformance available upon request.
- 30-day return policy for DOA (Dead on Arrival) units.
Procurement Process
- Submit your RFQ or place order directly on Konmask.com.
- Receive proforma invoice within 1 business day.
- Payment via T/T (wire transfer), PayPal, or credit card.
- Shipment within 3–5 business days via DHL / FedEx / UPS with tracking.
- Post-delivery technical support available via email or WhatsApp.
Technical FAQ
Q: Is this module compatible with my specific LAM RESEARCH system?
A: Please provide your system model and BOM reference. Our engineers will confirm compatibility before shipment.
Q: What is the warranty?
A: We offer a 90-day warranty against manufacturing defects and DOA conditions. Extended warranty available on request.
Q: Can you provide a datasheet or test report?
A: Available documentation will be shared upon order confirmation. Contact support@konmask.com for pre-sale technical inquiries.
Q: Do you accept purchase orders from fabs or EMS companies?
A: Yes. We work with procurement teams, MRO managers, and EMS providers globally. Net-30 terms available for qualified accounts.
