LENZE 8400 PROTEC P30GAH90300F3G0XXX-02S3C018000 Resistive Single-Touch HMI | Replacement, Equivalent & Selection Guide

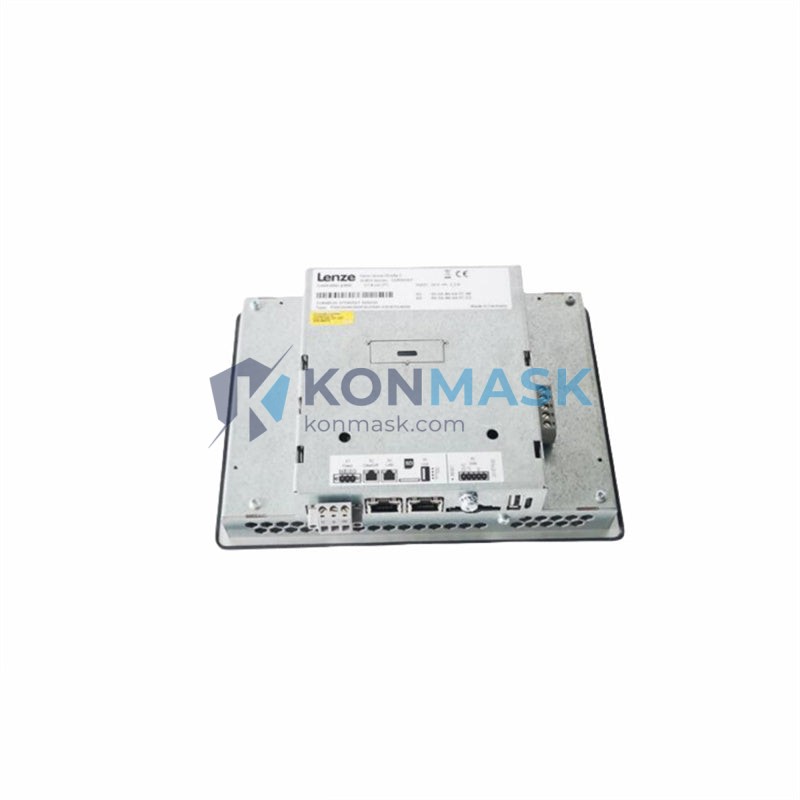

The LENZE 8400 PROTEC P30GAH90300F3G0XXX-02S3C018000 is a resistive single-touch HMI (Human-Machine Interface) panel designed for integration with the LENZE 8400 PROTEC series of frequency inverters and drive systems. This panel provides operators with intuitive local control, parameter configuration, and real-time diagnostics for industrial automation environments. At Konmask.com, we supply both original units and guide engineers through compatible replacement and equivalent selection.
Technical Specifications
- Manufacturer: LENZE
- Series: 8400 PROTEC
- Part Number / SKU: P30GAH90300F3G0XXX-02S3C018000
- Interface Type: Resistive Single-Touch
- Compatible Drive Series: LENZE 8400 PROTEC
- Function: Local HMI operator panel for parameter setting, monitoring, and diagnostics
- Weight: 1,250 g (approx.)
- Mounting: Panel-mount, front-face installation
- Communication: Integrated with 8400 PROTEC drive bus
- Protection Class: IP65 front panel (typical for PROTEC series)
- Operating Temperature: 0 °C to +55 °C
- Power Supply: Supplied via drive unit
Compatible Replacement & Equivalent Models
When the original P30GAH90300F3G0XXX-02S3C018000 is unavailable or discontinued, the following models may serve as functional replacements or equivalents. Always verify electrical and mechanical compatibility before installation:
- LENZE E82ZBBXC – Keypad operator panel for 8200/8400 series (basic parameter access)
- LENZE E82ZBBXC100 – Enhanced keypad with display for 8400 series drives
- LENZE EPMS-HMI series – Advanced touch HMI panels compatible with LENZE drive systems
- Siemens SIMATIC HMI KTP400 Basic – Universal resistive touch panel (requires custom integration)
- Weintek MT6070iH – Third-party resistive HMI with LENZE drive protocol support
Note: Third-party replacements require protocol configuration. Contact our engineers for compatibility verification.
Why Choose the Original Model
- Plug-and-Play Integration: Factory-matched to the 8400 PROTEC drive — zero configuration required
- Full Parameter Access: Access all drive parameters, fault codes, and diagnostic data natively
- Firmware Compatibility: Guaranteed compatibility with all 8400 PROTEC firmware versions
- Warranty Preservation: Using OEM parts maintains your LENZE drive warranty
- Reduced Downtime: Immediate swap-in replacement with no re-programming
- Long-Term Support: LENZE provides ongoing firmware and software updates for original panels
Typical Applications
- Conveyor and material handling systems
- Pump and fan drive control stations
- Packaging machinery operator interfaces
- HVAC and building automation drive panels
- Crane and hoist control systems
- Food & beverage processing lines
- Water treatment and utility plant drives
System Compatibility
The P30GAH90300F3G0XXX-02S3C018000 is designed exclusively for the LENZE 8400 PROTEC drive series. Confirm your drive model before ordering:
- LENZE 8400 PROTEC E84AVSCE / E84AVSCA series
- LENZE 8400 PROTEC StateLine and HighLine variants
- LENZE 8400 PROTEC TopLine with extended I/O
Not compatible with: LENZE 8200 vector, LENZE i550, or LENZE i700 series without adapter modules.
Selection Guide
Use the following criteria to confirm this is the correct HMI panel for your application:
- Step 1 – Confirm Drive Series: Verify your drive is LENZE 8400 PROTEC (check nameplate)
- Step 2 – Check Interface Requirement: Resistive single-touch is standard; capacitive touch requires a different SKU
- Step 3 – Verify Mounting Cutout: Confirm panel cutout dimensions match P30GAH90300F3G0XXX-02S3C018000 datasheet
- Step 4 – Firmware Version: Ensure drive firmware is compatible (consult LENZE documentation or contact us)
- Step 5 – Environment Rating: Confirm IP65 front protection meets your installation environment requirements
Unsure? Send us your drive nameplate photo and we will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock
- Inspection: Each unit undergoes visual and functional pre-shipment inspection
- Authenticity: Original LENZE packaging and labeling preserved where available
- Traceability: Batch and serial number records maintained for all shipments
- Warranty: 12-month warranty against manufacturing defects
How to Order
- Online: Add to cart directly on this page
- Email: [email protected] with your PO or inquiry
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days; sourced units 7–15 business days
- Shipping: Worldwide DHL / FedEx / UPS with full tracking
- Payment: T/T, PayPal, credit card accepted
Replacement & Compatibility FAQ
Q: Can I use a third-party HMI panel to replace the P30GAH90300F3G0XXX-02S3C018000?
A: Yes, but it requires custom protocol configuration. We recommend the original for zero-downtime replacement.
Q: Is this panel compatible with LENZE 8400 StateLine drives?
A: Yes, the 8400 PROTEC HMI panel is compatible with StateLine, HighLine, and TopLine variants of the 8400 PROTEC series.
Q: What is the difference between resistive and capacitive touch for this application?
A: Resistive touch works with gloves and in wet/dusty environments — ideal for industrial use. Capacitive touch requires bare fingers and is better suited for clean-room or office environments.
Q: Can I order just the panel without the drive?
A: Yes. The P30GAH90300F3G0XXX-02S3C018000 is available as a standalone spare part.
Q: Do you provide a certificate of conformity?
A: Yes, available upon request for all orders.
