Industrial Power Solution – LUMINA POWER LPS-10000-250-40 | LPS Series
Where This Product Is Used

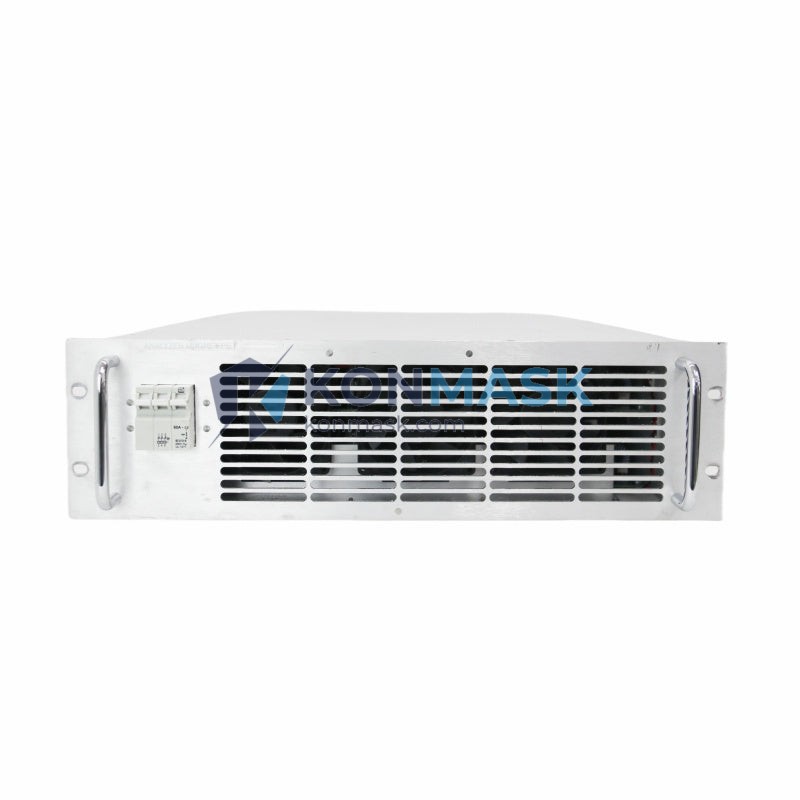

The LUMINA POWER LPS-10000-250-40 (Part No. 11001381, Cross-ref: EX9699545 / 715-11005-001) is a high-output industrial power supply engineered for demanding automation and control environments. Typical deployment scenarios include:
- PLC & DCS Control Panels – Provides stable 250 V DC bus power to programmable logic controllers and distributed control system backplanes.
- Semiconductor & Laser Processing Equipment – Supplies precision high-voltage power to laser drivers, ion sources, and RF generators where output ripple must be minimized.
- Industrial Motor Drive Systems – Acts as a front-end bulk power stage for servo amplifiers and variable-frequency drives in CNC machining centers and robotic cells.
- Test & Measurement Racks – Powers high-voltage instrumentation in burn-in chambers, ATE systems, and environmental test equipment.
- Medical & Scientific Imaging – Supports X-ray generators, CT scanner subsystems, and electron-beam instruments requiring regulated high-voltage rails.
Technical Specifications
- Manufacturer: LUMINA POWER
- Model / SKU: LPS-10000-250-40
- Part Number: 11001381
- Cross-Reference: EX9699545 | 715-11005-001
- Series: LPS (High-Voltage Programmable Power Supply)
- Output Voltage: 250 V DC
- Output Current: 40 A
- Output Power: 10,000 W (10 kW)
- Input Voltage: 3-phase AC (contact us for exact input range)
- Form Factor: Rack-mount / Panel-mount
- Weight: 2.6 kg (approx.)
- Cooling: Forced-air / convection (model-dependent)
- Interface: Analog / RS-232 / optional GPIB (series-dependent)
Why Engineers Specify This Model
- 10 kW Output Power – Handles high-current loads without derating, reducing the need for parallel supply configurations.
- Precision Voltage Regulation – Low ripple and tight load regulation ensure process repeatability in sensitive applications.
- Programmable Output – Voltage and current setpoints can be adjusted via analog control or digital interface, enabling automated test sequences.
- Rugged Industrial Design – Built to operate continuously in harsh factory environments with wide temperature tolerance.
- Multi-Reference Compatibility – Stocked and cross-referenced under EX9699545 and 715-11005-001 for seamless BOM substitution.
Complete System Bill of Materials
For a complete high-voltage power distribution system, engineers typically pair this unit with:
- Input EMI filter / line reactor (3-phase, matched kVA rating)
- Circuit breaker or fused disconnect switch (appropriately rated)
- Output bus bar or terminal block assembly
- Shielded output cabling (rated ≥ 300 V, 40 A)
- Remote programming interface cable (RS-232 / GPIB)
- DIN-rail mounting bracket or 19″ rack shelf
- Cooling fan tray (if installed in enclosed enclosure)
Contact support@konmask.com for full BOM assistance and compatible accessories.
Compliance & Industry Standards
- CE Marking (Low Voltage Directive)
- UL / cUL Listed (series-level certification – verify with datasheet)
- RoHS Compliant
- IEC 61010-1 Safety for Electrical Equipment in Measurement, Control, and Laboratory Use
- ISO 9001 Manufacturing Quality System
Quality Assurance & Sourcing
Every unit shipped by Konmask.com undergoes the following verification process:
- Visual inspection against OEM reference images and label verification (PN 11001381 / EX9699545 / 715-11005-001)
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable supply chain – sourced from authorized distributors or verified surplus channels
- Certificate of Conformance available upon request
How to Source This Part
- Add to Cart – Click “Buy it now” or “Add to cart” above for immediate checkout.
- Request a Quote – Email support@konmask.com with your PO number, required quantity, and delivery deadline.
- Bulk / OEM Orders – Volume pricing available for orders of 3+ units. Contact us for a tiered quote.
- Expedited Shipping – DHL / FedEx international express available. Typical lead time: 3–7 business days.
- Phone / WhatsApp: +0086 19859288691
Application-Specific FAQ
Q: Can the LPS-10000-250-40 be used in a redundant (N+1) configuration?
A: Yes. The LPS series supports parallel operation with optional ORing diode modules. Contact us for configuration guidance.
Q: What is the output voltage accuracy?
A: Typically ±0.1% of full-scale output. Refer to the official LUMINA POWER datasheet for guaranteed specifications.
Q: Is this unit compatible with 50 Hz and 60 Hz input?
A: The LPS series is designed for universal AC input frequency. Confirm with the datasheet for your specific input voltage range.
Q: Do you provide a warranty?
A: Konmask.com offers a 90-day functional warranty on all verified units. Extended warranty available upon request.
Q: Can I get a datasheet or test report?
A: Yes. Email support@konmask.com with your inquiry and we will provide available documentation.
